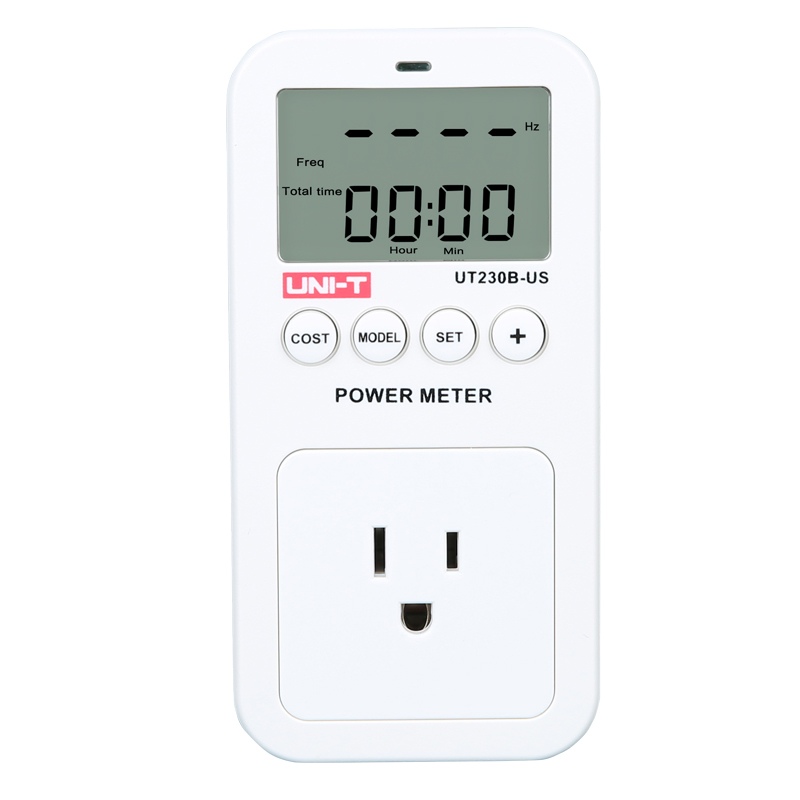

UT230B-US/UK/IND Power Sockets

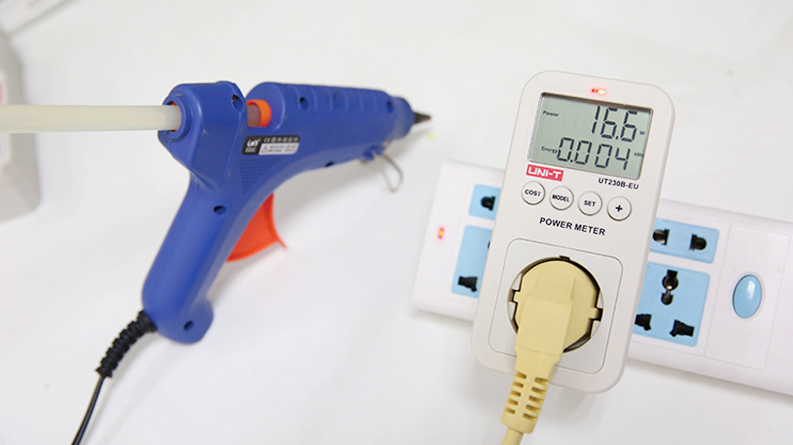

UT230B series power sockets can be inserted to monitor operation status (voltage, current, time, and power consumption) of electrical appliances. The socket jacks are designed to meet the needs of different regions with proper certifications. UT230B series are ideal tools for maintaining equipment power consumption and managing energy saving in homes, offices, schools, and other places.

Models: UT230B-US, UT230B-UK, UT230B-IND

Get a quote

Data Sheet

Download Resources

Key Features

Features

● Portable

Technical Specification

Features
Specifications	Range	UT230B-US	UT230B-UK	UT230B-IND
Voltage	100V~260V	±1%	±1%	±1%
Current	0A~6A			±1%
	0A~13A		±1%
	0A~16A	±1%
Frequency	45Hz~65Hz	√	√	√
Power	1~3680W	±1%
	0.5~1380W			±1%
	1~2990W		±1%
Power factor	0~1	±2%	±2%	±2%
Energy consumption	0~9999kWh	±1%	±1%	±1%
Unit price of electricity	0~99.99 ($/kWh)	√	√	√
Accumulative time	0 minute~9999 days	√	√	√
Accumulative charge	0~9999$	√	√	√
CO2 display	0~9999kg	√	√	√
Power consumption	<0.4W	√	√	√
Overload indication		>16A	>13A	>6A
General Characteristics
Power	3V button battery
Display	48mm x 30.5mm
Product color	White
Product net weight	UT230B-US:140g; UT230-UK/UT230B-IND:155g
Product size	130mm x 65mm x 37mm
Standard accessories	Battery
Standard individual packing	Blister, English manual
Standard quantity per carton	UT230B-US/UT230B-UK: 48pcs; UT230B-IND: 40pcs
Standard carton measurement	UT230B-US:445mm X405mm X 395mm
	UT230B-UK: 475mm x 460mm x 395mm
	UT230B-IND: 390mm x 310mm x 305mm
Standard carton gross weight	UT230B-US: 11.7kg; UT230B-IND: 8.4kg

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔
