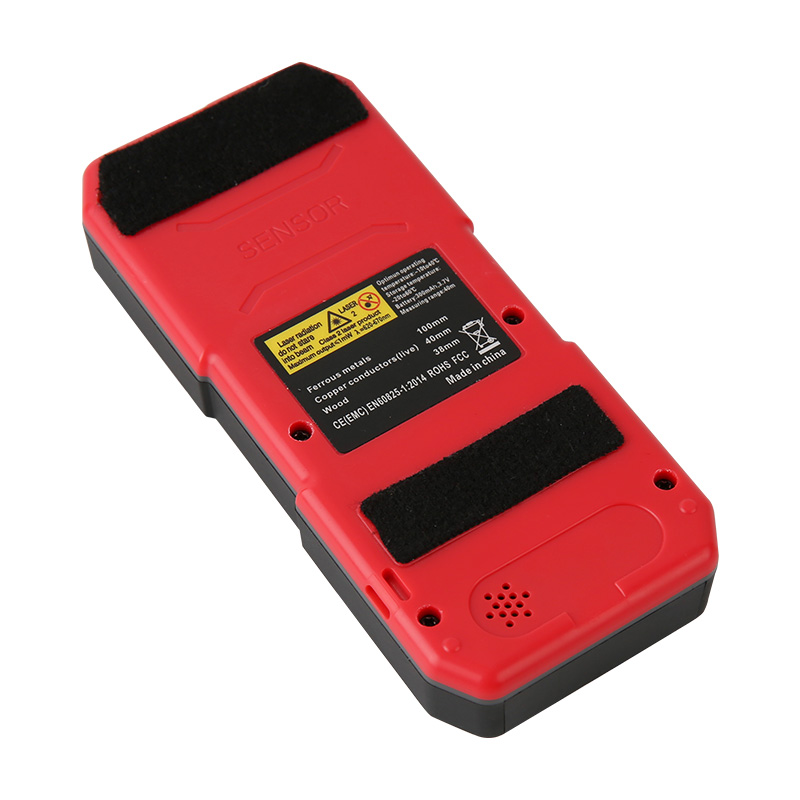

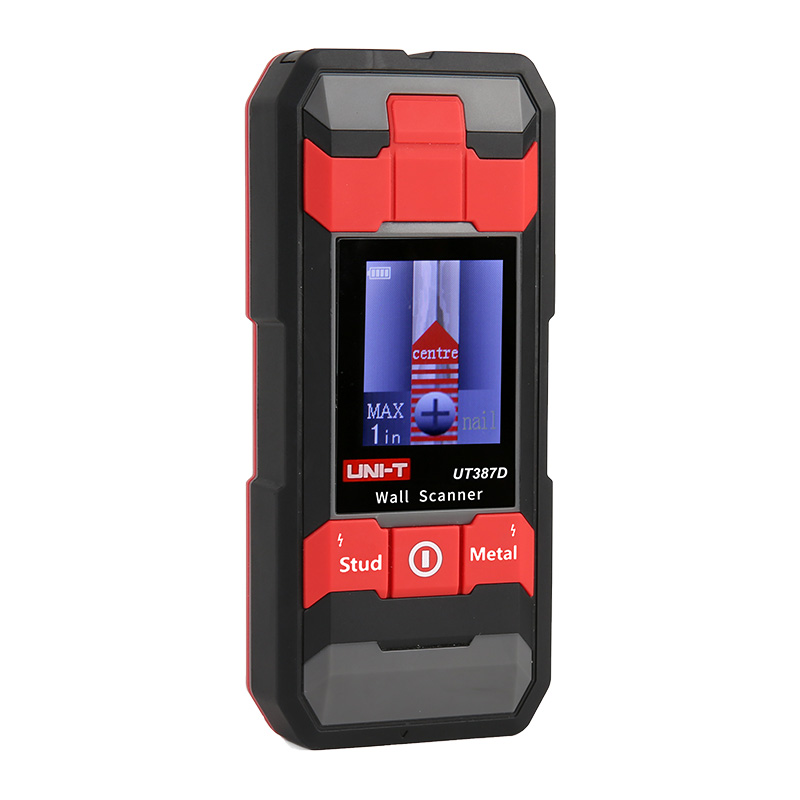

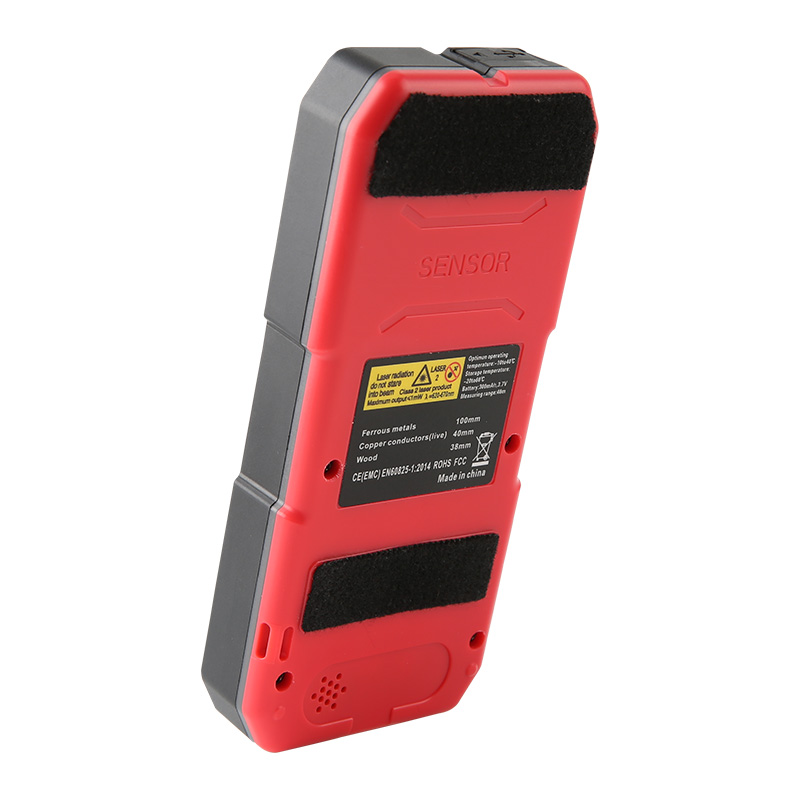

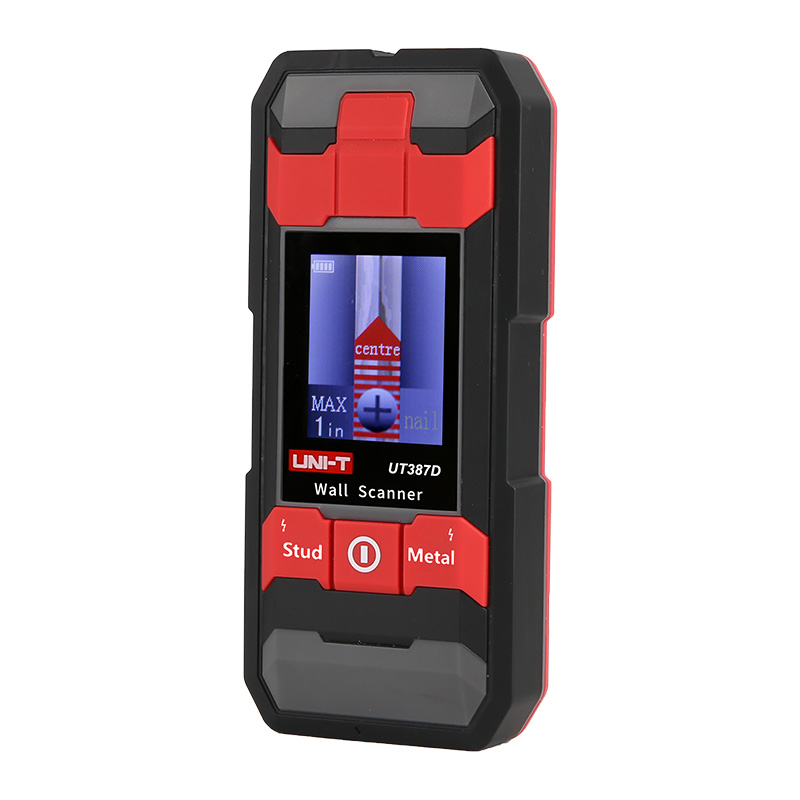

UT387D Wall Scanners
UT387D wall scanners enable you to detect electric wire, metal objects, and wooden beams accurately. The new and improved wall scanners are great tools for interior finish, renovation, furniture installation, flooring, pipe installation, and building construction.
Key Features
Features
● Buzzer indication
● Auto power off
● Error calibration alarm
● LED alarm
● Low battery indication
Model
UT387C
Technical Specification
| Specifications | UT387C | UT387D |
| Certificates | CE, RoHS, FCC | |
| Detect principle | Electromagnetic induction | Electromagnetic induction |
| Detects | Wooden beam, metal object, electric wire | Wooden beam, metal object, electric wire |
| Metal-scan depth | 76mm | 100mm @iron pipe; 80mm @brass pipe |
| Stud-scan depth (wood) | 28.5mm | 38mm |
| Thick-scan depth (wood) | 38mm | |
| AC electric wire depth | 51mm | 50mm |
| Detect accuracy | ±15mm @28.5mm depth drywall | ±15mm @28.5mm depth drywall |
| Calibration error alarm | ✔ | |
| Notifications | LED/buzzer | Voice |
| General Characteristics | ||
|---|---|---|
| Power | UT387C: 9V battery (6F22); UT387D: 3.7V 300mAh Li-ion | |
| Product net weight | UT387C: 247g; UT387D: 112g | |
| Product size | UT387C: 170mm x 70.5mm x 38.9mm; UT387D: 135 x 60mm x 25mm | |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

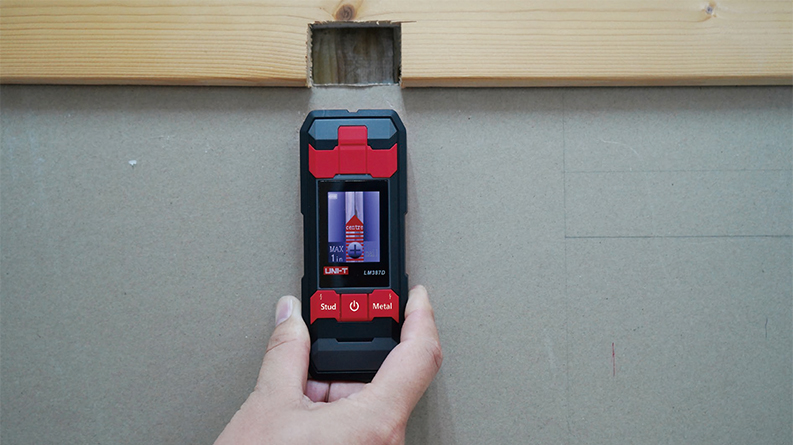

Application
