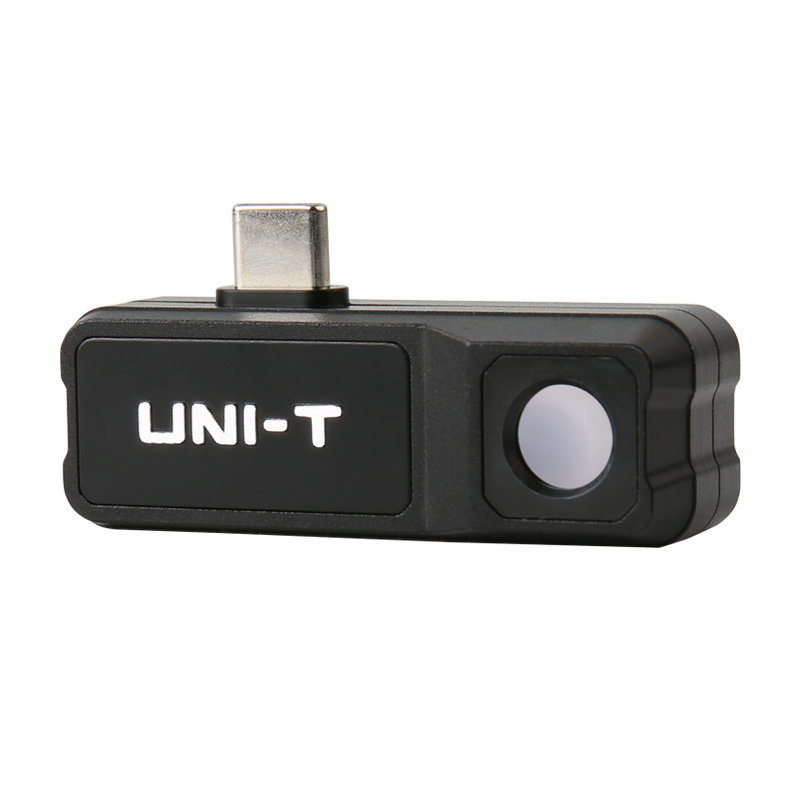

UTi120M
Smartphone Thermal Camera Module for Android

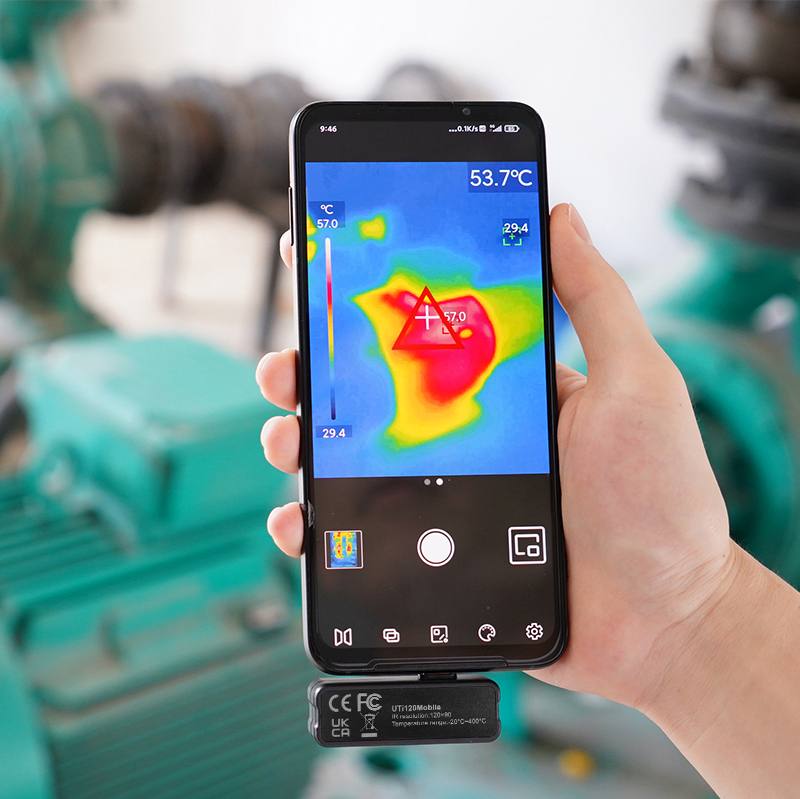

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
120×90
IR Resolution
-20℃ ~ 400℃
Temperature Range
≤60mK
Thermal Sensitivity
50°×38°
Field of View (FOV)
≤25Hz
Frame Rate
Smartphone Display
Display
FEATURES
IR resolution: 120×90
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Auto alarm for high/low temperature
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Auto tracking for hot spot/cold spot
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Image capture
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Model | UTi120M |
|---|---|
| Key Points | |
| Infrared Resolution | 120×90 |
| Temperature Measurement Range | -20℃~400℃ |
| Technical Details | |
| Frame Rate | ≤25Hz |
| NETD | ≤60mK @25℃ |
| Focus | Focus Free |
| Spectral Range | 8~14µm |
| Pixel Size | 17µm |
| Super Resolution | 240×180 |
| Lens | Standard |
| Lens Focal Length | 2.28mm |
| FOV | 50°(H) × 38°(V) |
| IFOV | 7.3mrad |
| Accuracy | ±2℃ or ±2% |
| Features | |

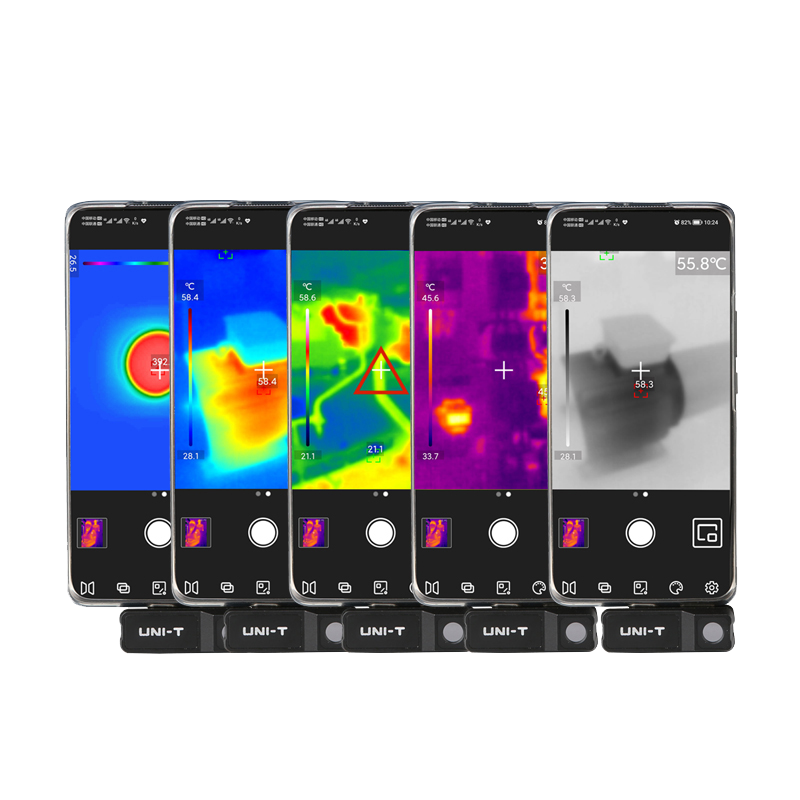

| Color Palette | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Image Mode | Thermal, Fusion, PIP |
| On Screen Analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| HI/LO Temperature Alert | LCD Animation |
| HI/LO Temperature Tracking | ✔ |
| Video Recording | ✔ |
| Analysis Software | APP |
| General | |
| Battery | Battery-Free |
| Power Supply System | Powered by connected device |
| USB | Type-C |
| Image Format | JPG |
| Video Format | MP4 |
| Certificates | CE, UKCA, FCC, RoHS |
| Language | ZH, EN |
| Weight | 25g |
| Dimension | 53mm×18.2mm×18.5mm |
