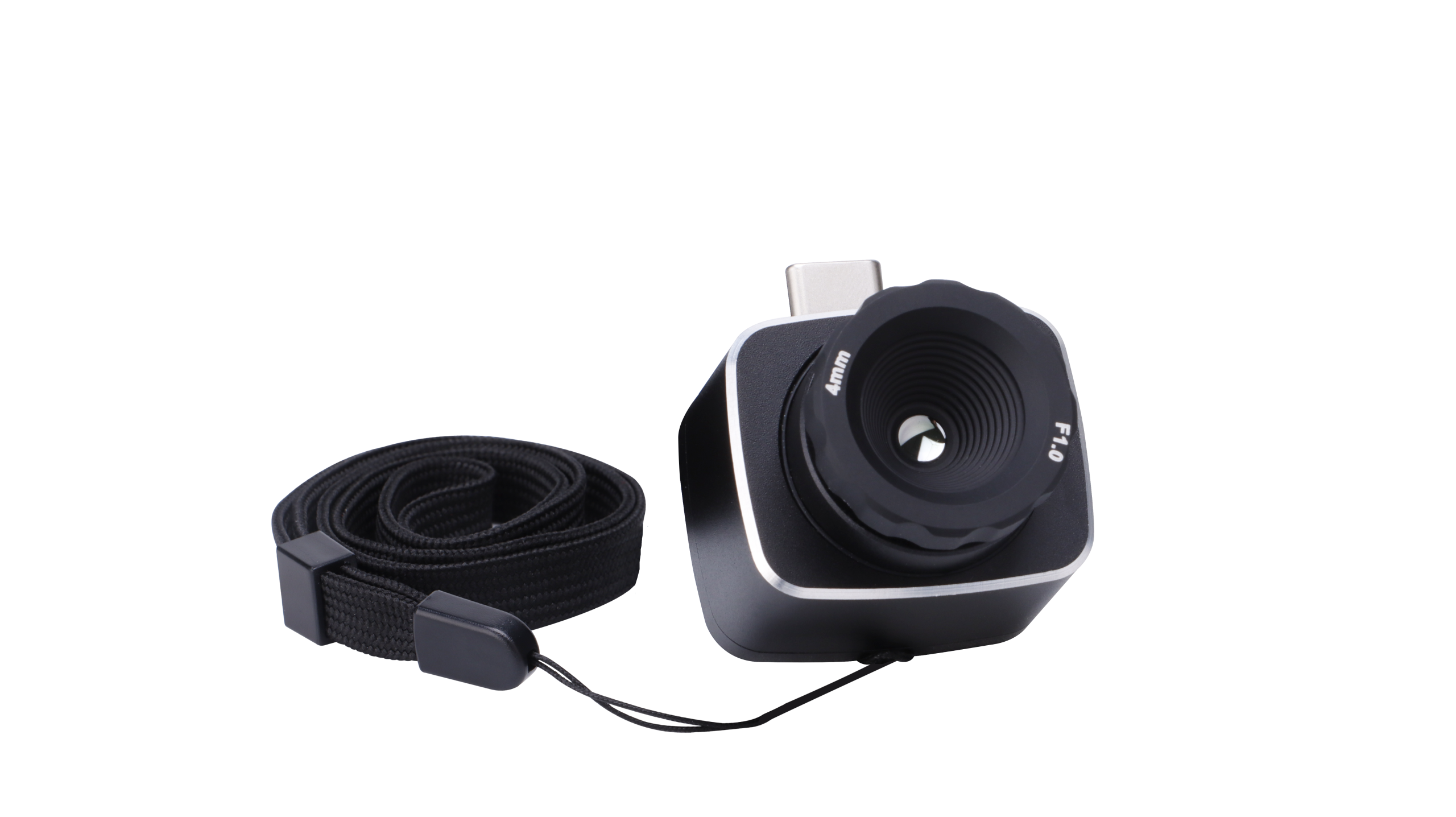

UTi722M
Smartphone Thermal Camera Module for Android
UTi722M transforms your smartphone into a thermal camera instantly. Its most prominent bright feature is the 4.0mm adjustable lens, which meets your needs of measuring the targets near or far. Plug & play with the user-friendly mobile APP “Thermal Mobile”, the practical functions comparable to professional thermal cameras. UTi722M is a desirable tool for HVAC, home life and adventure travel. lovers, engineers, contractors and builders, etc.
256×192
IR Resolution
-20℃~450℃
Temperature Range
≤50mK
Thermal Sensitivity
44.92°×33.42°
Field of View (FOV)
≤25Hz
Frame Rate
Smartphone Display
Display
FEATURES
Portable & convenient
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Manual focus
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Plug & play with "Thermal Mobile" mobile APP
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
IR resolution: 256×192 pixels
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
On screen analyzer
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Temperature alarm
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Model | UTi722M |
|---|---|
| Key Points | |
| Infrared Resolution | 256×192 |
| Temperature Measurement Range | -20℃~450℃ |
| Technical Details | |
| Frame Rate | ≤25Hz |
| NETD | ≤50mK @25℃ |
| Focus | Manual Focus |
| Spectral Range | 7.5~14µm |
| Pixel Size | 12µm |
| Super Resolution | 512×384 |
| Lens | Standard |
| Lens Focal Length | 4.0mm |
| FOV | 44.92°(H) × 33.42°(V) |
| IFOV | 3.0mrad |
| Accuracy | Industrial: ±2° or ±2% (0℃~450℃) EST Screening: ±0.5° (30℃~40℃) |
| Features | |
| Color Palette | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Image Mode | Thermal, Fusion, PIP |
| On Screen Analyzer | 3 Points/3 Lines/3 Rectangles |
| Isotherm | Auto/Below/Above/Section/Manual |
| HI/LO Temperature Alert | LCD Animation & Buzzer |
| HI/LO Temperature Tracking | ✔ |
| Digital Zoom | 1x~4x Continuous |
| Video Recording | ✔ |
| Analysis Software | APP |
| General | |
| Battery | Battery-Free |
| Power Supply System | Powered by connected device |
| USB | Type-C |
| Image Format | JPG |
| Video Format | MP4 |
| Certificates | CE, UKCA, FCC, RoHS |
| Language | ZH, EN, FR, DE, IT, ES, SV |
| Weight | 30g |
| Dimension | 29.5mm×24.5mm×29.5mm |
