MSO3000HD

The MSO3000HD is a high-resolution oscilloscope that integrates 4 signal channels, a 16-channel logic analyzer, and a 2-channel arbitrary waveform generator. Equipped with R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution). It features a maximum sampling rate of 2.5 GSa/s, a memory depth of 500 Mpts, and a waveform capture rate of 1,500,000 wfms/s, ensuring high-quality waveform analysis.
The MSO3000HD supports 12 types of trigger events and 12 types of protocol data, and it can be remotely controlled via a WebServer. It is suitable for various testing and analysis tasks in fields such as medical, low-power devices, integrated circuits, high-precision power supplies, electricity, and automotive electronics. The MSO3000HD is a versatile and powerful instrument.

200 MHz~500 MHz

BANDWIDTH

ANALOG CHANNELS

2.5GSa/s

REAL-TIME SAMPLE RATE

500Mpts

MAX. MEMORY DEPTH

1,500,000wfms/s

WAVEFORM CAPTURE RATE

DIGITAL CHANNELS

Get a quote

Download Resources

KEY FEATURES

Model

MSO3054HD

FEATURES

Enhanced resolution of 16-bit

Higher precision, lower noise floor
In 16-bit high-resolution mode, by combining 12-bit ADC with 4-bit ERES (enhanced resolution), the measurement accuracy is significantly improved, finely displaying the intricate details of waveforms. This effectively suppresses out-of-band noise and reduces the oscilloscope’s inherent noise interference with the real signal, thereby ensuring a more precise measurement experience while increasing the sampling bits.

Versatile Testing Equipment

-Oscilloscopes
-Logic Analyzer
-Function/Arbitrary Waveform Generator
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-Bode plot Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

Ultra Phosphor 3.0

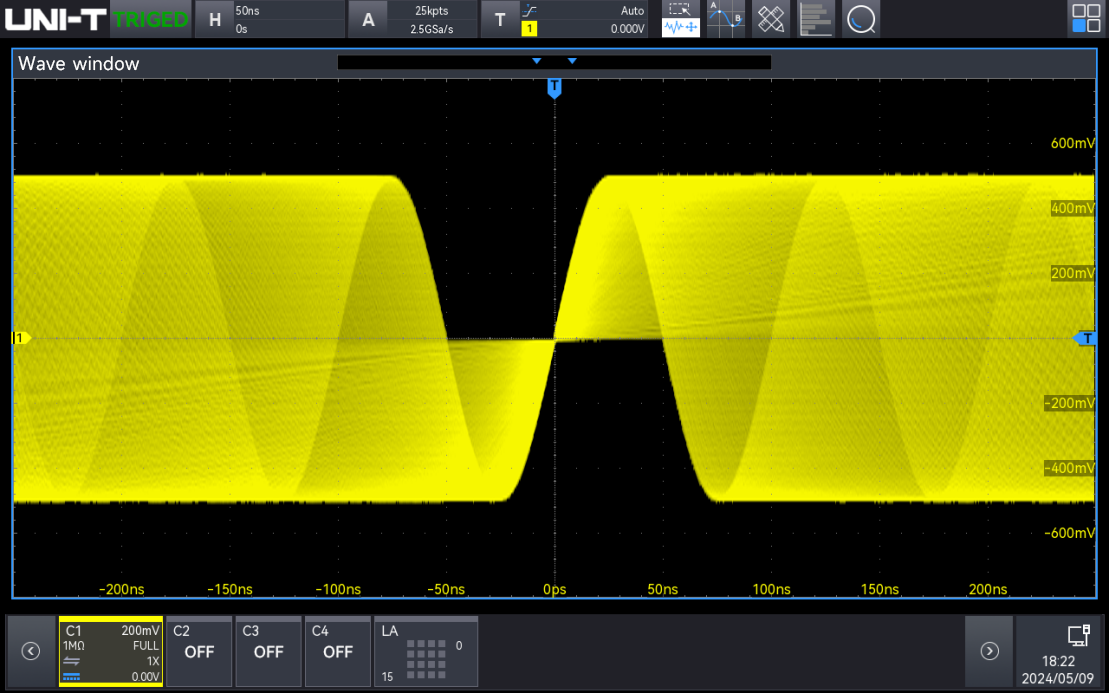

Ultra Phosphor 3.0, with its advanced software and hardware architecture, supports 8-channel parallel graphic mapping, achieving a processing rate of up to 20 Gbps and a waveform capture rate of up to 500,000 wfms/s, reaching 1,500,000 wfms/s in sequence mode, with a minimum dead time of less than 1 μs. This makes sporadic signals and rare anomalies detectable.

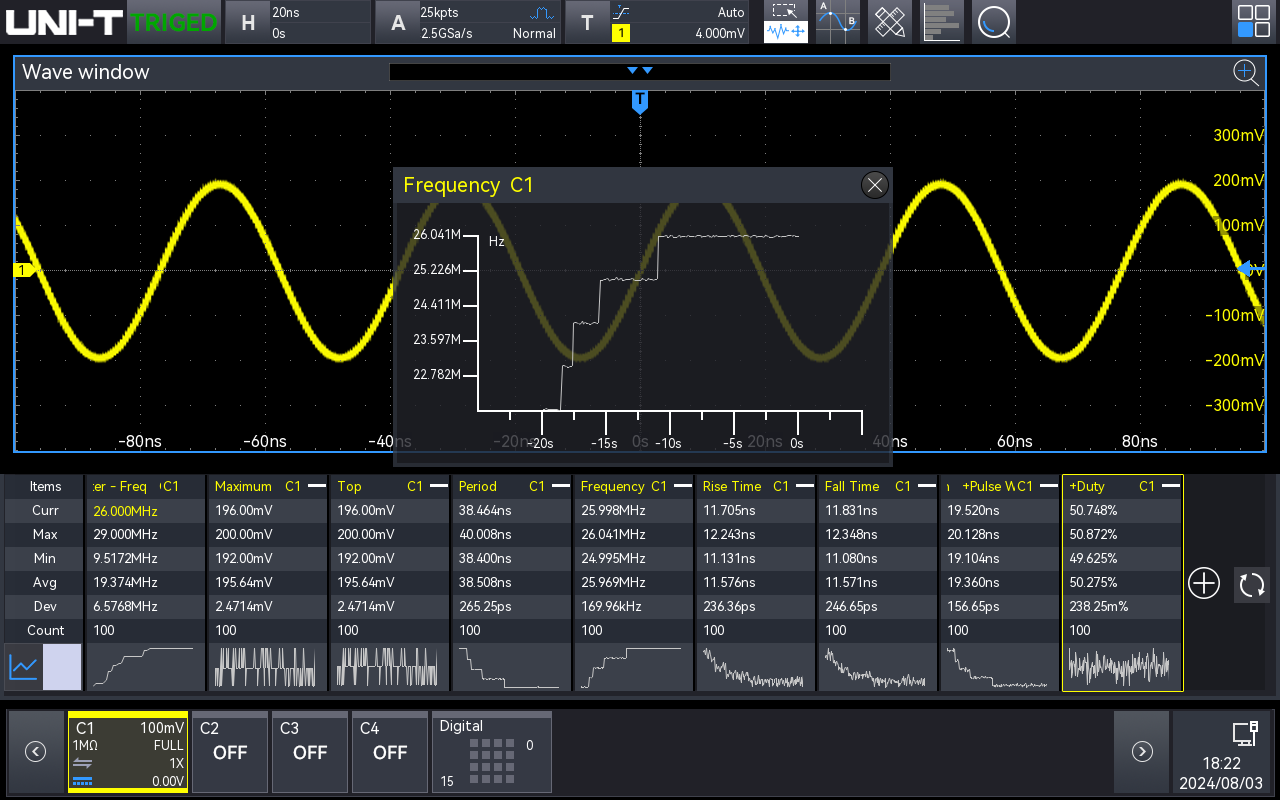

56 Types: Measurement, Statistics, Trend Graphs

56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

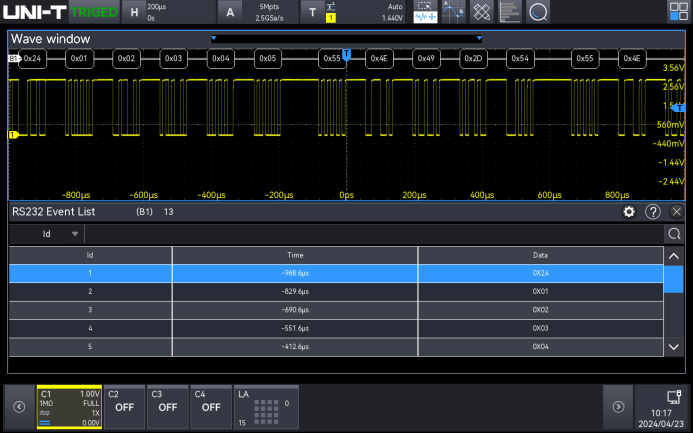

Protocol decoding and triggering

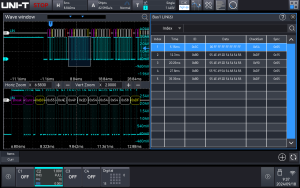

Supports 12 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN, FlexRay, SENT
-Audio: I2S (Audio-I2S, Audio-LJ, Audio-RJ)
-Aerospace：MIL STD 1553、ARINC 429
-Wireless communication：Manchester
Equipped with precise anomaly trigger capture and real-time decoding capabilities, it decodes 200M data in less than 1 second and innovatively supports four-bus simultaneous analysis, providing fast and in-depth protocol analysis solutions for complex communication systems.

Spectrum Analyzer

-FFT maximum of 4M points
-Waterfall curve
-Automatic marker measurement
-4 traces
-Simultaneously open 4 CH FFT
Equipped with full hardware acceleration technology, this product achieves ultra-fast sampling of up to 4M points, significantly enhancing the accuracy of frequency and amplitude measurements. The innovative integration of peak search and frequency domain marker functions helps users accurately capture and deeply analyze complex signal dynamics within circuits, greatly improving circuit analysis efficiency and providing users with an exceptional testing experience.

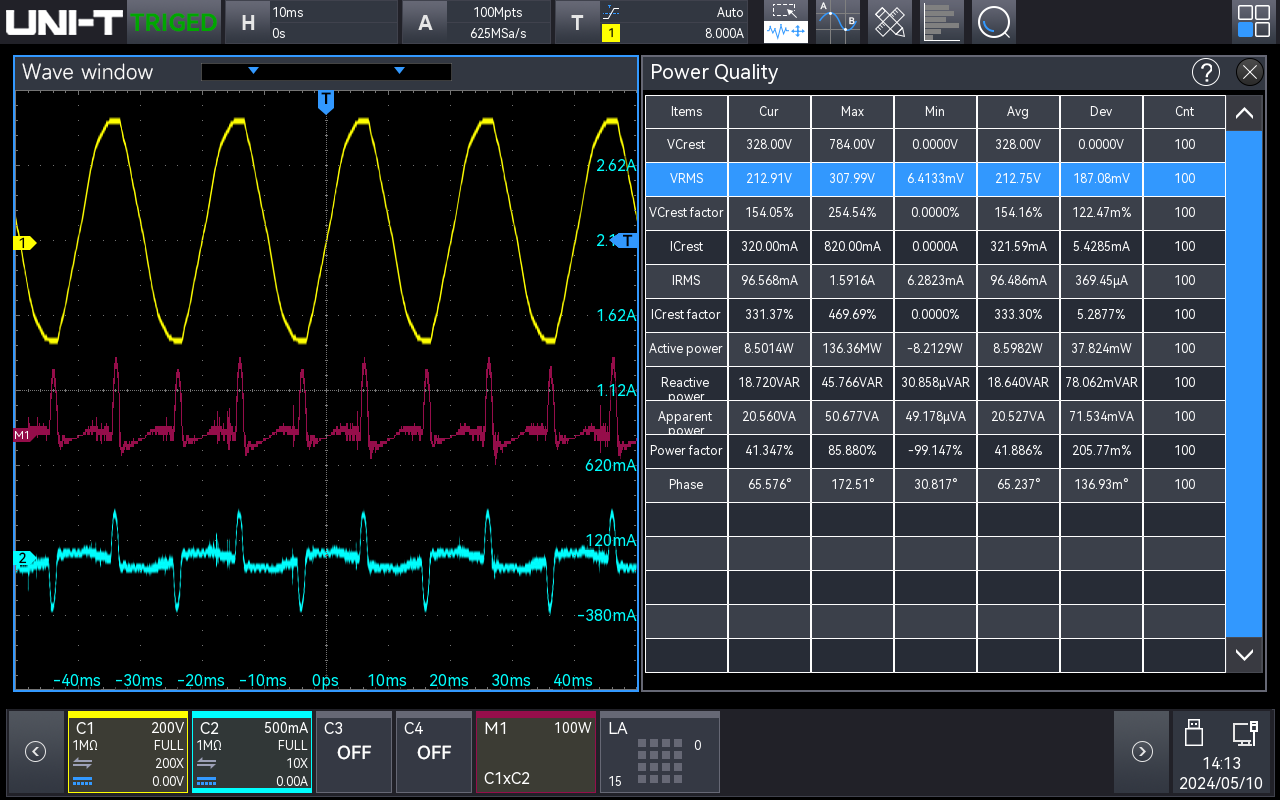

Power Analysis 6+

It integrates power supply rejection ratio (PSRR) analysis, closed-loop control response analysis, power quality assessment, current harmonic detection, and surge current analysis functions, providing comprehensive and professional solutions for power system performance qualification, stability evaluation and optimization. The aim is to enhance energy efficiency and system stability.
Supports 12 power tests in 2024 year.

Hardware-accelerated mask testing: 6σ standard < 1s

The 6σ (Six Sigma) standard for electronic signals is a process with a defect rate of no more than 3.4 defects per million opportunities (DPMO). This means there are only 3.4 anomalies per 1,000,000 samples. With its ultra-high hardware capture rate, the hardware-accelerated template testing maintains the full capture rate of Ultra Phosphor 3.0, completing waveform tests that meet specific standards within 1 second (instead of several hours).

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
MSO3054HD	500MHz	4	2.5GSa/s	500Mpts	1,500,000wfms/s	16
MSO3034HD	350MHz	4	2.5GSa/s	500Mpts	1,500,000wfms/s	16
MSO3024HD	200MHz	4	2.5GSa/s	500Mpts	1,500,000wfms/s	16

Technical Specification

Technical Details
Model	MSO3054HD	MSO3034HD	MSO3024HD
Key Specifications
Bandwidth	500 MHz	350 MHz	200 MHz
Channels	4 analog; 16 digital
Sample Rate	2.5 GSa/s (half-channel); 1.25 GSa/s (all channels)
Vertical Resolution	12-bit; ERes up to 16-bit
Max. Memory Depth	500 Mpts
Max. Waveform Capture Rate	500,000 wfms/s; 1,500,000 wfms/s (sequence mode)
Rise Time	≤0.75 ns (typ.)	≤1.00 ns (typ.)	≤1.80 ns (typ.)
Time Base Scale	500 ps/div to 1 ks/div	1 ns/div to 1 ks/div	2 ns/div to 1 ks/div
Vertical Scale	500 μV/div to 10 V/div (1 MΩ); 500 μV/div to 1 V/div (50 Ω)
Input Impedance	(1 MΩ ±1%) \|\| 16 pF; 50 Ω ±1%
Features
Auto Measurements	56 parameters
GEN	Dual-channel, 50 MHz, 312.5 MSa/s (optional)
Protocol Analysis Count	12
Included Bus Protocols	RS-232/422/485/UART, I²C, SPI
Optional Bus Protocols	CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester
DVM	4-digit
Frequency Counter	7-digit
Spectrum Analysis	Enhanced FFT, up to 4 Mpts
Power Analysis	14 types (optional)
General Information
Display	10.1-inch HD capacitive touchscreen, 1280×800
Interface	USB Host/Device, Gigabit LAN, HDMI, AUX
Power	100–240 VAC, 50/60 Hz
Product Net Weight	3.83 kg
Product Dimensions (W×H×D)	364 × 209 × 106 mm
Standard Quantity Per Carton	1 pc
Certification	CE, cETLus
Warranty	3 years

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔
