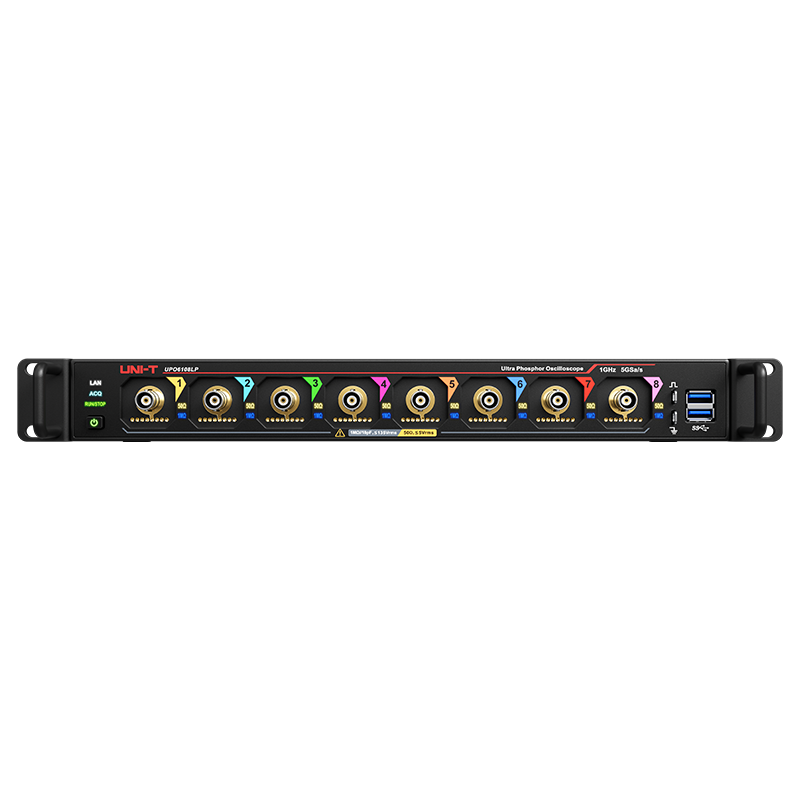

UPO6000LP
NewThe UPO6000LP series high‑resolution oscilloscopes feature a compact 1U rack‑mount design, optimized for high‑density system integration and multi‑instrument synchronization.
350 MHz~1 GHz
BANDWIDTH
4/8
ANALOG CHANNELS
5GSa/s
REAL-TIME SAMPLE RATE
500Mpts
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES

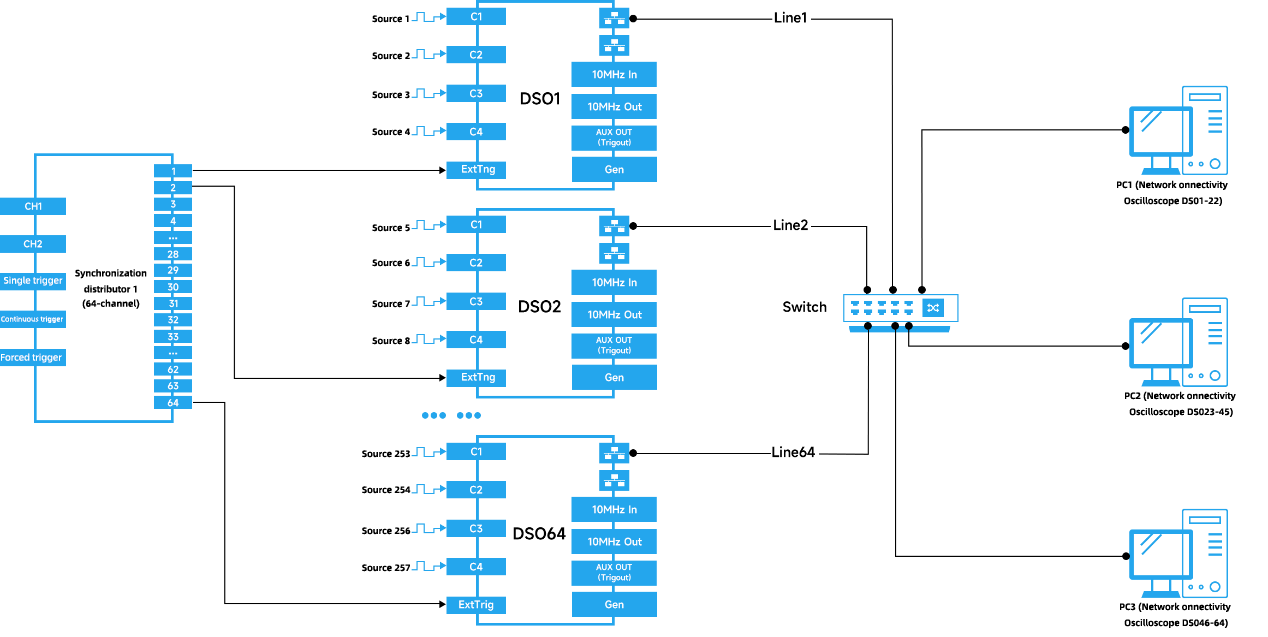

High‑Density Synchronous Acquisition System
• Ultra Scalable Architecture:
Supports up to 64 units synchronized, delivering 512 channels (64 × 8 CH) for large scale, high channel count applications.
• High Speed Optical Interface (Optional):
Optional 10 Gbps optical fiber interface ensures reliable, high bandwidth data transmission over long distances.
• Flexible Variable Sampling Rate Transmission:
Supports variable sampling rate data streaming, enabling efficient acquisition tailored to different test scenarios.
• Complete Software Support:
Comes with calibration and data acquisition software, simplifying system setup, synchronization, and measurement workflow.
Industrial Grade Near end / Far end Control Platform
• Supports flexible near end and far end deployment, enabling reliable integration with external displays and industrial control equipment
• Provides web based remote access for monitoring and control via PCs and mobile devices
• Enables host PC (upper computer) control, supporting centralized system management and automated test workflows
• Designed for industrial and multi instrument environments, improving operational efficiency and system scalability
All in One Integrated Signal Measurement Platform
• Oscilloscope
High performance oscilloscope with bandwidth options up to 1 GHz, enabling precise time domain signal observation.

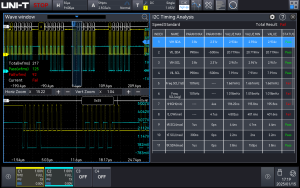

• Protocol Analyzer
Supports 12+ protocol analysis, simplifying debugging and validation of digital communication interfaces.
• Signal Generator
Integrated 50 MHz signal generator for stimulus generation and functional testing within the same platform.
• Spectrum Analyzer
Built in spectrum analysis with 4 million point enhanced FFT for detailed frequency domain insight.
• Digital Voltmeter
Integrated 4 digit digital voltmeter enables accurate voltage measurements without external instruments.
• Frequency Counter
High resolution 7 digit frequency counter provides precise frequency and timing measurements.
• Bode Plot Analyzer
Frequency response analysis supports gain and phase characterization of control and power systems.
• Power Analysis
Integrated power analysis with 12+ test items enables efficient power integrity and performance evaluation.

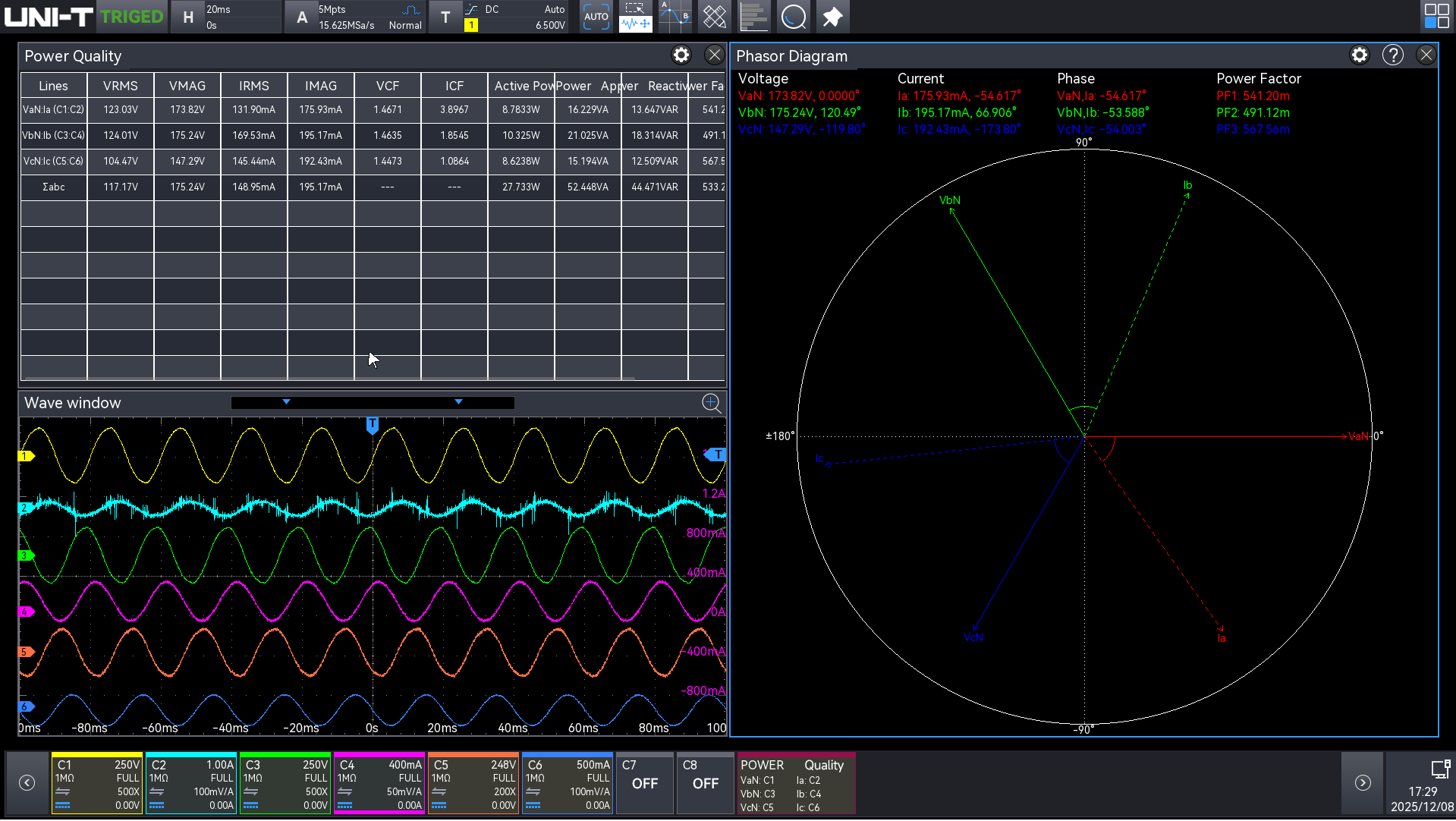

Three Phase Power Analysis Solution
• High Precision Synchronous Measurement
Accurate, synchronized acquisition of three phase voltage and current for reliable power analysis.
• One Click Comprehensive Analysis
Fast access to key metrics including power quality, harmonics, ripple, efficiency, and DQ0 analysis.
• Intuitive Real Time Visualization
Real time space vector display accelerates motor drive debugging and performance optimization.
• Designed for Modern Power Applications
Ideal for EV drive systems, industrial motors, and renewable energy inverters.
• Efficient R&D and Fault Diagnosis Tool
Delivers fast, repeatable results for R&D validation, system evaluation, and troubleshooting.
Power Analyzer
• Designed for Modern Low Voltage, High Current Power Systems
Ideal for advanced chip level and high density power architectures, ensuring stable and clean power delivery.
• Comprehensive Power Integrity Analysis (12 Key Tests)
Covers up to 12 essential power integrity test items, including voltage quality, noise, ripple, dynamic response, and power efficiency evaluation.
• Input Analysis: Power Quality, Harmonic Analysis, Inrush Current
• Switching Analysis: Switching Loss, Safe Operating Area (SOA), Slew Rate, Rds (on), Modulation Analysis
• Output Analysis: Ripple Analysis, Power Efficiency, Transient Response, ON/OFF time
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO6108LP |
1 GHz | 8 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6104LP |
1 GHz | 4 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6058LP |
500 MHz | 8 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6054LP |
500 MHz | 4 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6038LP |
350 MHz | 8 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6034LP |
350 MHz | 4 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
Technical Specification
| Model | UPO6108LP | UPO6104LP | UPO6058LP | UPO6054LP | UPO6038LP | UPO6034LP |
| Key Specifications | ||||||
| Bandwidth | 1 GHz | 1 GHz | 500 MHz | 500 MHz | 350 MHz | 350 MHz |
| Channels | 8 analog + EXT | 4 analog + EXT | 8 analog + EXT | 4 analog + EXT | 8 analog + EXT | 4 analog + EXT |
| Sample Rate | 5 GSa/s (half-channel); 2.5 GSa/s (all channels) | |||||
| Vertical Resolution | 12-bit; ERes up to 16-bit | |||||
| Max. Memory Depth | 500 Mpts/CH | |||||
| Max. Waveform Capture Rate | 500,000 wfms/s; 1,000,000 wfms/s sequence mode | |||||
| Technical Details | ||||||
|---|---|---|---|---|---|---|
| Rise Time | ≤0.35 ns (typ.) | ≤0.35 ns (typ.) | ≤0.70 ns (typ.) | ≤0.70 ns (typ.) | ≤1.00 ns (typ.) | ≤1.00 ns (typ.) |
| Time Base Scale | 500 ps/div to 1 ks/div | |||||
| Vertical Scale | 500 μV/div to 10 V/div (1 MΩ); 500 μV/div to 1 V/div (50 Ω) | |||||
| Input Impedance | (1 MΩ ±1%) || 16 pF; 50 Ω ±1% | |||||
| Features | ||||||
| Auto Measurements | 56 parameters | |||||
| GEN | — | Single-channel, 50 MHz, 312.5 MSa/s (optional) | — | Single-channel, 50 MHz, 312.5 MSa/s (optional) | — | Single-channel, 50 MHz, 312.5 MSa/s (optional) |
| Protocol Analysis Count | 12 | |||||
| Included Bus Protocols | RS-232/422/485/UART, I²C, SPI | |||||

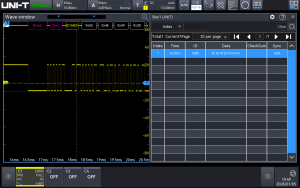

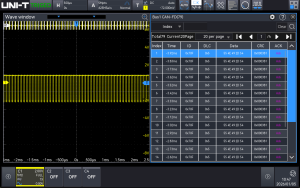

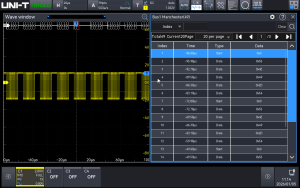

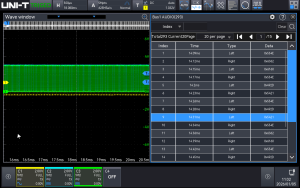

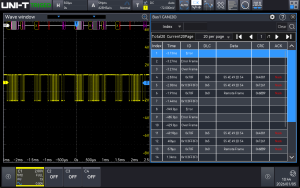

| Optional Bus Protocols | CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester | |||||
| DVM | 4-digit | |||||
| Frequency Counter | 7-digit | |||||
| Spectrum Analysis | Enhanced FFT, up to 5 Mpts | |||||
| Power Analysis | 12 types (optional); Three-phase power analysis: 5 types (optional) | 14 types (optional) | 12 types (optional); Three-phase power analysis: 5 types (optional) | 14 types (optional) | 12 types (optional); Three-phase power analysis: 5 types (optional) | 14 types (optional) |
| General Information | ||||||
| Display | External display / WebServer control | |||||

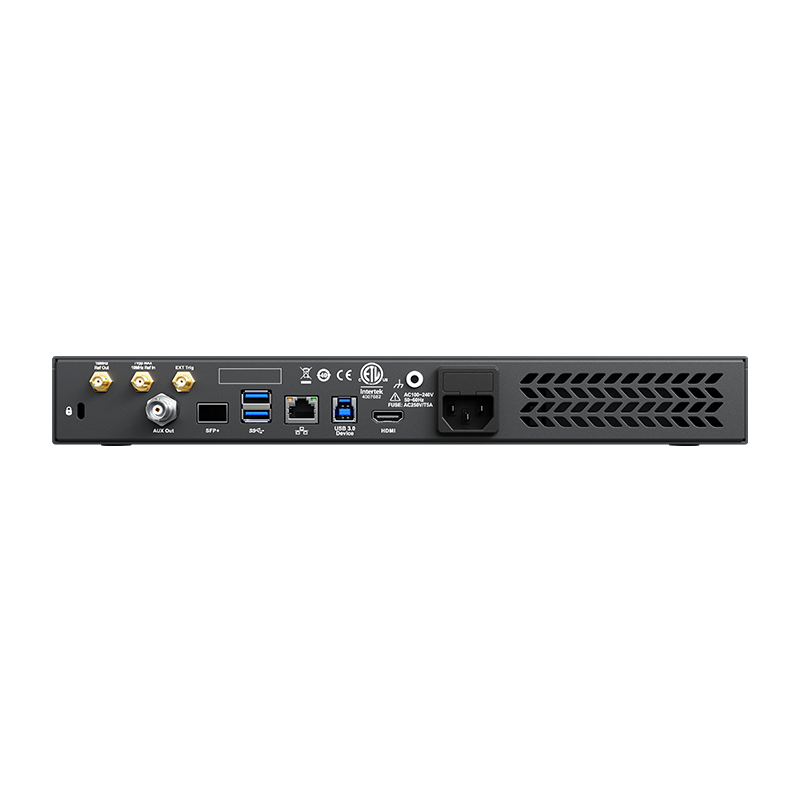

| Interface | USB Host/Device, Gigabit LAN, HDMI, AUX | |||||
| Power | 100–240 VAC, 50/60 Hz; max 200 W | |||||
| Product Net Weight | 5.5 kg | 2.5 kg | 5.5 kg | 2.5 kg | 5.5 kg | 2.5 kg |
| Product Dimensions (W×H×D) | 339 × 43 × 450 mm | 214 × 43 × 380 mm | 339 × 43 × 450 mm | 214 × 43 × 380 mm | 339 × 43 × 450 mm | 214 × 43 × 380 mm |
| Standard Quantity Per Carton | 1 pc | |||||
| Certification | CE, cETLus | |||||
| Warranty | 3 years | |||||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
