UTL8500
The UTL8500 Series is a cost-effective programmable DC electronic load series with high performance. With a resolution of 0.1mV and 0.1mA, multiple protection mechanisms significantly improve the reliability of the equipment.The Series has a variety of testing functions and modes, equipped with RS-232 communication interface, and can be equipped with other communication interfaces according to design and testing requirements. The Series provides a flexible, fast and effective solution.Meet different customers’ needs from Education, Scientific Research and Manufacturing.
150V/500V
VOLTAGE
15A/30A/120A
CURRENT
150W/300W/600W
TOTAL POWER
0.1mV/0.1mA
RESOLUTION
10kHz
MAX. DYNAMIC FREQUENCY
3.0A/μS
CURRENT SLEW RATE
½ 2U
SIZE
RS232
CONNECTIVITY
KEY FEATURES
FEATURES

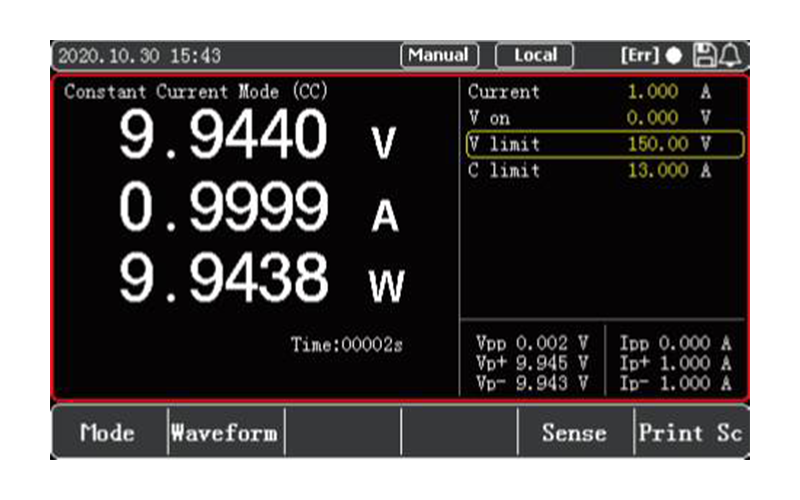

4.3 inch LCD screen display
4.3 inch LCD screen display Resolution: 0.1mV/0.1mA Voltage test range: 0~150V/500V Current test range: 0~15A/30A/120A Power test range: 0~150W/300W/600W
Four basic test modes
Four basic working modes: CC/CV/CR/CP
Rich test mode

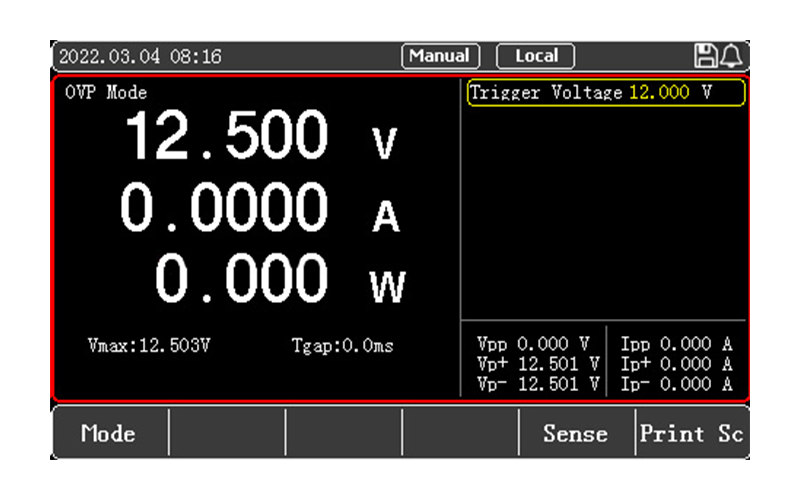

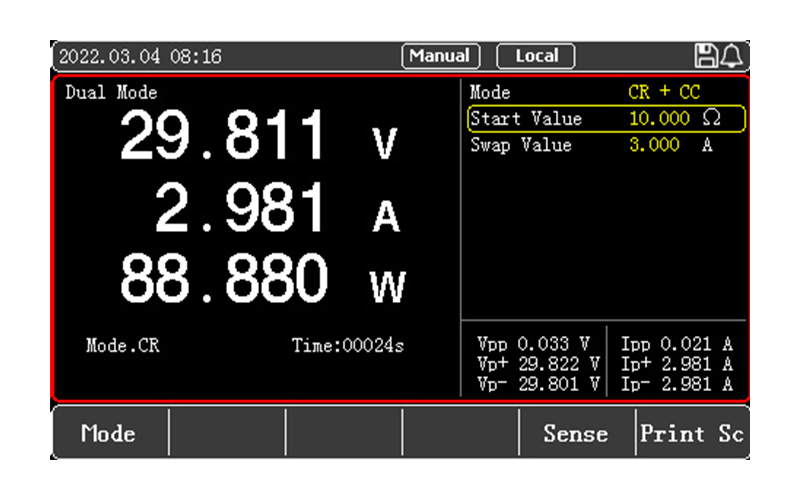

In order to meet diversified test requirements, UTL8500 series electronic loads provide more test modes for users to choose, including dynamic test, list test, combination test, OCP/OPP test, CR-LED test, battery test, load effect, OVP test , Short circuit, time test and other modes.
Screenshot function, list call and system upgrade
Press the [Screenshot] button to save the current screen image to the USB flash drive,or save the frequently used list test files in Flash or USB flash drive, so that they can be called when needed next time, and the system can be upgraded quickly through the USB flash drive.
Multiple protection functions
Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTL8511 |
150V | 30A | 150W | 0.1mV/0.1mA | 10kHz | 3A/μs |
 UTL8512 |
150V | 30A | 300W | 0.1mV/0.1mA | 10kHz | 3A/μs |
 UTL8512B+ |
500V | 15A | 300W | 0.1mV/0.1mA | 10kHz | 1.5A/μs |
 UTL8513 |
150V | 120A | 600W | 0.1mV/0.1mA | 10kHz | 1.5A/μs |
