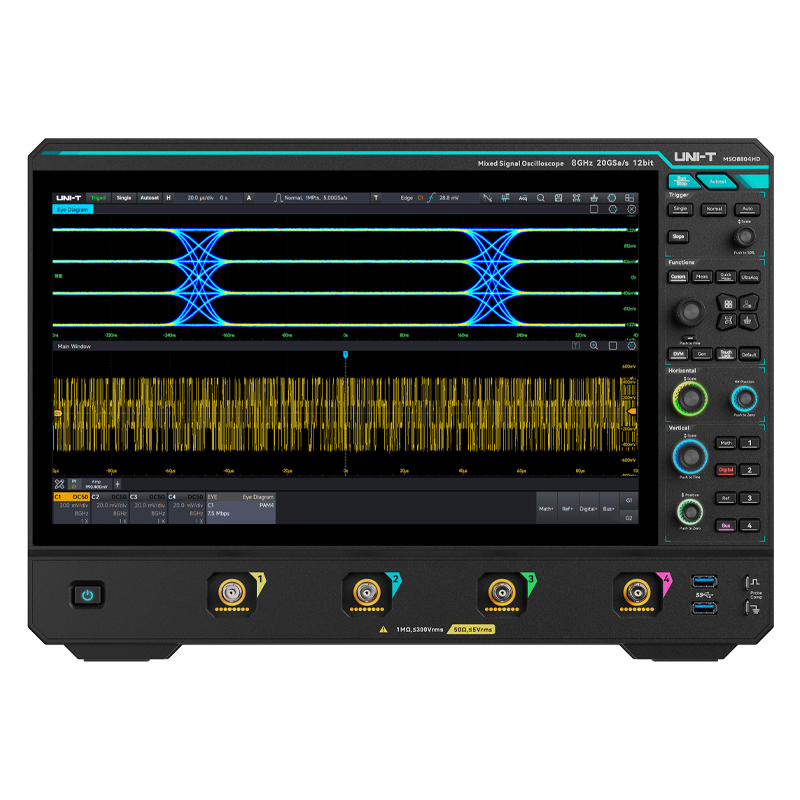

MSO8000HD

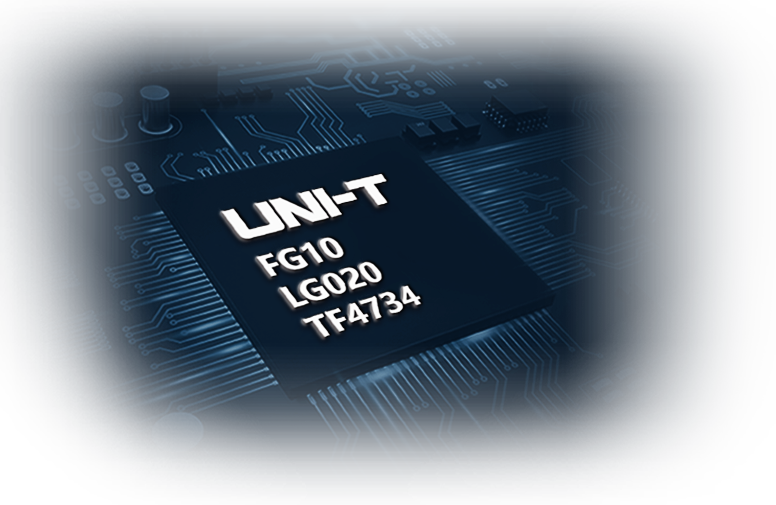

NewThe MSO8000HD Series high-resolution oscilloscopes provides three bandwidth 8 GHz, 6GHz and 5 GHz. The entire series features a standard 20 GSa/s sample rate and 12-bit vertical resolution. Equipped with UNI-T’s independently developed analog front-end chipset, these oscilloscopes offer optimized performance and a lower noise floor, delivering significant advantages in testing high-speed and high-dynamic-range signals.
5~8 GHz
BANDWIDTH
4
ANALOG CHANNELS
20 GSa/s
REAL-TIME SAMPLE RATE
2 Gpts(opt.)
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
16(opt.)
DIGITAL CHANNELS
KEY FEATURES
FEATURES
Lower Noise and Enhanced ENOB
– Noise floor: 50mV/div, as low as 800μV at full bandwidth (Typ.)
– ENOB: >7 bits (at full system bandwidth, 50Ω, 50 mV/div, -3dBFS).
– SFDR: ≥ 50dBc (Typ.)
– Low intrinsic jitter: ≤150fs RMS
– High bandwidth precision BNC connector: ＞10GHz.
Jitter Analysis and Eye Diagram
-Jitter Analysis View: Eye Diagram, Trend Chart, Histogram, TIE spectrum, Bath Curve
-Jitter Measurement: TIE, Cycle-Cycle Jitter, Period Jitter, PJ, TJ@BER, RJ, DJ, DDJ, DCD, ISI
PAM-N Analysis
Supports to PAM-3 to PAM-16 signal analysis. Equipped with a 12-bit ADC and delivering over 7 bits of Effective Number of Bits (ENOB) at full bandwidth, it can recover clocks from PAM-N signals with small amplitude differences and perform real-time eye diagram measurements.

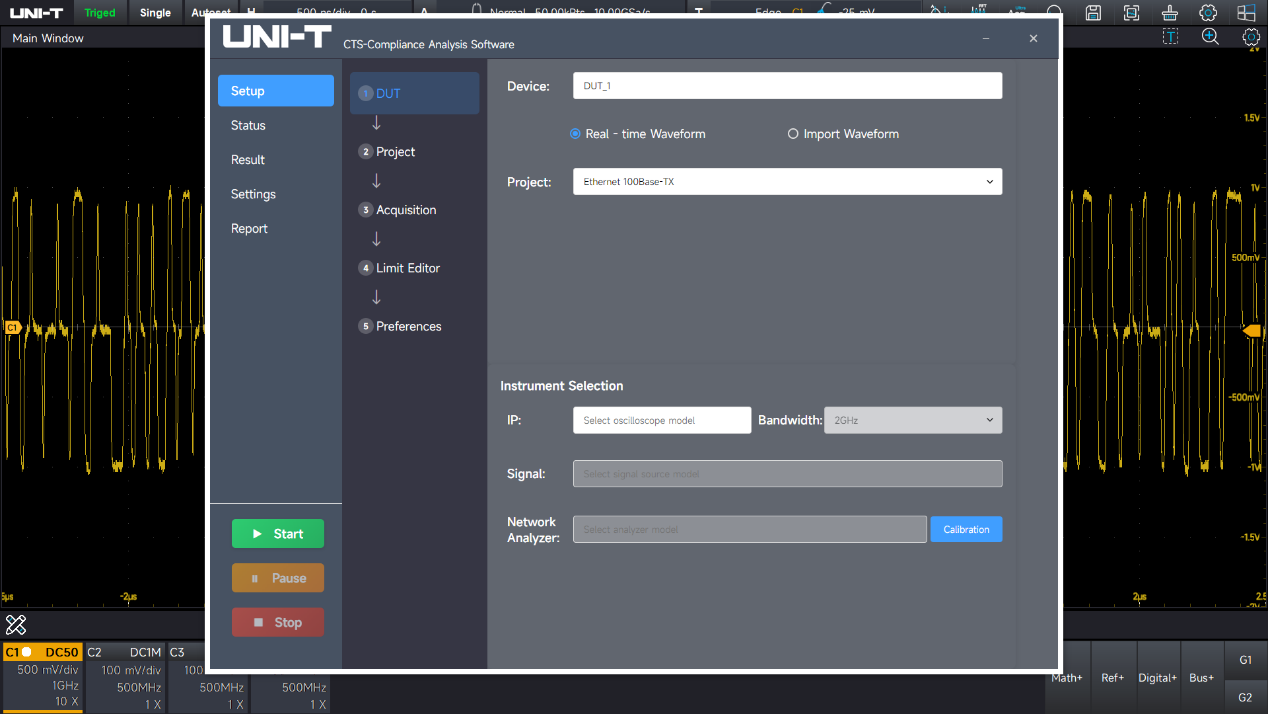

Protocol Compliance Test
-Comprehensive compliance testing support for USB 2.0, 100BASE-TX, 1000BASE-T, 100BASE-T1, 1000BASE-T1, and MIPI D-PHY v1.2 protocols.
Serial Protocol Analysis
Supports more than 21 protocols
-Embedded serial bus: RS-232/422/485/UART, I2C, SPI, SMBUS, SPMI, AudioBus (I2S, LJ, RJ, TDM)

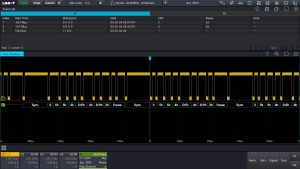

– Automotive serial bus: CAN, LIN, CAN-FD, SENT, FlexRay, I3C, PSI5
-Computers & Communications: USB2.0, PCIe2.0, Ethernet, NRZ, Manchester, 8b/10b
-Aerospace serial bus: MIL-STD-1553，ARINC 429
Advanced Power Analysis
The comprehensive advanced power analysis option available on the MSO8000HD enables fast, repeatable evaluation of key power parameters.
• Input Analysis: Power Quality, Harmonic Analysis, Inrush Current
• Switching Analysis: Switching Loss, Safe Operating Area (SOA), Slew Rate, Rds (on), Modulation Analysis
• Output Analysis: Ripple Analysis, Power Efficiency, Transient Response, ON/OFF time
• Loop Analysis: Bode Plot, Power Supply Rejection Ratio (PSRR)

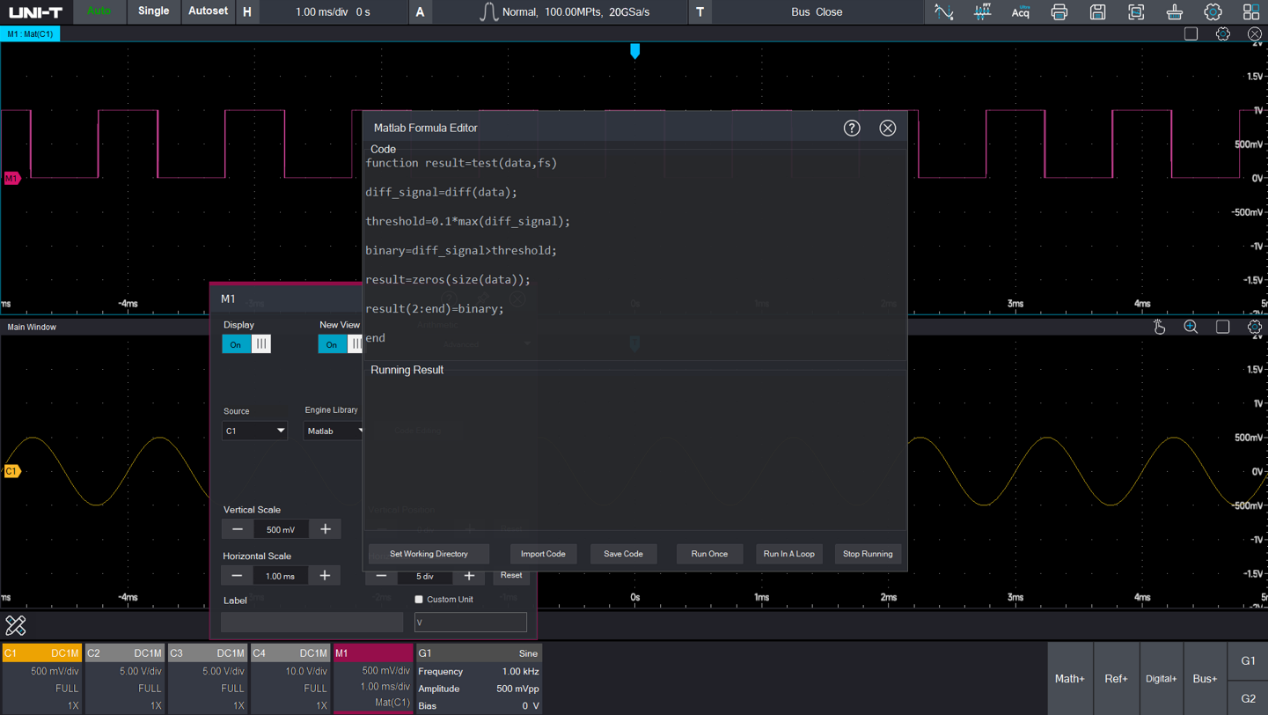

MATLAB Embedded Programming
Support MATLAB embedded programming ，
Operational results are rendered directly to the oscilloscope window.

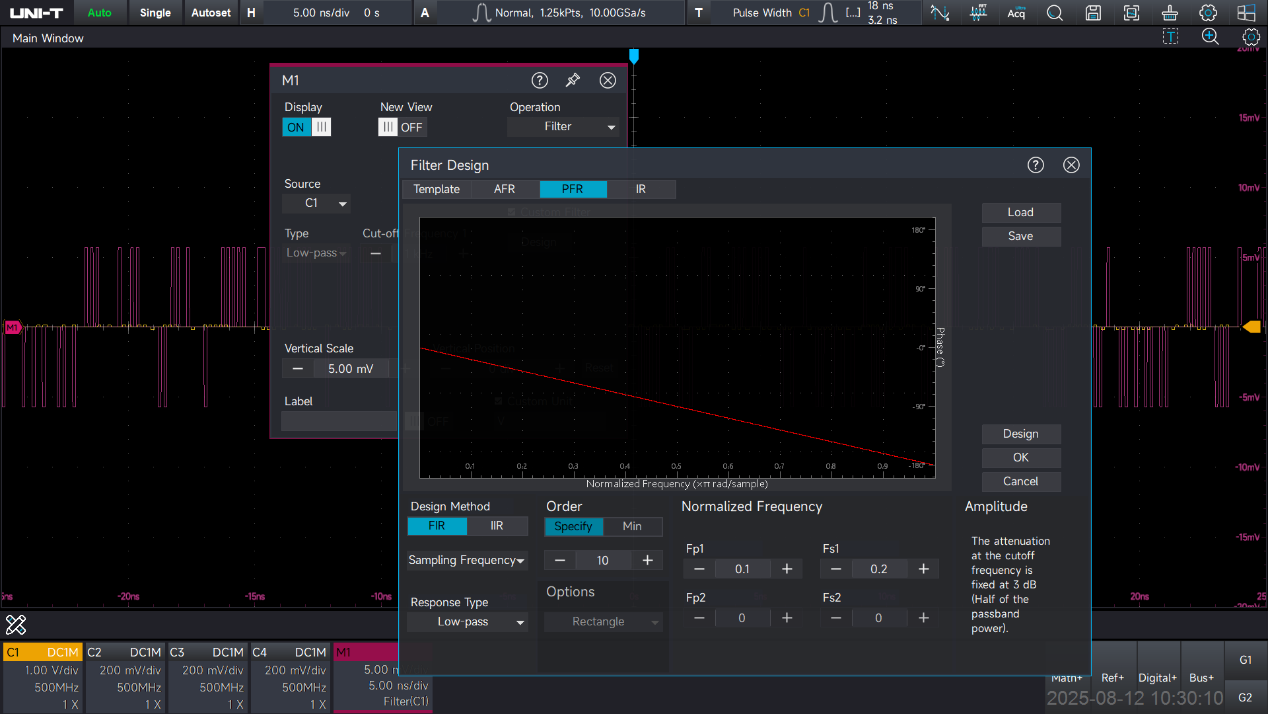

Advanced Filter Designer
Supports filter types:
-Butterworth
-Chebyshev Type I
-Chebyshev Type II
-Elliptic
-Sampling method
-Remez
-Window function
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 MSO8804HD |
8 GHz | 4 | 20 GSa/s | 2 Gpts(opt.) | 1,000,000 wfms/s | 16(opt.) |
 MSO8604HD |
6 GHz | 4 | 20 GSa/s | 2 Gpts(opt.) | 1,000,000 wfms/s | 16(opt.) |
 MSO8504HD |
5 GHz | 4 | 20 GSa/s | 2 Gpts(opt.) | 1,000,000 wfms/s | 16(opt.) |
Technical Specification
| Model | MSO8804HD | MSO8604HD | MSO8504HD |
| Key Specifications | |||
| Bandwidth | 8 GHz @50 Ω | 6 GHz @50 Ω; 500 MHz @1 MΩ | 5 GHz @50 Ω; 500 MHz @1 MΩ |
| Channels | 4 analog + EXT; 16 digital (optional) | ||
| Sample Rate | 20 GSa/s (half-channel); 10 GSa/s (all channels) | ||
| Vertical Resolution | 12-bit; ERes up to 16-bit | ||
| Max. Memory Depth | 2 Gpts (optional) | ||
| Max. Waveform Capture Rate | ≥1,000,000 wfms/s (sequence mode) | ||
| Technical Details | |||
|---|---|---|---|
| Rise Time | 55 ps (typ.) | 73 ps (typ.) | 88 ps (typ.) |
| Time Base Scale | 50 ps/div to 1000 s/div | ||
| Vertical Scale | 1 mV/div to 1 V/div (50 Ω); up to 10 V/div (1 MΩ where supported) | ||
| Input Impedance | 50 Ω; 1 MΩ on MSO8604HD/MSO8504HD (MSO8804HD via adapter) | ||
| Features | |||
| Auto Measurements | 74+ parameters | ||
| GEN | Dual-channel, 60 MHz, 625 MSa/s (optional) | ||
| Protocol Analysis Count | 21+ | ||
| Included Bus Protocols | RS-232/422/485/UART, I²C, SPI, CAN, LIN | ||
| Optional Bus Protocols | CAN-FD, SENT, FlexRay, AudioBus (I²S/LJ/RJ/TDM), MIL-STD-1553, ARINC 429, SMBus, SPMI, I3C, PSI5, USB 1.0/2.0, PCIe 1.0/2.0, Ethernet, NRZ, Manchester, 8b/10b | ||
| DVM | 4-digit | ||
| Frequency Counter | 8-digit | ||
| Spectrum Analysis | Enhanced FFT, up to 1 Mpts | ||
| Power Analysis | 14 types (optional) | ||
| Protocol Compliance | MIPI D-PHY v1.2, USB 2.0, 100BASE-TX, 1000BASE-T, 100BASE-T1, 1000BASE-T1 (optional) | ||
| Jitter Analysis And Eye Diagram | Optional | ||
| General Information | |||
| Display | 15.6-inch FHD touchscreen, 1920×1080 | ||

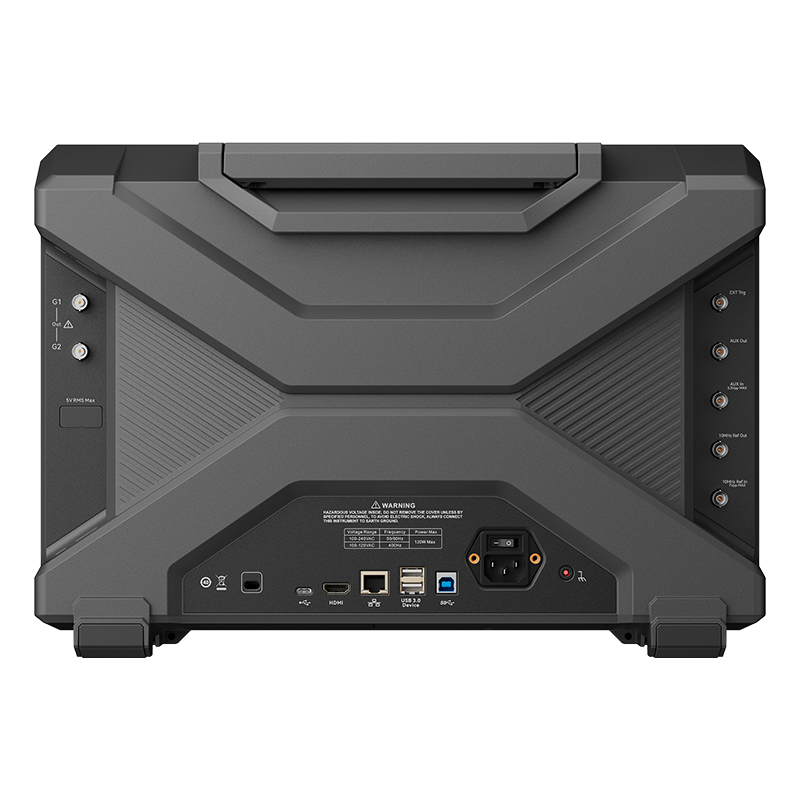

| Interface | USB Device; 5×USB Host incl. Type-C; LAN; HDMI; AUX In/Out; 10 MHz Ref In/Out | ||
| OS | Windows 10 IoT Enterprise LTSC 64-bit | ||
| Power | 100–240 VAC, 50/60 Hz, max 300 W | ||
| Product Net Weight | <12.5 kg | ||
| Product Dimensions (W×H×D) | 445 × 311.3 × 189.7 mm | ||
| Standard Quantity Per Carton | 1 pc | ||
| Certification | CE, cETLus | ||
| Warranty | 3 years | ||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
