UDP1306C is a single-channel programmable linear DC power supply.
It is a basic power supply product that is compact in size and with high reliability.
It has low ripple noise, fast transient response, excellent power supply
and load regulation and other characteristics.
Linear
Type
1
Channels
192W
Total Power
32V
Output Voltage
6A
Output Current
10mV/1mA
Resolution
Voltage :＜ (0.01% + 3mV), Current:≤(0.1% + 3mA)
Setting Accuracy
USB Device, RS-232
Connectivity
KEY FEATURES
FEATURES
32V/6A Output
Maximum output voltage;32V Maximum current;6A Voltage/current display resolution: 10mV/1mA;
OVP/OCP/OTP Protection
The user can set the limit of over-voltage/over-current/over-temperature protection. When over-voltage/over-current occurs or the internal heat sink reaches about 100°C, the power supply will automatically shut down the output and give a prompt message.
Five sets of settings to save and recall
M1~M5 five groups of stored values, long press to store, short press to recall, convenient for test work.
Interface function

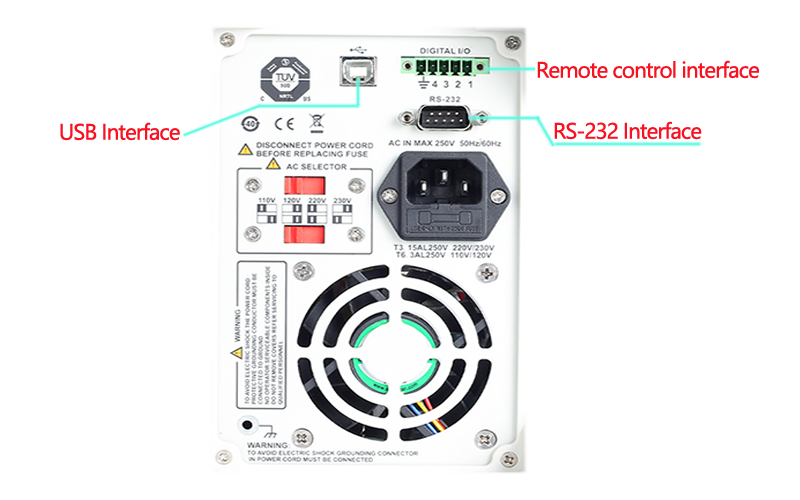

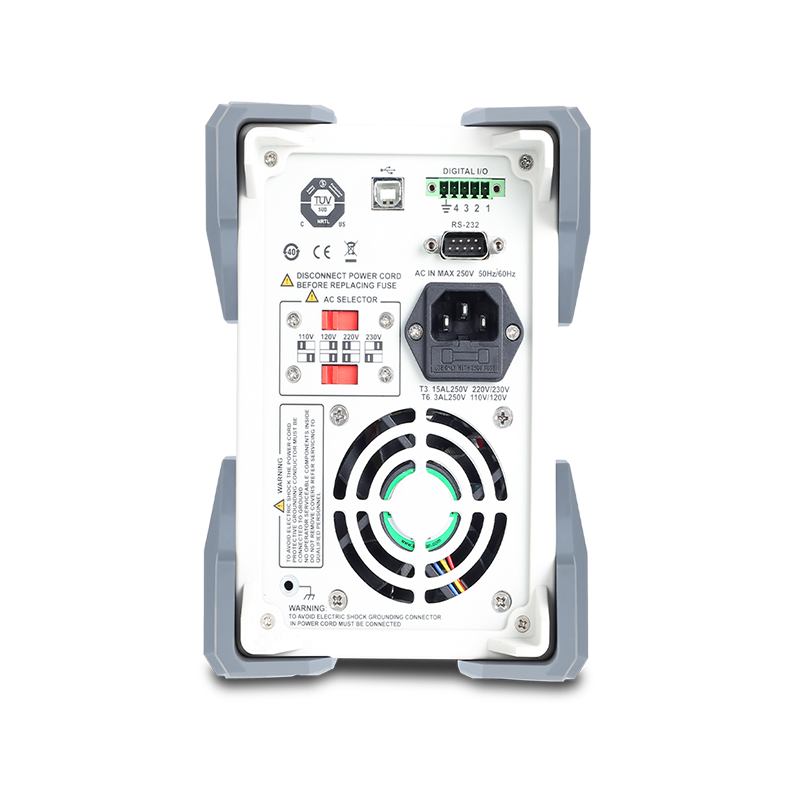

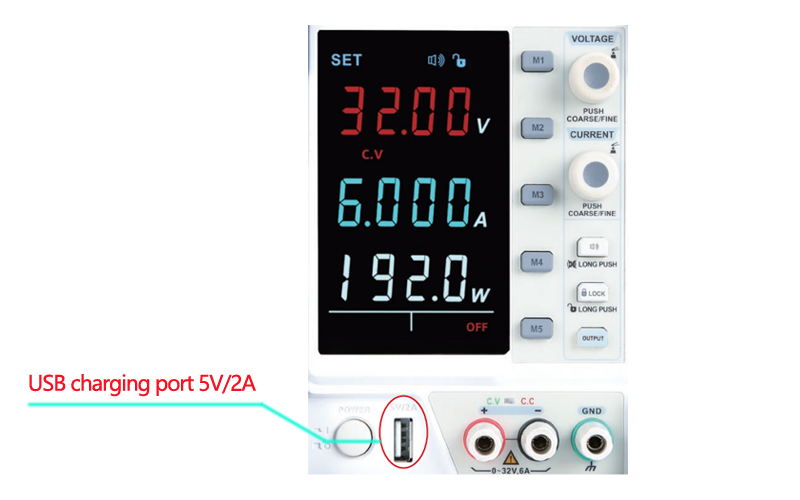

Remote control DIGITAL I/O interface; Can realize remote control of the output and shutdown of the power supply channel. RS-232 interface, USB Device port, based on SCPI communication command, can communicate with computer.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UDP1306C |
linear | 1 | 192W | 32V | 6A | 10mV/1mA |
Technical Specification
| Model | UDP1306C |
| Key Specifications | |
| Type | Linear |
| Channels | 2 |
| Output Voltage | CH1: 0–32 V; CH2: 5 V |
| Output Current | CH1: 0–6 A; CH2: 2 A |
| Output Power | 202 W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Technical Details | |
|---|---|
| Ripple And Noise Voltage | ≤2 mVrms |
| Ripple And Noise Current | ≤3 mArms |
| Load Regulation CV | <0.01%+5 mV |
| Load Regulation CC | <0.1%+10 mA |
| Line Regulation CV | <0.01%+3 mV |
| Line Regulation CC | <0.1%+3 mA |
| Programming Accuracy Voltage | <0.5%+20 mV |
| Programming Accuracy Current | <0.5%+10 mA |
| Features | |
| Protection | OVP/OCP/OTP |
| General Information | |
| Display | EBTN LCD |
| Interface | USB Host, USB Device, RS-232 |
| Power | AC 100/120/220/230 V ±10%, 50/60 Hz |
| Product Net Weight | 7.5 kg |
| Product Dimensions (W×H×D) | 136 × 194 × 327 mm |
| Standard Quantity Per Carton | 1 pc |
| Certification | CE, cTUVus |
| Warranty | 3 Years |
