UT3200+

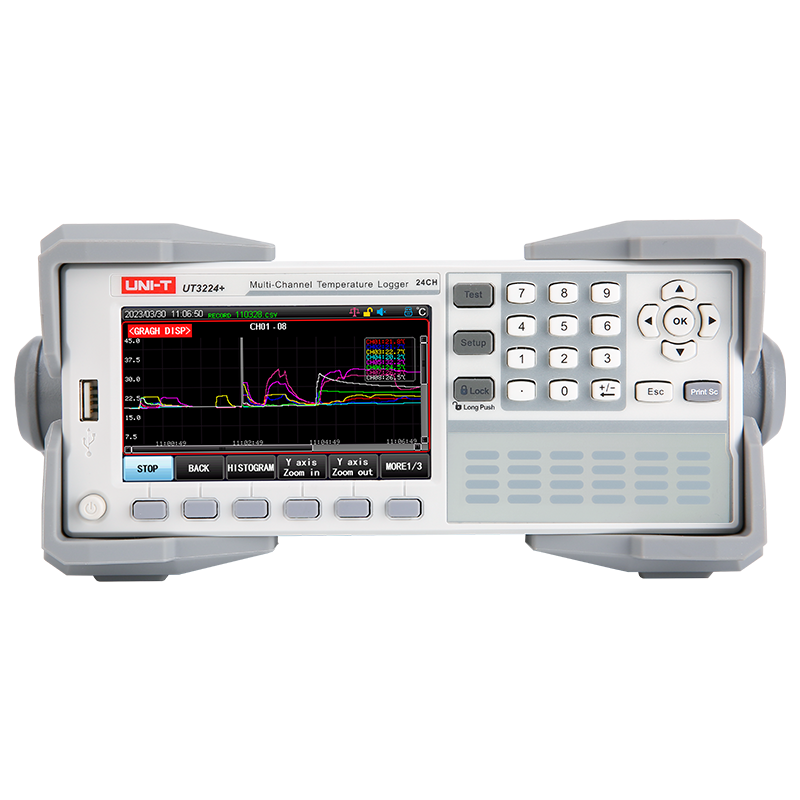

NewUT3200+ series multi-channel temperature tester has 6 models of 8, 16, 24, 32, 40, 48 channels. 4.3-inch LCD color screen display, beautiful interface. Multiple channels of temperature data can be collected at the same time. The response speed is fast and the data is stable. It is suitable for multi-point temperature monitoring by manufacturers and quality inspection departments in industries such as home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, and LEDs.
8/16/24/32/40/48
CHANNELS
4.3'' TFT LCD
DISPLAY
-200~1800℃
TEMPERATURE RANGE
0.01℃
RESOLUTION
10rdgs/s
SCANNING SPEED
J,K,T,E,S,N,B,R
THERMOCOUPLE
RS-232,LAN
CONNECTIVITY
½ 2U
SIZE
KEY FEATURES
FEATURES

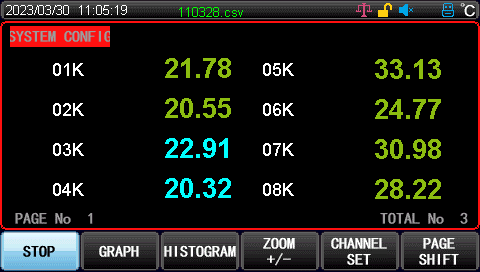

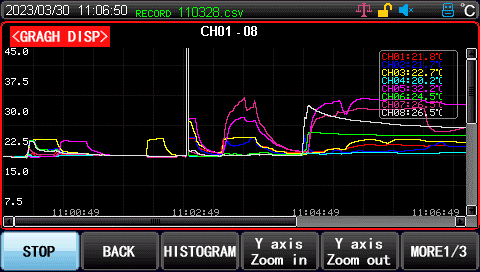

Digital and graphical display
Graph, histogram, and number display modes provide a better representation of temperature trends

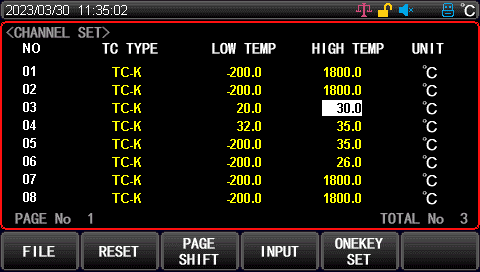

Comparator function
Color differentiation and alarm tone prompt. The upper and lower limits can be set for each channel, and the abnormal temperature area can be found in time
Data storage
Standard 8G U disk, during the test, real-time storage of measurement data for later analysis
Data collection software
Standard data acquisition software to realize remote control, data storage and data analysis
Man-machine separation
Configure RS232 and LAN ports, support SCPI and MODBUS dual protocols
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT3248+ |
48 | 4.3'' TFT LCD | -200~1800℃ | 0.01℃ | 10 rdgs/s | J,K,T,E,S,N,B,R |
 UT3240+ |
40 | 4.3'' TFT LCD | -200~1800℃ | 0.01℃ | 10 rdgs/s | J,K,T,E,S,N,B,R |
 UT3232+ |
32 | 4.3'' TFT LCD | -200~1800℃ | 0.01℃ | 10 rdgs/s | J,K,T,E,S,N,B,R |
 UT3224+ |
24 | 4.3'' TFT LCD | -200~1800℃ | 0.01℃ | 10 rdgs/s | J,K,T,E,S,N,B,R |
 UT3216+ |
16 | 4.3'' TFT LCD | -200~1800℃ | 0.01℃ | 10 rdgs/s | J,K,T,E,S,N,B,R |
 UT3208+ |
8 | 4.3'' TFT LCD | -200~1800℃ | 0.01℃ | 10 rdgs/s | J,K,T,E,S,N,B,R |
DATA SHEET
MANUAL
SOFTWARE
UNIT PC Software
Current Version: V2.2.7 | 2025/11/26
Release Notes
Videos
User Self-Calibration
Multiple Display Modes
The Comparator Function
Data Acquisition Software
