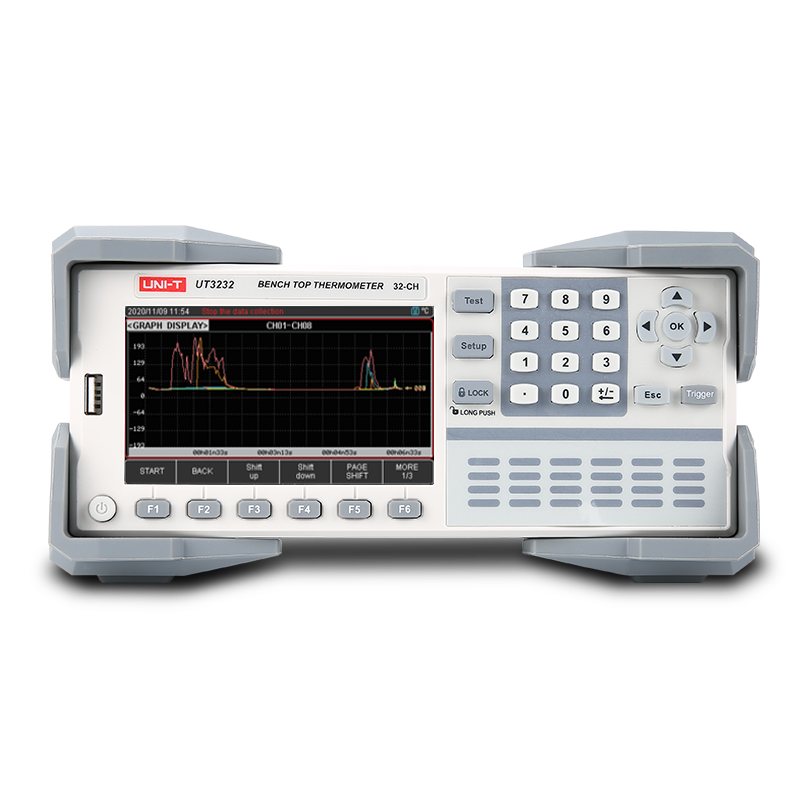

UT3200
The UT3200 Series Multi-channel Temperature Loggers contain 4 models including,
UT3208,UT3216,UT3224 and UT3232. which corresponds with thermocouple testing channels of 8, 16, 24 and 32.With 4.3-inch LCD screen, this Series is compatible with multiple temperature sensors, can collect multichannel temperature data simultaneously.
The UT3200 Series has have advantages of upper/lower limit alarm, fast respond, stable data transmission and thermocouple short-circuit detection.
8/16/24/32
CHANNELS
4.3'' TFT LCD
DISPLAY
-200℃~1800℃
TEMPERATURE RANGE
0.1℃
RESOLUTION
2 rdgs/s
SCANNING SPEED
J,K,T,E,S,N,B,R
THERMOCOUPLE
RS-232、USB Device
CONNECTIVITY
½ 2U
SIZE
KEY FEATURES
FEATURES
32-channel output, a variety of probes are available
32CH output,Thermocouple input: J, K, T, E, S, N, B, R,standard K-type probe

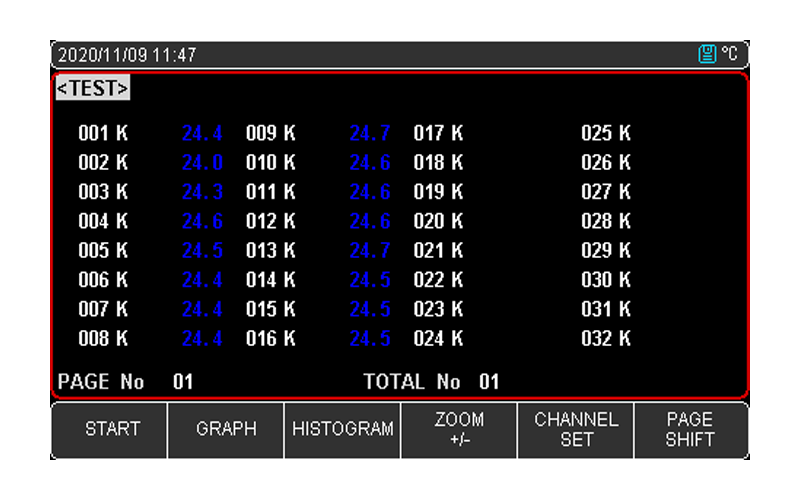

Rich display function
With intuitive readings, curve graph display, bar graph display
Upper and lower limit discrimination display
The temperature upper and lower limit over-limit alarm can be set, and the over-limit reading color change warning can be set, the upper and lower limits can be set for each channel of temperature data.

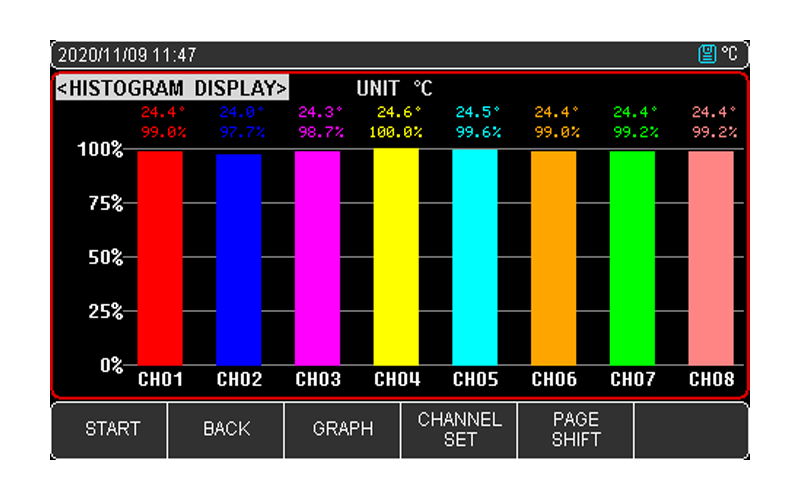

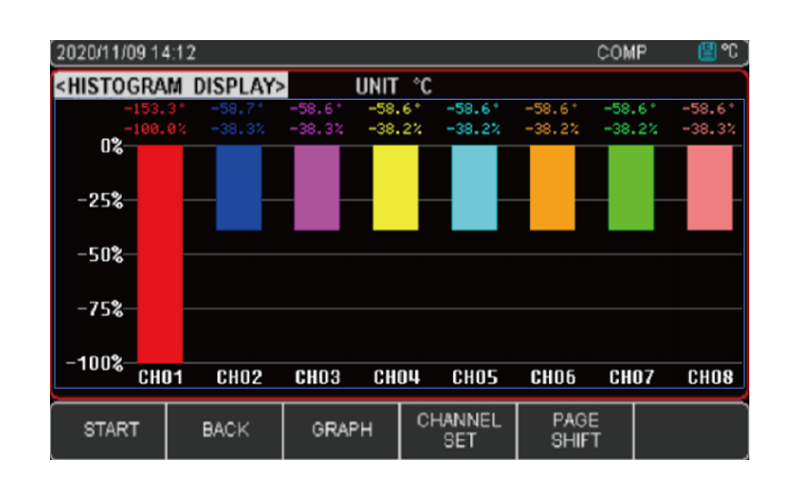

Support automatic and manual mode
Automatic mode: the percentage comparison of the temperature values of 8 channels on the same group of test modules is used to compare the test values of the 8 channels. The instrument generally defaults to the automatic mode. Manual mode: For the specific gravity of the temperature of the current test channel in the set temperature range, you can intuitively observe the distance beyond the limit of the measured temperature.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT3208 |
8 | 4.3'' TFT LCD | -200℃~1800℃ | 0.1℃ | 2 rdgs/s | J,K,T,E,S,N,B,R |
 UT3216 |
16 | 4.3'' TFT LCD | -200℃~1800℃ | 0.1℃ | 2 rdgs/s | J,K,T,E,S,N,B,R |
 UT3224 |
24 | 4.3'' TFT LCD | -200℃~1800℃ | 0.1℃ | 2 rdgs/s | J,K,T,E,S,N,B,R |
 UT3232 |
32 | 4.3'' TFT LCD | -200℃~1800℃ | 0.1℃ | 2 rdgs/s | J,K,T,E,S,N,B,R |
DATA SHEET
MANUAL
SOFTWARE
UNIT PC Software
Current Version: V2.2.7 | 2025/11/26
Release Notes
Videos
UT3200 SERIES

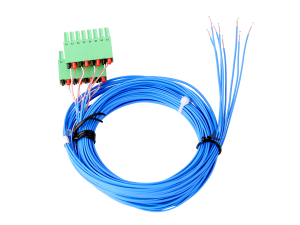

ACCESSORIES
