UT3510+
NewThe UT3510+ series of benchtop Micro Ohm Meter includes the UT3513+ and UT3516+ models. 4.3-inch LCD display. With high precision, high resolution and high speed measurement characteristics, with the highest accuracy of 0.05%, the minimum resolution of 1 μΩ. UT3513 + and UT3516 + standard RS-232C, RS485, LAN port and HANDLER communication interface, support for SCPI and MODBUS RTU protocols, and can be with the computer, PLC or WINCE device communication, and efficiently complete the remote control and data acquisition functions.
1μΩ~20kΩ/2MΩ
MEASURING RANGE
100rdgs/s
MAX. TEST RATE
RS232，RS485，HANDLER，LAN
CONNECTIVITY
½ 2U
SIZE
4.3'' TFT LCD
DISPLAY
KEY FEATURES
FEATURES
Multiple test modes
R/R-T/T/LPR/LPR-T four modes can be selected, LPR is a low-voltage test mode, can effectively protect the DUT
6 bins comparator
The built-in comparator gears allow the setting of 6 comparison results. The component under test can be divided into 7 bins (BIN1, BIN2, BIN3, BIN4, BIN5, BIN6 and NG).

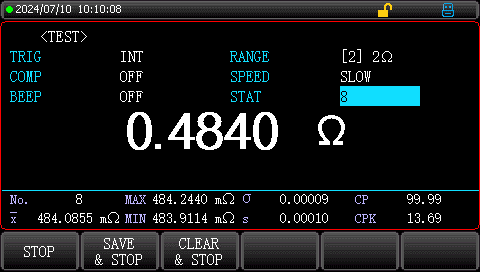

Logging and statistics
Logging: Up to 10000 groups of data can be recorded;
Statistics: up to 10,000 sets of data, process capability index calculation possible

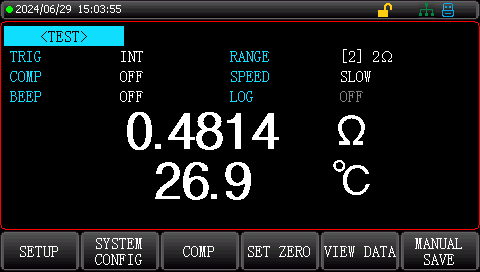

Temperature correction and conversion
Temperature correction: Compensates for deviations in measured values due to temperature.
Temperature conversion: The difference between the internal temperature of the DUT and the ambient temperature can be obtained through the thermal effect of the resistor.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT3513+ |
1μΩ~20kΩ | 100rdgs/s | RS232，RS485，HANDLER，LAN | ½ 2U | 4.3'' TFT LCD | |
 UT3516+ |
1μΩ~2MΩ | 100rdgs/s | RS232，RS485，HANDLER，LAN | ½ 2U | 4.3'' TFT LCD |
Technical Specification
| Model | UT3516+ | UT3513+ |
| Key Specifications | ||
| Channels | 1 Channel | |
| Resistance Range | 20 mΩ / 200 mΩ / 2 Ω / 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | 20 mΩ / 200 mΩ / 2 Ω / 20 Ω / 200 Ω / 2 kΩ / 20 kΩ |
| Resolution | 1 μΩ / 10 μΩ / 100 μΩ / 1 mΩ / 10 mΩ / 100 mΩ / 1 Ω / 10 Ω / 100 Ω | 1 μΩ / 10 μΩ / 100 μΩ / 1 mΩ / 10 mΩ / 100 mΩ / 1 Ω |
| Basic Accuracy | Best: ±0.05% (Slow mode) | |
| Test Speed | High: 10 ms; Fast: 17 ms; Medium: 56 ms; Slow: 334 ms | |
| Technical Details | ||
|---|---|---|
| Test Current | 20/200 mΩ: 1 A; 2 Ω: 100 mA; 20 Ω: 10 mA; 200 Ω/2 kΩ: 1 mA; 20 kΩ: 100 μA; 200 kΩ: 10 μA; 2 MΩ: 1 μA | 20/200 mΩ: 1 A; 2 Ω: 100 mA; 20 Ω: 10 mA; 200 Ω/2 kΩ: 1 mA; 20 kΩ: 100 μA |
| Reading Resolution | 22,000 counts (4½ digits) | |
| Open Circuit Voltage | <1 V at 20/200 mΩ; <2.7 V at ≥2 Ω; LPR: <40 mV | |
| Test Terminals | Four-terminal | |
| Features | ||
| Test Mode | R, R-T, T, LPR, LPR-T | R, LPR |
| Range Mode | Auto, Manual, Nominal | |
| Calibration | Short-circuit full-range zeroing | |
| Comparator (BIN Sorting) | 6 BINs + NG: HI / LO / Pass | |
| Statistics And Logging Capacity | 10000 | |
| Low-Power Resistance (LPR) | Yes; <40 mV open-circuit voltage | |
| Temperature Compensation | Yes (TC) | No |
| Temperature Conversion | Yes (Δt) | No |
| Trigger | Internal, External | |
| General Information | ||
| Display | 4.3-inch TFT LCD | |
| Interface | Handler, RS-232, RS-485, LAN, PT1000; SCPI, Modbus-RTU | Handler, RS-232, RS-485, LAN; SCPI, Modbus-RTU |
| Power | AC 100–240 V, 50/60 Hz | |
| Product Net Weight | 2.5 kg | |
| Product Dimensions (W×H×D) | 215 × 88 × 348.5 mm | |
| Standard Quantity Per Carton | 1 pc | |
| Warranty | 3 Years | |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
