UT3515-Sx

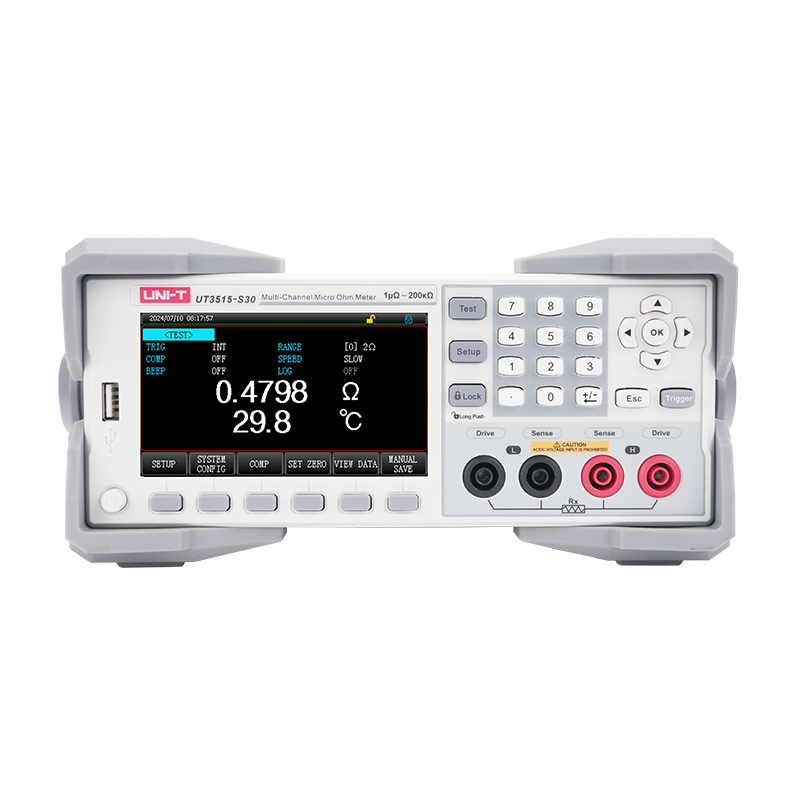

NewUT3515-Sx series benchtop Micro Ohm Meters includes the UT3515-S10, UT3515-S20, and UT3515-S30 models. They feature a 4.3-inch TFT LCD display and offer high precision, high resolution, and high-speed measurement capabilities, with a maximum accuracy of 0.05% and a minimum resolution of 1 μΩ.
UT3515-Sx series comes standard with RS-232C, RS485, LAN port, and HANDLER communication interfaces, and supports SCPI and MODBUS RTU protocols. These models can communicate with computers, PLCs, or WINCE devices, enabling efficient remote control and data acquisition.
Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ
MEASURING RANGE
230ms/10CH
MAX. TEST RATE
RS232，RS485，HANDLER，LAN
CONNECTIVITY
½ 2U
SIZE
4.3'' TFT LCD
DISPLAY
KEY FEATURES
FEATURES
Flexible switching between single and scan modes
One-touch switching in the setup menu, flexible application of front-end single mode testing or rear-panel multi-channel scanning
Multi-channel measurement

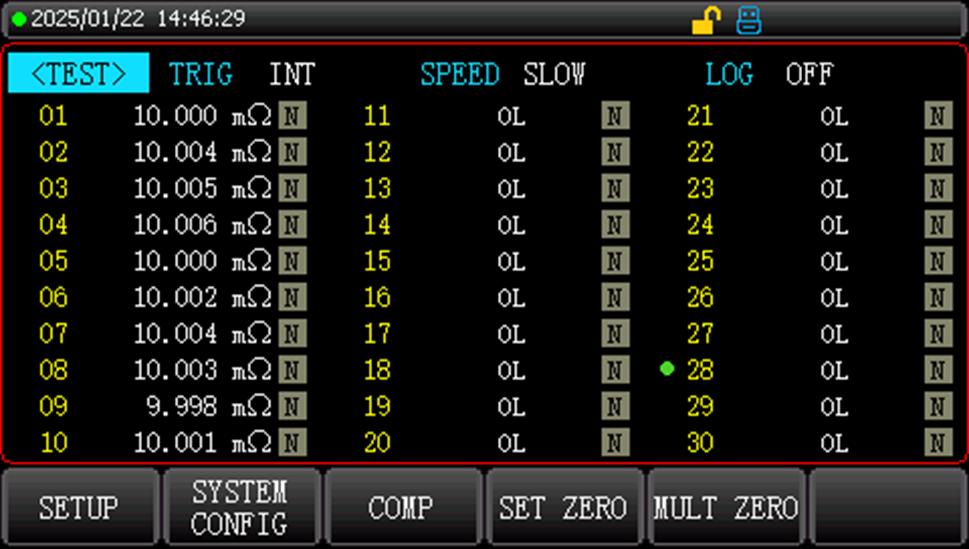

30-channel high-speed scanning measurement. Synchronized display.
Measurement results can be sorted in three levels.
Multiple test modes (Single mode)

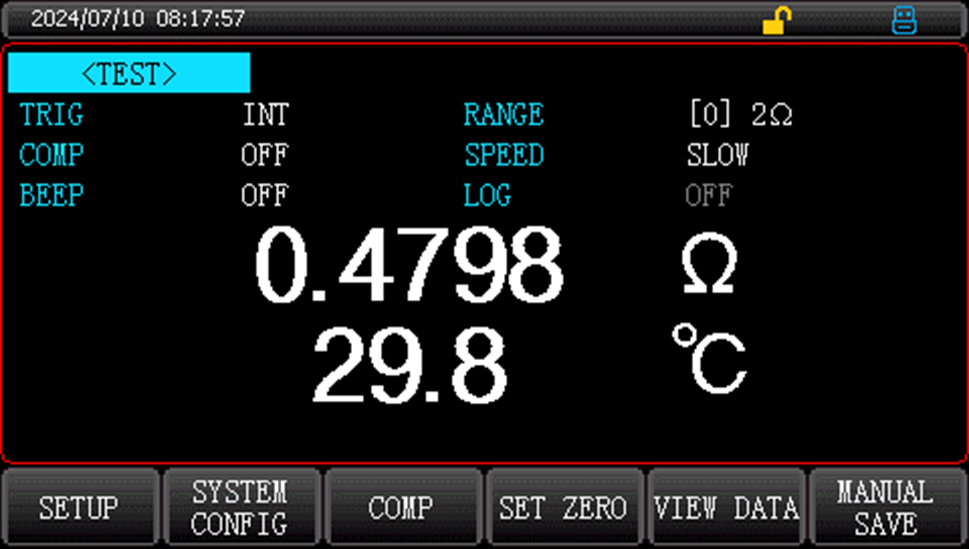

Five test modes are available: R, R-T, T, LPR, and LPR-T. LPR is a low-voltage test mode designed to effectively protect the DUT
Logging (Multi-channel)
Logging: : Supports recording data up to 10,000 groups of data.
Temperature correction and conversion
Temperature correction: Compensates for measurement deviations caused by temperature fluctuations.
Temperature conversion: Calculates the difference between the DUT’s internal temperature and the ambient temperature using the thermal characteristics of the resistor.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT3515-S10 |
Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ | 230ms/10CH | RS232，RS485，HANDLER，LAN | ½ 2U | 4.3'' TFT LCD | |
 UT3515-S20 |
Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ | 230ms/10CH | RS232，RS485，HANDLER，LAN | ½ 2U | 4.3'' TFT LCD | |
 UT3515-S30 |
Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ | 230ms/10CH | RS232，RS485，HANDLER，LAN | ½ 2U | 4.3'' TFT LCD |
Technical Specification
| Model | UT3515-S30 | UT3515-S20 | UT3515-S10 |
| Key Specifications | |||
| Channels | Rear: 30 CH; Front: 1 CH | Rear: 20 CH; Front: 1 CH | Rear: 10 CH; Front: 1 CH |
| Resistance Range | Scan: 20 mΩ / 200 mΩ / 2 Ω / 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ; Single: 20 mΩ / 200 mΩ / 2 Ω / 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | ||
| Resolution | 1 μΩ / 10 μΩ / 100 μΩ / 1 mΩ / 10 mΩ / 100 mΩ / 1 Ω / 10 Ω / 100 Ω | ||
| Basic Accuracy | Best: ±0.05% (Slow mode) | ||
| Test Speed | Scan: High 230 ms/10 ch; Fast 350 ms/10 ch; Medium 850 ms/10 ch; Slow 3400 ms/10 ch | ||
| Technical Details | |||
|---|---|---|---|
| Test Current | 20/200 mΩ: 1 A; 2 Ω: 100 mA; 20 Ω: 10 mA; 200 Ω/2 kΩ: 1 mA; 20 kΩ: 100 μA; 200 kΩ: 10 μA; 2 MΩ: 1 μA | ||
| Reading Resolution | 22,000 counts (4½ digits) | ||
| Open Circuit Voltage | <1 V at 20/200 mΩ; <2.7 V at ≥2 Ω; LPR: <40 mV | ||
| Test Terminals | Four-terminal | ||
| Features | |||
| Test Mode | Scan/Single; R, R-T, T, LPR, LPR-T | ||
| Range Mode | Auto, Manual, Nominal | ||
| Calibration | Short-circuit full-range zeroing | ||
| Comparator (BIN Sorting) | Scan mode: 3 BINs (H / L / P); Front-panel single mode: 6 BINs + NG | ||
| Statistics And Logging Capacity | 10000 | ||
| Low-Power Resistance (LPR) | Yes; <40 mV open-circuit voltage | ||
| Temperature Compensation | Yes (TC) | ||
| Temperature Conversion | Yes (Δt) | ||
| Trigger | Internal, External | ||
| General Information | |||
| Display | 4.3-inch TFT LCD | ||
| Interface | Handler, RS-232/RS-485, LAN, USB Host, PT1000; SCPI, Modbus-RTU | ||
| Power | AC 100–240 V, 50/60 Hz | ||
| Product Net Weight | 2.65 kg | ||
| Product Dimensions (W×H×D) | 215 × 88 × 348.5 mm | ||
| Standard Quantity Per Carton | 1 pc | ||
| Warranty | 3 Years | ||
