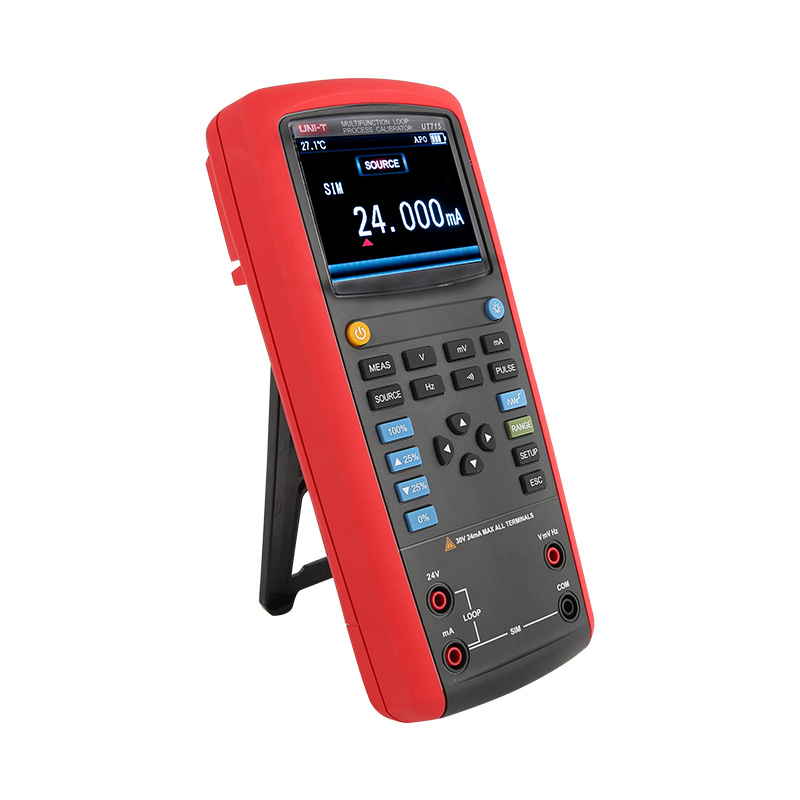

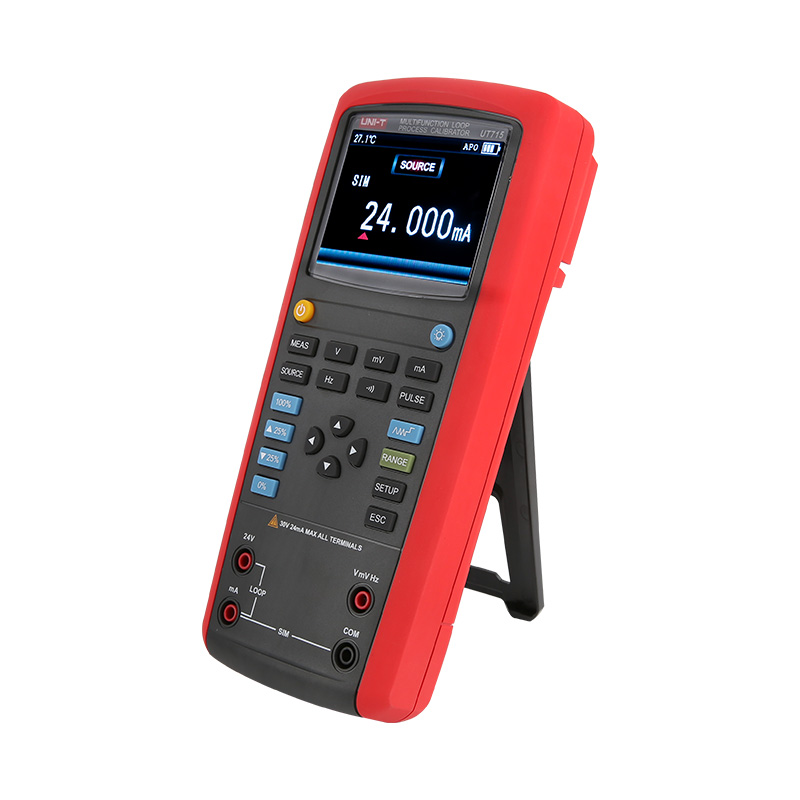

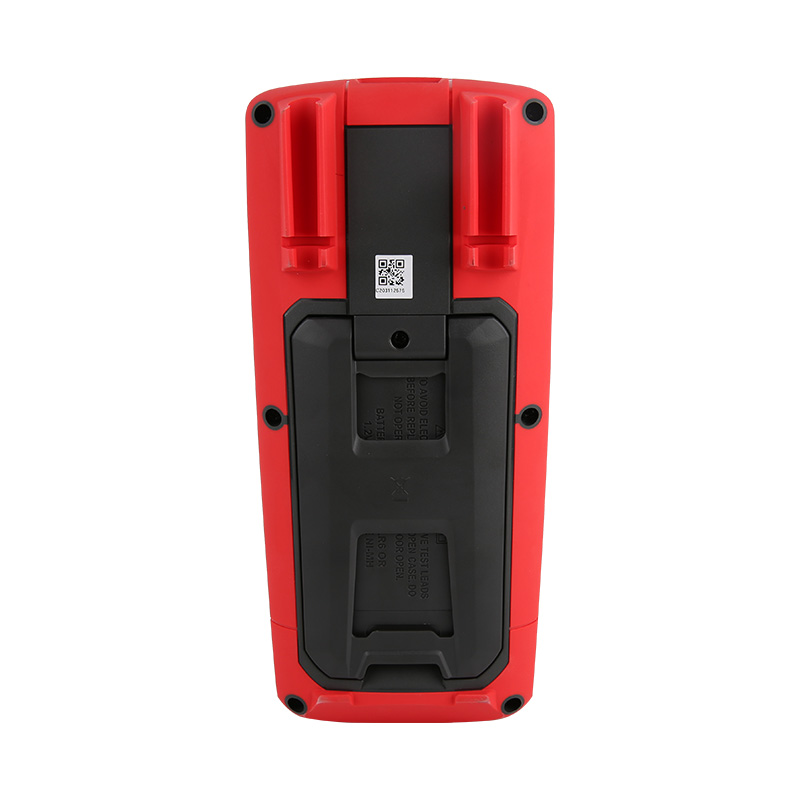

UT715 Multifunction Loop Process Calibrator

The UT715 multifunction loop process calibrator, it measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.

Get a quote

Data Sheet

Download Resources

Key Features

Features

● Step/ramp functions

● Source and measure accuracy up to 0.02%

● Rechargeable battery

● Contrast adjustment

● Auto power off (Time adjustable)

● Stores and recalls setups

● USB communication

● Provides 24V loop power to transmitter while conducting mA current measurement at the same time

Technical Specification

Source
Specifications	Range	UT715
Measurement
DC voltage (V)	200mV/30V	±(0.02%+2)
DC current (mA)	24mA	±(0.02%+2)
Loop current (mA)	24mA	±(0.02%+2)
Frequency (Hz)	100Hz/1kHz/10kHz/100kHz	±(0.01%+1)
Continuity test	√
DC voltage (V)	100mV/1000mV/10V	±(0.02%+10)
DC current (mA)	24mA/20mA (SIM)	±(0.02%+2)
Frequency (Hz)	200Hz/2000Hz/20kHz	±(0.01%+1)
Pulses (Hz)	100Hz/1kHz/10kHz	±1
Loop power output	24V	±10%
Display count	20000
Operation temperature	-10°C~55°C
General Characteristics
Power	1.2V x 6 AA rechargeable battery
Product net weight	650g
Product size	195mm x 95mm x 58mm
Standard accessory	Test lead, USB cable, power adapter, English manual
