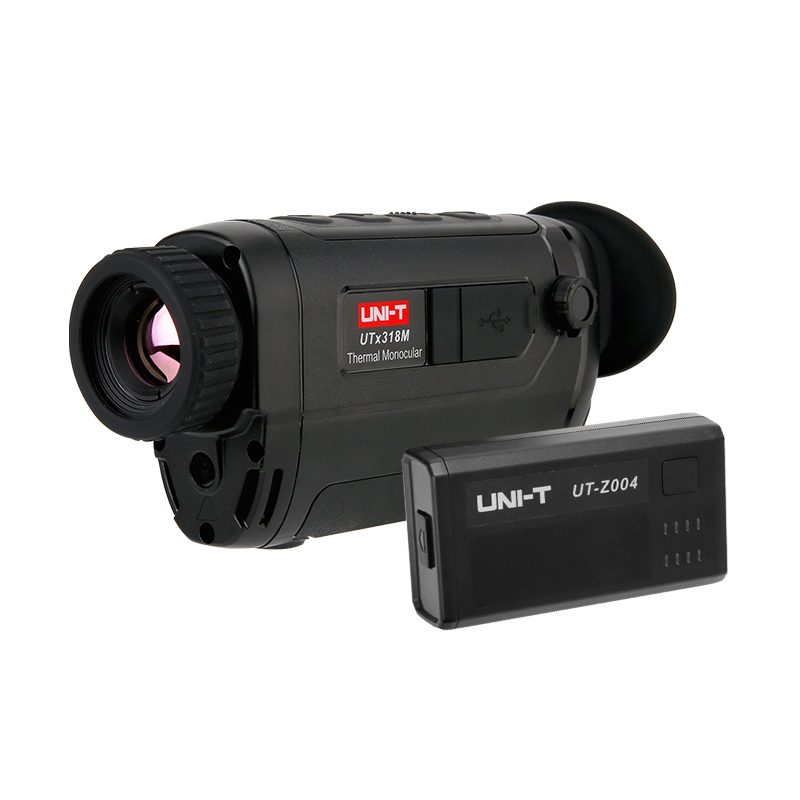

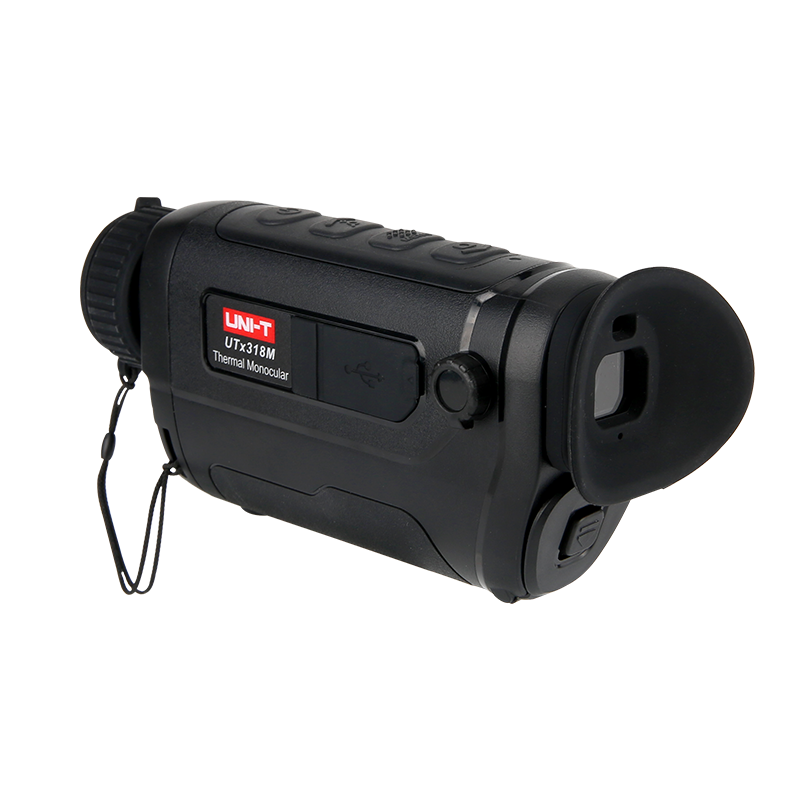

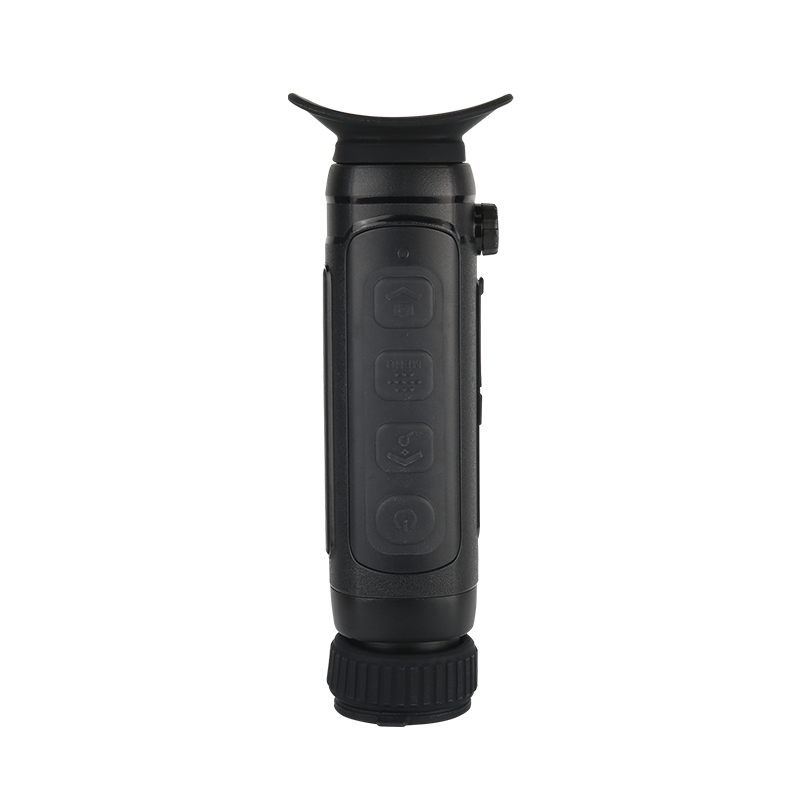

UTx318M
Thermal Monocular
UTx318M is a lighter weight thermal monocular that equipped with 400×300 IR detector and 0.39″ OLED display screen. Fits human’s palm better. The detachable battery pack design ensures the duration performance. Connecting “Thermal Xplorer” mobile app via Wi-Fi to realize real-time images projection, share the fun with other hunters. UTx318M is a pretty good choice for outdoor lovers.
IR Resolution
400×300
Temperature Range
-20℃~550℃
Thermal Sensitivity
≤25mK
Field of View (FOV)
14.6°×11°
Frame Rate
≤50Hz
Display
0.39″ OLED (1024×768)
FEATURES
Light-weight & compact design
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
0.39" OLED display screen
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Detachable battery pack (UT-M20)
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Stadiametric ranging
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Smart standby
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
E-Compass
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| Display | 0.39″ OLED (1024×768) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 400×300 |
| Spectral range | 8~14µm |
| Pixel size | 12μm |
| Frame rate | ≤50Hz |
| Thermal sensitivity(NETD) | ≤25mK |
| Focus | Manual focus |
| Lens focal length | 18mm |
| Field of view(FOV) | 14.6°(H) × 11°(V) |
| Eyepiece relief distance | 18mm |
| Diopter adjustment | -4D~+5D |
| Functions | |
|---|---|
| Color palettes | Black hot, White hot, Hottest, Ironbow, Rainbow |
| Digital zoom | 2x, 4x, 8x / 1.0~8x continuous |
| Scene modes | Bird, Forest, Rock |
| Calibration modes | Auto, Manual, Background |
| Stadiametric ranging | √ |
| Smart standby | √ |
| Hot trace | √ |
| E-Compass | √ |
| PIP | √ |
| Video recording | √ |
| Photo viewing | Device Local, PC, APP |
| Wi-Fi download photo | √ |
| Wi-Fi live streaming | √ |
| Video output | Type-C interface |
| Analysis software | APP (Android & iOS) |
| General Characteristics | |
| Battery | 3200mAh detachable Li-ion battery (UT-M20) |
| Operating time | Approx. 4 hours |
| USB | Type-C |
| Storage | 16GB Internal |
| Image storage format | PNG |
| Video storage format | MP4 |
| Protection | IP67 & 2m drop proof |
| Certificates | EAC, CE, FCC, RoHS, FDA |
| Languages | EN, FR, DE, ES, IT, RU, UA |
| Weight | 357g |
| Dimension | 160mmx71.5mmX38.5mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, Hand Strap, Cloth Bag, Charging Base, Rechargeable Li-ion battery×2, Quick Start Guide, Tool Box |
| Standard individual packing | Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 305mm×135mm×265mm |
| Standard carton G.W. | 2kg |

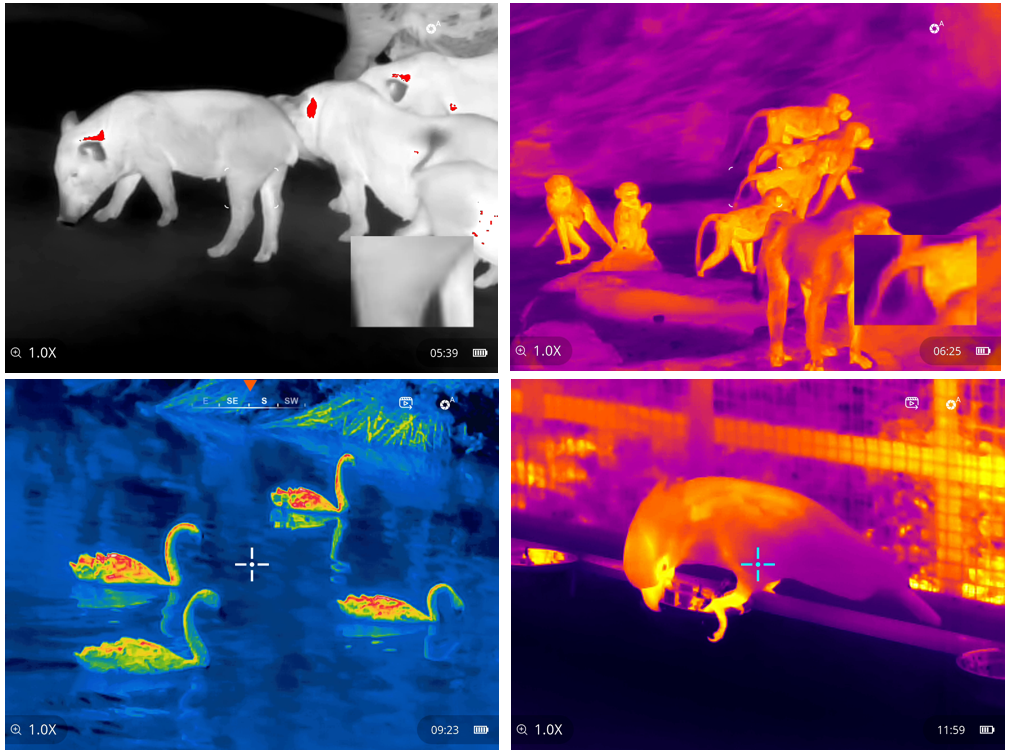

THERMAL GALLERY
Application
UTx318 Application
