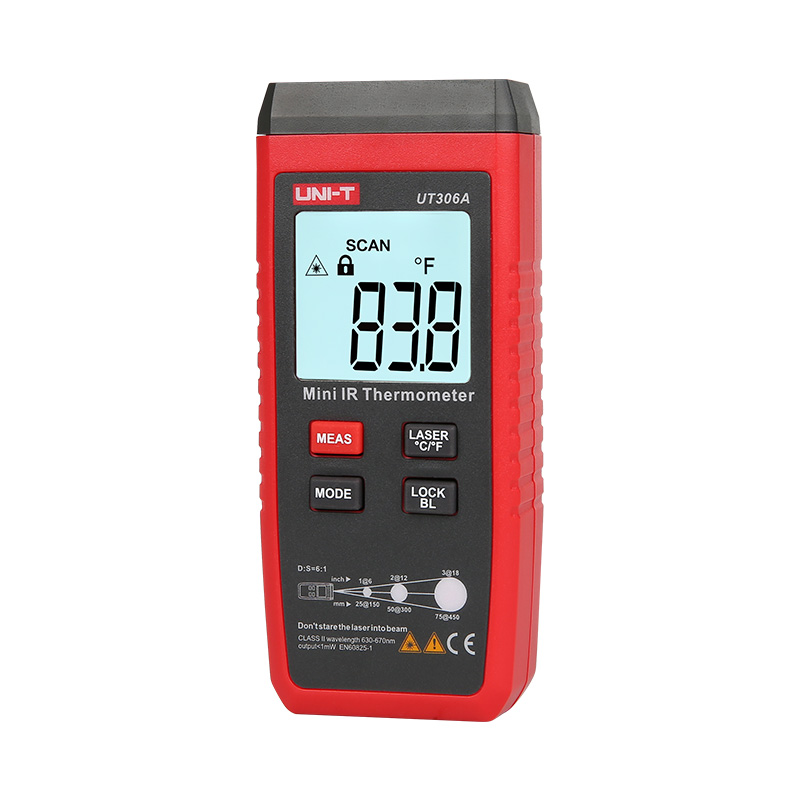

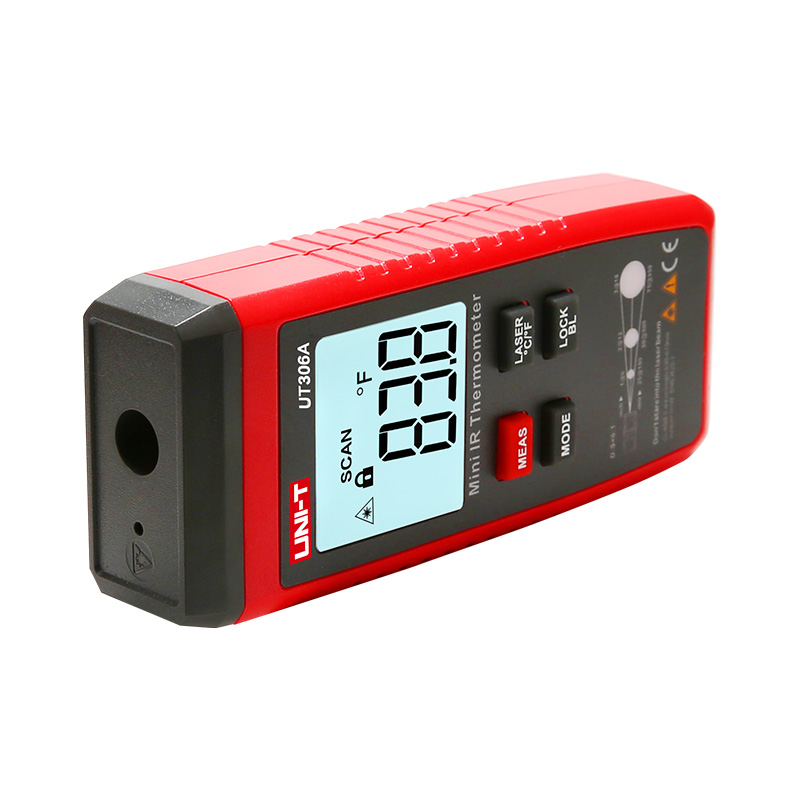

UT306A Mini Infrared Thermometer

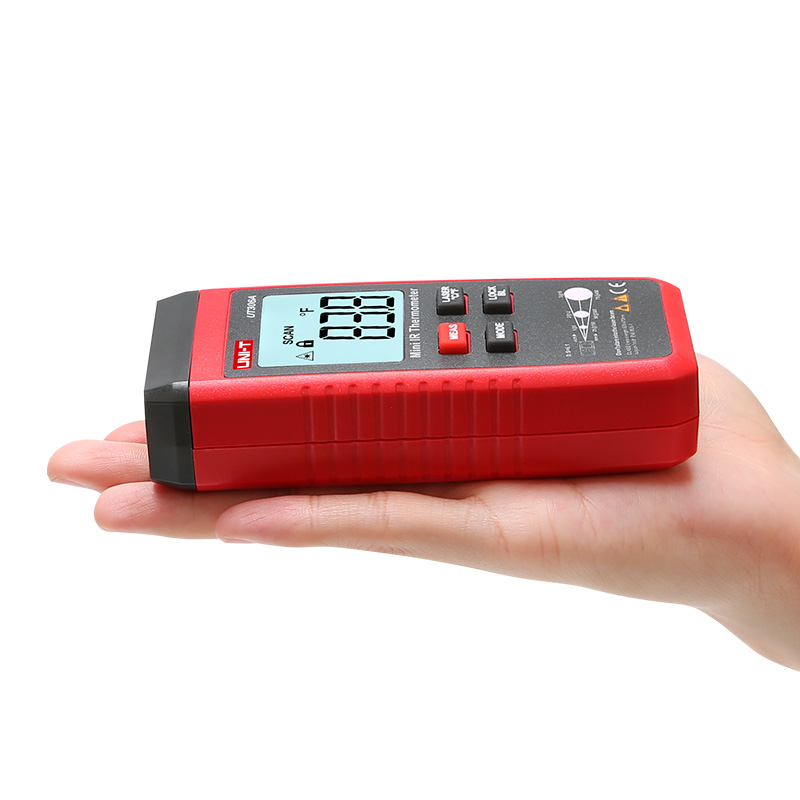

UT306A is a portable non-contact thermometer. This device’ s miniature design is convenient to carry and suitable for everyday temperature measurement needs. UT306A is designed to counter environmental interference, ensuring accurate temperature readings under various measurement environments.
Key Features
Features
● Single-laser targeting
● White backlight
● Max/Min/Avg modes
● Lock measurement
● Data hold; auto power off
● Low battery indication
● Power-off memory
● ℃/℉ selections
Model
UT306A
Technical Specification
| Specifications | UT306A |
| Temperature range | -35℃~300℃ |
| -31℉~572℉ | |
| Accuracy | ≥0℃: ±2.0℃ or ±2%; <0℃: ±(2.0℃+0.1℃/℃) |
| ≥32℉: ±4.0℉ or ±2%; <32℉: ±(4.0℉+0.1℉/℉) | |
| D:S ratio | 6:01 |
| Response time | <250ms |
| Emissivity | 0.95 |
| Spectral response | 8um~14um |
| Laser power | < 1mW |
| Features | |
|---|---|
| Auto power off | √ |
| Low battery indication | √ |
| Data hold | √ |
| ℃/℉ selection | √ |
| MAX/MIN/AVG mode | √ |
| Lock measurement | √ |
| Backlight | √ |
| Laser | √ |
| Operating temperature | 0℃~50℃ (32℉~104℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 1m |
| General Characterisitics | |
| Power | 1.5V battery (R03) x 3 |
| Display | 37.4mm x 36.4mm |
| Product color | Red and grey |
| Product net weight | 120g |
| Product size | 120mm x 53mm x 28mm |
| Standard accessories | Batteries |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 272mm x 225mm x 200mm |
| Standard carton gross weight | 2.8kg |

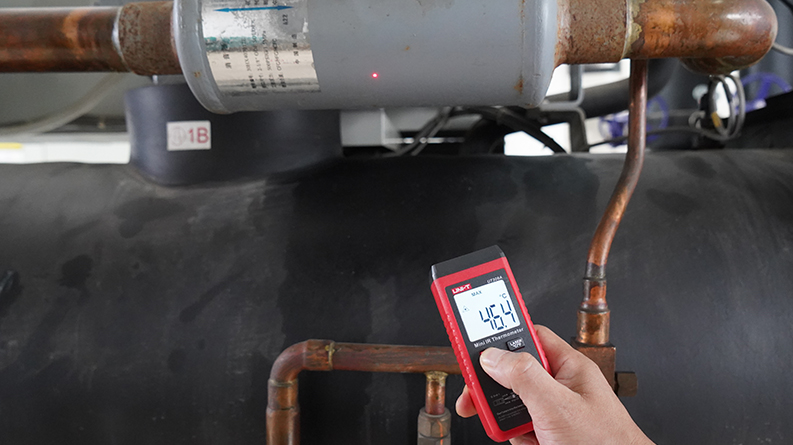

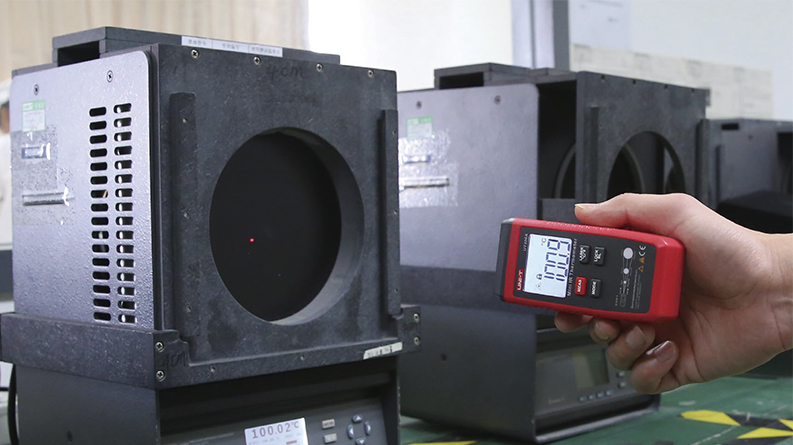

Application
