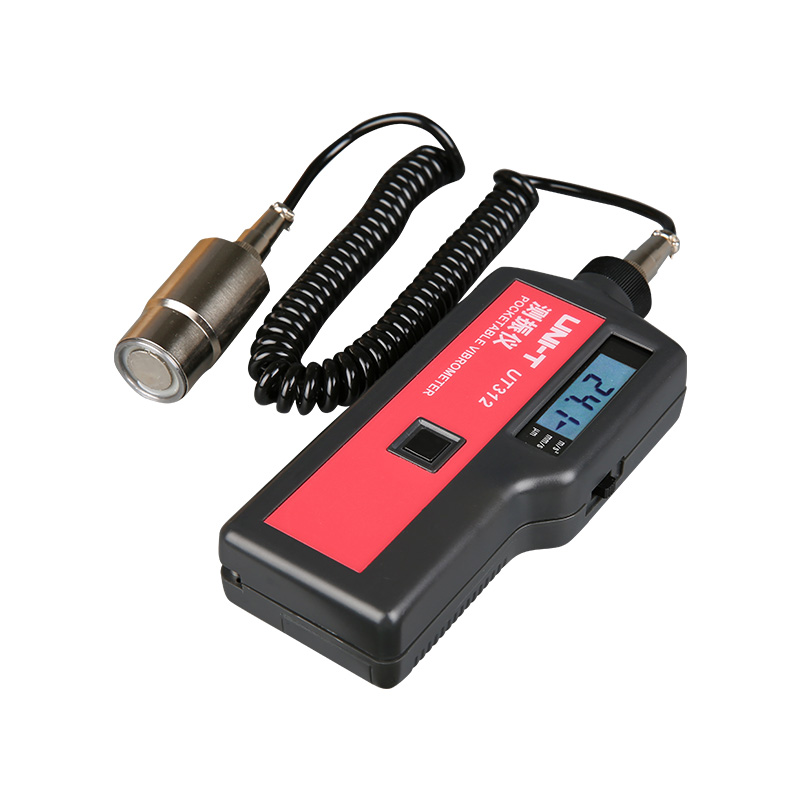

UT310 Series Vibration Testers
UT310 series handheld vibration testers can measure displacement, velocity, and acceleration of rotating and reciprocating machinery. Technicians can use these to monitor equipment status and ensure normal operation.
Models in UT310 Series: UT312, UT315A
(UT312 have been discontinued ?Replaced by UT312A)
Key Features
Features
● Highly accurate and precise
● Measures acceleration, velocity, displacement
● Can select different vibration frequency characteristics
● Auto power off, low battery indication
● Data hold
Technical Specification
| Secifications | UT312 (Discontinued) | UT315A |
| Acceleration (O-P) | 0.1～199.9m/s² Frequency response: 10～1500Hz Accuracy: ≤2.0m/s², ≤±10%; ＞2.0m/s², ≤±5% |
0~199.9m/s² Frequency response: 10Hz-10kHz Accuracy: ±(5%+0.2m/s²) |
| Velocity (RMS) | 0.1～199.9mm/s Frequency response: 10～1500Hz Accuracy: ≤2.0mm/s, ≤±10%; ＞2.0mm/s, ≤±5% |
0~19.99cm/s Frequency response: 10Hz~1kHz Accuracy: ±(5%+0.02cm/s) |
| Displacement (P-P) | 1～1999μm Frequency response: 10～500Hz Accuracy: ≤20um, ≤±10%; ＞20um, ≤±5% |
1~1.999mm Frequency response: 10Hz~500Hz Accuracy: ±(5%+0.002mm) |
| Features | ||
|---|---|---|
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Battery life | Continuous measuring time > 8 hours | |
| Display count | 2000 | |
| General Characteristics | ||
| Power | 9V battery (6F22 ) | |
| Product color | Red and grey | |
| Product net weight | UT311/UT312: 230g; UT315A: 395g | |
| Product size | UT311/UT312: 185mm x 68mm x 30mm; UT315A: 166mm x 80mm x 30mm | |

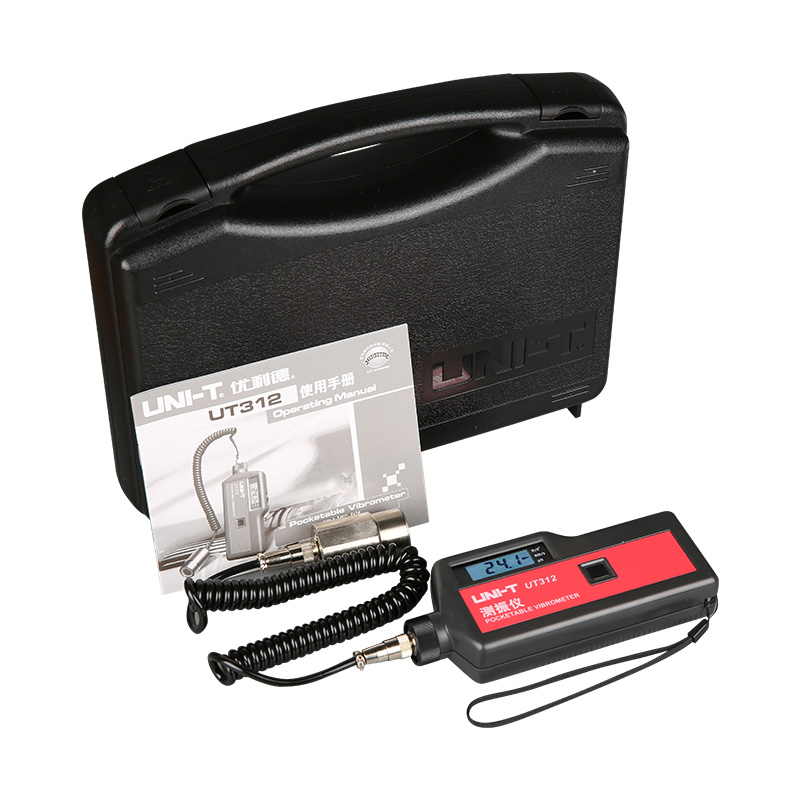

| Standard accessories | Battery, tool box | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | UT311/UT312: 5pcs; UT315A: 1pcs | |
| Standard carton measurement | UT311/UT312: 375mm x 307mm x 246mm; UT315A: 305mm x 240mm x 85mm | |
| Standard carton gross weight | UT311/UT312: 5.8kg; UT315A: About 1.2kg | |

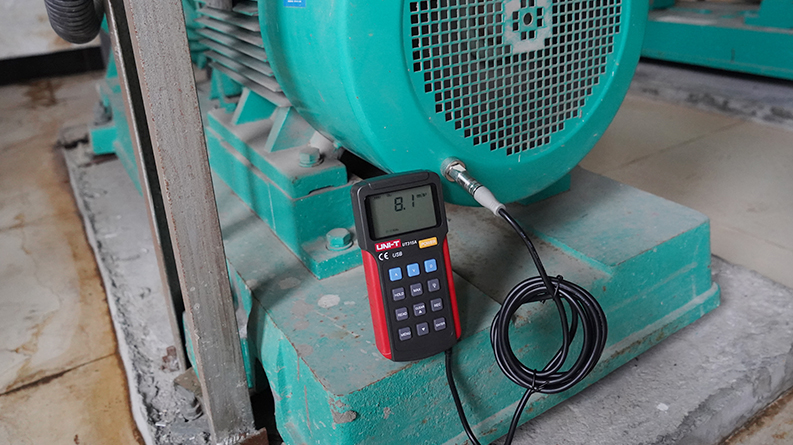

Application
