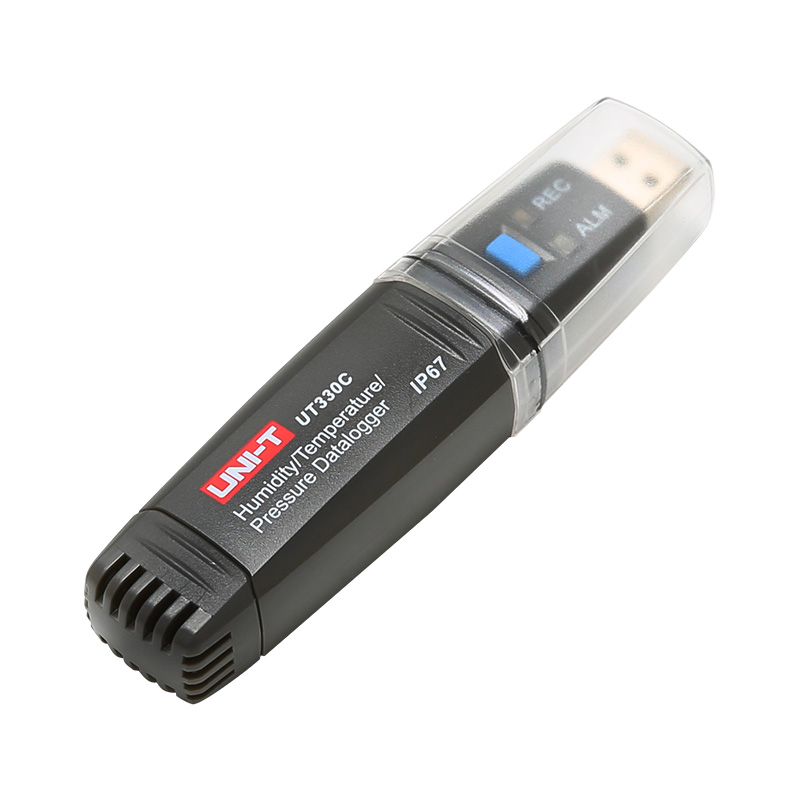

UT330-USB Series Dataloggers

UT330-USB series USB dataloggers use high-precision temperature, humidity and atmospheric pressure sensors for long period monitor and record. UT330-USB series satisﬁes IP67 water and dust proof, can store 60000 sets of data and transmit them through USB to PC. They are great solutions for monitoring highly sensitive goods such as medicine or food during transportation and storage, greenhouse, wine cellar and more.

Models in UT330-USB Series: UT330A, UT330B, UT330C

Get a quote

Data Sheet

Download Resources

Key Features

Features

● 60000 sets data storage
● PC software
● Trend capture to BMP/CSV/TXT files
● High/low temperature alarm, customizable user settings

Model

UT330A

Technical Specification

Features
Specifications			UT330A	UT330B	UT330C
Temperature	Range	-40°C~80C (-40°F~176°F)	√	√	√
	Accuracy	0°C~40°C	±0.5℃	±0.5℃	±0.5℃
		-30°C~0°C, 40℃~70℃	±1℃	±1℃	±1℃
		-40°C~-30°C, 70℃~80℃	±2℃	±2℃	±2℃
	Resolution	0.1℃/0.1℉	√	√	√
Relative humidity	Range	0%RH~100%RH		√	√
	Accuracy	20%RH~80%RH		±3%RH	±3%RH
	Accuracy	＜20%RH or ＞80%RH		±5%RH	±5%RH
	Resolution	0.1%RH		√	√
Atmospheric pressure	Range	750hPa~1100hPa			√
	Accuracy				±3hPa
	Resolution	0.1hPa			√
IP67			√	√	√
℃/℉ selection			√	√	√
Temperature offset settings			√	√	√
Humidity offset settings				√	√
Pressure offset settings					√
Data storage			60000	60000	60000
Data recall			√	√	√
USB interface			√	√	√
Auto record time setup			√	√	√
User name settings			√	√	√
Alarm threshold			√	√	√
Start mode setup			√	√	√
General Characterisitics
Power	3.6V 1/2 battery (R6) x 1
Product color	Grey
Product net weight	52g (with battery, no bracket)
Product size	122mm x 30mm x 24mm
Standard accessories	Battery, PC software CD, bracket, screws
Standard individual packing	Gift box, English manual
Standard quantity per carton	20pcs
Standard carton measurement	287mm x 207mm x 250mm
Standard carton gross weight	2.3kg
Optional accessory	Magnet bracket
