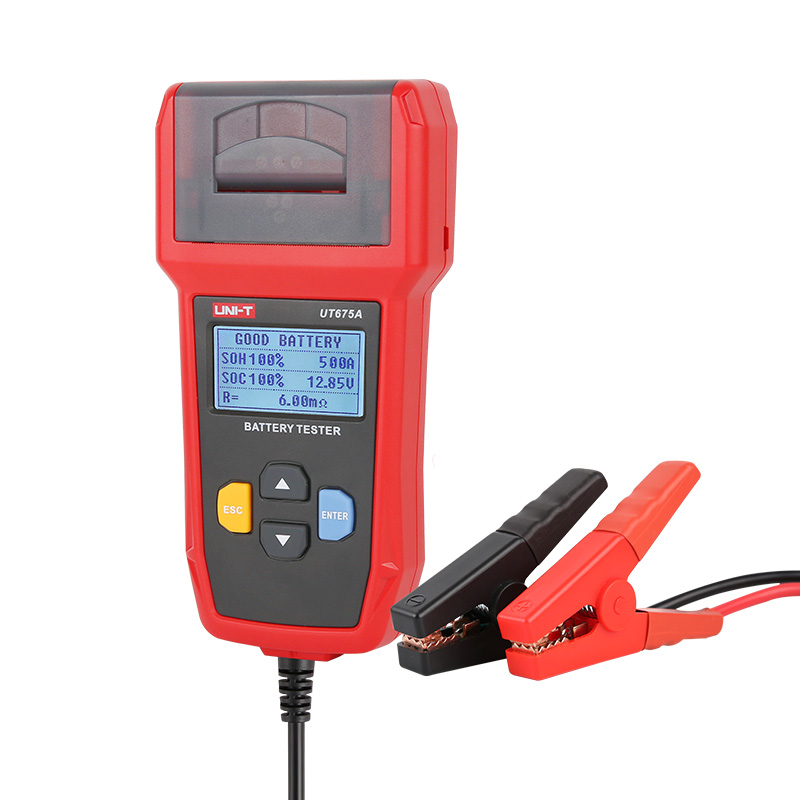

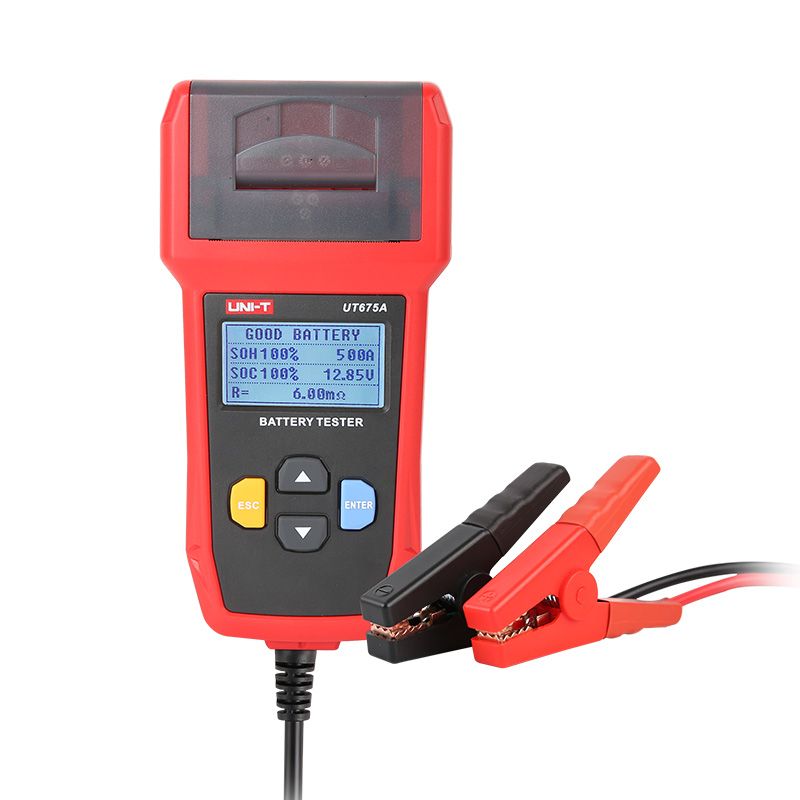

UT673A/UT675A Battery Testers
UT673A/UT675A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 3Ah to 250Ah. These CE certified testers can rapidly and accurately detect common faults caused by battery. UT675A also includes USB communication and built-in printer for report generation.
Models: UT673A, UT675A
Key Features
Features
● 12V cranking lead acid battery test
● 12/24V charging or cranking system test
● Display battery capacity, voltage, resistance and life
● Four-termina Kelvin test
● 10 types of battery standards
● Language option (Chinese/English)
● Test without battery disassembly
● LED color indication for test result (UT673A)
● Print on-line and real-time test reports (UT675A)
● USB data transfer (UT675A)
Technical Specification
| Specifications | Range | UT673A | UT675A |
| Certificates | CE, FCC, RoHS | ||
| 12V battery test | 7~16V DC | ✔ | ✔ |
| 12V/24V cranking system test | 7~30V DC | ✔ | ✔ |
| 12V/24V charging system test | 7~30V DC | ✔ | ✔ |
| Battery type | Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery | ||
| Battery capacity | 3~250Ah | ✔ | ✔ |
| Battery standard and range | CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400; IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH |
||
| Overvoltage protection | ✔ | ✔ | |
| Reverse connection protection | ✔ | ✔ | |
| A prompt of poor contact | ✔ | ✔ | |
| Battery status display | ✔ | ✔ | |
| Battery life display | ✔ | ✔ | |
| Battery capacity display | ✔ | ✔ | |
| Battery internal resistance display | ✔ | ✔ | |
| USB communication | ✔ | ||
| Printing function | ✔ | ||
| General Characteristics | |||
|---|---|---|---|
| Power | None, powered by an external source | ||
| Display | 128*64 black and white lattice | ||
| Product net weight | UT673A: 264g; UT675A: 413g | ||
| Product size | UT673A: 76mm x 22mm x 142mm; UT675A: 95mm x 47mm x 183mm | ||

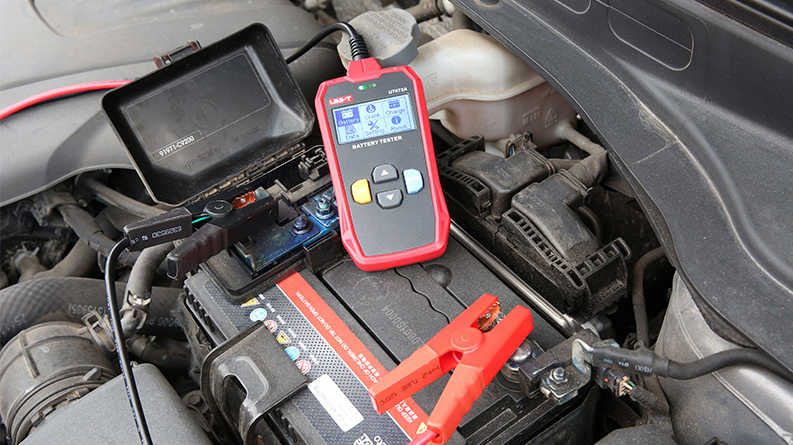

Application
