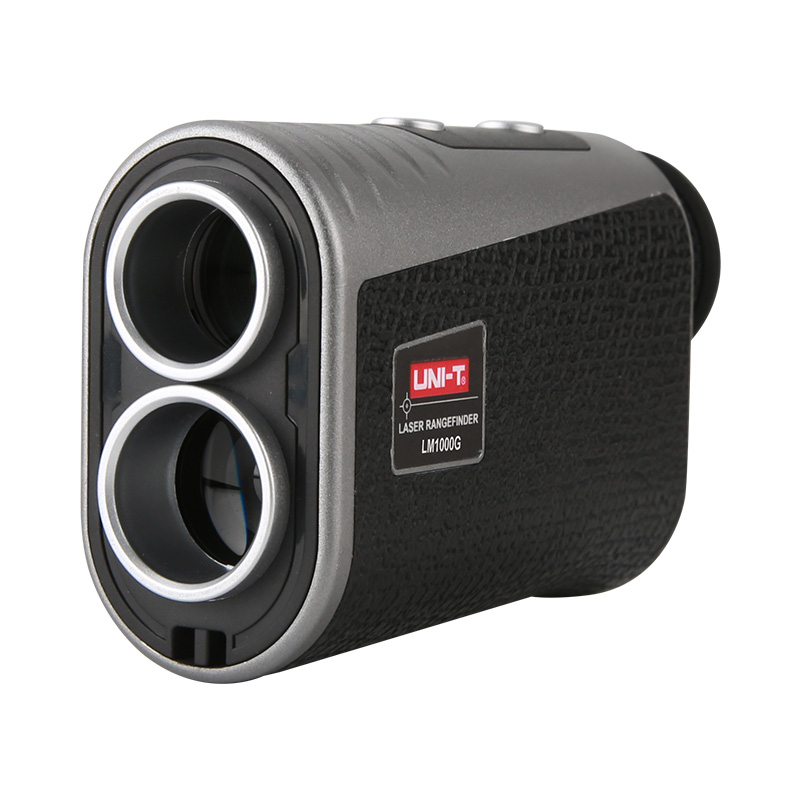

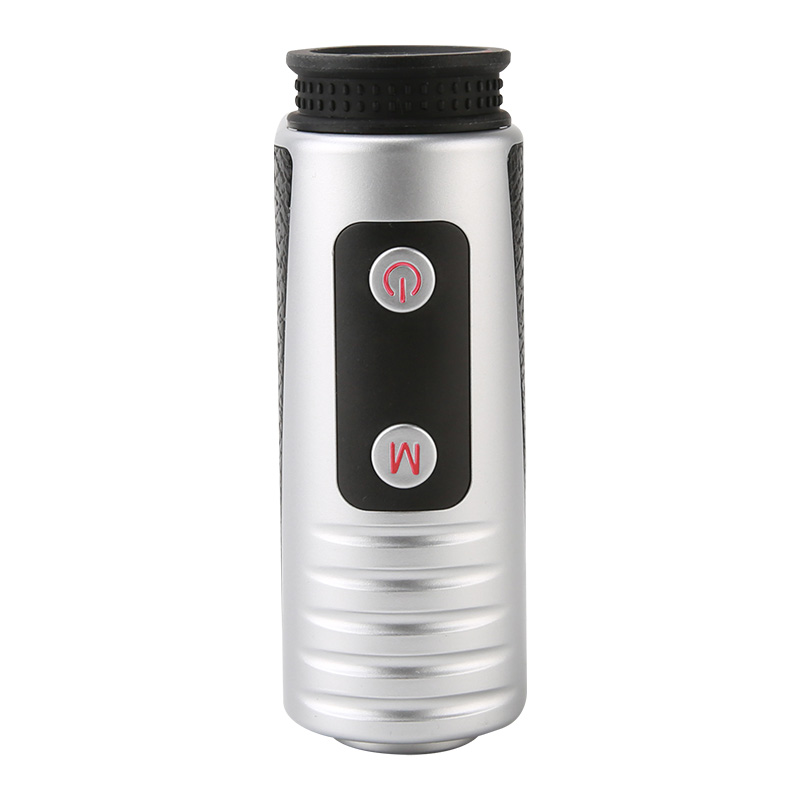

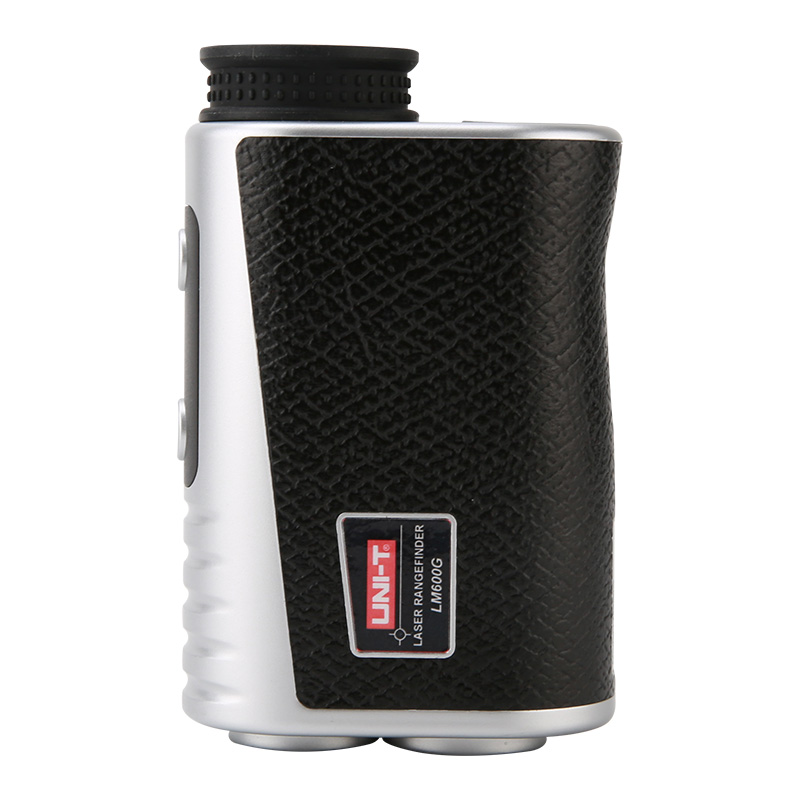

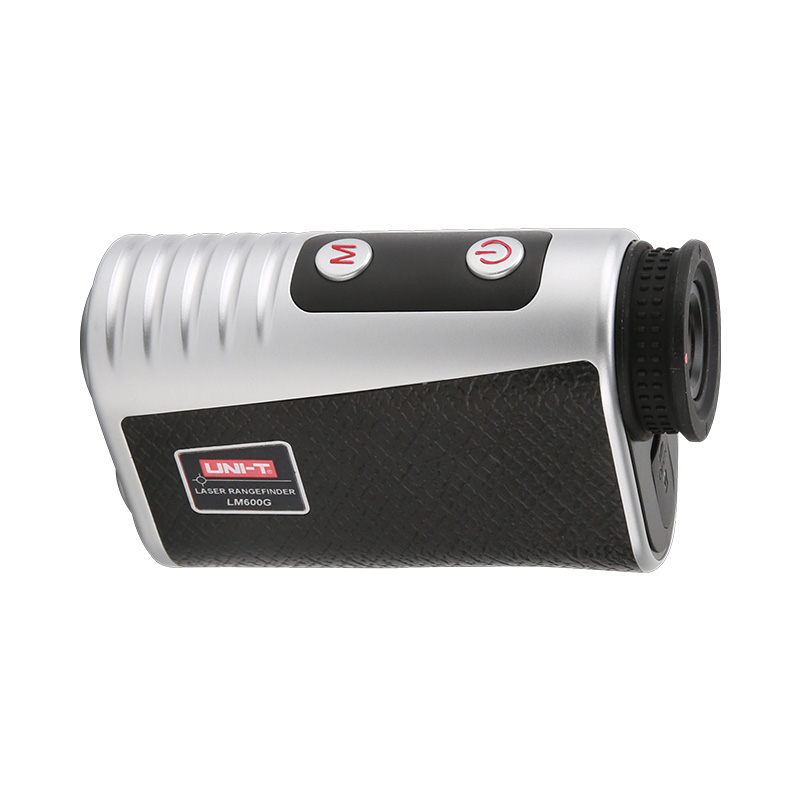

LM G Series Laser Rangefinders
Golf rangefinder has flagpole lock, golf trajectory compensation, continuous measurement, distance/angle/height/speed measurement and vibration hint functions. It can be used in golf, power equipment installation, highway, municipal engineering, forestry survey and design, construction, network planning and communication maintenance.
Models in LM600G Series: LM600G, LM800G, LM1000G, LM1200G, LM1500G
Key Features
Features
● Durable Body
● High precision
● 6 x optical
● Harmless laser
● Vibration hint
● Lithium battery
● Golf mode
● Flagpole lock mode
● Ultra Clear LCD Display
● ±6°diopter
Model
LM1200G
Technical Specification
| Model | LM600G | LM800G | LM1000G | LM1200G | LM1500G |
|---|---|---|---|---|---|
| TECHNICAL DETAILS | |||||
| Distance Range | 3-600m | 3-800m | 3-1000m | 3-1200m | 3-1500m |
| Units | m, Yd, Ft, km/h, kY/h | ||||
| Accuracy | ±1m ± range×0.2% | ||||
| Measurement Height | 250m | 300m | 450m | 500m | 600m |
| Height Error | ±0.5m | ||||
| Speed Range | 0-300km/h | ||||
| Magnification | 6X | ||||
| Diopter Adjustment Range | ±6° | ||||
| Angle Range | ±60° | ||||
| Angle Error | ±1° | ||||
| Objective Aperture | 19mm | ||||
| Eyepiece Aperture | 15mm | ||||
| Exit Pupil Diameter | 3.7mm | ||||
| Laser Wavelength | 905nm | ||||
| Laser Power | <1mW | ||||
| Laser Class | Class I | ||||
| FEATURES | |||||
| Flagpole Lock Mode | ✔ | ||||
| Golf Trajectory Compensation | ✔ | ||||
| Slope Measurement | ✔ | ||||
| Height Measurement | ✔ | ||||
| Tripod Threaded Hole | ✔ | ||||
| Horizontal Distance Mode | ✔ | ||||
| Speed Measurement Mode | ✔ | ||||
| Vibration Mode | ✔ | ||||
| Auto Power Off | ✔ | ||||
| GENERAL INFORMATION | |||||
| Battery | 3.7V 750mAh lithium battery | ||||
| Product Size | 108×68×38mm | ||||
| Standard Accessories | USB cable, gift box, English manual, carrying bag, hand strap | ||||
| Standard Quantity Per Carton | 5pcs | ||||
| Operating Temperature | -10℃~50℃ | ||||
Application
Distance measurement
Velocity measurement
