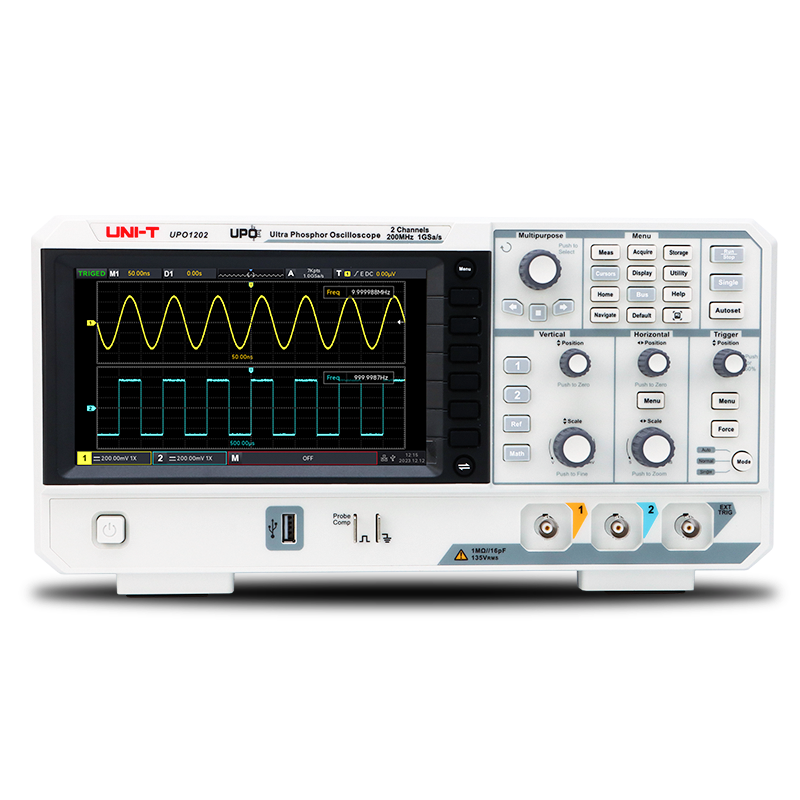

UPO1002
NewUPO1002 series digital phosphor oscilloscope adopts innovative UNI-T Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback and 256-level grayscale display.
The series support DVM module, rich trigger and bus decoding functions, and support full memory hardware real-time decoding.
It widely used in many fields, including embedded system design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D and education.
100MHz~200MHz
Bandwidth
2
Analog Channels
1GSa/s
Real-time Sample Rate
56Mpts
Max. Memory Depth
500, 000wfms/s
Waveform Capture Rate
/
Digital Channels
KEY FEATURES
FEATURES
Ultra Phosphor 2.0
Normal waveform capture rate up to 100,000wfms/s, at Fast Acquire mode the waveform capture rate goes up to 500,000wfms/s.
long memory depth
56Mpts long memory depth for full frequency domain information at high sample rates
Multi-Scopes 2.0
Multi-Scopes 2.0 can separate the time base and voltage grid of two channels, so users can observe two completely different signals simultaneously in the same window.

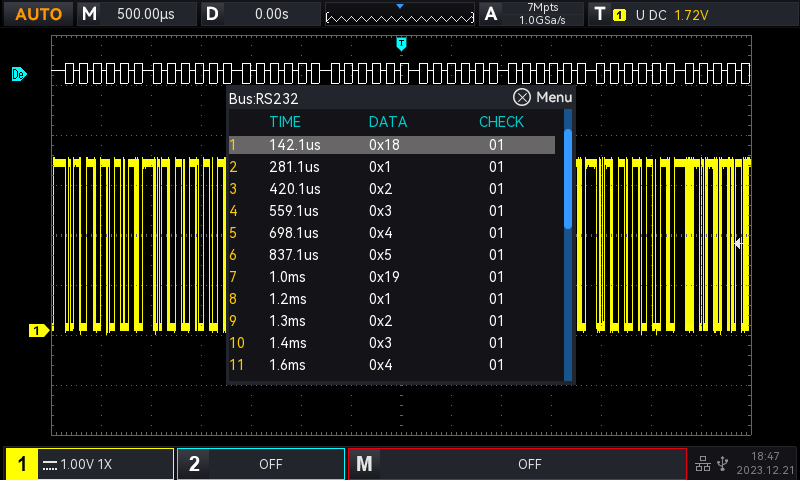

Full-memory hardware real-time decoding
Full-memory hardware real-time decoding, high-efficiency analysis: Under 56Mpts deep storage, the decoding speed of 3 protocols (RS232/UART, I2C, SPI) reaches milliseconds, which is 100x faster than the traditional software decoding speed, and significantly improves the analysis efficiency.
1M-point enhanced FFT
1M-point enhanced FFT, in-depth frequency domain analysis: support multi-domain view, independent spectrum view display, multi-dimensional visualization of signal characteristics. Provides 4 traces and detector modes to meet different analysis needs. Supports automatic trace peak measurement to quickly identify key spectral features.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO1202 |
200MHz | 2 | 1GSa/s | 56Mpts | 500,000wfms/s | / |
 UPO1102 |
100MHz | 2 | 1GSa/s | 56Mpts | 500,000wfms/s | / |
Technical Specification
| Model | UPO1202 | UPO1102 |
| Key Specifications | ||
| Bandwidth | 200 MHz | 100 MHz |
| Channels | 2 analog | |
| Sample Rate | 1 GSa/s/CH (all channels) | |
| Vertical Resolution | 8-bit | |
| Max. Memory Depth | 56 Mpts | |
| Max. Waveform Capture Rate | 150,000 wfms/s; 500,000 wfms/s Fast Acquire | |
| Technical Details | ||
|---|---|---|
| Rise Time | ≤1.8 ns (typ.) | ≤3.5 ns (typ.) |
| Time Base Scale | 1 ns/div to 1000 s/div | |
| Vertical Scale | 500 μV/div to 20 V/div | |
| Input Impedance | (1 MΩ ±2%) || 16 pF | |
| Features | ||
| Auto Measurements | 36 parameters | |
| Protocol Analysis Count | 3 | |
| Included Bus Protocols | RS-232/UART, I²C, SPI | |
| DVM | 4-digit | |
| Frequency Counter | 6-digit | |
| Spectrum Analysis | Enhanced FFT, up to 1 Mpts | |
| General Information | ||
| Display | 7-inch TFT LCD, 800×480 | |
| Interface | USB Host, USB Device, LAN, EXT Trig, AUX Out | |
| Power | 100–240 VAC, 50/60 Hz | |
| Product Net Weight | 2.45 kg | |
| Product Dimensions (W×H×D) | 336 × 170 × 110 mm | |
| Standard Quantity Per Carton | 1 pc | |
| Certification | CE | |
| Warranty | 3 years | |
