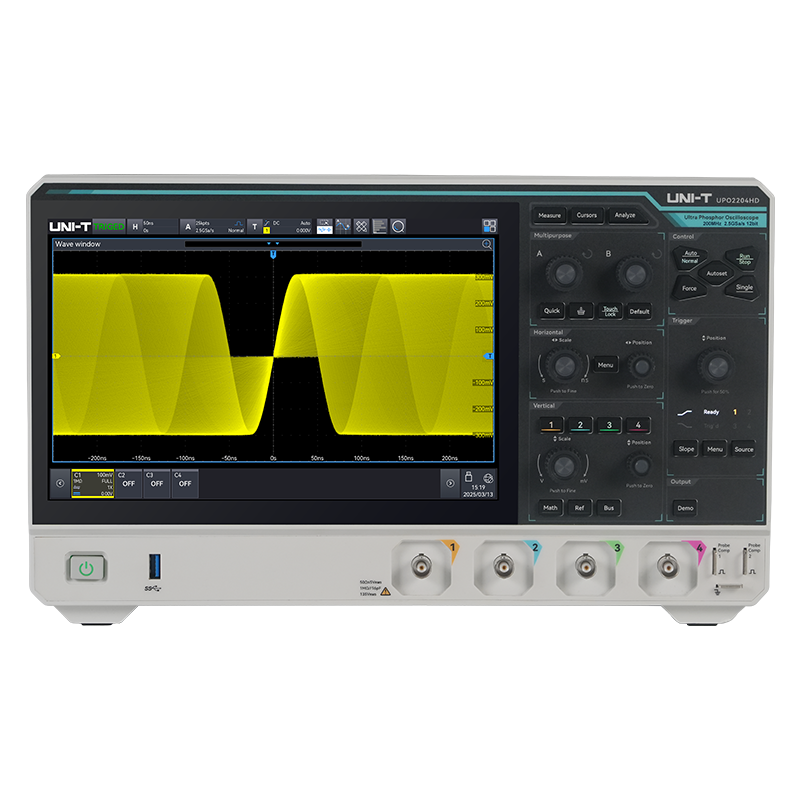

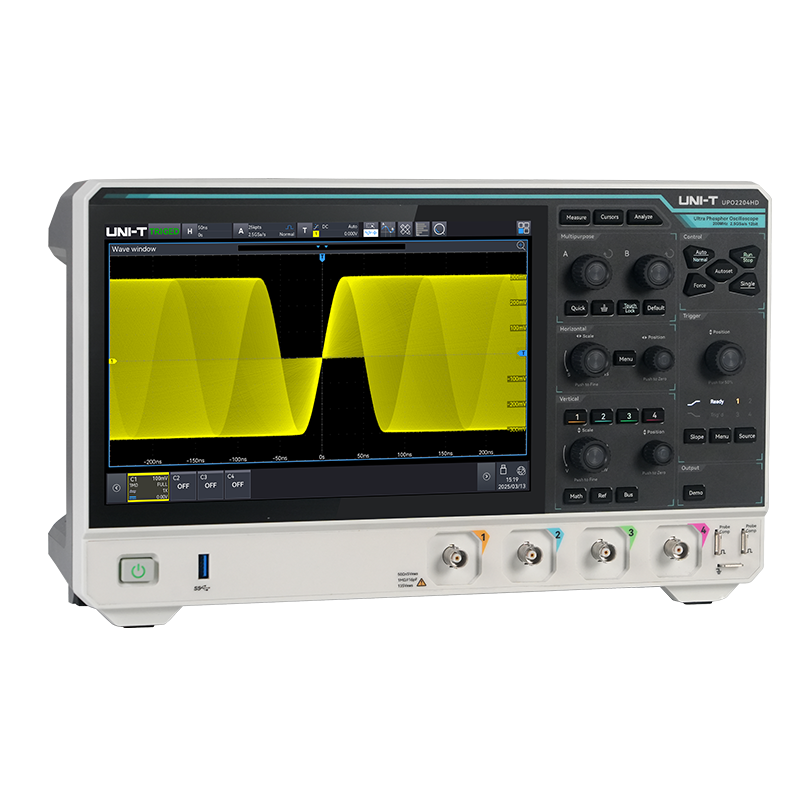

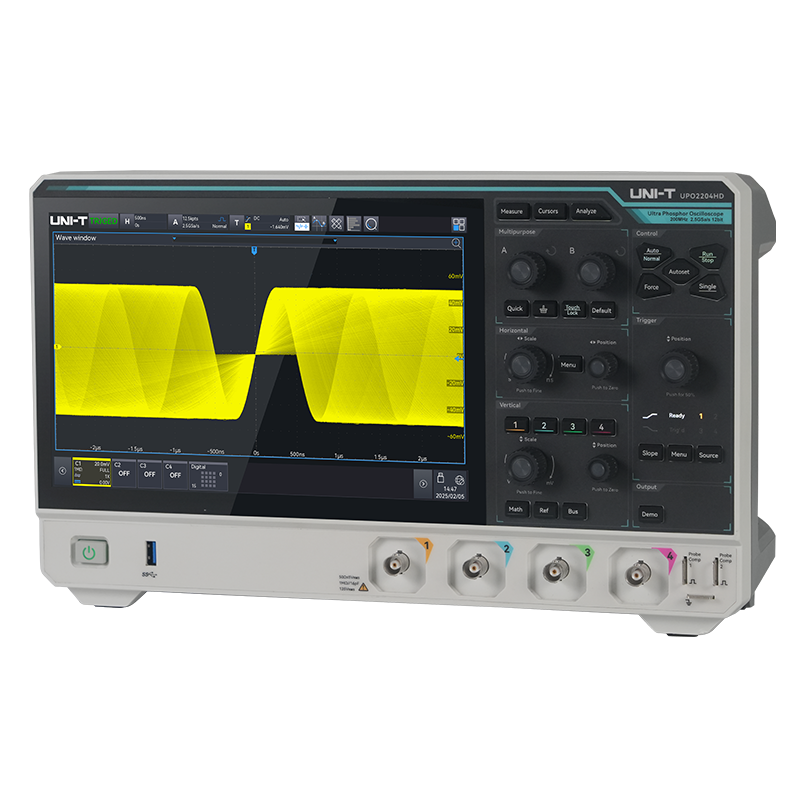

UPO2000HD
UPO2000HD series high-resolution oscilloscope has the maximum bandwidth of 200 MHz, the maximum sampling rate of 2.5 GSa/s, with the memory depth of up to 100 Mpts. UPO2000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 1,000,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. Multiple advanced measurement and analysis functions and rich trigger decoding types. Can be widely used in communication, aerospace, education and many other industries and fields.
70 MHz~200 MHz
BANDWIDTH
2/4
ANALOG CHANNELS
2.5GSa/s
REAL-TIME SAMPLE RATE
100Mpts
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES
Versatile Testing Equipment
-Oscilloscopes
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

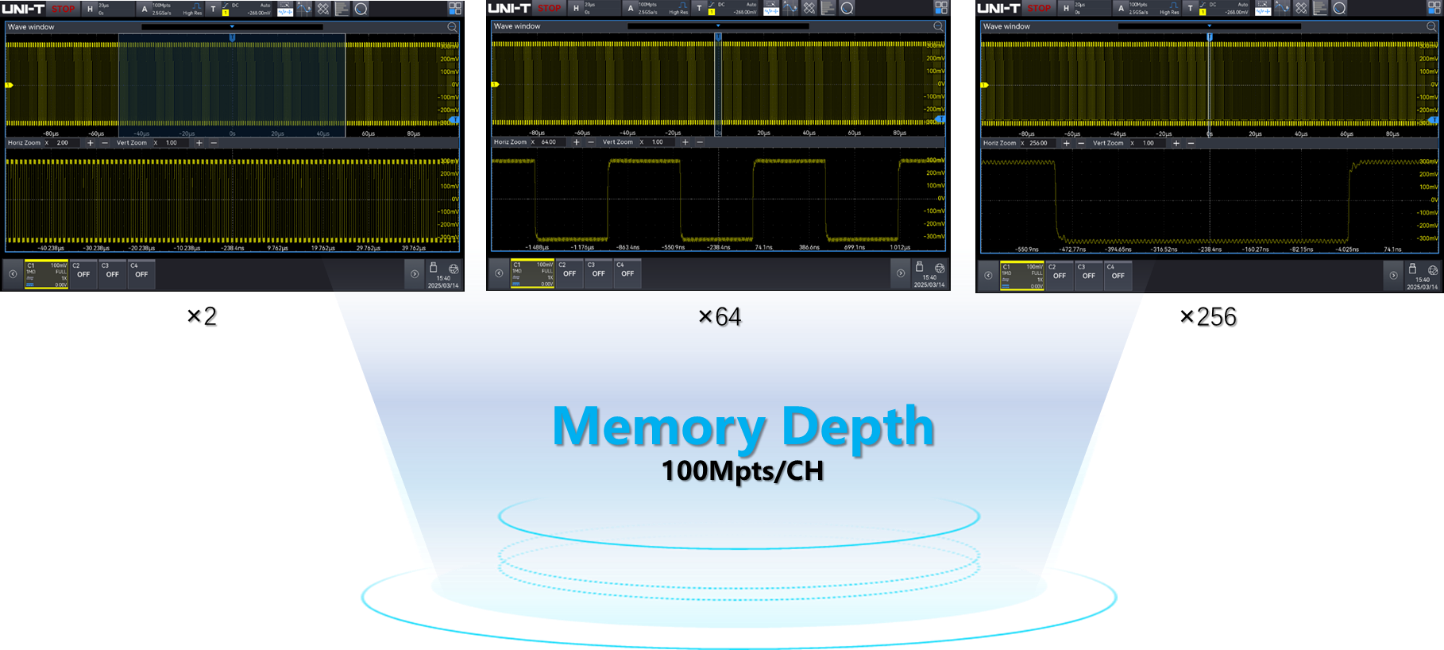

2D Infinite Zoom
Clear Horizontal and Vertical resolution

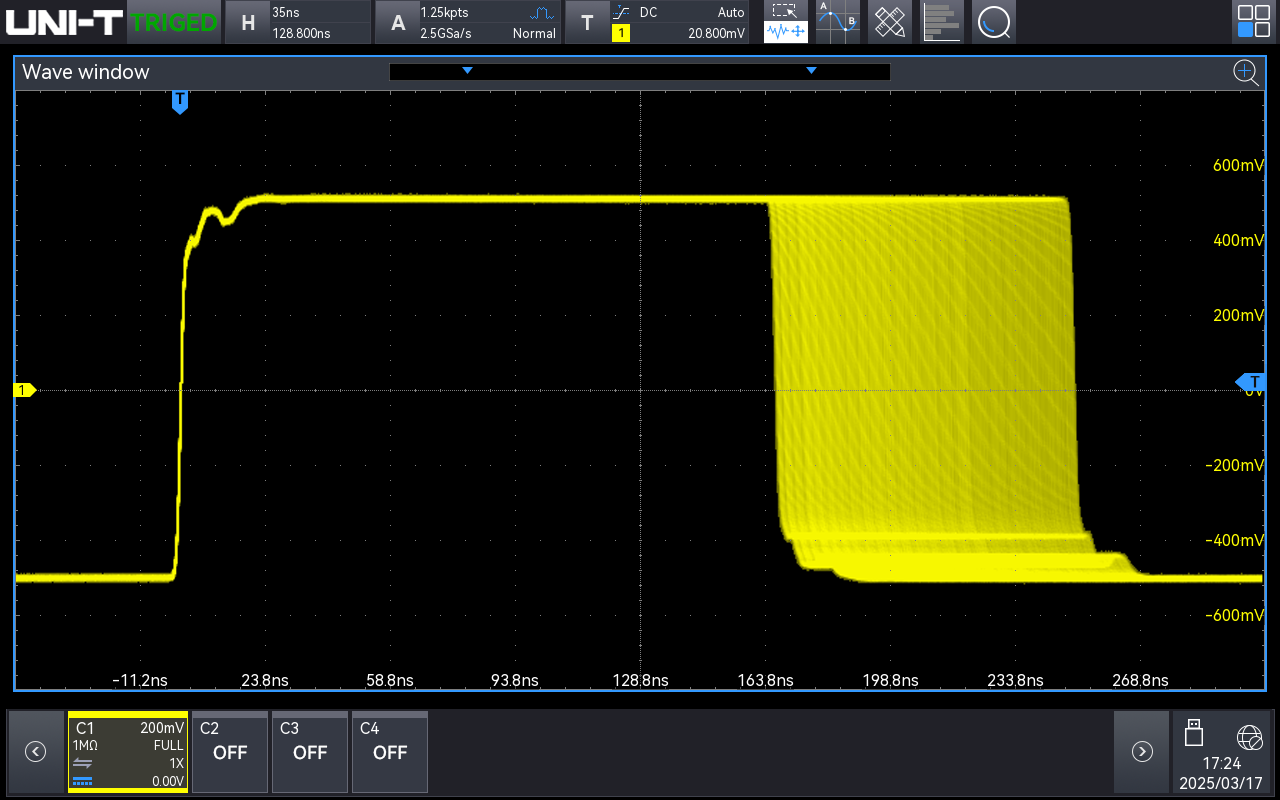

Ultra Phosphor 3.0
Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 250,000 wfms/s, and up to 1,000,000 wfms/s in the sequence mode.

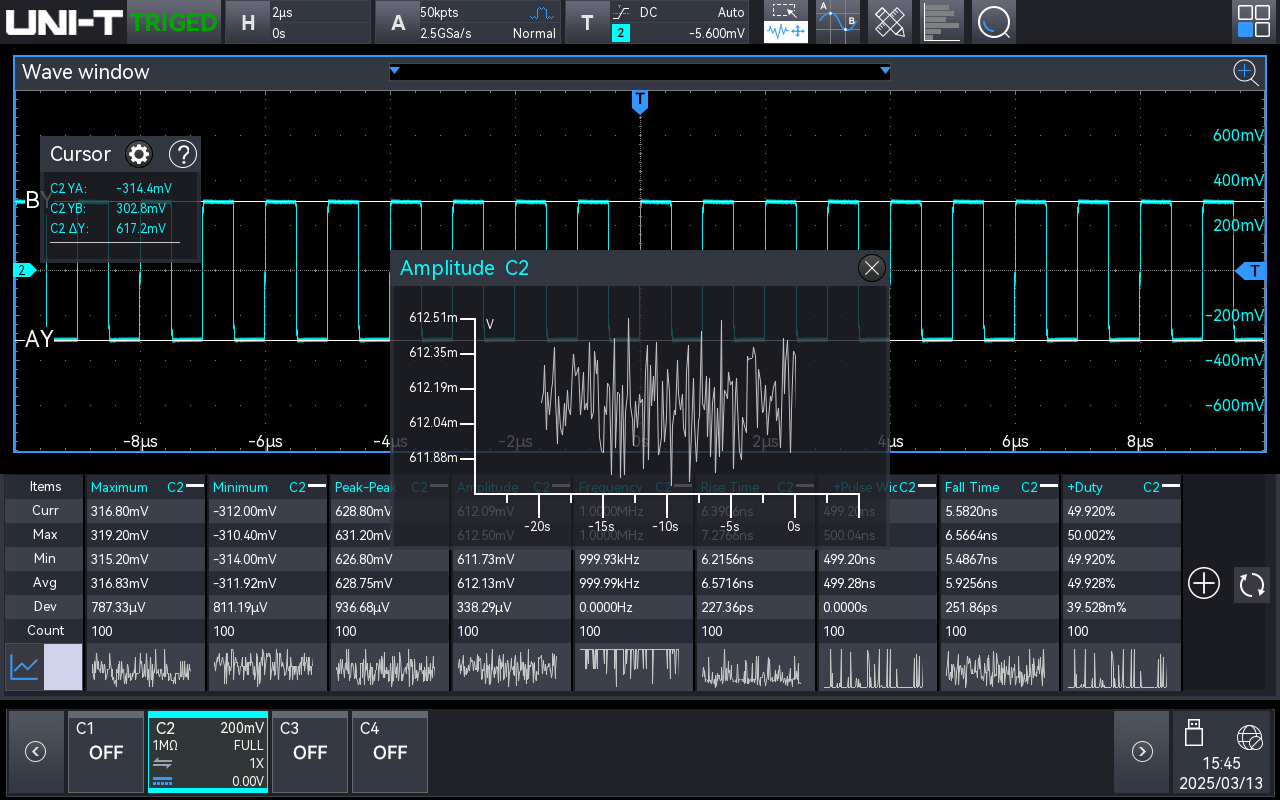

56 types: Measurement, Statistics, Trend Graphs
56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.
Protocol Decoding And Triggering
Supports 9 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN, FlexRay, SENT
-Audio
Spectrum Analyzer
-Standard enhanced FFT with up to 4 Mpts for 4-channel signal analysis
-Frequency range: 0 to 1.25 GHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list
Power Analysis
Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current
Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Rds (on)
-Modulation Analysis
Output Analysis
-Ripple Analysis
-Power Efficiency
-Transient response
-ON/OFF time
Hardware-accelerated mask testing: 6σ standard < 1s
The 6σ (Six Sigma) standard for electronic signals is a process with a defect rate of no more than 3.4 defects per million opportunities (DPMO). This means there are only 3.4 anomalies per 1,000,000 samples. With its ultra-high hardware capture rate, the hardware-accelerated template testing maintains the full capture rate of Ultra Phosphor 3.0, completing waveform tests that meet specific standards within 1 second (instead of several hours).
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO2204HD |
200MHz | 4 | 2.5GSa/s | 100Mpts | 1,000,000wfms/s | / |
 UPO2202HD |
200MHz | 2 | 2.5GSa/s | 100Mpts | 1,000,000wfms/s | / |
 UPO2104HD |
100MHz | 4 | 2.5GSa/s | 100Mpts | 1,000,000wfms/s | / |
 UPO2102HD |
100MHz | 2 | 2.5GSa/s | 100Mpts | 1,000,000wfms/s | / |
 UPO2074HD |
70MHz | 4 | 2.5GSa/s | 100Mpts | 1,000,000wfms/s | / |
 UPO2072HD |
70MHz | 2 | 2.5GSa/s | 100Mpts | 1,000,000wfms/s | / |
Technical Specification
| Model | UPO2204HD | UPO2202HD | UPO2104HD | UPO2102HD | UPO2074HD | UPO2072HD |
| Key Specifications | ||||||
| Bandwidth | 200 MHz | 200 MHz | 100 MHz | 100 MHz | 70 MHz | 70 MHz |
| Channels | 4 analog + EXT | 2 analog + EXT | 4 analog + EXT | 2 analog + EXT | 4 analog + EXT | 2 analog + EXT |
| Sample Rate | 2.5 GSa/s (single channel); 1.25 GSa/s (dual channels); 625 MSa/s (all channels) | 2.5 GSa/s (single channel); 1.25 GSa/s (all channels) | 2.5 GSa/s (single channel); 1.25 GSa/s (dual channels); 625 MSa/s (all channels) | 2.5 GSa/s (single channel); 1.25 GSa/s (all channels) | 2.5 GSa/s (single channel); 1.25 GSa/s (dual channels); 625 MSa/s (all channels) | 2.5 GSa/s (single channel); 1.25 GSa/s (all channels) |
| Vertical Resolution | 12-bit; ERes up to 16-bit | |||||
| Max. Memory Depth | 100 Mpts | |||||
| Max. Waveform Capture Rate | 250,000 wfms/s; 1,000,000 wfms/s sequence mode | |||||
| Technical Details | ||||||
|---|---|---|---|---|---|---|
| Rise Time | ≤1.80 ns (typ.) | ≤1.80 ns (typ.) | ≤3.50 ns (typ.) | ≤3.50 ns (typ.) | ≤5.0 ns (typ.) | ≤5.0 ns (typ.) |
| Time Base Scale | 2 ns/div to 1000 s/div | |||||
| Vertical Scale | 500 μV/div to 10 V/div (1 MΩ); 500 μV/div to 1 V/div (50 Ω) | |||||
| Input Impedance | (1 MΩ ±2%) || 17 pF; 50 Ω ±1.5% | |||||
| Features | ||||||
| Auto Measurements | 56 parameters | |||||
| Protocol Analysis Count | 9 | |||||
| Included Bus Protocols | RS-232/UART, I²C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio | |||||
| DVM | 4-digit | |||||
| Frequency Counter | 7-digit | |||||
| Spectrum Analysis | Enhanced FFT, up to 4 Mpts | |||||
| Power Analysis | 12 types (optional) | |||||
| General Information | ||||||
| Display | 10.1-inch HD capacitive touchscreen, 1280×800 | |||||
| Interface | USB Host/Device, Gigabit LAN, HDMI, AUX | |||||
| Power | 100–240 VAC, 50/60 Hz | |||||
| Product Net Weight | 2.92 kg | |||||
| Product Dimensions (W×H×D) | 361 × 209 × 106 mm | |||||
| Standard Quantity Per Carton | 1 pc | |||||
| Certification | CE, cETLus | |||||
| Warranty | 3 years | |||||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
