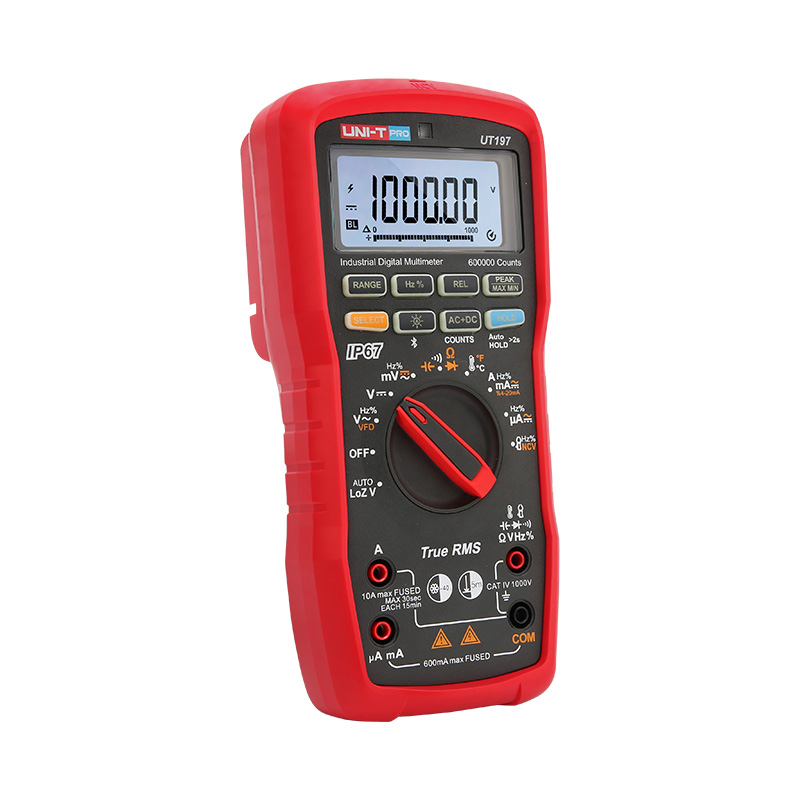

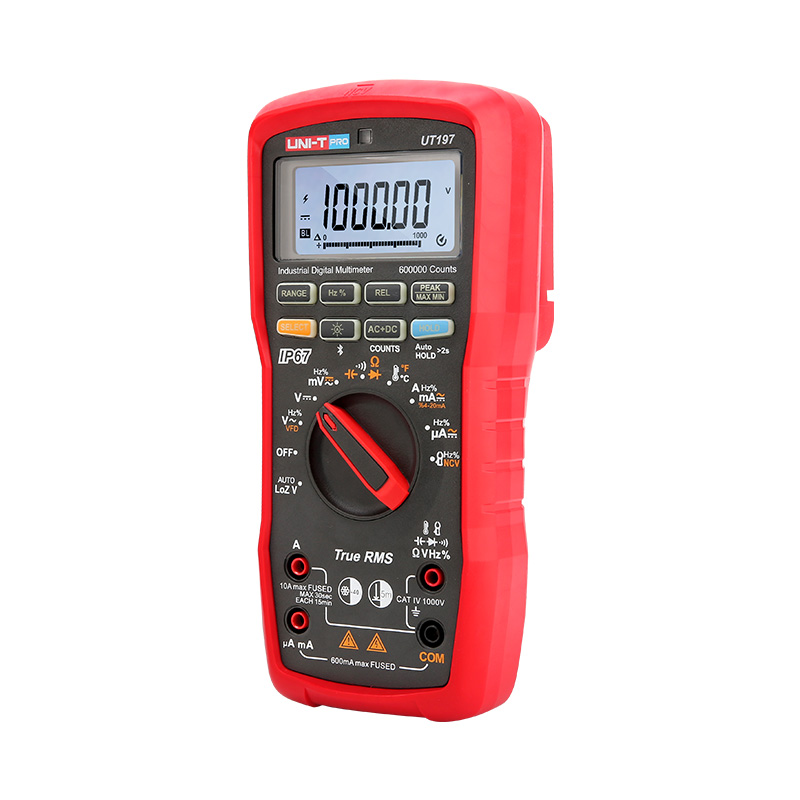

Industrial Digital Multimeter
The UT197 is a high – precision true RMS handheld digital multimeter with 600,000 – count display. It has IP67 protection, can endure 5m drops, and operates in – 40°C~55°C, suiting harsh outdoor conditions. Its built – in VFD anti – interference startup mode filters out carrier – frequency and distorted – voltage interferences for stable inverter measurements. The 1000A AC/DC current measurement (UT – CS07) with Bluetooth enables result recording via UNI – T SmartTest APP, generating graphs and tables. Certified to CAT IV 1000V safety level (CE, cETLus), it’s widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new – energy, factory, and laboratory applications.
1000V
DC Voltage (V)
1000V
AC Voltage (V)
10A
DC Current (A)
10A
AC Current (A)
3000A
Clamp Sensor (Aca)
60MΩ
Resistance (Ω)
Key Features
Certifications (UT197): CE, cETLus, RoHS
Technical Specification
| Specification | Range | Accuracy |
| AC Current (A) | 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A | ±(0.5%+50) |
| DC Current (A) | 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A | ±(0.1%+20) |
| AC+DC Current (A) | 600.0uA/6000uA/60.00mA/600.0mA/6.000A/10.00A | ±(1.0%+5) |
| AC Voltage (V) | 600.00mV/6.0000V/60.000V/600.00V/1000.0V | ±(0.3%+20) |
| Voltage (DCV) (60000 count) | 600.00mV/6.0000V/60.000V/600.00V/1000.0V | ±(0.03%+5) |
| Voltage (DCV) (600000 count) | 600.000mV/6.00000V/60.0000V/600.000V/1000.00V | ±(0.015%+10) |
| Auto AC/DC Voltage | 600.0V | ±（0.8％＋5） |
| Voltage Range (ACV+DCV) | 600.0mV/6.000V/60.00V/600.0V/1000V | ±（0.8％＋5） |
| Externalcurrent (DC) (Optional: UT-CS07) | 100.0A（(10mV/A)/1000A(1V/A) | ±(1.5%+5) |
| Externalcurrent (AC) (Optional: UT-CS07) | 100.0A（(10mV/A)/1000A(1V/A) | ±(1.5%+5) |
| Frequency (Hz) | 10Hz～1MHz | ±(0.002%+5) |
| Resistance (Ω) | 600.00Ω/6.0000kΩ/60.000kΩ/600.00kΩ/6.0000MΩ/60.00MΩ | ±(0.07％+2） |
| Capacitance (F) | 60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF | ±(0.8％+3） |
| Temperature (℃) | -40℃~1000℃ | ±(1.0%+15) |
| Temperature (℉) | -40℉~1832℉ | ±(1.0%+30) |
| Duty Cycle (%) | 10Hz～10kHz (10%~90%) |
±(1.2%+5) |
| Features | ||
|---|---|---|
| True RMS Value | ✔ | |
| Display count | 600000 (DCV); 9999 (frequency) | ✔ |
| Diode Test | 3.0V | ✔ |
| Non-Contact Voltage | ✔ | |
| Continuity Buzzer | ✔ | |
| Data Hold (Manual/Auto) | ✔ | |
| Peak Capture | ✔ | |
| Maximum/Minimum Value | ✔ | |
| High Voltage Alarm | ✔ | |
| Low Battery Indicator | ✔ | |
| Miswired Probe Alarm | ✔ | |
| Overrange Indicator | ✔ | |
| Auto Power Off | Around 15 minutes | ✔ |
| Auto Backlight | ✔ | |
| Bluetooth Communication | ✔ | |
| Drop Test | 5m | |
| IP Protection Level | IP67 | |
| Safety Standard Level | CAT IV 1000V | |
| Certification | CE，cETLus， ROHS | |
| General Characteristics | ||
| Power supply | 1.5V AA * 2pcs | |
| Product Color | Black + Red | |
| Product Dimension | 220mm x 104mm x 67mm | |
| Product weight | Around 835g (batteries included) | |
| Accessories | Test lead, temperature probe, Clips, batteries. | |
| SPQ | 5pcs | |
