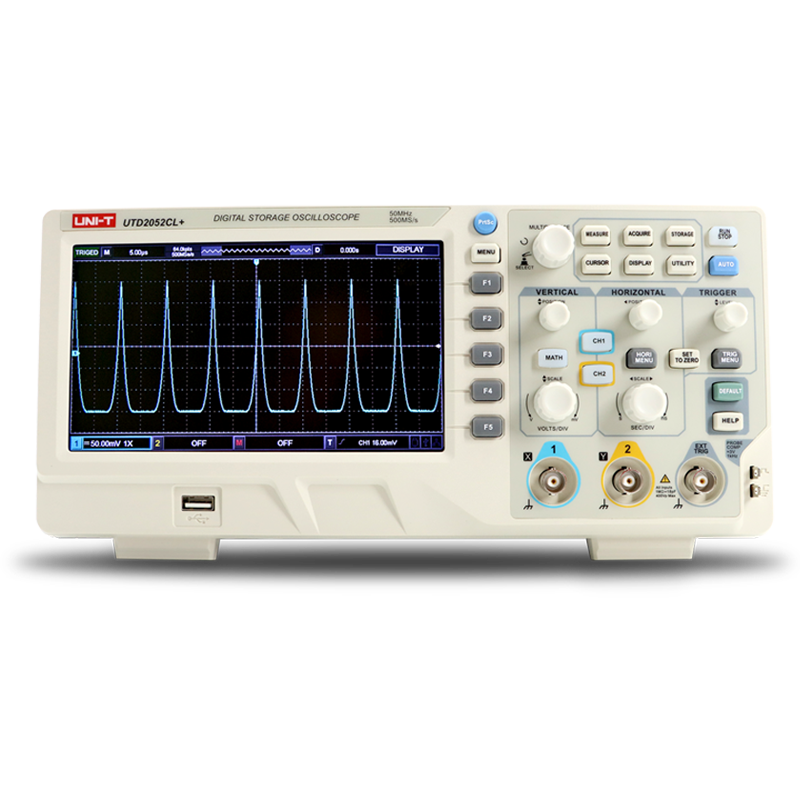

UTD2000CL+/CL
UTD2000CL+/CL Series aims to provide schools with digital storage oscilloscopes that are very close to those used in industries, so as to narrow the equipment gap between teaching and industries, so that graduates can easily start immediately after employment. Besides, the specifications are upgraded on the basis of the original UTD2000CL series to give back to the majority of UNI-T loyal users.
25MHz~150MHz
BANDWIDTH
2
ANALOG CHANNELS
500MSa/s
REAL-TIME SAMPLE RATE
64kpts
MAX. MEMORY DEPTH
5,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES

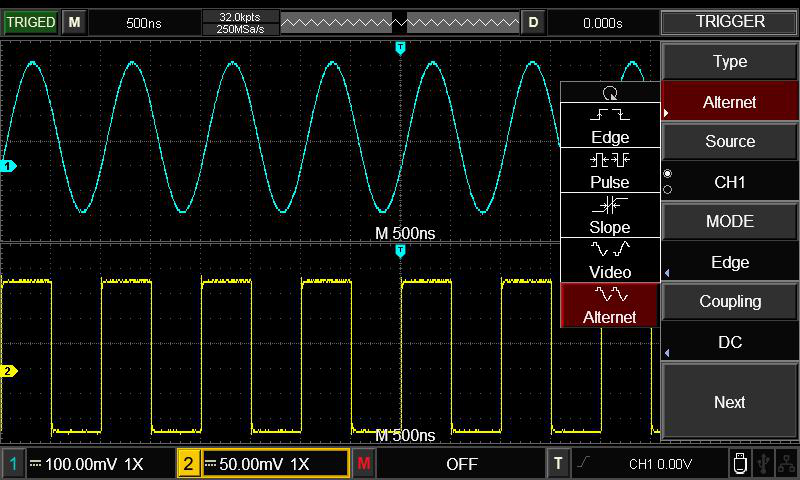

Alternate trigger
It can be effectively applied to trigger signals without frequency correlation.

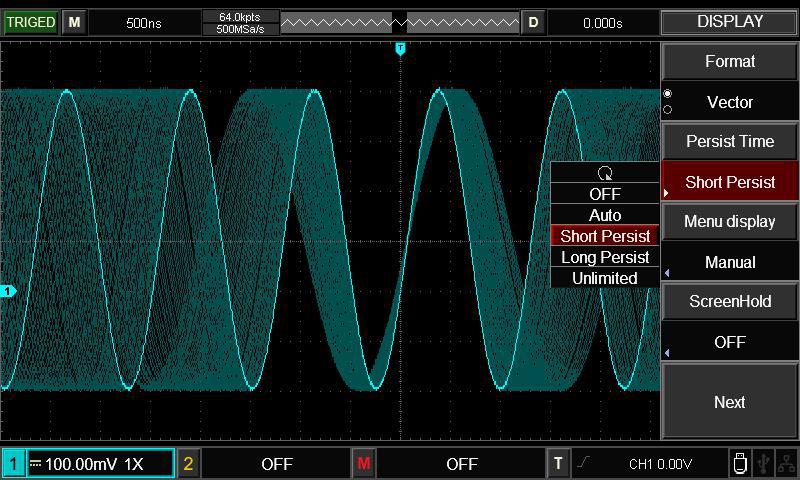

Grade Display
Grade display can view the worst case of changing waveforms, capture rare and abnormal signals

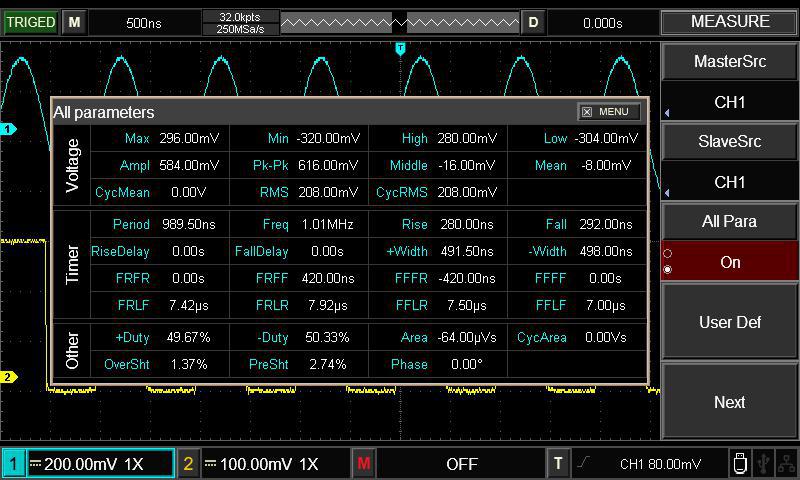

Automatic parameter measurement
With 34 kinds of automatic parameter measurement, 5 groups of customizable parameter display

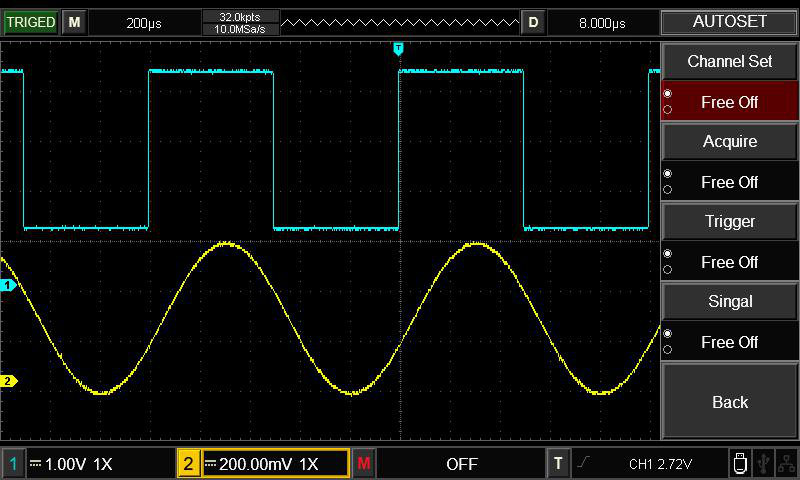

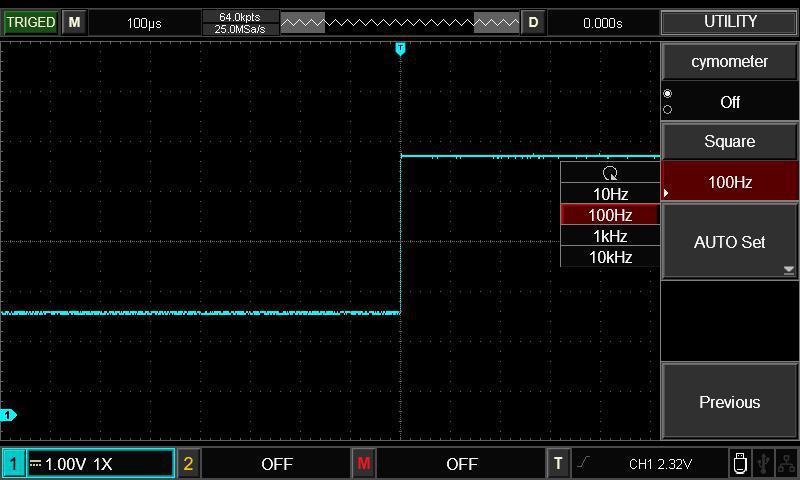

Standard square wave output
With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output
Brand new AUTO strategy
The state after AUTO can be set

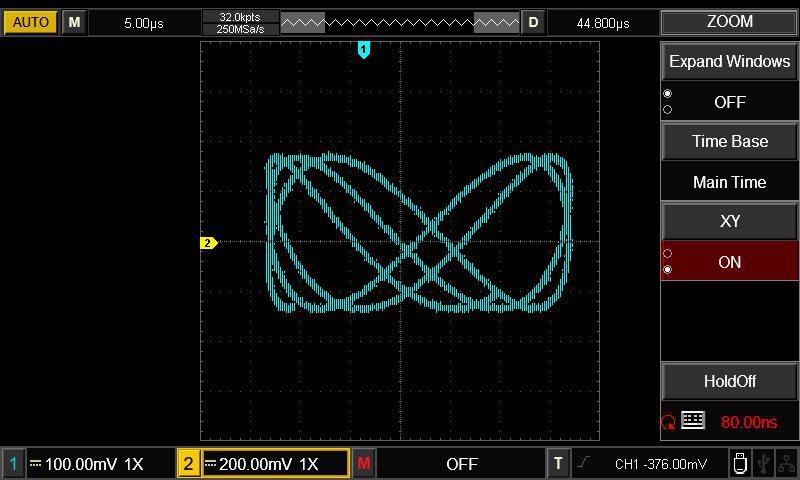

XY mode (also called Lissajous graphics mode)
Can measure the phase difference between two signals of the same frequency

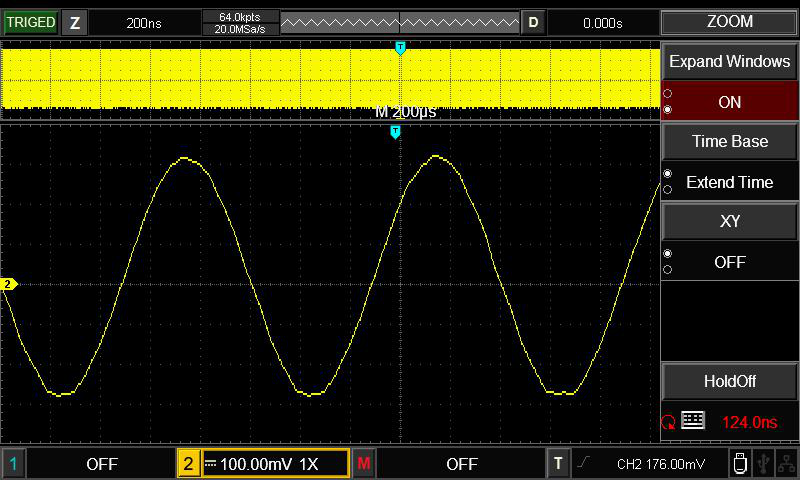

ZOOM function
You can observe the overall situation and details of the waveform

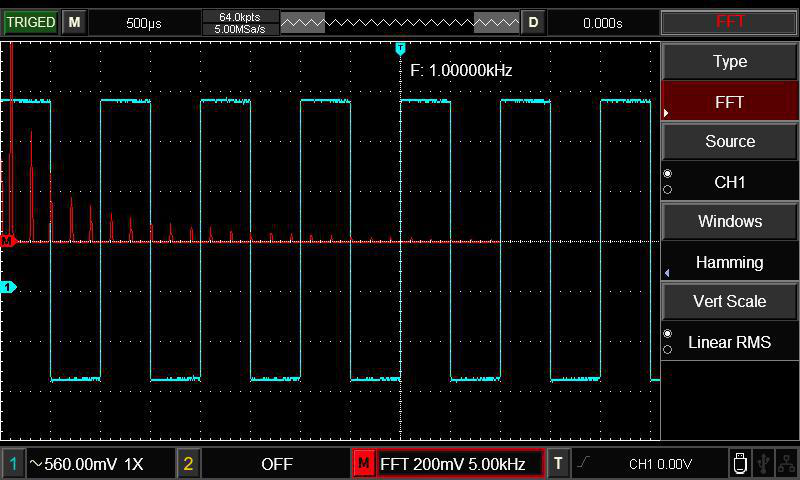

Math function
Support addition, subtraction, multiplication, division, and waveform calculation functions
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTD2152CL |
150 MHz | 2 | 500MSa/s | 64 kpts | 5,000 wfms/s | / |
 UTD2072CL |
70 MHz | 2 | 500MSa/s | 64 kpts | 5,000 wfms/s | / |
 UTD2052CL |
50 MHz | 2 | 500 MSa/s | 25 kpts | 2,000 wfms/s | / |
 UTD2025CL |
25 MHz | 2 | 250 MSa/s | 25 kpts | 2,000 wfms/s | / |
 UTD2102CL+ |
100MHz | 2 | 500MSa/s | 64 kpts | 5,000 wfms/s | / |
 UTD2052CL+ |
50MHz | 2 | 500MSa/s | 64 kpts | 5,000 wfms/s | / |
Technical Specification
| Model | UTD2102CL+ | UTD2052CL+ |
| Key Specifications | ||
| Bandwidth | 100 MHz | 50 MHz |
| Channels | 2 analog | |
| Sample Rate | 500 MSa/s (maximum) | |
| Vertical Resolution | 8-bit | |
| Max. Memory Depth | 64 kpts | |
| Max. Waveform Capture Rate | 5,000 wfms/s | |
| Technical Details | ||
|---|---|---|
| Rise Time | <3.5 ns | <7 ns |
| Time Base Scale | 2 ns/div to 50 s/div | |
| Vertical Scale | 1 mV/div to 20 V/div | |
| Input Impedance | 1 MΩ ±2%, 18 pF ±3 pF | |
| Features | ||
| Auto Measurements | 34 parameters | |
| Protocol Analysis Count | 0 | |
| Frequency Counter | 6-digit | |
| General Information | ||
| Display | 7-inch TFT LCD, 800×480 | |
| Interface | USB Host, USB Device, Pass/Fail | |
| Power | 100–240 VAC, 45–440 Hz | |
| Product Net Weight | Not specified in Data Sheet | |
| Product Dimensions (W×H×D) | Not specified in Data Sheet | |
| Standard Quantity Per Carton | 2 pcs | |
| Certification | CE | |
| Warranty | 3 years | |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
