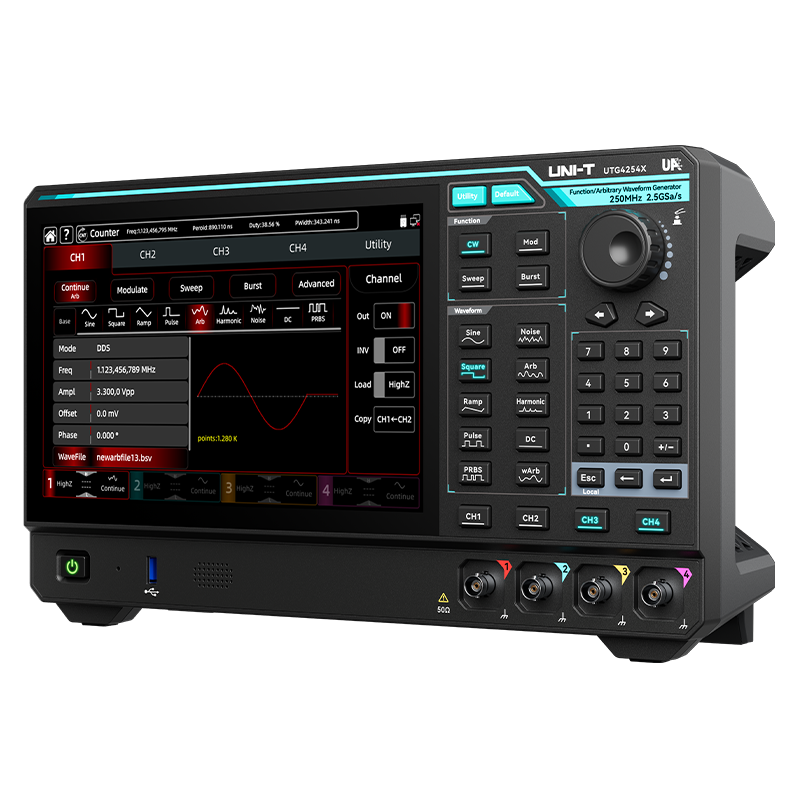

UTG4000X
NewThe UTG4000X series high-performance function generators utilize DDS technology to produce precise, stable waveforms. They feature high-speed square waves, comprehensive analog/digital modulation, sweep, burst modes, and a frequency counter. With an intuitive graphical interface and four-channel output, they are versatile tools for education and testing, enhancing workflow efficiency.
250MHz
MAX. OUTPUT FREQUENCY
2.5GSa/s
SAMPLE RATE
16 bits
VERTICAL RESOLUTION
4
CHANNELS
128Mpts
ARBITRARY WAVE LENGTH
10.1 inch TFT LCD(touch screen)
DISPLAY
KEY FEATURES
FEATURES

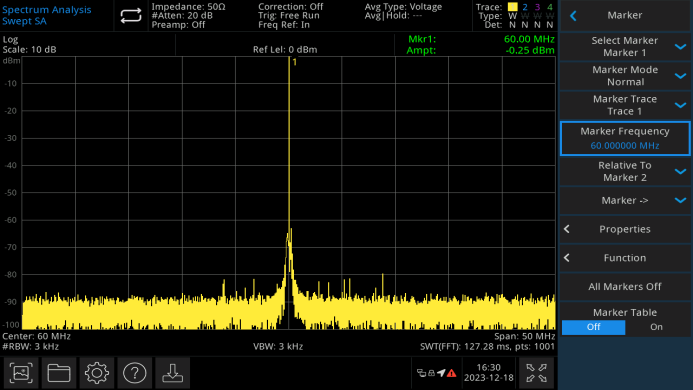

Low-Distortion Continuous Waveform Output
Leveraging digital sampling technology, our output ensures reliable harmonic performance with an -80dBc spurious-free dynamic range and delivers exceptionally low jitter for a pure, stable signal.
Pulse Wave and Fast Edge Time
The pulse wave offers precision-adjustable edge times down to 2ns and a minimum pulse width of ≥3ns, with 100ps fine-tuning. It generates high harmonic content, rivalling dedicated pulse generators, and allows independent edge-time setting for each pulse.
Four-Channel Independent Output
Featuring four fully independent channels, this instrument delivers high-performance output signals simultaneously for efficient multi-device or parallel testing applications.
Flexible Channel Coupling & Merge Outputs
Channels can be freely coupled with configurable frequency, amplitude, and phase parameters.
Channel outputs may also be combined as needed, such as CH2 = CH1; CH1 = CH1 + CH2 + CH3 + CH4.

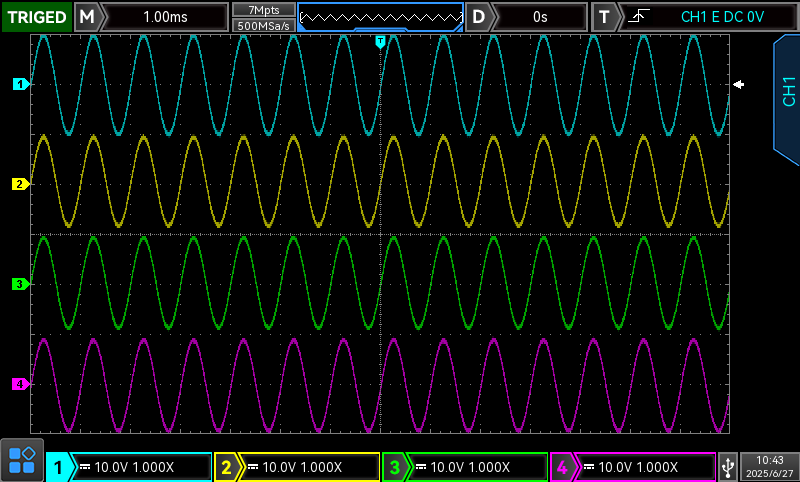

4-Channel Synchronization
This function enables synchronized control of all four channels. Adjusting one channel automatically updates the other three in unison.
One-Click SNR
The instrument features continuous waveform noise superposition. This allows Gaussian noise to be added to the main signal for direct evaluation of a device’s anti-noise performance.

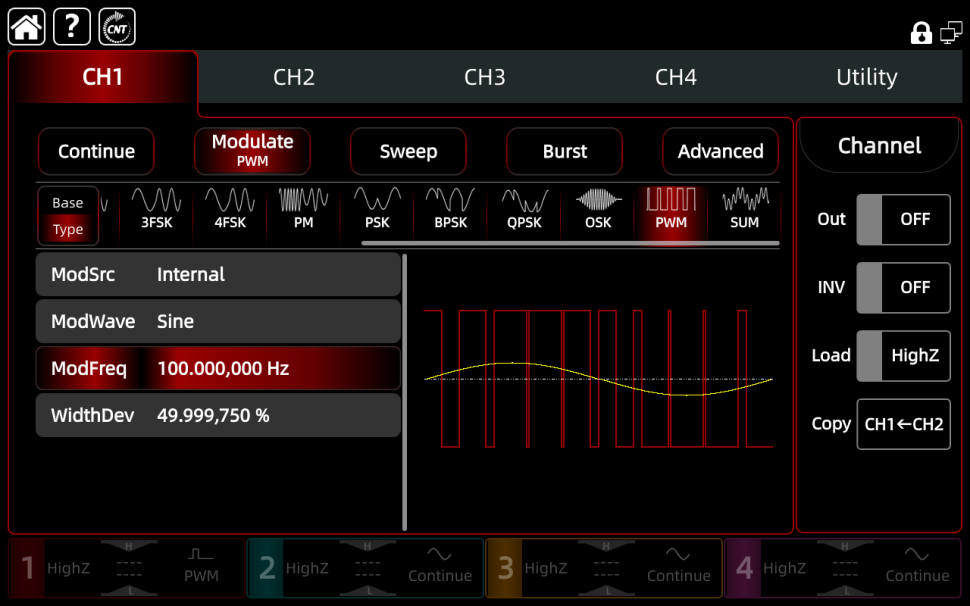

Rich Modulation Modes
Supports AM, DSB-AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, PWM, SUM modulation outputs, for a total of 15 distinct types.
Digital Protocol Output
Digital protocol output: SPI, I²C, UART
High-Precision Frequency Counter
Equipped with a high-precision hardware frequency counter, capable of measuring frequencies from 100mHz to 800MHz.

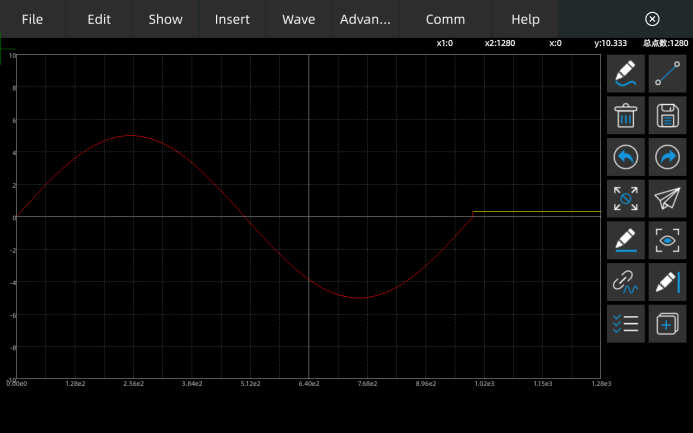

Edit Arbitrary Waves
Create or edit any waveform freely—both directly on the instrument and on a connected PC. With over 200 built-in waves and intuitive drawing or math tools.
Rich Advanced Functions
New series function/arbitrary waveform generator comes standard with advanced waveform output capabilities, including multi-pulse, multi-tone, sequence, pattern, I/Q, and expression-based waveforms.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTG4254X |
250MHz | 2.5GSa/s | 16bit | 4 | 128Mpts | 10.1 inch TFT LCD(touch screen) |
 UTG4164X |
160MHz | 2.5GSa/s | 16bit | 4 | 128Mpts | 10.1 inch TFT LCD(touch screen) |
 UTG4104X |
100MHz | 2.5GSa/s | 16bit | 4 | 128Mpts | 10.1 inch TFT LCD(touch screen) |
Technical Specification
| Model | UTG4254X | UTG4164X | UTG4104X |
| Key Specifications | |||
| Frequency | 1 μHz to 250 MHz | 1 μHz to 160 MHz | 1 μHz to 100 MHz |
| Channels | 4 equivalent-performance channels | ||
| Sample Rate | 2.5 GSa/s | ||
| Vertical Resolution | 16-bit | ||
| Arbitrary Waveform Length | Point-by-point: 8 pts to 128 Mpts/CH (expandable to 256 Mpts/CH via PC software); DDS: 8 kpts | ||
| Technical Details | |||
|---|---|---|---|
| Sine Wave Frequency | 1 μHz to 250 MHz | 1 μHz to 160 MHz | 1 μHz to 100 MHz |
| Square Wave Frequency | 1 μHz to 100 MHz | 1 μHz to 80 MHz | 1 μHz to 50 MHz |
| Pulse Wave Frequency | 1 μHz to 100 MHz | 1 μHz to 80 MHz | 1 μHz to 50 MHz |
| Ramp Wave Frequency | 1 μHz to 20 MHz | ||
| Noise Bandwidth | 1 mHz to 250 MHz | 1 mHz to 160 MHz | 1 mHz to 100 MHz |
| Arbitrary Wave DDS Frequency | 1 μHz to 50 MHz | ||
| PRBS Bitrate | 1 μbps to 300 Mbps | ||
| Harmonic Wave Frequency | 1 μHz to 125 MHz | 1 μHz to 80 MHz | 1 μHz to 50 MHz |
| Frequency Resolution | 1 μHz | ||
| Output Amplitude High Z | 2 mVpp to 20 Vpp | ||
| Output Amplitude 50 Ohm | 1 mVpp to 10 Vpp | ||
| DC Offset Range | 50 Ω: ±5 V (Peak AC+DC); High Z: ±10 V (Peak AC+DC) | ||
| Output Impedance | 50 Ω (Typ.) | ||
| Features | |||
| Operating Mode | Continuous, modulation, sweep, burst, frequency counter, digital protocol, advanced function | ||
| Continuous Wave Types | Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, arbitrary waveform | ||
| Modulation Types | AM, PM, FM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM | ||
| Frequency Sweep Types | Linear, logarithmic, list, step | ||
| Burst Types | N cycle, gating, infinite | ||
| Digital Protocol | SPI, I²C, UART | ||
| Advanced Function | Multi-pulse, multi-tone, sequence, pattern, I/Q, expression-based waveforms | ||
| Channel Coupling | Frequency, amplitude, phase (ratio or offset) | ||
| Channel Merging | 2-, 3-, or 4-channel combinations | ||
| Hardware Frequency Counter | 100 mHz to 800 MHz, 8-digit, DC/AC coupling | ||
| General Information | |||
| Display | 10.1-inch TFT capacitive touchscreen, 1280×800 | ||

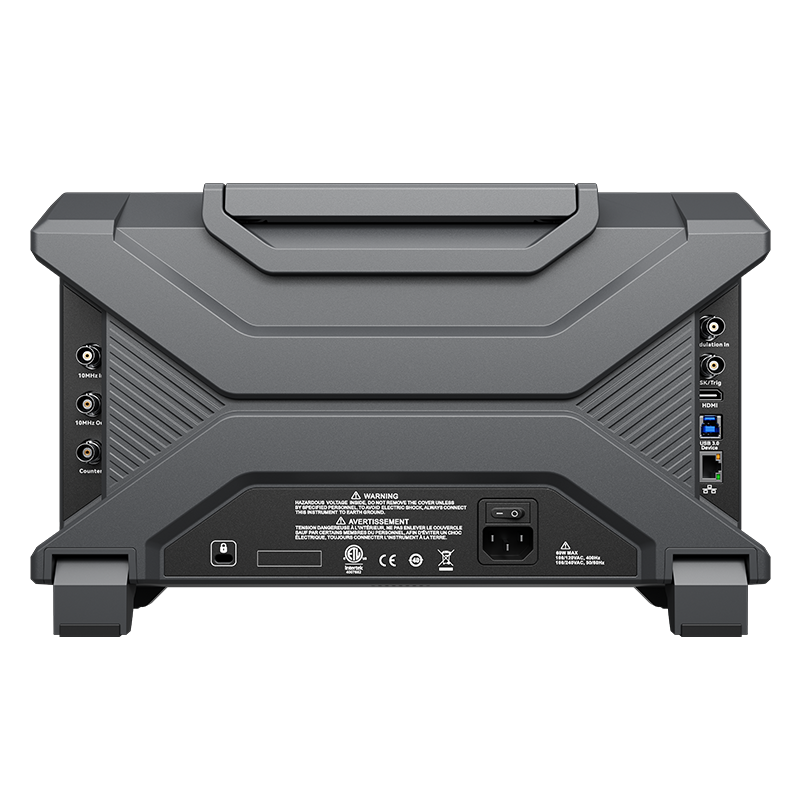

| Interface | USB Host, USB Device, LAN, HDMI; 10 MHz clock input/output | ||
| Power | 100–240 VAC, 50/60 Hz; 100–120 VAC, 400 Hz | ||
| Product net weight | 4.5 kg | ||
| Product Dimensions (W×H×D) | 361 × 209 × 106 mm | ||
| Standard Quantity Per Carton | 1 pc | ||
| Certification | CE, cETLus | ||
| Warranty | 3 Years | ||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
