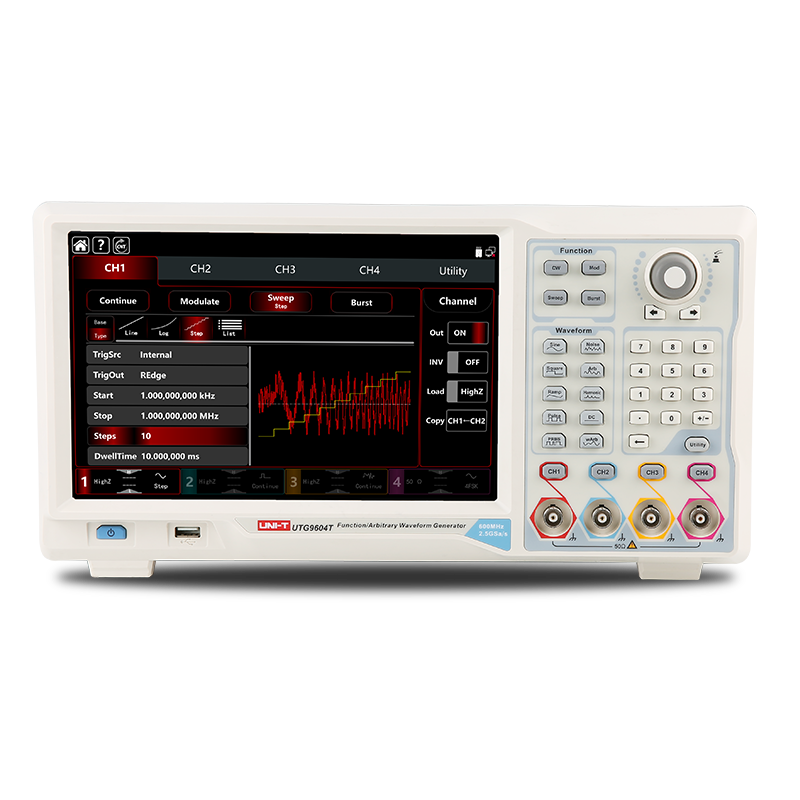

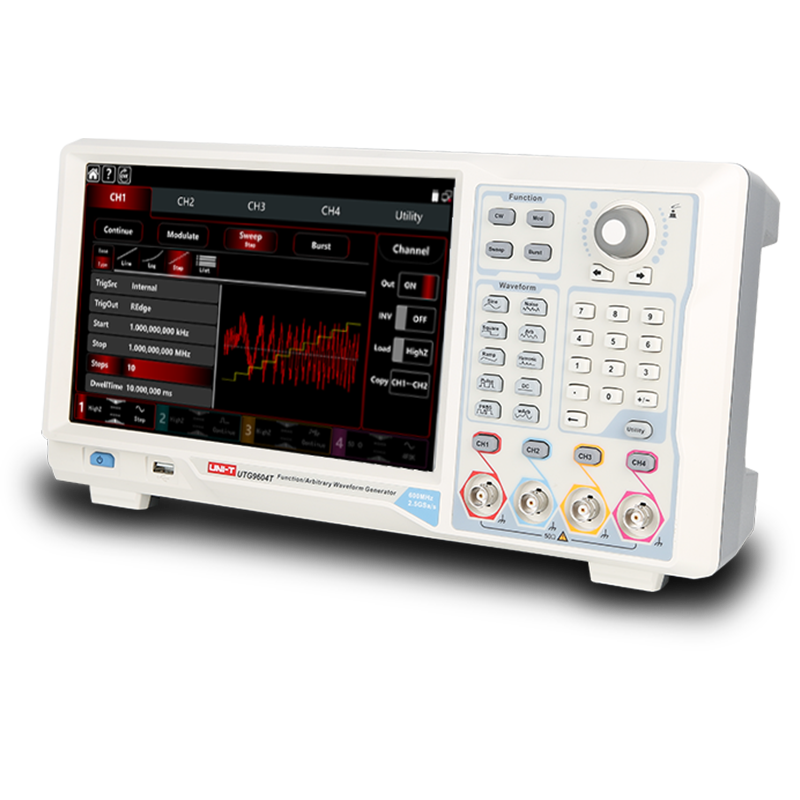

UTG9000T

The UTG9000T series is a 4 channels waveform generator and able to provide more multi-function such as Noise and PRBS etc.

The series MAX Frequency output is 600MHz and the MAX sampling rate is up to 2.5GSa/s.It generates accurate & stable waveform which adopts Direct Digital Synthesizer (DDS) technology. The Series provides high performance and multiple functions with high-resolution(1μHz). With a super screen10.1inches & rational layout is to enhance comfort level and improve users work UTG9604T efficiency.

600 MHz

MAX. OUTPUT FREQUENCY

2.5 GSa/s

SAMPLE RATE

16 bits

VERTICAL RESOLUTION

CHANNELS

64 Mpts

ARBITRARY WAVE LENGTH

10.1 inch TFT LCD(touch screen)

DISPLAY

Get a quote

Download Resources

KEY FEATURES

Model

UTG9354T

FEATURES

10.1 inch touchscreen

The UTG9000T series features a large 10.1-inch capacitive touchscreen with a resolution of 1280*800, as well as introduces a new UI design that enhances the user experience, which provides a clear and vibrant interface for easy navigation and operation.
The combination of the large touchscreen display and the new UI design makes the UTG9000T series user-friendly and ensures a smooth and enjoyable user experience.

4 channel output, 4 sweep modes

The UTG9000T series is equipped with a standard 4-channel output, allowing simultaneously output four different signals.
Besides Linear, Logarithmic in traditional sweep modes, the UTG9000T series add 2 new modes——Step and List. The Step mode enables precise and incremental adjustments, while the List mode allows users to define specific values or points for the sweep, offering precise control over the generated signals.These sweep modes enhance the functionality of the UTG9000T series and enable a wide range of waveform generation possibilities.

8-digit frequecy counter

The UTG9000T series features an 8-digit high-precision frequency counter capable of measuring frequencies ranging from 100mHz to 800MHz.
This frequency counter offers precise measurements and can accurately determine various parameters of external input signals, including frequency, period, duty cycle, positive pulse width, and negative pulse width.
With its wide frequency range and high precision, the UTG9000T series provides reliable frequency measurement capabilities for a variety of applications.

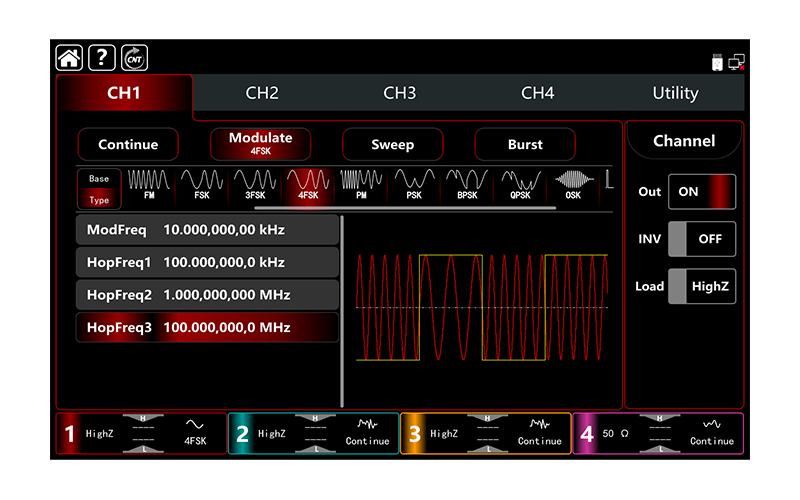

Multiple modulation modes and multiple arbitrary waveforms

The UTG9000T series offers a comprehensive selection of modulation modes, catering to various teaching or communication system testing requirements. These modes include AM,FM,PM,DSB-AM,QAM,ASK,FSK,3FSK,4FSK,PSK,BPSK,QPSK,OSK,PWM and SUM.

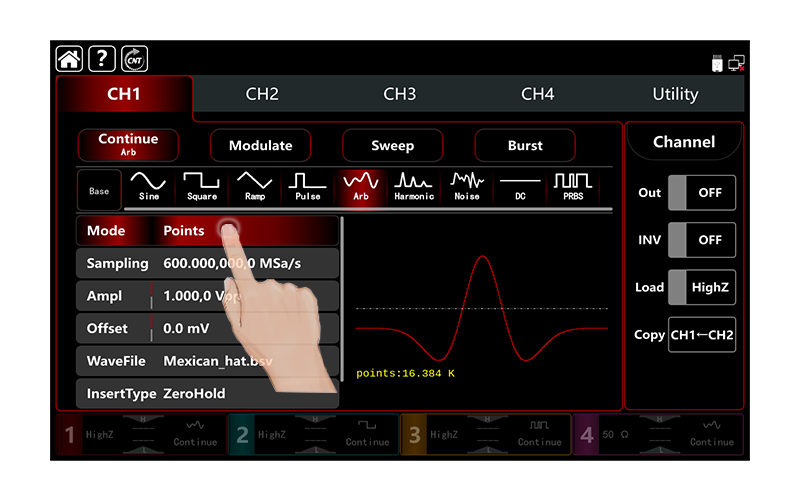

Moreover, the UTG9000T series is equipped with over 200 built-in arbitrary waveforms that are commonly used in various fields, such as engineering, bioelectricity, medicine, standards, and mathematics. These waveforms include trigonometric functions, inverse triangles, complex waveforms, and more, conveniently categorized for easy selection. This extensive collection of waveforms enhances the flexibility of the UTG9000T series for waveform generation in different applications.

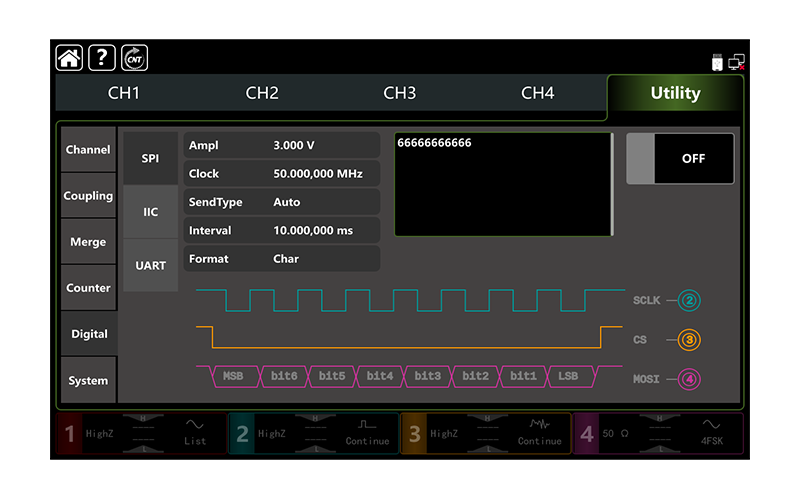

Protocol output

The UTG9000T series supports three standard digital protocol outputs: SPI , I2C, and UART. These protocols provide versatile testing options for interfacing with different devices and systems, making the UTG9000T compatible with a wide range of applications.

PRBS and SNR function

The UTG9000T series offers advanced features such as a PRBS (Pseudo-Random Binary Sequence) generator for testing the bit error rate of high-speed serial channel transmission. By sending PRBS codes, users can assess the quality and integrity of the transmitted data.
In addition, the UTG9000T series includes a convenient one-key superimpose SNR(signal-to-noise ratio) function. This feature enables users to superimpose Gaussian noise on the main output signal, allowing for testing and evaluation of the equipment’s anti-noise performance.

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
UTG9354T	350 MHz	2.5 GSa/s	16-bit/14bit	4	64 Mpts	10.1 inch TFT LCD (touch screen)
UTG9504T	500 MHz	2.5 GSa/s	16-bit/14bit	4	64 Mpts	10.1 inch TFT LCD (touch screen)
UTG9604T	600 MHz	2.5 GSa/s	16-bit	4	64 Mpts	10.1 inch TFT LCD (touch screen)

Technical Specification

Technical Details
Model	UTG9604T
Key Specifications
Frequency	CH1/2: 1 μHz to 600 MHz; CH3/4: 1 μHz to 200 MHz
Channels	4 channels (CH1/2 main; CH3/4 slave)
Sample Rate	CH1/2: 2.5 GSa/s; CH3/4: 625 MSa/s
Vertical Resolution	16-bit
Arbitrary Waveform Length	CH1/2: 8 pts to 64 Mpts; CH3/4: 8 kpts
Sine Wave Frequency	CH1/2: 1 μHz to 600 MHz; CH3/4: 1 μHz to 200 MHz
Square Wave Frequency	CH1/2: 1 μHz to 200 MHz; CH3/4: 1 μHz to 60 MHz
Pulse Wave Frequency	CH1/2: 1 μHz to 200 MHz; CH3/4: 1 μHz to 60 MHz
Ramp Wave Frequency	CH1/2: 1 μHz to 30 MHz; CH3/4: 1 μHz to 10 MHz
Noise Bandwidth	CH1/2: 1 mHz to 600 MHz; CH3/4: 1 mHz to 200 MHz
Arbitrary Wave DDS Frequency	CH1/2: 1 μHz to 100 MHz; CH3/4: 1 μHz to 60 MHz
PRBS Bitrate	CH1/2: 1 μbps to 120 Mbps; CH3/4: 1 μbps to 60 Mbps
Harmonic Wave Frequency	CH1/2: 1 μHz to 300 MHz; CH3/4: 1 μHz to 100 MHz
Frequency Resolution	1 μHz
Output Amplitude High Z	2 mVpp to 20 Vpp
Output Amplitude 50 Ohm	1 mVpp to 10 Vpp
DC Offset Range	50 Ω: ±5 V (Peak AC+DC); High Z: ±10 V (Peak AC+DC)
Output Impedance	50 Ω
Features
Operating Mode	Continuous, modulation, sweep, burst, frequency counter, digital protocol
Continuous Wave Types	Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, arbitrary waveform
Modulation Types	AM, PM, FM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM
Frequency Sweep Types	Linear, logarithmic, list, step
Burst Types	N cycle, gating, infinite
Digital Protocol	SPI, I²C, UART
Channel Coupling	Frequency, amplitude, phase (ratio or deviation; CH1/2 and CH3/4)
Channel Merging	CH1+CH2; CH3+CH4
Hardware Frequency Counter	100 mHz to 800 MHz, 8-digit, DC/AC coupling
General Information
Display	10-inch TFT capacitive touchscreen, 1280×800
Interface	USB Host, USB Device, LAN
Power	100–240 VAC, 50/60 Hz; 100–120 VAC, 400 Hz
Product net weight	4.04 kg
Product Dimensions (W×H×D)	370 × 115 × 185 mm
Standard Quantity Per Carton	1 pc
Certification	CE, cETLus
Warranty	3 Years
