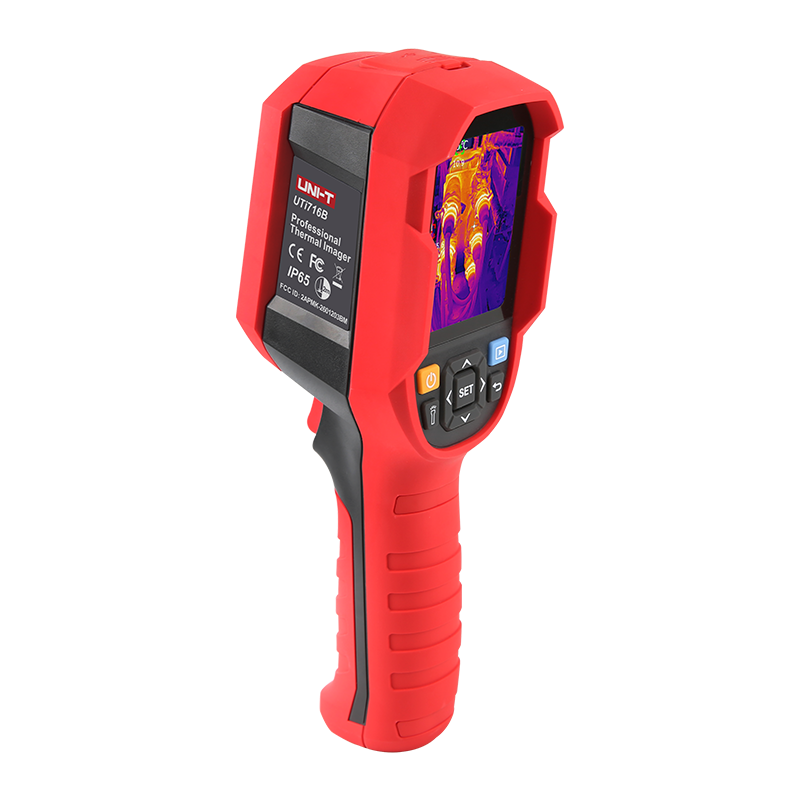

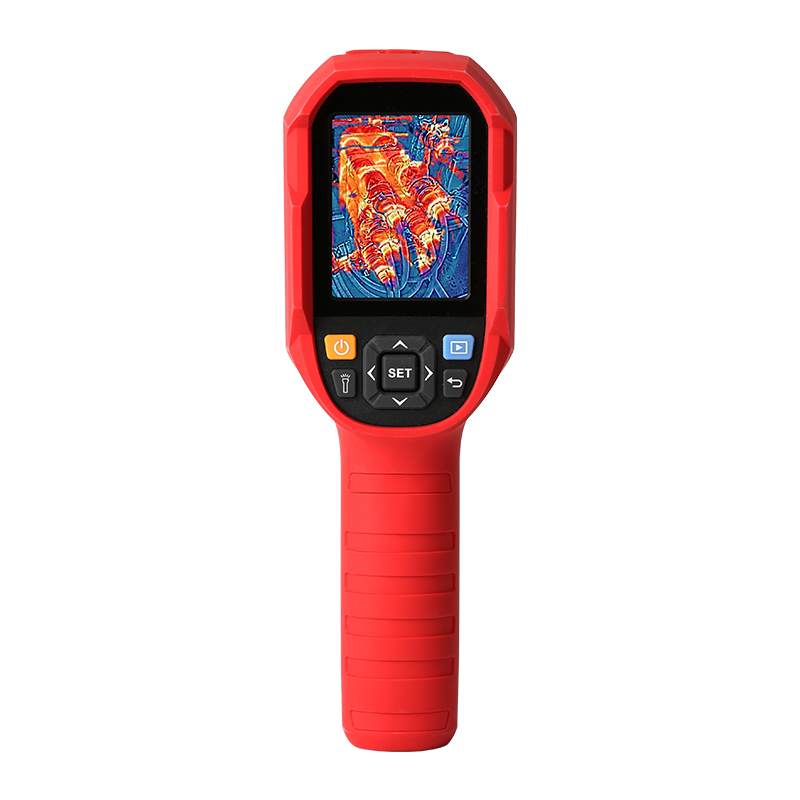

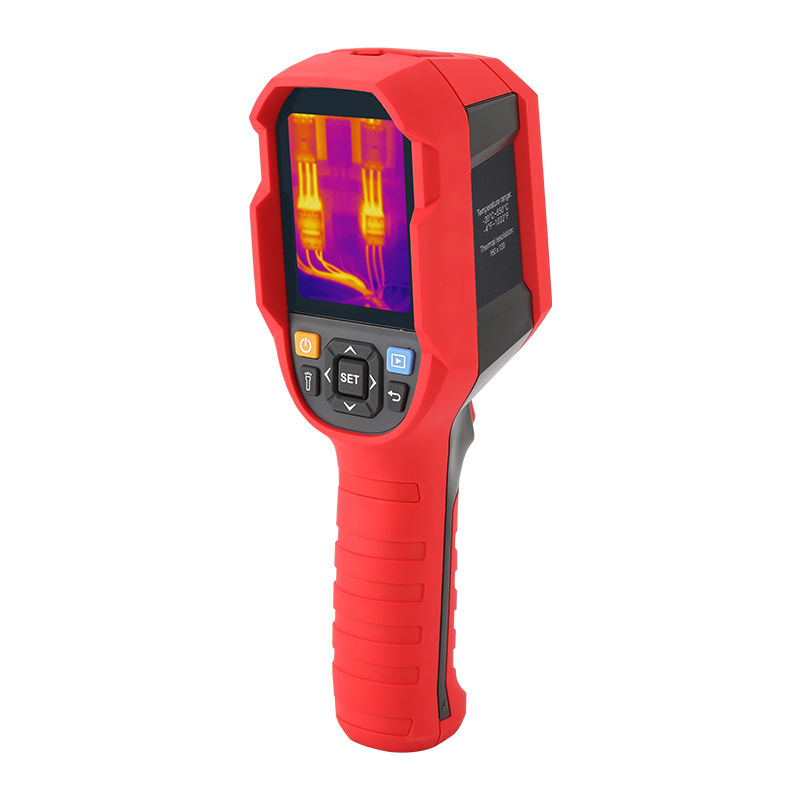

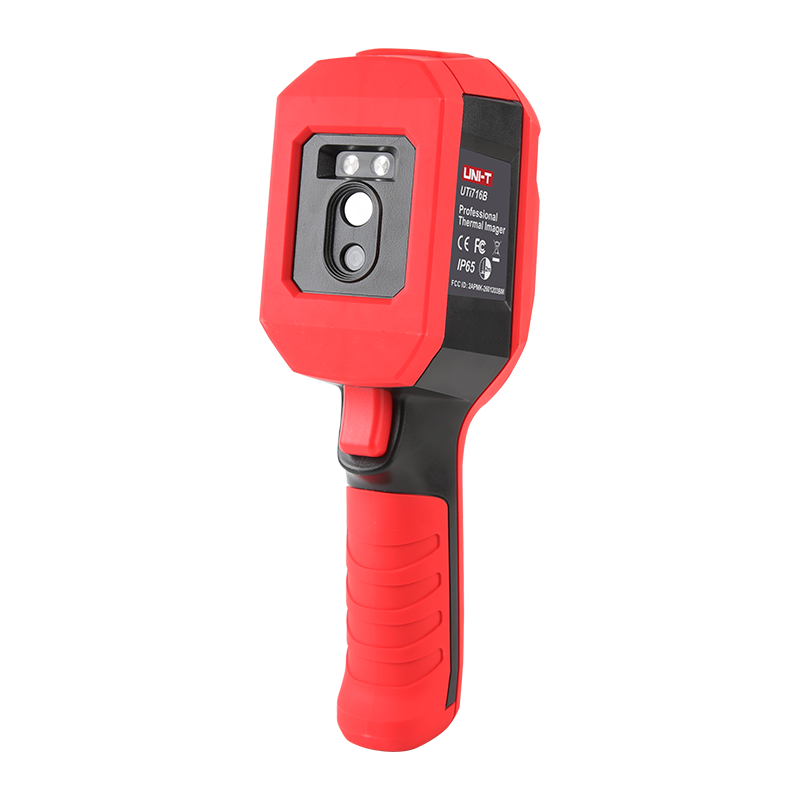

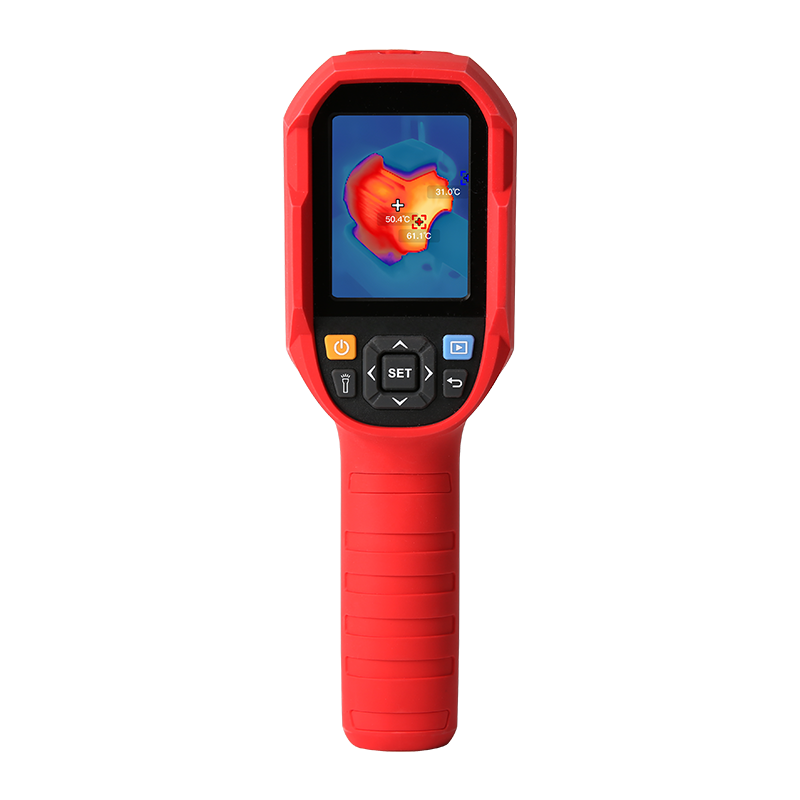

UTi716B
Heavy Duty Thermal Camera
While continuing the sturdy & durable advantages of the last generation product, the performance of UTi716B has significant improvement. Super resolution & T-Mix algorithm are added for better imaging effect. Support to real-time monitor the temperature changes trend via video recording function. Complete one-stop functionality operation through connecting mobile APP via Wi-Fi.
IR Resolution
160×120
Temperature Range
-20℃~550℃
Thermal Sensitivity
≤50mK
Field of View (FOV)
40°×30°
Frame Rate
≤25Hz
Display
2.8” TFT (320×240)
FEATURES
160×120 infrared resolution (upgrades to 320×240 when super resolution is on)
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Temperature measurement range from -20℃ to 550℃
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Features T-Mix image fusion algorithm technology
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Video recording
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
With a 2MP digital camera
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Wi-Fi connection
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| Display | 2.8” TFT (320×240) |
| IR resolution(Pixels) | 160×120 |
| Super resolution(Pixels) | √ (320×240) |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤50mK |
| Focus | Focus Free |
| Field of view(FOV) | 40°(H) × 30°(V) |
| Spatial resolution(IFOV) | 4.62mrad |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Functions | |
|---|---|
| Color palette | White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC |
| Image mode | Thermal, Visual image, T-Mix fusion, PIP |
| On screen analyzer | 5 Points/3 Rectangles |
| HI/LO temperature alarm | LCD animation, LED flashlight, Buzzer |
| HI/LO temperature tracking | √ |
| Digital camera resolution | 2MP |
| Video recording | √ |
| Wi-Fi/Wi-Fi live streaming | √ |
| LED lighting | √ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 5000mAh rechargeable Li-ion battery |
| Operating time | ≥8 hours |
| USB | Type-C |
| Storage | Built-in 32GB |
| Image/video storage format | JPG/MP4 |
| Protection | IP65 & 2m drop proof |
| Certificates | CE, FCC, RoHS |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ |
| Weight | 600g |
| Dimension | 236mm×75.5mm×86mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, Quick Start Guide, Download Operation Guide |
| Standard individual packing | Gift box |
| Standard Qty per carton | 10pcs |
| Standard carton size | 500mm×315mm×295mm |
| Standard carton G.W. | 11.2kg |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
THERMAL GALLERY

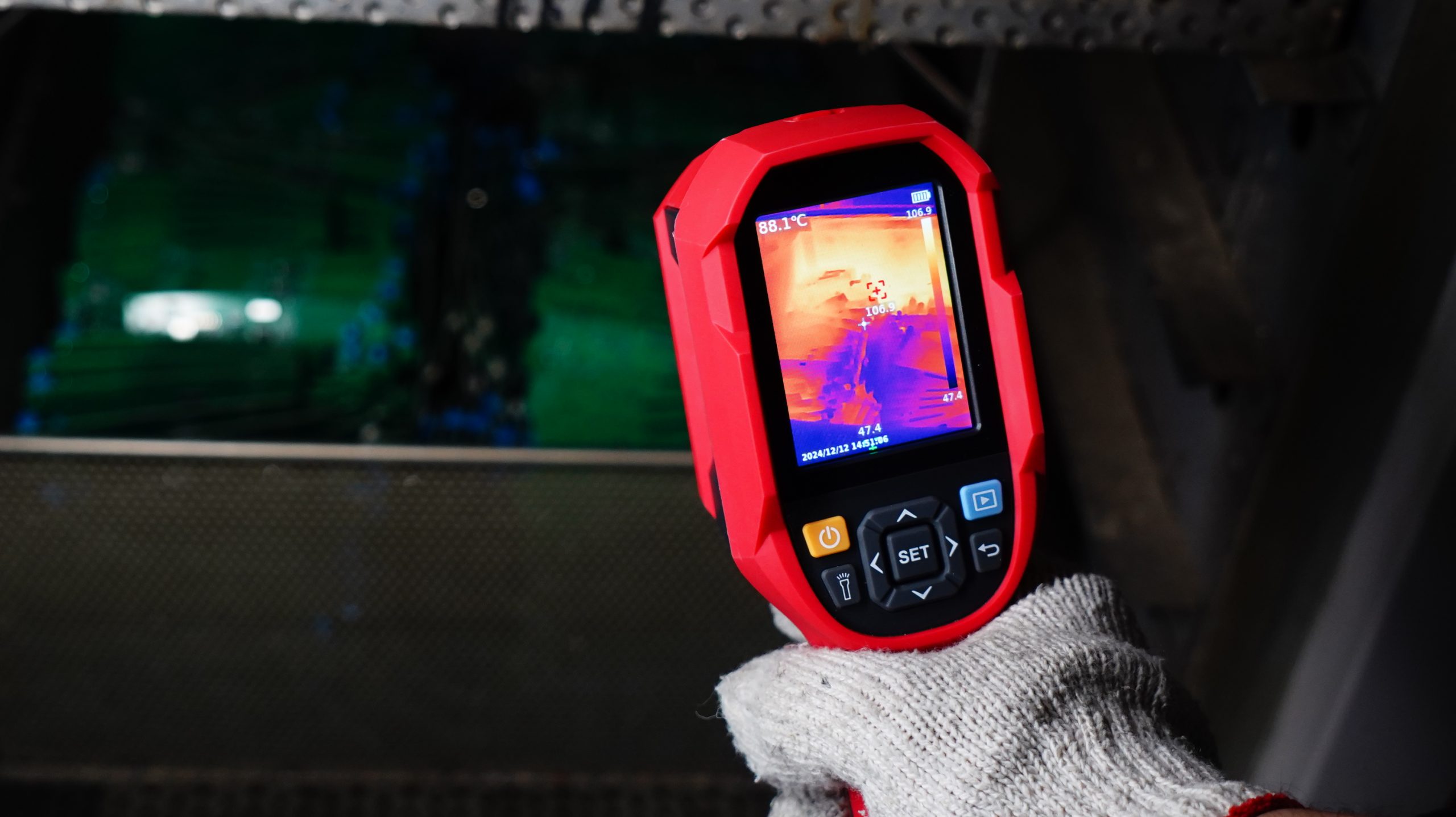

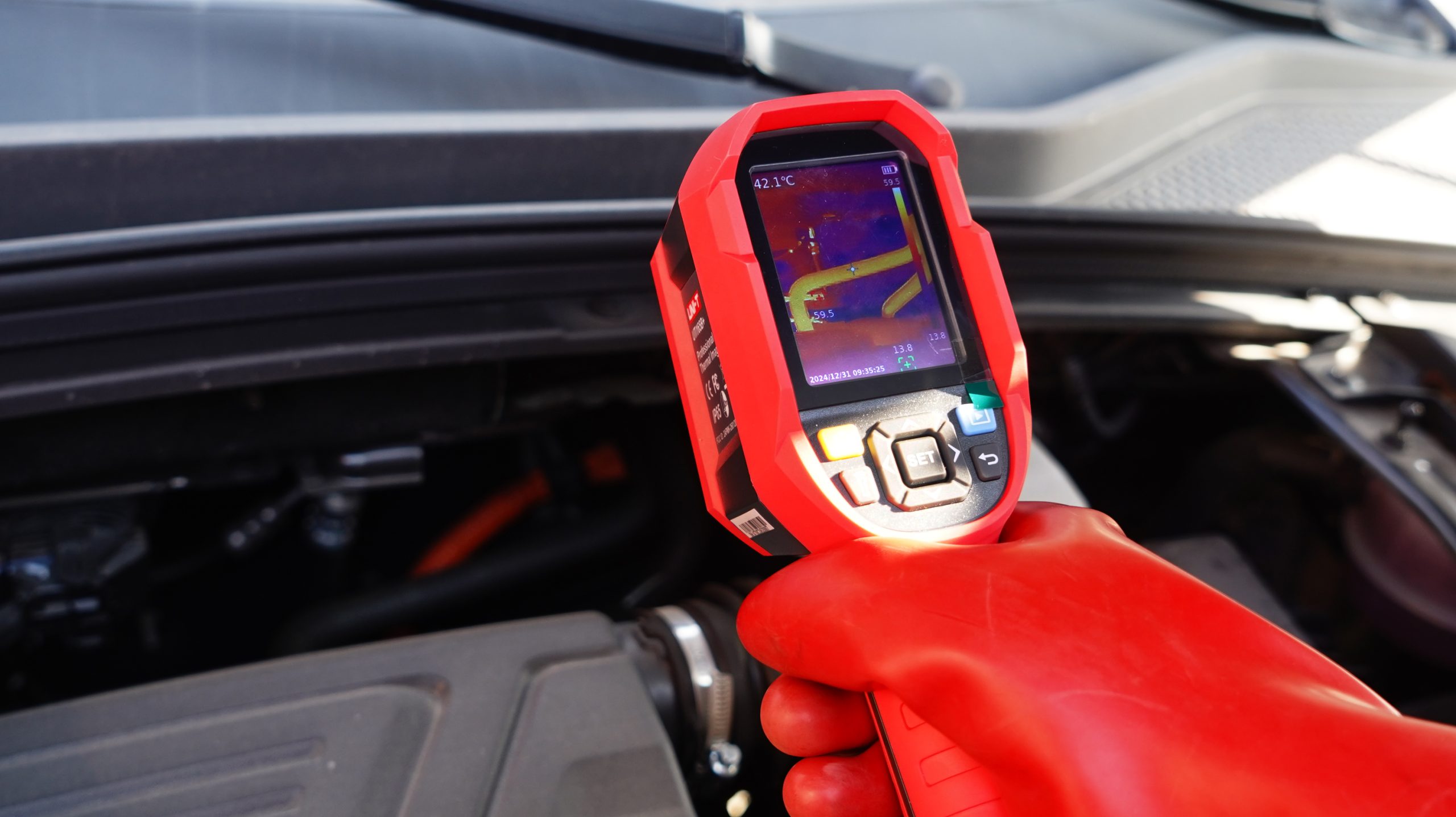

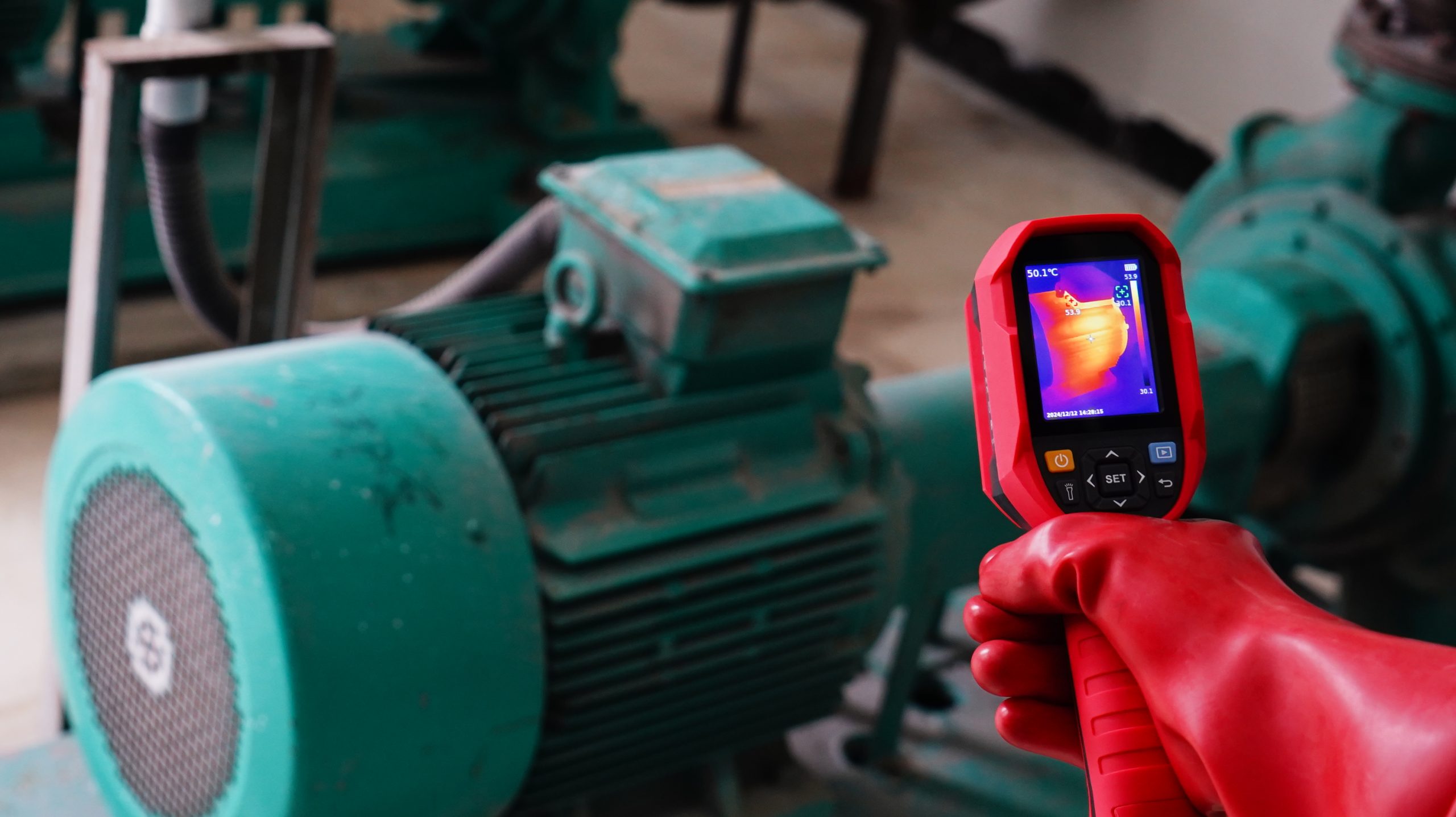

Application
