UTL8500X

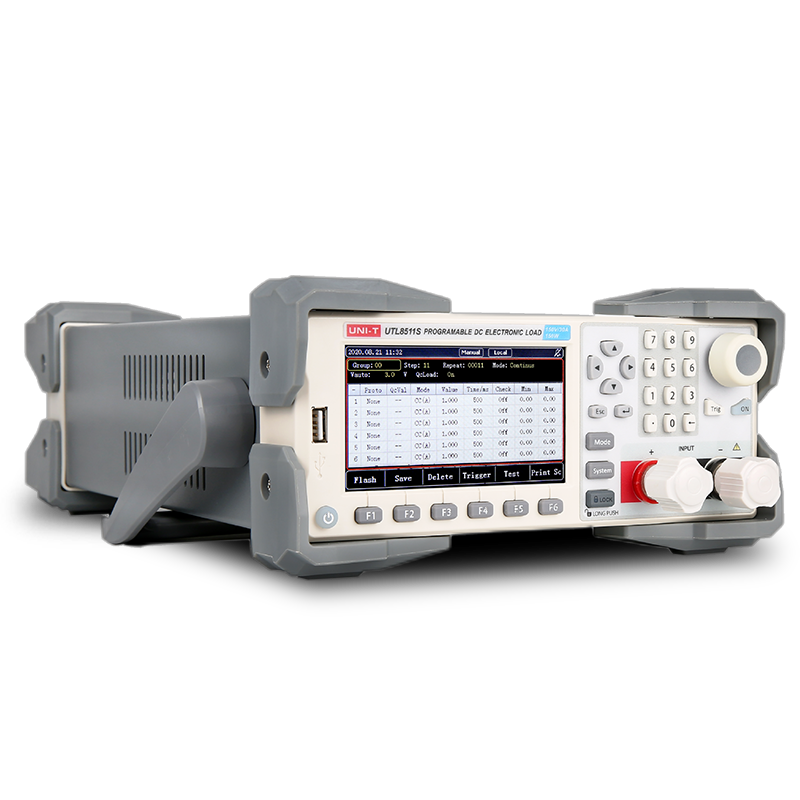

UTL8500X Series Programmable DC Electronic Load are equipped with 4.3-inch LCD screen, wide power range and up to 0.1mV/0.1mA resolution, support real-time waveform display and multiple test modes, such as dynamic test, overload test, auto test, list test, battery test, CR-LED test and fast charger auto test, etc.
Application: power suppliers test of chargers, power source of switches, UPS power supplies, LED driver, mobile phone batteries and power banks and in areas of electronic performance test, new energy test, aerospace industries, high-power test, labs, R&D and production line, etc.
150V
VOLTAGE
30A
CURRENT
150W/300W
TOTAL POWER
0.1mV/0.1mA
RESOLUTION
10kHz
MAX. DYNAMIC FREQUENCY
3.0A/μS
CURRENT SLEW RATE
½ 2U
SIZE

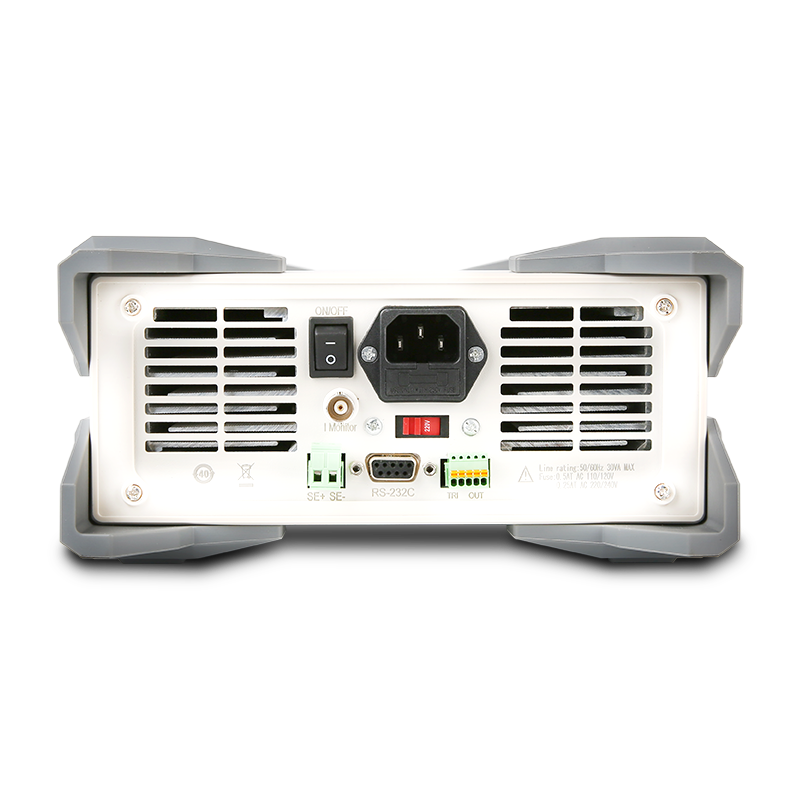

RS232,(Optional RS232, RS232-USB)
CONNECTIVITY
KEY FEATURES
FEATURES

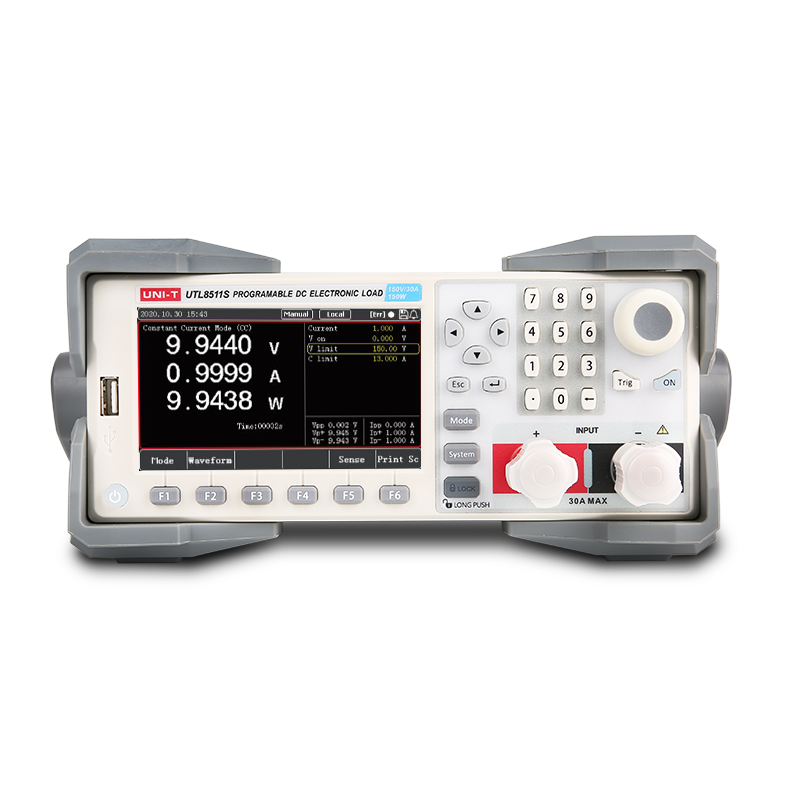

4.3 inch LCD screen display
Test resolution: 0.1mV/0.1mA; Voltage test range: 0~150V; Current test range: 0~30A Power test range: 0~150W/300W
Four basic test modes

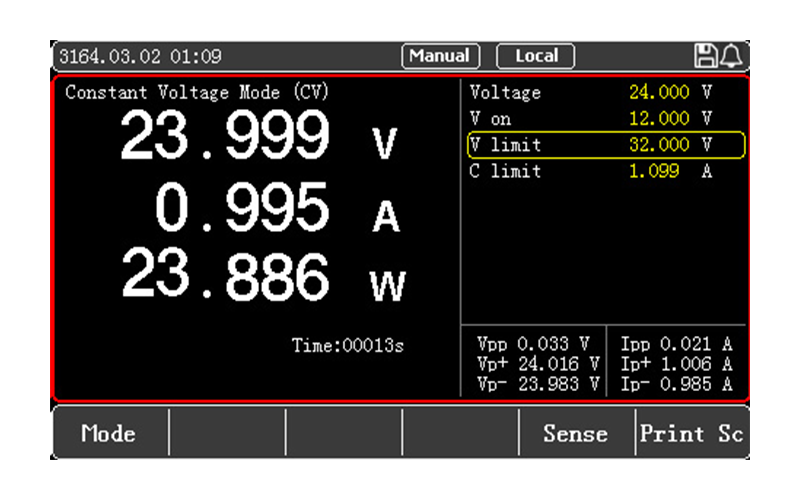

Four basic working modes: CC/CV/CR/CP
Rich test mode

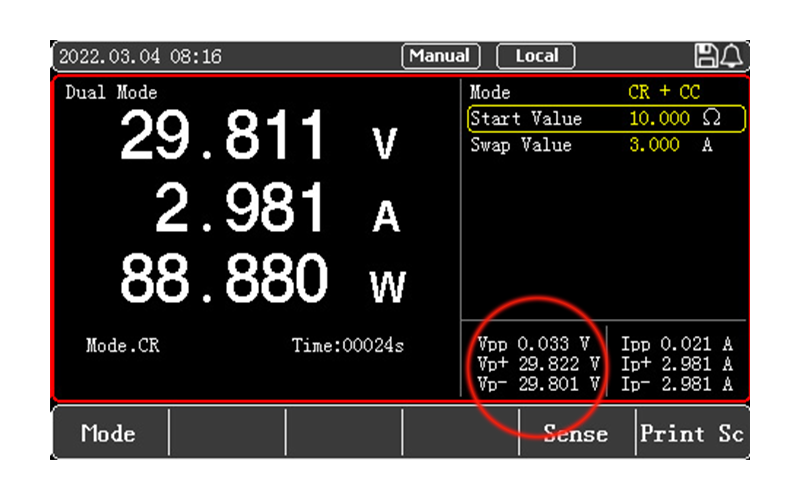

In order to meet diversified test requirements, UTL8500X series electronic loads provide more test modes for users to choose, dynamic test, list test, combination test, OCP/OVP/OPP test, CR-LED test, battery test, load effect, short circuit , Time test and other modes.

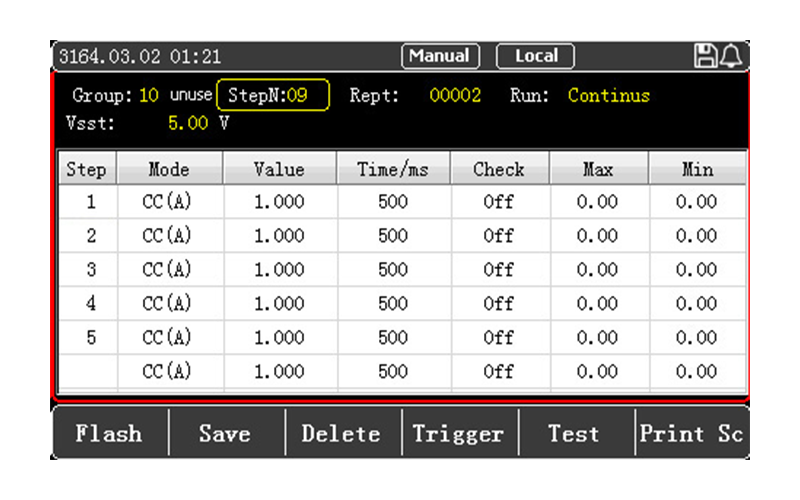

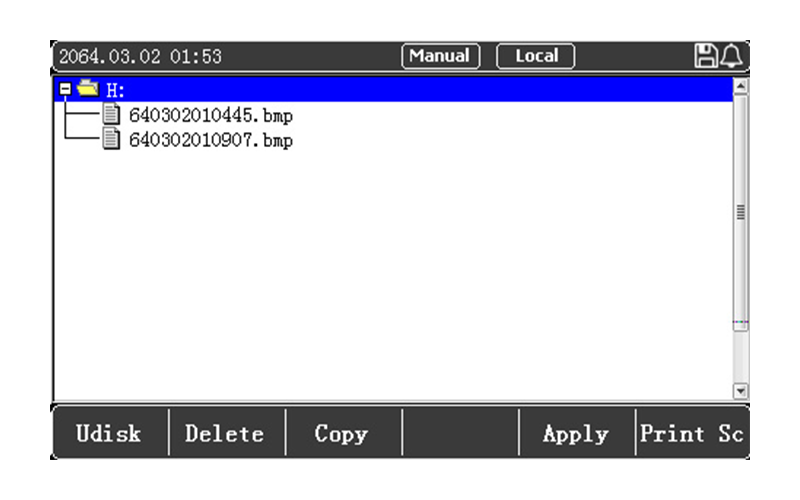

Screenshot and list save and call function
The list test can have a more comprehensive understanding of the comprehensive working characteristics of the tested product in actual applications.

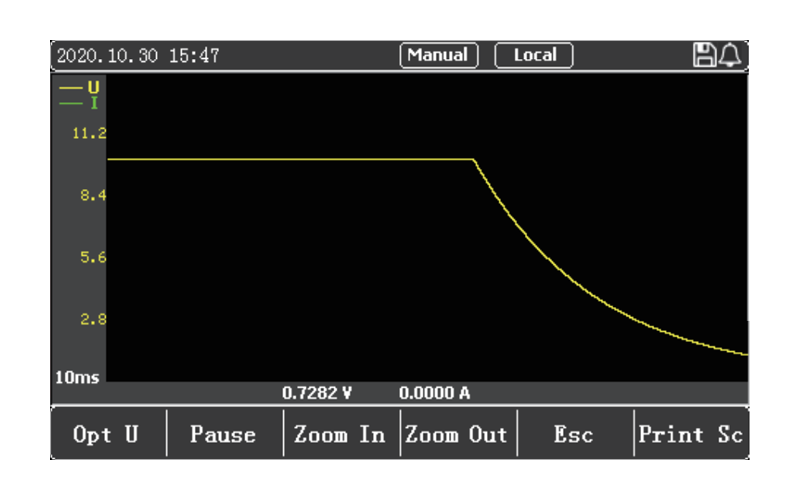

Real-time waveform display function and ripple measurement function
With ripple measurement and real-time waveform display function, you can refer to the waveform changes of voltage and current
