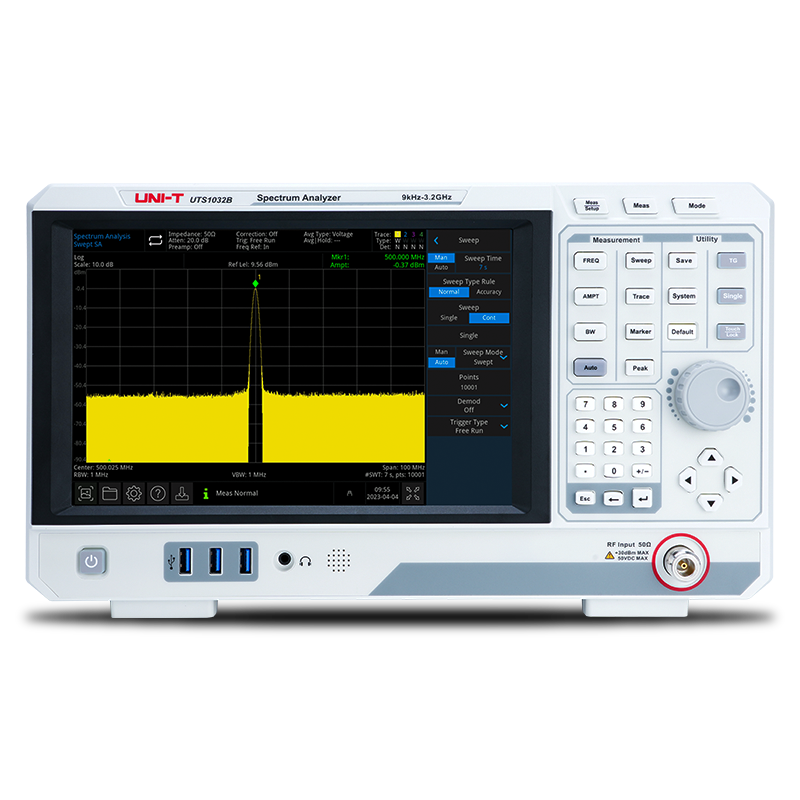

UTS1000B
The UTS1000B series spectrum analyzer can measure frequencies up to 3.2GHz. It is a spectrum analyzer with wide frequency band coverage and superior performance. The series adopts mature all digital IF technology. It provides a variety of analysis functions, and up to 10001 scanning points , providing better help for your frequency domain analysis. This series of spectrum adopts a 10.1 inch large touch screen, which will bring you a better use experience. The UTS1000B series is ideal for communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R & D / education and other fields.
9kHz~3.2GHz
Frequency Range
1Hz~1MHz
RBW
-98dBc/Hz @10kHz
Phase Noise
-161dBm
DANL
YES
Trace Generator
10.1 inch TFT LCD(touch screen)
Display
/
Analysis Bandwidth
KEY FEATURES
FEATURES
DANL <-161dBm
The spectrum analyzer has low bottom noise and more accurate measurement. Small signal can be accurately measured
The spectrum analyzer has low bottom noise and more accurate measurement. Small signal can be accurately measured
Excellent selectivity
It has stronger signal resolution capability of adjacent unequal amplitudes
10001 scan points
Scan 10001 points to display details more clearly. Effectively capturing abnormal signals
4 traces
4 traces are provided to facilitate comparative observation and find abnormal signals. Intuitive test and convenient operation
Rich detector functions
Positive peak, Negative peak , Sampling, Standard, Average, Quasi-peak
10.1 inch HD capacitive touch screen
The screen is large and high-definition. Multi touch, easy to operate
EMI Pre-compliance analysis
Optional components, together with near-field probes, help you find and improve EMI defects in advance
Advanced function
Channel power, Time domain power, Occupies bandwidth, Third order intermodulation, Adjacent channel power, Spectrum Monitoring, Carrier-to-noise ratio, Harmonic
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTS1015B |
9kHz~1.5GHz | 1Hz~1MHz | -98dBc/Hz @10kHz | -161dBm | NO | 10.1 inch TFT LCD(touch screen) |
 UTS1015T |
9kHz~1.5GHz | 1Hz~1MHz | -98dBc/Hz @10kHz | -161dBm | YES | 10.1 inch TFT LCD(touch screen) |
 UTS1032B |
9kHz~3.2GHz | 1Hz~1MHz | -98dBc/Hz @10kHz | -161dBm | NO | 10.1 inch TFT LCD(touch screen) |
 UTS1032T |
9kHz~3.2GHz | 1Hz~1MHz | -98dBc/Hz @10kHz | -161dBm | YES | 10.1 inch TFT LCD(touch screen) |
Technical Specification
| Model | UTS1032T | UTS1032B | UTS1015T | UTS1015B |
| Key Specifications | ||||
| Frequency Range | 9 kHz to 3.2 GHz | 9 kHz to 3.2 GHz | 9 kHz to 1.5 GHz | 9 kHz to 1.5 GHz |
| DANL | Up to -161 dBm (Typ.) | |||
| Phase Noise | < -98 dBc/Hz @ 1 GHz, 10 kHz offset (Typ.) | |||
| RBW | 1 Hz to 1 MHz | |||
| Sweep Points | 10,001 | |||
| Technical Details | ||||
|---|---|---|---|---|
| Frequency Resolution | 1 Hz | |||
| Span Range | 0 Hz; 100 Hz to 3.2 GHz | 0 Hz; 100 Hz to 3.2 GHz | 0 Hz; 100 Hz to 1.5 GHz | 0 Hz; 100 Hz to 1.5 GHz |
| Span Accuracy | Sweep: ±[0.25% × span + span/(points-1)]; FFT: ±[0.10% × span + span/(points-1)] | |||
| Sweep Time | Zero span: 1 μs to 4000 s; non-zero span: 1 ms to 4000 s | |||
| Video Bandwidth (VBW) | 1 Hz to 1 MHz | |||
| Selectivity (-60 dB/-3 dB) | <4.8:1 (Nom.) | |||
| Reference Level | -100 dBm to +30 dBm, 1 dB steps | |||
| Preamplifier | Standard, 20 dB (Nom.) | |||
| Total Absolute Amplitude Accuracy | <0.7 dB | |||
| Trace Detectors | Sample, Peak, Negative, Normal, Average | |||
| Trace Types | Clear/Write, Average, Max Hold, Min Hold | |||
| Scale Units | dBm, dBmV, dBμV, V, W | |||
| Marker Modes | Normal, Delta, Fixed | |||
| Marker Functions | Marker Noise, Band Power, Band Density, N dB, Counter | |||
| Features | ||||
| Advanced Measurement | Optional | |||
| Analog Modulation Analysis | Optional | |||
| EMI Analysis | Optional | |||
| General Information | ||||
| Display | 10.1-inch TFT touchscreen, 1280×800 | |||
| Interface | RF input, tracking generator output where fitted, 10 MHz Ref In/Out, Ext Trigger, HDMI, USB Host/Device, LAN, headphone | |||
| Power | 100–240 VAC, 50/60 Hz | |||
| Product Net Weight | 4.5 kg | |||
| Product Dimensions (W×H×D) | 368 × 218 × 120 mm | |||
| Standard Quantity Per Carton | 1 pc | |||
| Certification | CE, cETLus | |||
| Warranty | 3 Years | |||
DATA SHEET
QUICKSTART GUIDE
MANUAL
SOFTWARE
FIRMWARE
UTS1000B Firmware
Current Version: V1.04.0059 | 2025/11/26
Release Notes
UTS1000B Firmware
Current Version: V1.04.0031 | 2025/7/23
Release Notes
UTS1000B Firmware
Current Version: V1.04.0030 | 2025/4/16
Release Notes
OTHER DOWNLOADS
Device Manager
Current Version: V2.8 | 2025/7/21
Release Notes
Videos

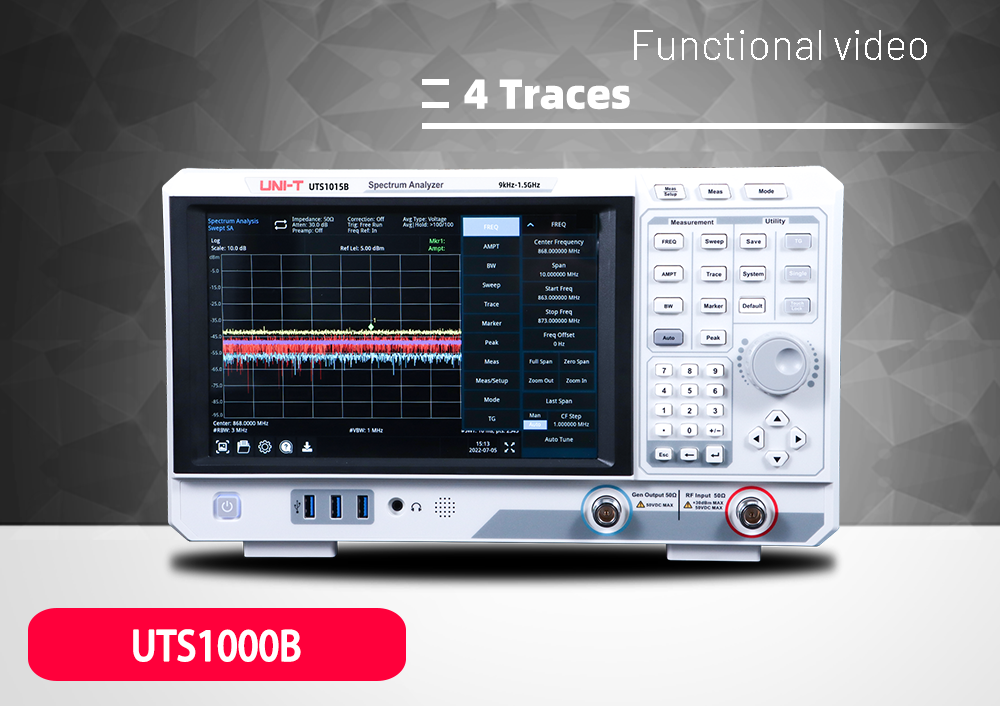

4traces
