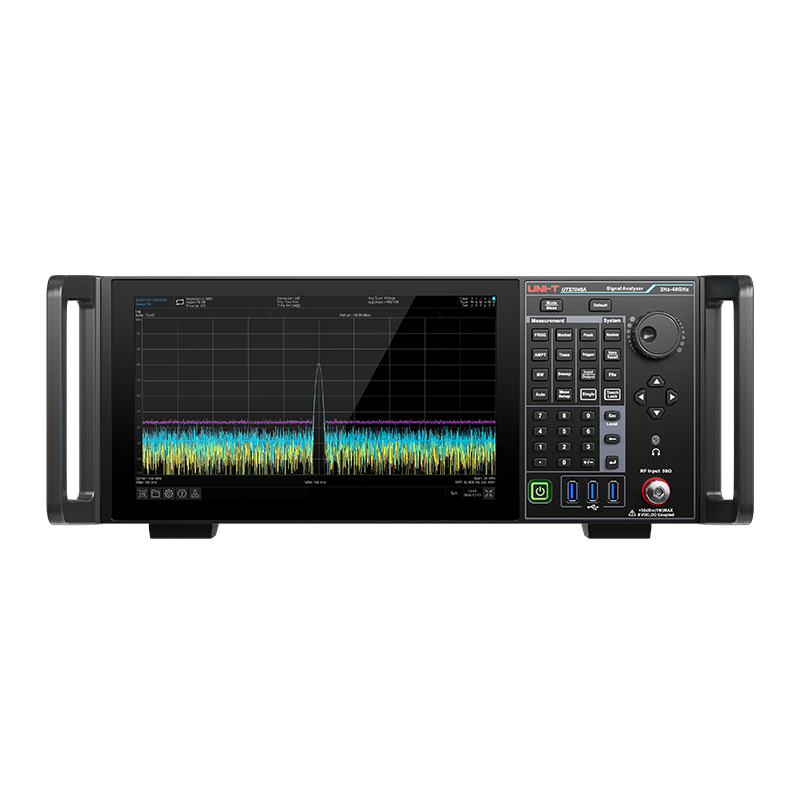

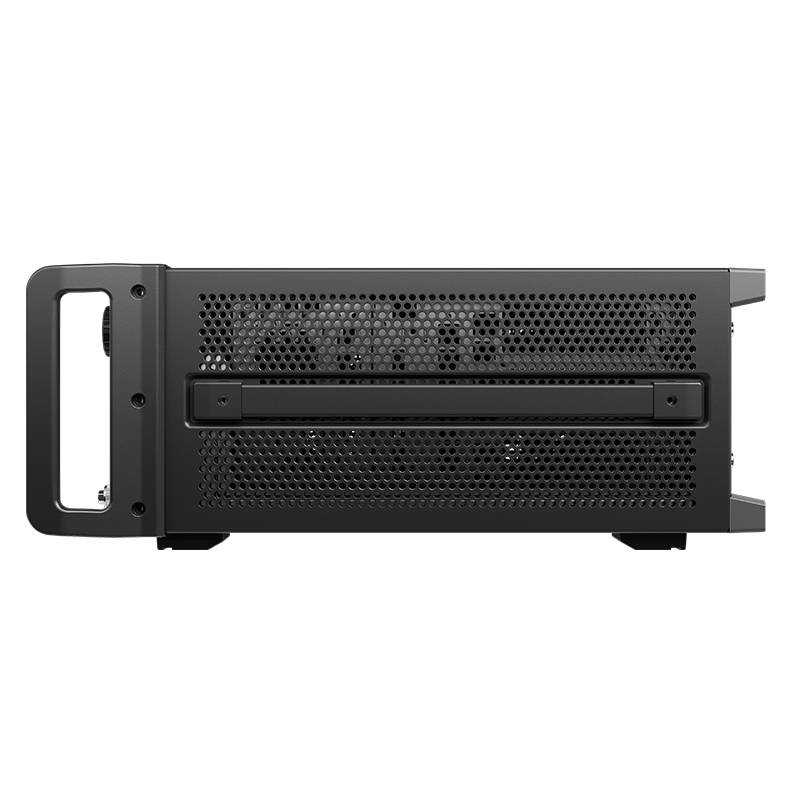

UTS7000A
NewThe UTS7000A series is a signal analyzer with a frequency range from 2 Hz to 40 GHz. It can serve as the core instrument in an automatic control system and is well-suited for various testing and application needs in corporate R&D, factory production, and educational research environments.
2 Hz~40 GHz
FREQUENCY RANGE
1 Hz~3 MHz (10% step), 4, 5, 6, 8,10 MHz
RBW
-110 dBc/Hz @10kHz
PHASE NOISE
-167 dBm
DANL
/
TRACE GENERATOR
11.6 inch TFT LCD(touch screen)
DISPLAY
Max. 255 MHz(opt.)
ANALYSIS BANDWIDTH
KEY FEATURES
FEATURES
Great Phase Noise Performance
Engineered to meet demanding requirements in communication signal analysis, the UTS7000A achieves phase noise performance better than –110 dBc/Hz (typical) at a 10 kHz offset with a 1 GHz carrier, ensuring accurate and stable measurements.

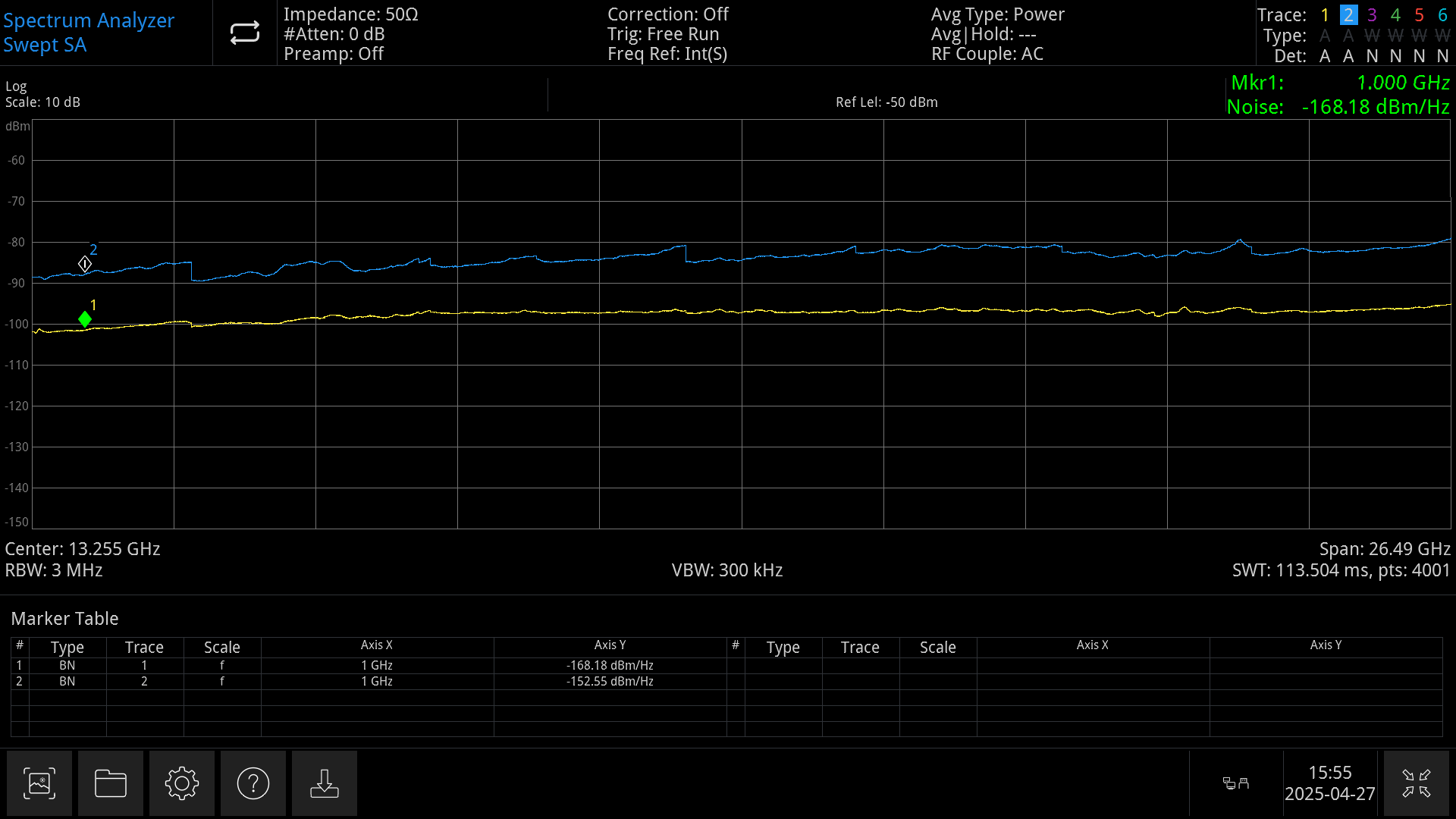

Exceptional Sensitivity
Detecting weak signals can be challenging due to interference from the instrument’s inherent noise floor. The UTS7000A series features a low displayed average noise level (DANL) of –167 dBm (typical), delivering exceptional sensitivity for reliable weak signal detection.
LTE Signal Analysis
The LTE signal analysis function enables modulation analysis of both uplink and downlink signals.
It supports FDD and TDD duplexing modes and a variety of modulation formats, ranging from QPSK to 256QAM.

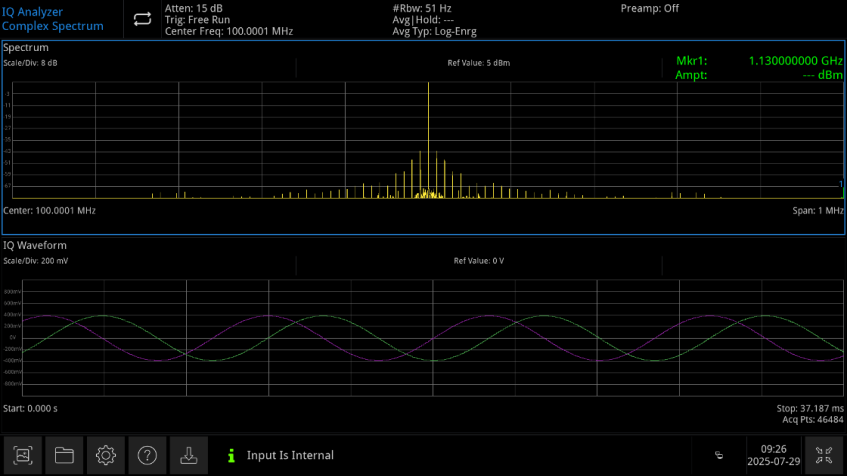

I/Q Analysis
Efficiently acquires and analyzes I/Q data for accurate signal characterization.
Phase Noise Analysis
One-click phase noise analysis enables fast and reliable phase noise measurement.
Powerful Real-Time Spectrum Analysis
The real-time spectrum analysis function provides an ideal tool for testing time-varying signals such as burst, agile, and frequency-hopping signals. The real-time analysis bandwidth include 20MHz, 40 MHz, 85 MHz, 160 MHz, and 255 MHz. The instrument achieves 100% frequency-domain signal capture in under 4.5 μs.

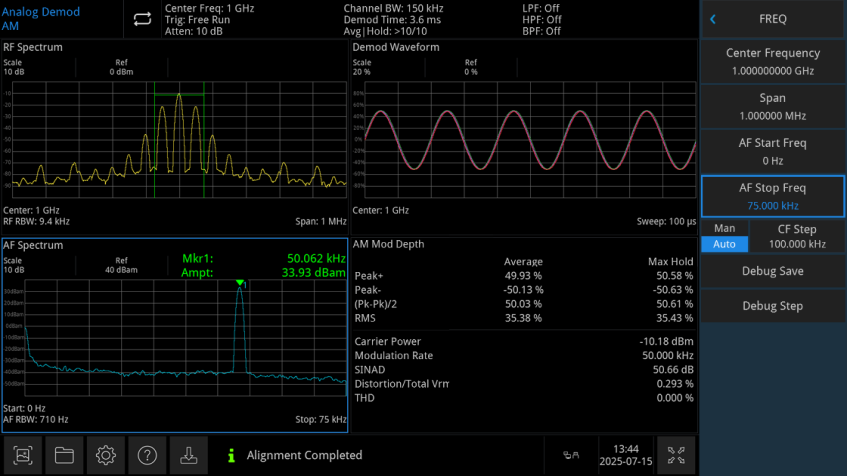

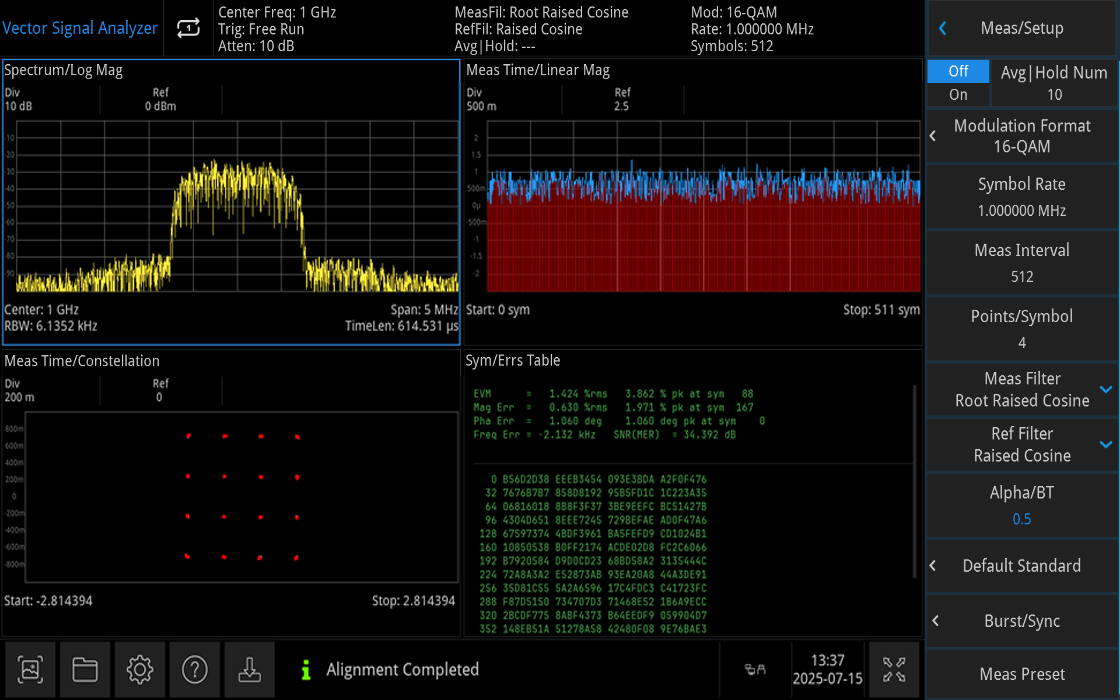

Modulation Signal Analysis
Analog modulation analysis: AM, FM, PM.
Digital modulation analysis: FSK, PSK, ASK, MSK, QAM, and other modulated signals.
Performing demodulation analysis enables the extraction of signal quality metrics and error vector magnitude (EVM).
EMI Pre-Compliance Testing
Early EMI pre-compliance testing during development mitigates launch risks by identifying conduction/radiation issues promptly, accelerating certification.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTS7040A |
2 Hz~40 GHz | 1 Hz~3 MHz (10% step), 4, 5, 6, 8,10 MHz | -110 dBc/Hz @10kHz | -167 dBm | / | 11.6 inch TFT LCD(touch screen) |
 UTS7032A |
2 Hz~32 GHz | 1 Hz~3 MHz (10% step), 4, 5, 6, 8,10 MHz | -110 dBc/Hz @10kHz | -167 dBm | / | 11.6 inch TFT LCD(touch screen) |
 UTS7026A |
2 Hz~26.5 GHz | 1 Hz~3 MHz (10% step), 4, 5, 6, 8,10 MHz | -110 dBc/Hz @10kHz | -167 dBm | / | 11.6 inch TFT LCD(touch screen) |
 UTS7013A |
2 Hz~13.6 GHz | 1 Hz~3 MHz (10% step), 4, 5, 6, 8,10 MHz | -110 dBc/Hz @10kHz | -167 dBm | / | 11.6 inch TFT LCD(touch screen) |
Technical Specification
| Model | UTS7040A | UTS7032A | UTS7026A | UTS7013A |
| Key Specifications | ||||
| Frequency Range | 2 Hz to 40 GHz | 2 Hz to 32 GHz | 2 Hz to 26.5 GHz | 2 Hz to 13.6 GHz |
| DANL | Up to -167 dBm (Typ.) | |||
| Phase Noise | < -110 dBc/Hz @ 1 GHz, 10 kHz offset (Typ.) | |||
| Analysis Bandwidth | 20 or 40 MHz standard; 85/160/255 MHz optional | |||
| RBW | 1 Hz to 10 MHz | |||
| Sweep Points | 100,001 | |||
| Technical Details | ||||
|---|---|---|---|---|
| Frequency Resolution | 0.001 Hz | |||
| Span Range | 0 Hz; 10 Hz to 40 GHz | 0 Hz; 10 Hz to 32 GHz | 0 Hz; 10 Hz to 26.5 GHz | 0 Hz; 10 Hz to 13.6 GHz |
| Span Accuracy | Sweep: ±[0.25% × span + resolution]; FFT: ±[0.10% × span + resolution] | |||
| Sweep Time | Zero span: 1 μs to 6000 s; span ≥10 Hz: 1 ms to 4000 s | |||
| Video Bandwidth (VBW) | 1 Hz to 10 MHz | |||
| Selectivity (-60 dB/-3 dB) | <4.1:1 (Nom.) | |||
| Reference Level | -170 dBm to +30 dBm, 0.01 dB steps | |||
| Preamplifier | Optional, model-matched | |||
| Total Absolute Amplitude Accuracy | ±0.40 dB | |||
| Trace Detectors | Normal, peak, sample, negative peak, log power average, RMS average, voltage average, quasi peak, EMI average | |||
| Trace Types | Clear/Write, Average, Max Hold, Min Hold | |||
| Scale Units | dBm, dBmV, dBμV, V, W | |||
| Marker Modes | Normal, Delta, Fixed | |||
| Marker Functions | Marker Noise, Band Power, Band Density, N dB, Counter | |||
| Features | ||||
| Real Time Spectrum Analysis | Standard | |||
| Advanced Measurement | Optional | |||
| Analog Modulation Analysis | Optional | |||
| Vector Signal Analysis | Optional | |||
| Phase Noise Analysis | Optional | |||
| IQ Analysis | Optional | |||
| EMI Analysis | Optional | |||
| LTE | Optional | |||
| 5G NR | Optional | |||
| General Information | ||||
| Display | 11.6-inch TFT touchscreen, 1920×1080 | |||

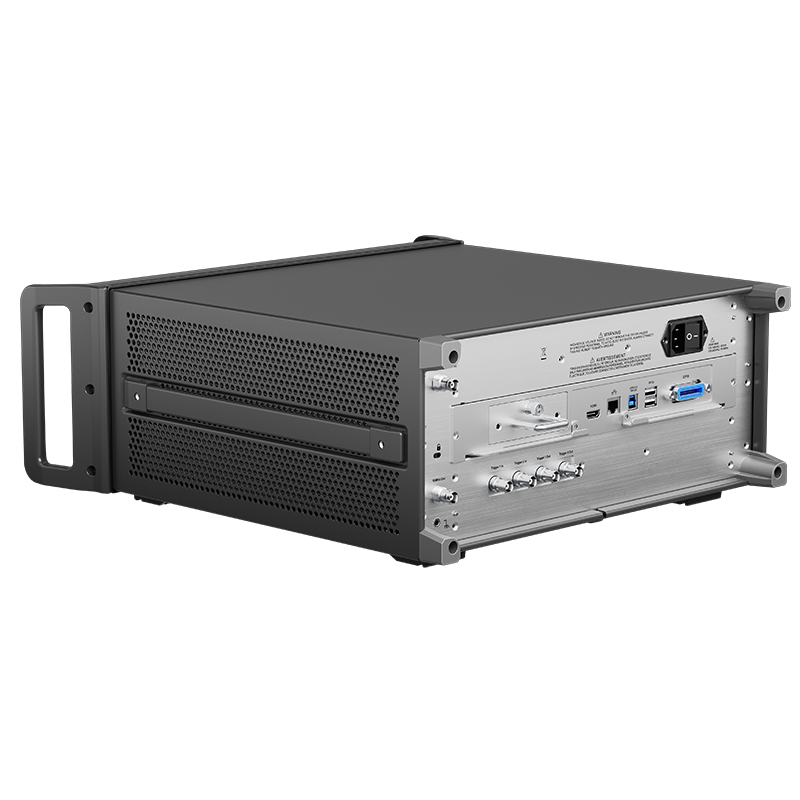

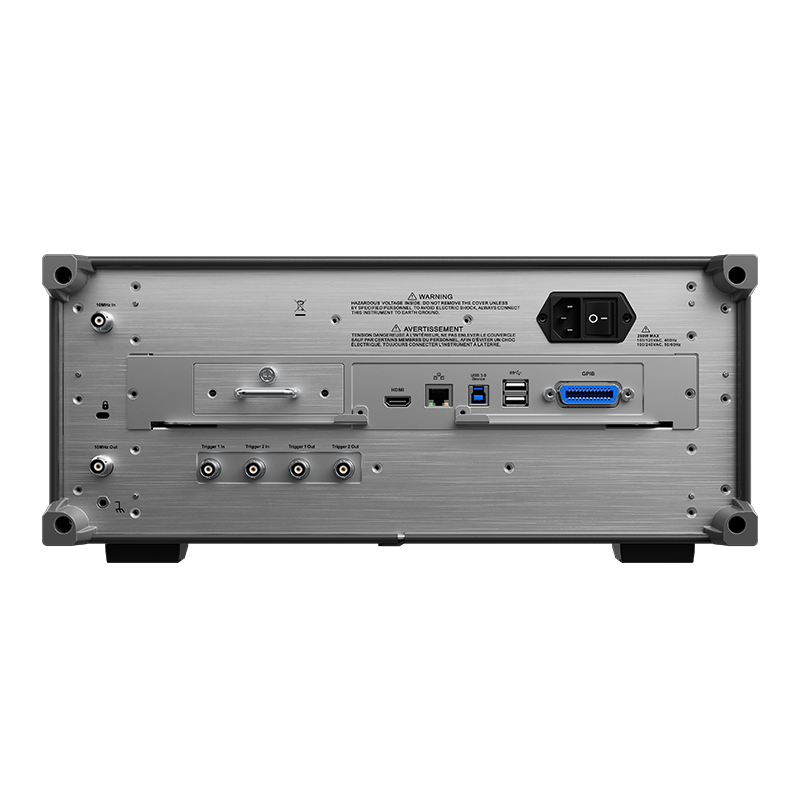

| Interface | RF input, 10 MHz Ref In/Out, 2×Ext Trigger, HDMI, USB Host/Device, LAN, headphone | |||
| Power | 100–240 VAC (±10%), 50/60 Hz; 100–120 VAC (±10%), 400 Hz; ≤250 W | |||
| Product Net Weight | About 15 kg | |||
| Product Dimensions (W×H×D) | 484 × 189 × 475.5 mm | |||
| Standard Quantity Per Carton | 1 pc | |||
| Certification | CE, cETLus | |||
| Warranty | 3 Years | |||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
