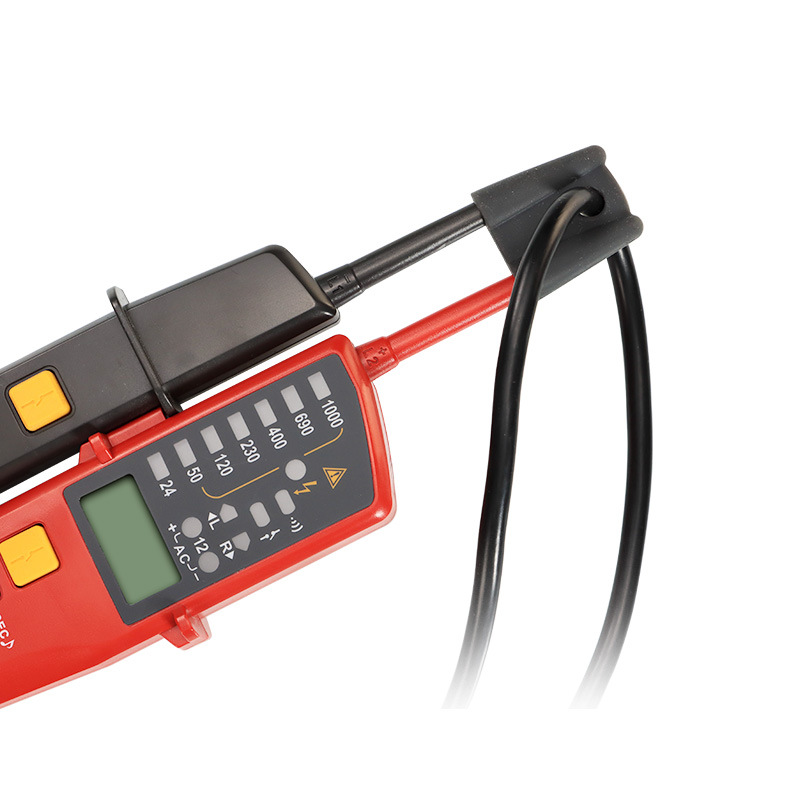

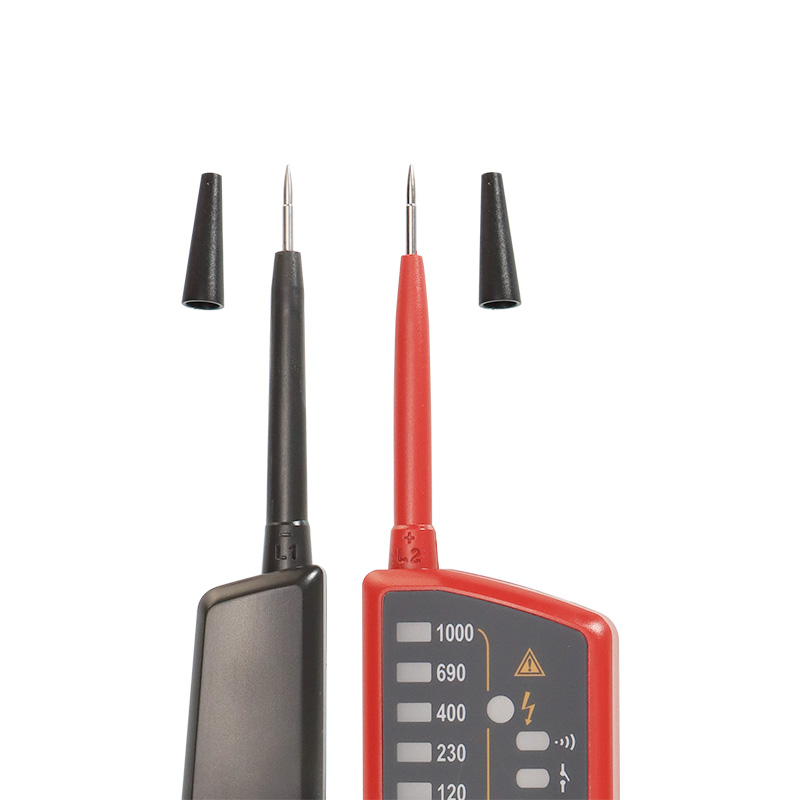

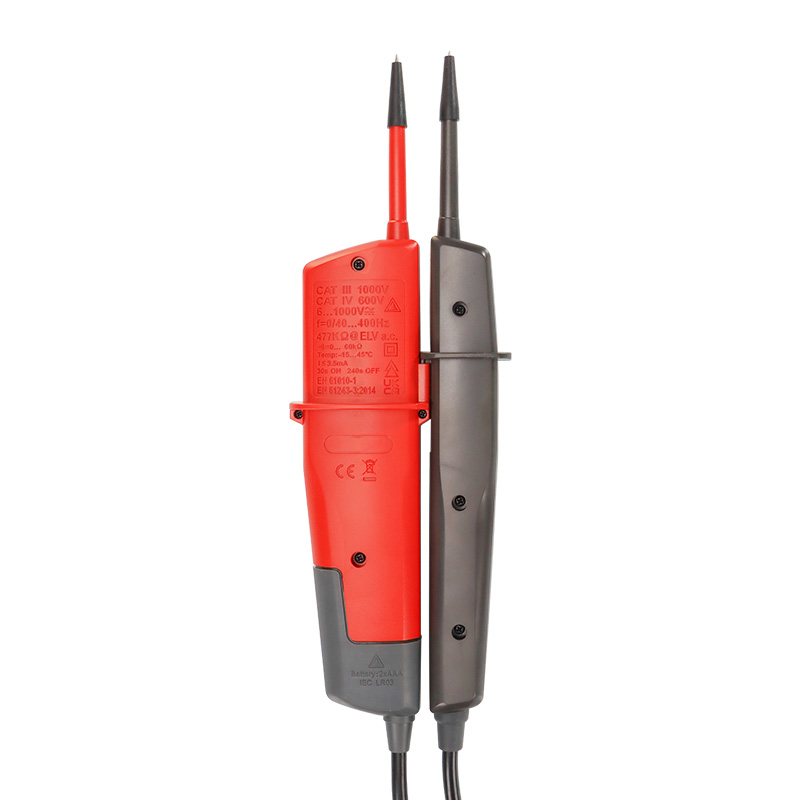

UT18E Voltage and Continuity Tester
The UT18E is designed for testing AC/DC voltage (up to 1000V), three-phase voltage/phase sequence, continuity, and more. It continues the lightweight design style of UT18C, LED and LCD can clearly display the measurement results. It complies with CAT IV 600V, and the buzzer alarm function can remind users to maintain safe operation at all times, UT18E is a handy electrician tool.
12~1000V
Ac/Dc Voltage LED Indications
●
Voltage LCD Display
●
Polarity Detection
●
Phase Rotation Test
●
Continuity Test
●
Self-Inspection
Key Features
● 8 voltage levels: 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V (AC/DC)
● Phase sequence test
● Automatic polarity test
● Continuity test
● RCD function
● Auto power off
● Frequency measurement
● Low impedance measurement
● LED+LCD display at the same time
● Buzzer alarm
● Flashlight
● Safety rating: CAT III 1000V / CAT IV 600V
Technical Specification
| Specifications | Range | UT18E |
| Voltage(AC/DC) | 6V | ±（1.5%＋1） |
| 12V | ±（1.5%＋2） | |
| 24V | ±（1.5%＋2） | |
| 50V | ±（1.5%＋3） | |
| 120V | ±（1.5%＋4） | |
| 230V | ±（1.5%＋5） | |
| 400V | ±（1.5%＋5） | |
| 690V | ±（1.5%＋5） | |
| 1000V | ±（1.5%＋5） | |
| Phase rotation test | 100Vac～400Vac (3 phase) | ✔ |
| Frequency: 50Hz~60Hz | ||
| Continuity test | Resistance: 0Ω~60kΩ | ✔ |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | ✔ |
| Polarity detection | Positive & Negative | ✔ |
| Self-inspection | All LED or LCD | ✔ |
| No power test | Operating voltage: 100~1000V | ✔ |
| Features | ||
|---|---|---|
| Voltage indication | LED and LCD | |
| Auto range | Full range | ✔ |
| Over-voltage protection | 1100V | ✔ |
| Auto standby | Standby current＜10μA | ✔ |
| Silent mode | Full range | ✔ |
| Backlight | Full range | ✔ |
| Low battery indication | Around 2.4V | ✔ |
| LCD (voltage) | 6V~1000V | ✔ |
| LCD (Frequency) | 40Hz~400Hz | ±(3%+5) |
| Safety rating | CAT III 1000V; CAT IV 600V | |
| Certificate | CE, UKCA, RoHS | |
| General Characteristics | ||
| Product Color | Red, black | |
| Product weight (including batteries) | 277g | |
| Product Dimension | 272 x 85 x 31 mm | |
| Standard package | Clamshell+insert card+user manual | |
| Standard quantity per carton | 20 pcs | |
| Standard carton Dimension | 415 x 380 x 365 mm | |
Application
Voltage test: up to 1000V (AC/DC)

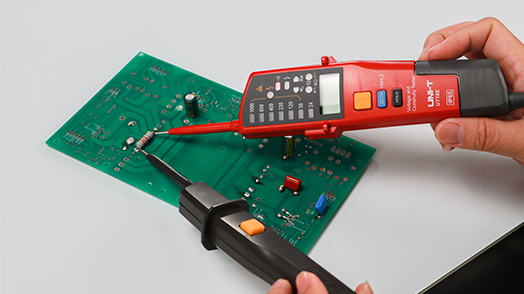

Continuity test

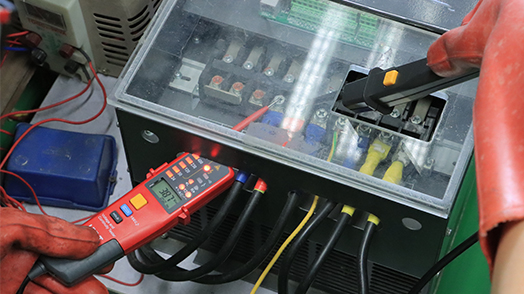

Phase rotation test

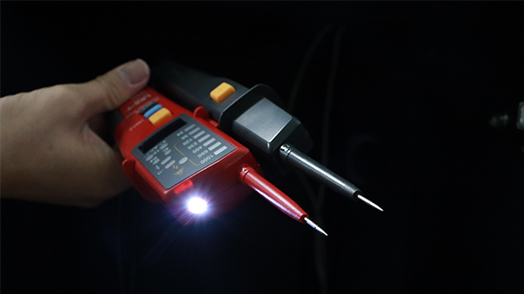

Flashlight
