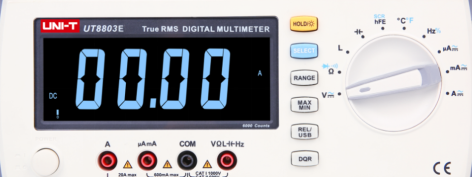

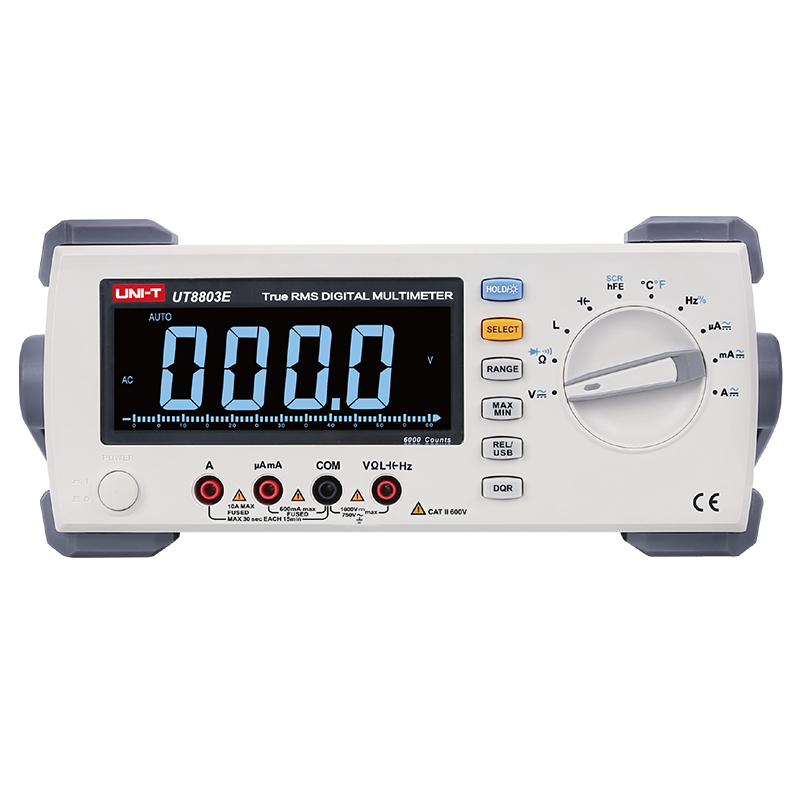

UT8803E
The UT8803E is a 6000 counts 3 ⅚ digital, automatic range, portable desktop, AC powered digital multimeter. Large screen large character display with backlight, more clear and easy to read. With full function test, full range overload protection and unique appearance design, it has become an electrical test instrument with better performance. This instrument can be used to measure : AC / DC voltage, AC / DC current, resistance, frequency, capacitance, inductance, triode HFE, diode (LED), thyristor (SCR) and circuit on-off. Meet the measurement needs of users with multi-function, high precision and automation.
3⅚
READING RESOLUTION
3rdgs/s
FASTEST TEST RATE
100kHz
FREQUENCY RESPONSE
0.3%
DC VOLTAGE ACCURACY in a Year
USB Device
CONNECTIVITY
KEY FEATURES
FEATURES

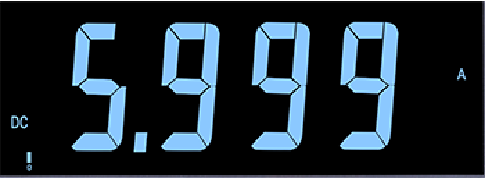

Reading resolution 3⅚，maximum reading 5999
D / Q parameters of capacitance and inductance can be measured
Multiple measurement items optional
Extreme value operation and reference value operation function, with analog bar
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT8803E |
3⅚ | 3 rdgs/s | 100kHz | 0.3% | USB Device |
Technical Specification
| Model | UT8803E |
| Key Specifications | |
| Reading Resolution | 3⅚ |
| Fastest Test Rate | 2–3 rdgs/s |
| Frequency Response | 100 kHz |
| DC Voltage Accuracy in a Year | 0.030% |
| Technical Details | |
|---|---|
| DC Voltage Range | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| DC Voltage Accuracy | ±(0.3% reading + 2 digits), 90 days |
| DC Current Range | 600 μA / 6 mA / 60 mA / 600 mA / 10 A |
| DC Current Accuracy | ±(0.8% reading + 3 digits), 90 days |
| AC Voltage Range | 600 mV / 6 V / 60 V / 600 V / 750 V |
| AC Voltage Accuracy | ±(0.6% reading + 5 digits), 90 days |
| AC Current Range | 600 μA / 6 mA / 60 mA / 600 mA / 10 A |
| AC Current Accuracy | ±(1% reading + 5 digits), 90 days |
| Resistance Range | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Resistance Accuracy | ±(0.8% reading + 5 digits), 90 days |
| Capacitance Range | 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF |
| Capacitance Accuracy | ±(1.5% reading + 5 digits), 90 days |
| Frequency Range | 600 Hz–20 MHz |
| Frequency Accuracy | ±(0.1% reading + 10 digits), 90 days |
| Features | |
| Mathematical Operation | Max/Min, Relative, Analog Bar |
| Data Storage | 20k records |
| 2/4 Wire Measurement | 2-wire |
| Diode Measurement | Yes; LED, transistor, SCR |
| Connectivity | Yes; buzzer below 10 Ω |
| Temperature | −40 to 1000 °C |
| TRMS | Yes |
| General Information | |
| Display | EBTN LCD |
| Interface | USB Device |
| Power | AC 100/120/220/240 V ±10%, 47–63 Hz |
| Product Net Weight | 3.09 kg |
| Product Dimensions (W×H×D) | 265 × 110 × 320 mm |
| Standard Quantity Per Carton | 1 pc |
| Certification | CE, cETLus |
| Warranty | 3 Years |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
