UTG1000X

New

The UTG1000X series has precise and stable waveform output with a resolution as low as 1μHz. It is an economical, high-performance, and multi-functional function/arbitrary waveform generator. Accurate, stable, clean, low-distortion output signals can be generated. With convenient operation, superior technical indicators and humanized graphic display, it is a multi-purpose device that meets the needs of learning, testing and production.

40MHz

MAX. OUTPUT FREQUENCY

200MSa/s

SAMPLE RATE

16bit

VERTICAL RESOLUTION

CHANNELS

4kpts

ARBITRARY WAVE LENGTH

4.3 inch TFT LCD

DISPLAY

Get a quote

Download Resources

KEY FEATURES

Model

UTG1022X

FEATURES

Equal performance dual channel

Simultaneously provide two channels of high-performance output. High amplitude output can still be guaranteed at high frequency

Ultra-low jitter

Can generate up to 10MHz square wave, fast edge, jitter less than 200ps, purer signal

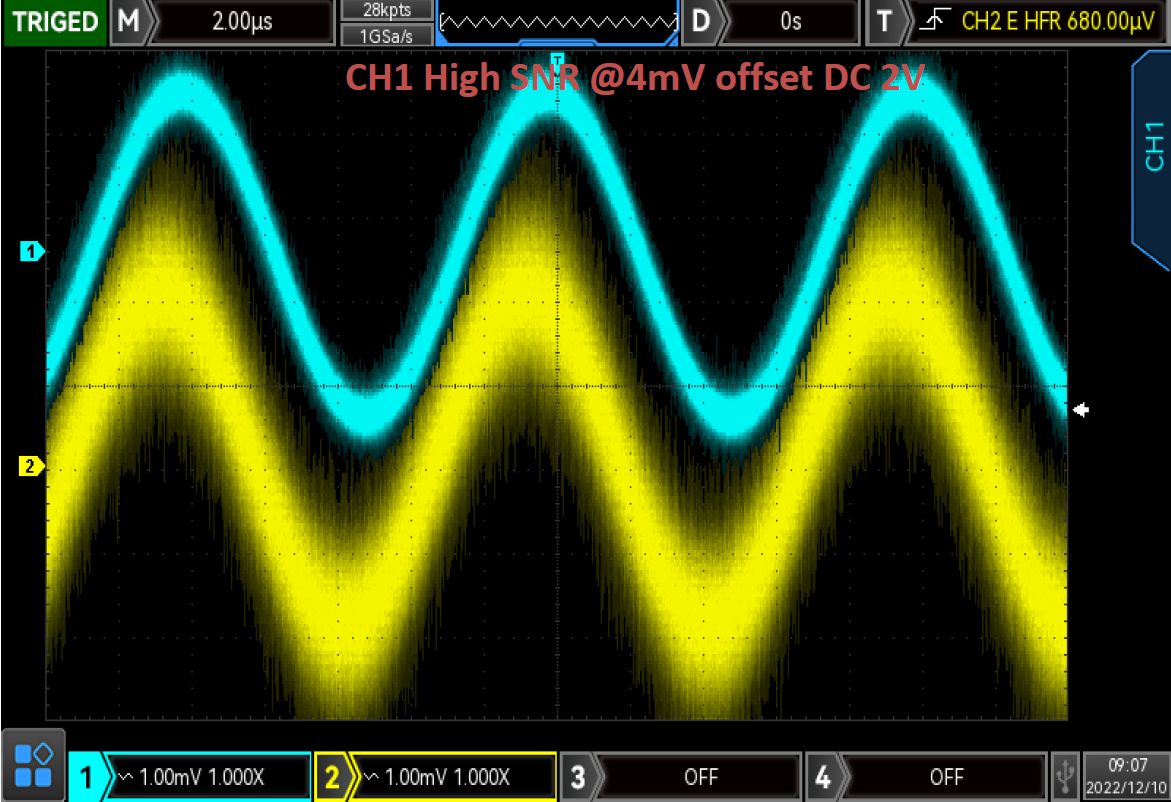

High signal-to-noise ratio

Arial Large offset and small signal output are more pure, ultra-high signal-to-noise ratio, superior to products of the same grade

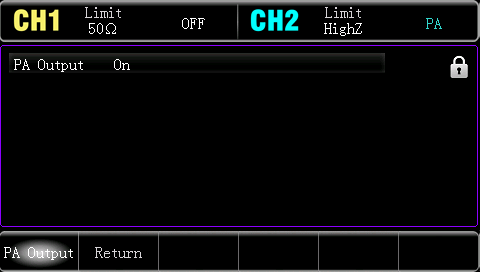

Optional power amplifier module

-PA model is equipped with a standard power amplifier module, which can provide a maximum of 4W waveform signal to meet the test requirements of some power devices

Rich burst function

Provides three pulse train generation methods, making it more flexible to generate various pulse trains

Multiple modulation modes

Provide AM, FM, PM, FSK, ASK, PSK and PWM seven analog and digital modulation methods, use more fields

Sweep function

Support “linear” and “logarithmic” two frequency sweep methods.

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
UTG1022X	20MHz	200MSa/s	16bit	2	4kpts	4.3 inch TFT LCD
UTG1022X-PA	20MHz	200MSa/s	16bit	2	4kpts	4.3 inch TFT LCD
UTG1042X	40MHz	200MSa/s	16bit	2	4kpts	4.3 inch TFT LCD

Technical Specification

Technical Details
Model	UTG1042X	UTG1022X	UTG1022X-PA
Key Specifications
Frequency	1 μHz to 40 MHz	1 μHz to 20 MHz	1 μHz to 20 MHz
Channels	2
Sample Rate	200 MSa/s
Vertical Resolution	16-bit
Arbitrary Waveform Length	4 kpts
Sine Wave Frequency	1 μHz to 40 MHz	1 μHz to 20 MHz	1 μHz to 20 MHz
Square Wave Frequency	1 μHz to 20 MHz	1 μHz to 10 MHz	1 μHz to 10 MHz
Pulse Wave Frequency	1 μHz to 20 MHz	1 μHz to 10 MHz	1 μHz to 10 MHz
Ramp Wave Frequency	1 μHz to 1 MHz	1 μHz to 400 kHz	1 μHz to 400 kHz
Noise Bandwidth	40 MHz (-3 dB, Typ.)
Arbitrary Wave DDS Frequency	1 μHz to 20 MHz	1 μHz to 10 MHz	1 μHz to 10 MHz
Frequency Resolution	1 μHz
Output Amplitude High Z	2 mVpp to 20 Vpp
Output Amplitude 50 Ohm	1 mVpp to 10 Vpp
DC Offset Range	±5 V (50 Ω); ±10 V (High Z)
Output Impedance	50 Ω
Features
Operating Mode	Continuous, modulation, sweep, burst, counter
Continuous Wave Types	Sine, square, ramp, pulse, noise, DC, arbitrary waveform
Modulation Types	AM, PM, FM, ASK, PSK, FSK, PWM
Frequency Sweep Types	Linear, logarithmic
Burst Types	N-cycle, gated, infinite
Advanced Function	—	—	Built-in 4 W power amplifier
Hardware Frequency Counter	100 mHz to 200 MHz, 7-digit
General Information
Display	4.3-inch TFT LCD, 480×272

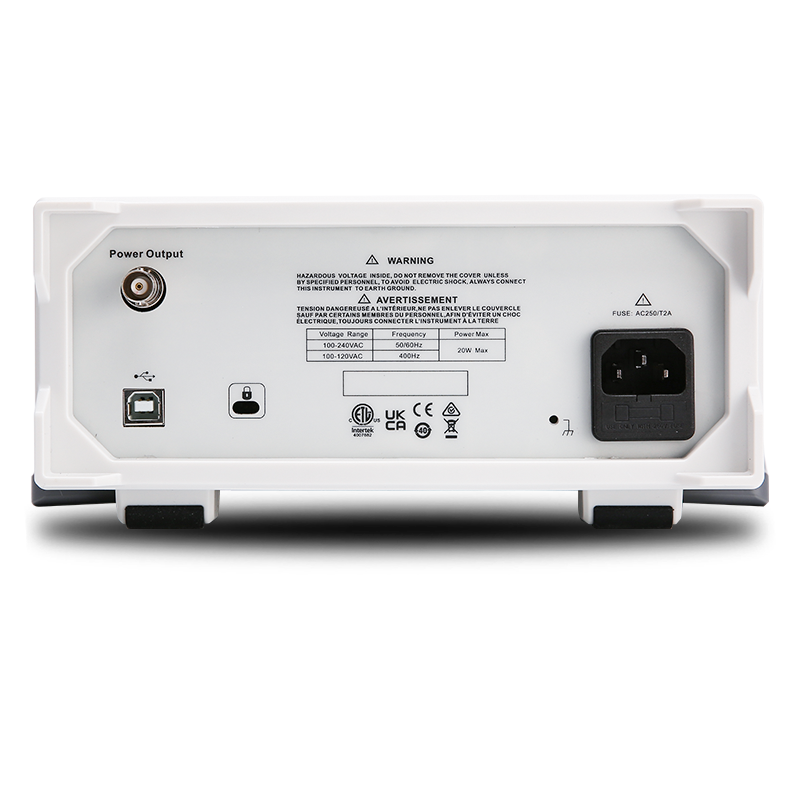

Interface	USB Host, USB Device; PowerOut on -PA model
Power	100–240 VAC, 50/60 Hz; 100–120 VAC, 400 Hz
Product net weight	2.2 kg
Product Dimensions (W×H×D)	215 × 103 × 316 mm
Standard Quantity Per Carton	2 pcs
Certification	CE, cETLus
Warranty	3 Years
