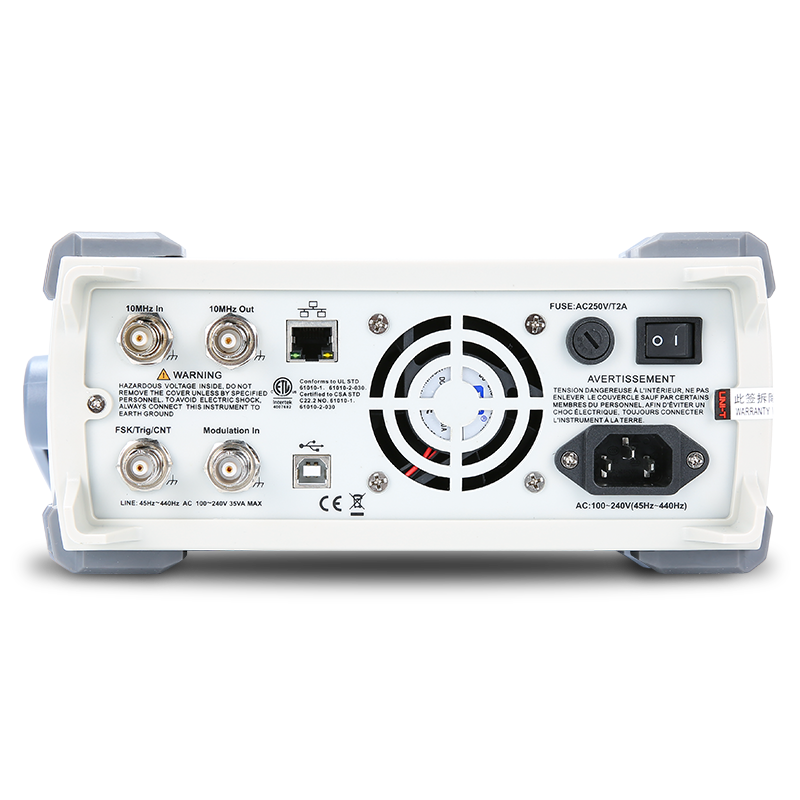

UTG2000B
Engineers who require high signal fidelity in a reliable and capable waveform generation need look no further than the UTG2000B Series generators. With frequencies up to 120 MHz, 16bits Resolution, and arbitrary waveform length of up to 16Mpts, the UTG2000B reproduces any waveform with high fidelity and low jitier signals, which can meet the growing requirements of complex and extensive applications.Friendly user interface, excellent industrial design and superior technical indicators are multi-purpose equipment to meet your current and future testing needs
120 MHz
Max. Output Frequency
1.28GSa/s
Sample Rate
16 bits
Vertical Resolution
2
Channels
16 Mpts
Arbitrary Wave Length
4.3 inch TFT LCD
Display
KEY FEATURES
FEATURES
Up to120MHz frequency output, multiple basic output waveforms
The UTG2000B series offers frequency output of up to 120MHz. It supports dual channels and provides multiple basic waveforms, including sine, square, ramp, pulse, harmonic, noise, DC, expression, and arbitrary waveform.
Expression output
The expression supports 18 different kinds of function mixed operations to calculate values, which is significant for accurately describing the output waveform using the column method.
Multiple modulation modes

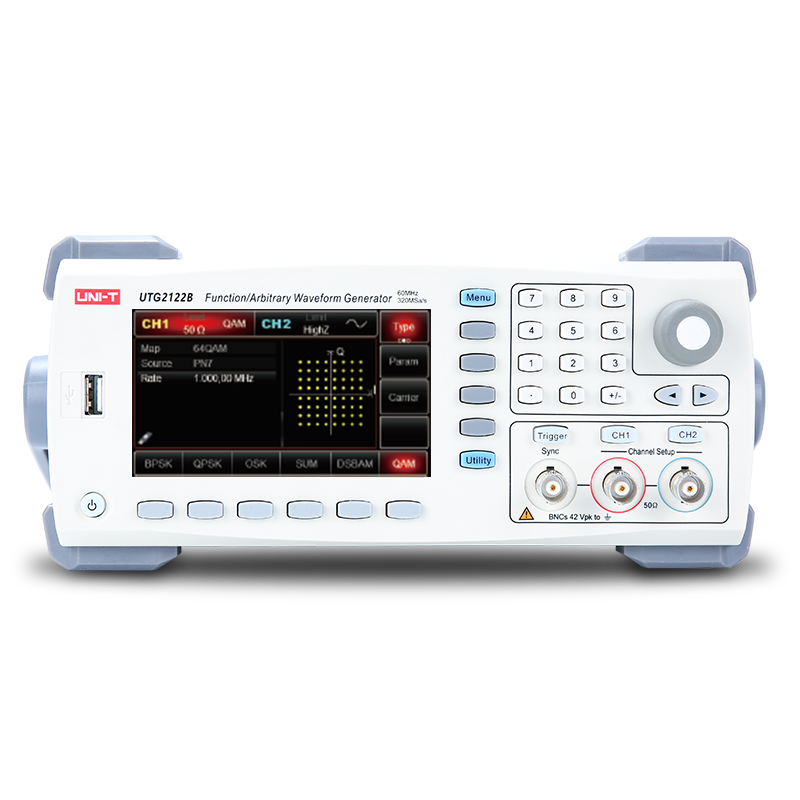

The UTG2000B series provides multiple analog modulation and digital modulation functions, including modulation types such as AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM.

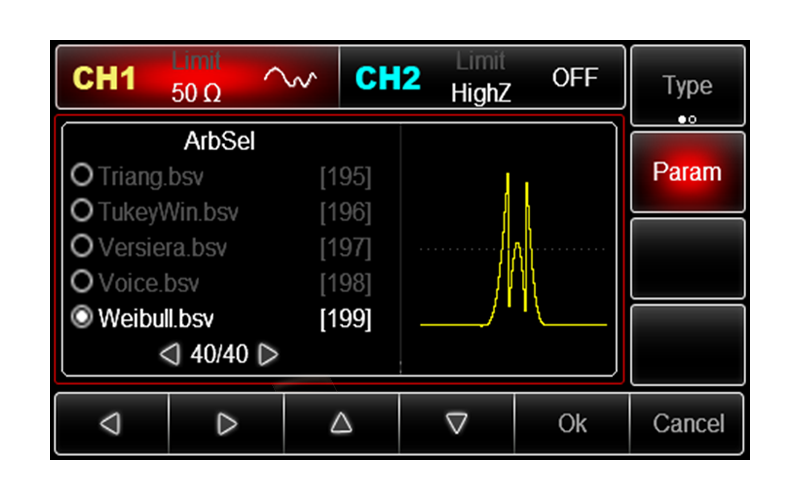

Over 160 built-in arbitrary waveforms
The UTG2000B series offers a wide selection of over 160 signal waveform options.
Channel combination/channel coupling function
The channels are combined:
and the basic waveform output of the two channels is superimposed.
Channel coupling:
When the frequency, amplitude or phase of one channel is changed, the frequency,
amplitude or phase of the other channel will be automatically adjusted.
Sweep function/harmonic output
Scan types include linear, logarithmic.
Harmonic function: built-in 16th harmonic output function
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTG2062B |
60 MHz | 1.28GSa/s | 16-bit | 2 | 16 Mpts | 4.3 inch TFT LCD |
 UTG2082B |
80 MHz | 1.28GSa/s | 16-bit | 2 | 16 Mpts | 4.3 inch TFT LCD |
 UTG2122B |
120 MHz | 1.28GSa/s | 16-bit | 2 | 16 Mpts | 4.3 inch TFT LCD |
DATA SHEET
MANUAL
SOFTWARE
FIRMWARE
UTG2000B_HW2.00 Firmware
Current Version: V2.01.0010 | 2023/6/16
Release Notes
