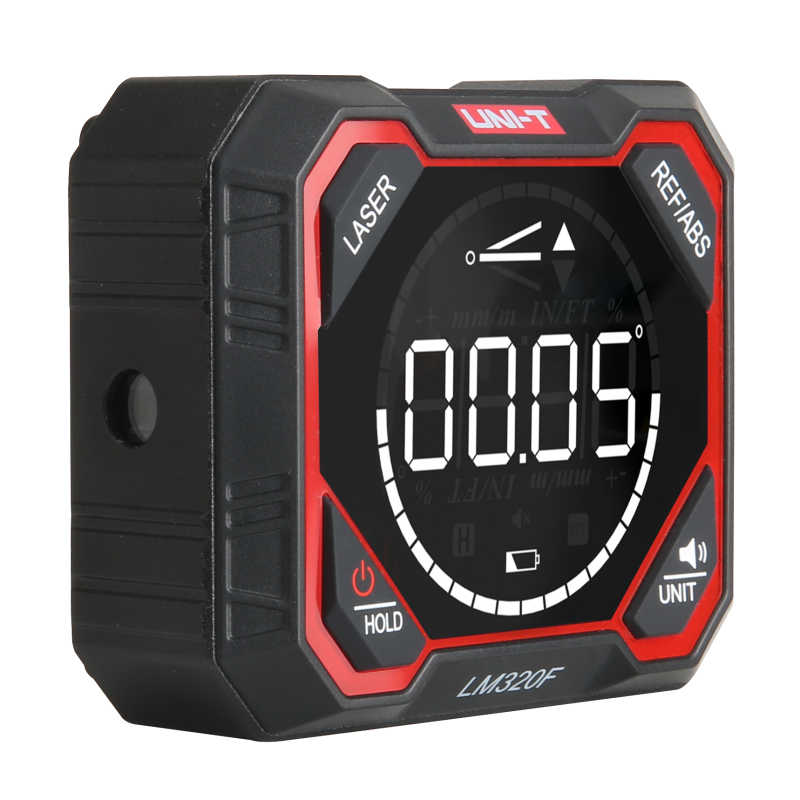

LM320D/LM320E/LM320F Angle Meter
The new LM320 series is a lightweight and portable angle meter with a durable aluminum alloy frame. It features a high-definition color display with automatic screen rotation, supporting a full 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. It is widely used in engineering, construction, and mechanical installation fields.
Key Features
Features
Language: English
1. Aluminum alloy frame, lightweight and portable
2. 4×90° angle measurement
3. Relative/absolute measurement modes
4. Multiple unit options: mm/m, in/ft, %, °
5. Rechargeable 1000 mAh lithium battery
6. LED-backlit rotatable screen
7. Equipped with magnetic bases
8. Laser indication (LM320E and LM320F only)
Model
LM320D
Technical Specification
| Model | LM320D | LM320E | LM320F |
|---|---|---|---|
| Technical Details | |||
| Technical Details | Technical Details | ||
| Measurement Range | 4*90° | ||
| Resolution | ±0.05° | ||
| Angle Accuracy | ±0.2° | ||
| Repeatability | ±0.2° | ||
| Unit | °; %; mm/m; in/ft. | ||
| Laser Accuracy | × | ±3mm/5m | |
| Laser Class | × | Class 2 | |
| Laser Type | × | 630-670nm, <1mW | |
| Features | |||
| Relative/Absolute Angle Measurement | ✔ | ||
| Angle Hold | ✔ | ||
| Screen Rotation | ✔ | ||
| Auto Power Off | ✔ | ||
| Laser Lines | × | 2 lines | 3 lines |
| Magnetic Base | Two-sided magnetic (Bottom and rear) |
Two-sided magnetic (Bottom and rear) |
Four-sided magnetic (Bottom, rear, left and right) |
| Battery Life | 14h | 8h | 6h |
| Power Supply | 1000mAh lithium battery | ||
| Characteristics | |||
| Product Size | 83.5*70*35.5mm | ||
| Product Net Weight | About 180g | ||
| Standrad Accessories | Angle Meter*1, Type-C Cable*1, Gift Box*1, User Manual*1 | ||
| Standard Quantity Per Carton | 10pcs | ||
| Materials | Al-alloy frame +ABS | ||
| Working Temperature | 0℃~ + 50℃ | ||

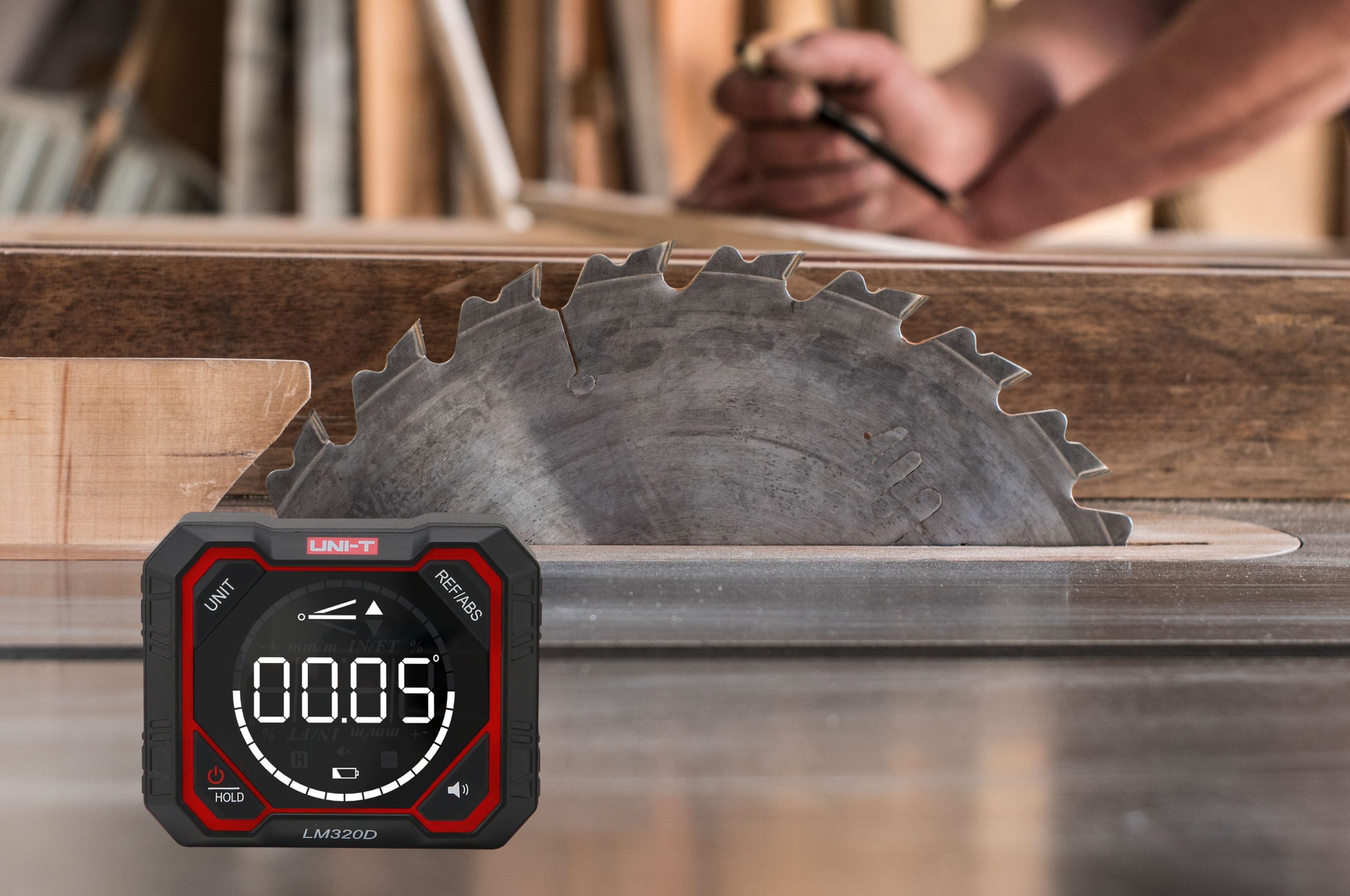

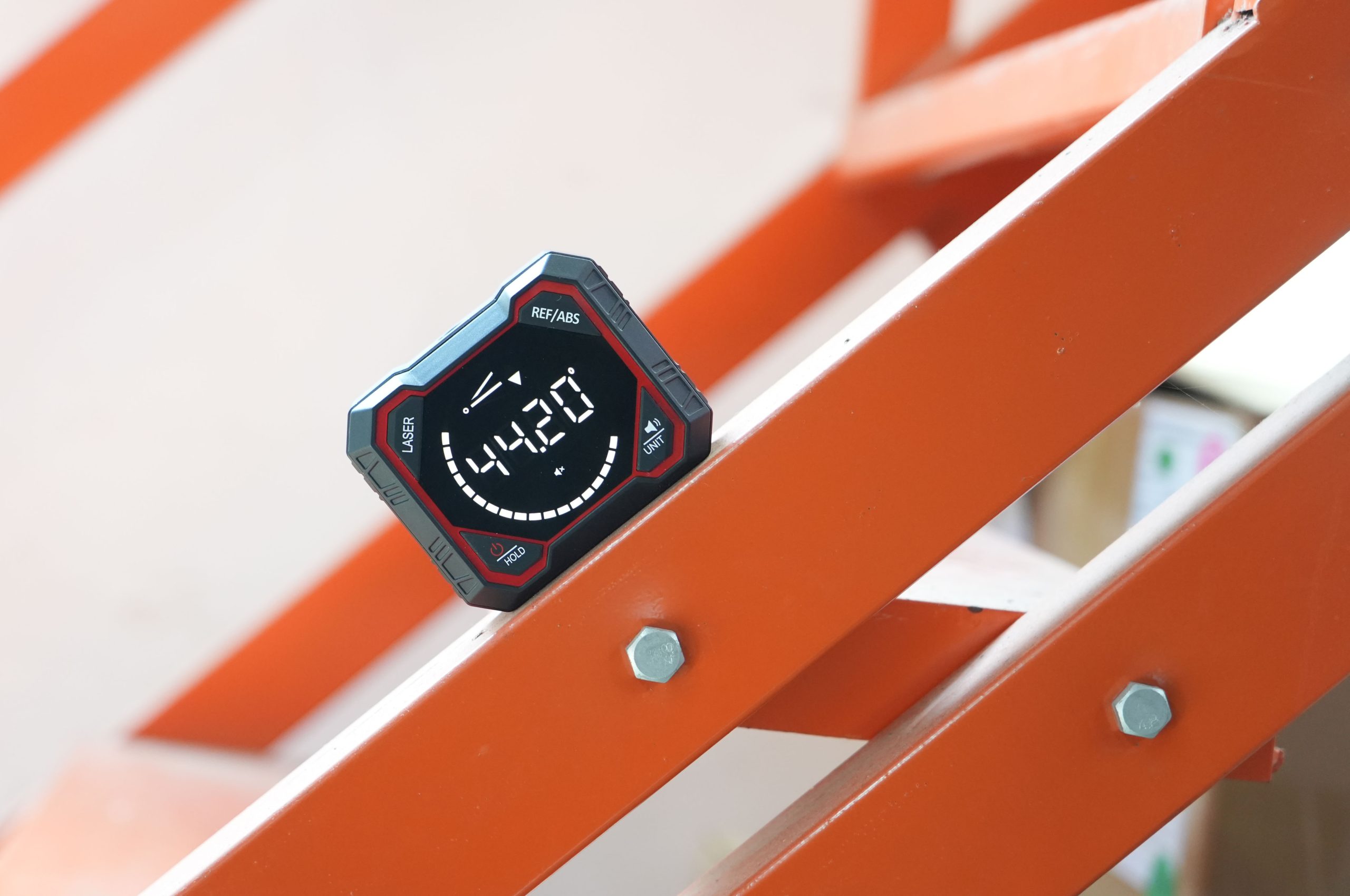

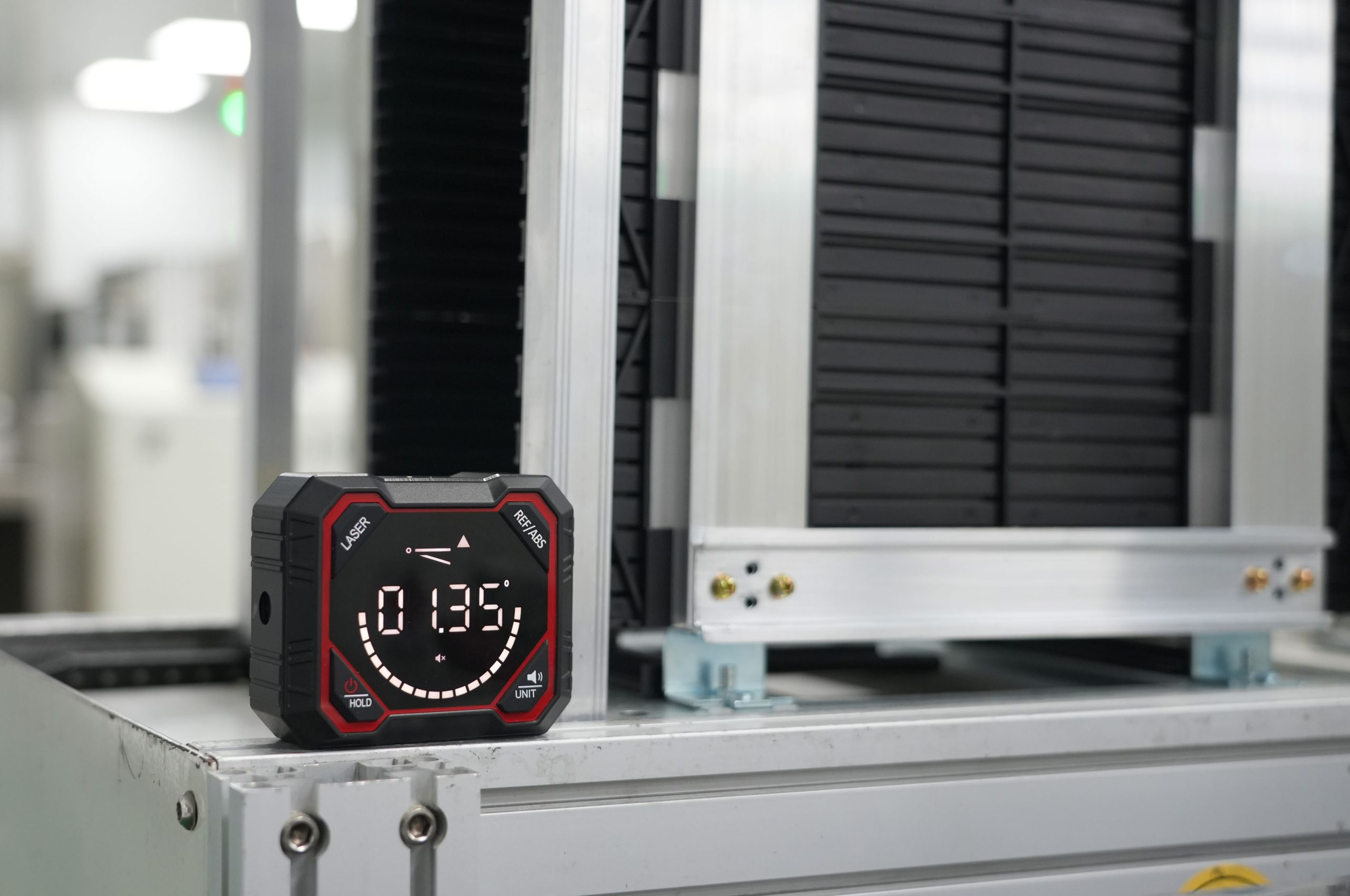

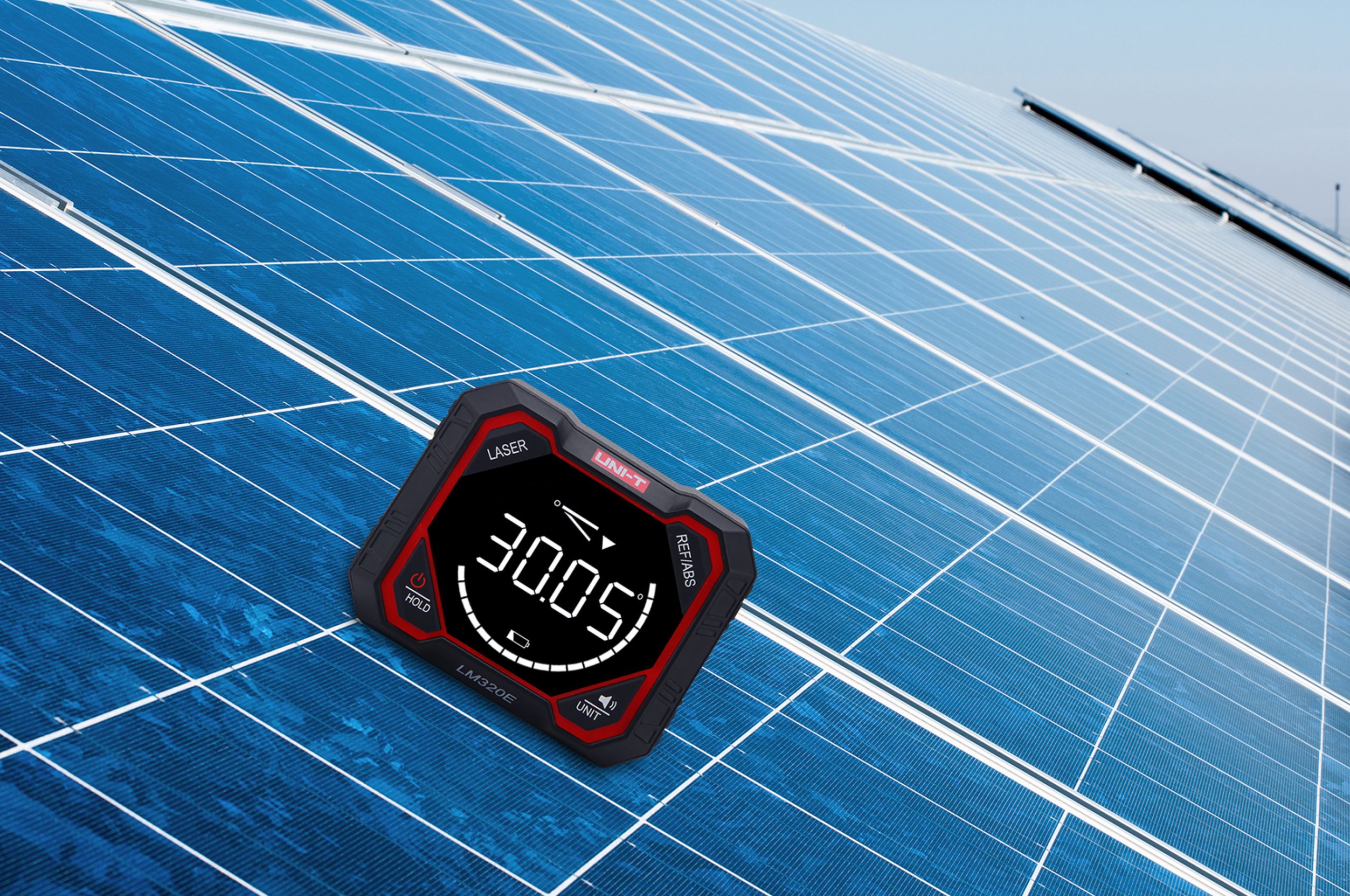

Application
