UAP500A/1000A

UAP500A/1000A are AC sources. Provide low distortion sine wave output and measurement of power supply accuracy. Four windows LCD fully displays the measured data. Remote control can be completed via RS-232C. This series of power supplies can simulate normal and abnormal AC input conditions and measure the important electrical performance parameters of the object to be measured. It is applicable to electronic and motor industry, lighting, R & D, and quality inspection fields.

1000VA

OUTPUT CAPACITY

L:150V；H:300V

VOLTAGE RANGE

L:4.2A；H:8.4A

CURRENT RANGE

0.01V/0.001A/0.001W/0.01Hz

RESOLUTION

RS-232C

CONNECTIVITY

3U

SIZE

Get a quote Download Resources

KEY FEATURES

Model
UAP500A

FEATURES

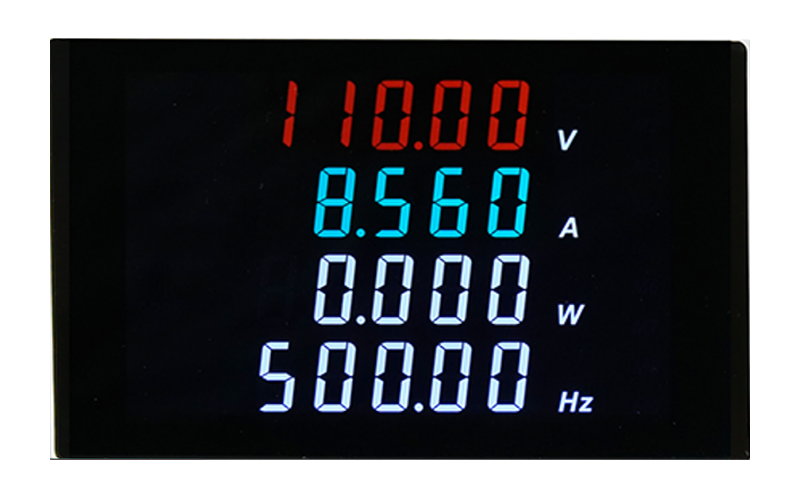

Four windows display

These two AC sources have four window display function. The requirement of simultaneous observation of multiple parameters can be realized. It saves time for parameter switching and reading

9 groups of presets

UAP500A/1000A provides 9 sets of parameter presets. Common parameters can be pre stored and quickly retrieved during use to improve test efficiency.

Remote control

UAP500A/1000A is equipped with RS232 communication interface. SCPI and MODBUS protocols are supported. You can use the upper computer provided by us for remote control, or you can write control programs freely and integrate them into your automation system.

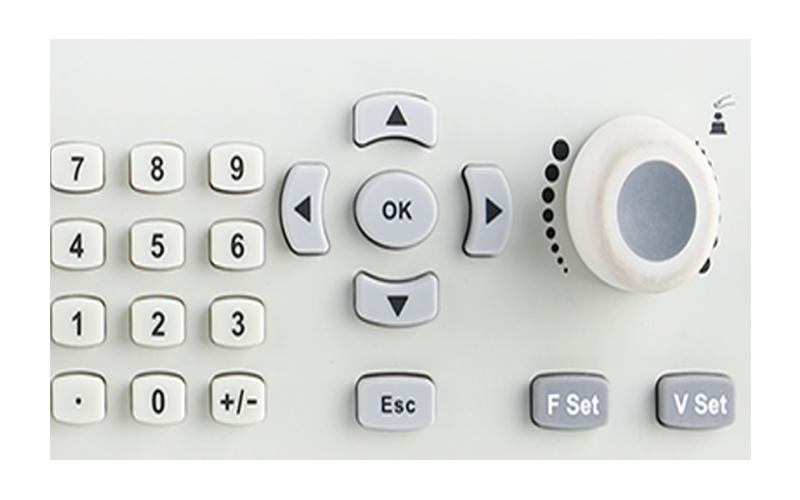

Numeric keys

The power supply of this series has numeric keyboard, knob, and direction key, which can effectively speed up the speed of parameter setting and simple operation.

Delay output

UAP500A/1000A has the function of output delay to slowly raise the output voltage to the target value. Protect the tested products. It is very suitable for testing some surge sensitive products.

One key switching H/L voltage

This series of AC source has two voltage levels: high section and low section. One key switching high and low voltage output. Full range adjustable output voltage 0-150V / 0-300V.

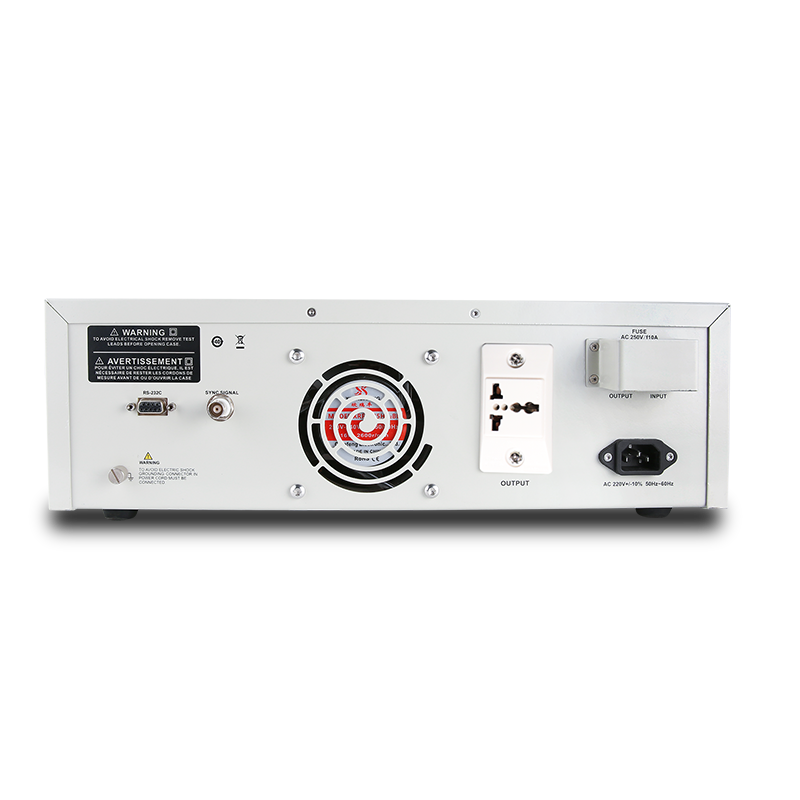

Dual output

UAP500A/1000A is equipped with front and rear output sockets. You can freely choose front wiring or rear wiring according to the test environment.

MODEL

Model Bandwidth Analog Channels Real-time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels

UAP500A

 500VA L:150V；H:300V L:4.2A；H:2.1A 0.01V；0.001A RS-232C 3U

UAP1000A

 1000VA L:150V；H:300V L:8.4A；H:4.2A 0.01V；0.001A RS-232C 3U

Technical Specification

Model UAP500A UAP1000A
Key Specifications
Output Capacity 500 VA 1 kVA
Output Voltage 0–150 VAC / 0–300 VAC, Auto
Output Current 4.2 A @120 V; 2.1 A @240 V 8.4 A @120 V; 4.2 A @240 V
Output Frequency Range 45–250 Hz (0.01 Hz step)
Rack Size 2U
Technical Details
Output Phase Number 1φ2W
Generation Mode SPWM
Input Phase Number 1φ2W
Input Voltage 220 V ±10%
Input Frequency 47–63 Hz
Load Stability 1%
Waveform Distortion THD 3% (120 V low range / 240 V high range, resistive load)
Frequency Stability 0.01%
Voltage Resolution 0.01 V
Frequency Resolution 0.01 Hz
Current Resolution 0.001 A
Voltage Measurement Accuracy ±0.5% FS + 5 digits
Current Measurement Accuracy ±0.5% FS + 5 digits
Frequency Measurement Accuracy ±0.01% FS + 5 digits
Power Measurement Accuracy ±0.5% FS + 5 digits
Voltage Setting Accuracy ±1% FS
Frequency Setting Accuracy ±0.1% FS
Features
Display Parameters Vrms, Arms, Frequency, Power, PF
Storage Memory M1–M9 (V/F/A)
Output Protection OCP, OTP, OLP, short circuit
Output Delay Yes
General Information
Display 4-window digital display
Interface RS-232C; SCPI, MODBUS
Power AC 110 V or 220 V, 47–63 Hz
Product Net Weight 17.5 kg 20.7 kg
Product Dimensions (W×H×D) 430 × 132 × 483 mm
Standard Quantity Per Carton 1 pc
Warranty 3 Years

DATA SHEET

MANUAL

SOFTWARE

Software package

UNI-T SDK

Current Version: V2.3 | 2025/8/8

Release Notes

Software Development Kit, a collection of tools and resources that developers use to do second development with UNI-T instruments which have programmable feature.
Software package

UNIT PC Software

Current Version: V2.2.7 | 2025/11/26

Release Notes

UNI-T PC Software …………………………………………………………………………………………………………………………………………………… Version: 2.2.7 Date: 2025/11/12 -new: add UT3510+、UT3515-Sx、UT5140、UT3300+、UT5470、UT5400 Series -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.5.1 Date: 2024/10/30 -new: Fixed the problem of UTL2800+ upper computer control failure -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.5.0 Date: 2024/9/25 -new: default language changed to English after version installation -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.4.3 Date: 2024/6/25 -new: add UTR2810+ Series、UDP6723/6724，UT3510+ Series -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.4.2 Date: 2024/5/28 -new: add UTL8500X+ Series -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.1.0 Date: 2024/3/20 -new: UAP500/1000A UDP6722 UTL8500+ Series、 UTL8200+ Series UTR2830 Series UTR2810 Series UT3200+ Series UT3200 Series UT5300+ Series UT5320R-SXA Series UT5583 Please note that these updates are aimed at improving the performance and stability of the software. We recommend updating to the latest version for a better user experience. If you encounter any issues while using the software, please contact our technical support team. Thank you for your support and usage of our software!
