UT-C Series Alligator Clips
Models:
UT-C01, UT-C02A, UT-C02B, UT-C04A, UT-C05A, UT-C05B, UT-C07, UT-C12
Key Features
UT-C01 Hook type test clamps
● Specifications: Rod length 62mm, hook can extend to 7.5mm
UT-C02A Through hole alligator clips
● Specifications: Length 80mm, opening 36mm
UT-C02B (M4) threaded bore alligator clips
● Specifications: Length 80mm, opening 36mm
UT-C04A Through hole alligator clips
● Specifications: Length 75mm, opening 27mm

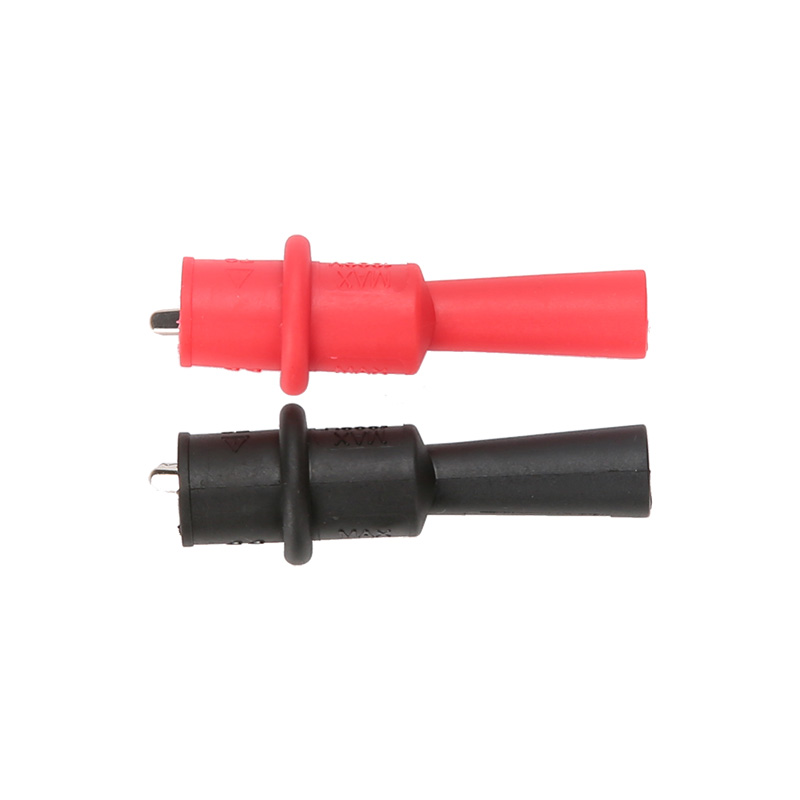

UT-C05A (M4) threaded bore alligator clips (with protector)
● Specifications: Length 67mm, opening 8.3mm
UT-C05B Through hole alligator clips (with protector)
● Specifications: Length 71mm, opening 8.3mm
UT-C07 Multifunctional electric test clips
● Specifications: Rod length 110mm, adjustable clip length 8mm
UT-C12 Through hole alligator clip (with protector)
● Specifications: Length 53mm, opening 6mm
Technical Specification
| Specifications | UT-F Series | ||||
| Models | General specifications | Brand | Safety certificates | Suitable products | Amount |
| UT-F01 | Φ6.35×31.8 500mA/600V | HOLLY | CE | UT61(GS) series, UT139B, UT125C | 1pc |
| UT-F02 | Φ6.3×25.4 10A/600V | BUSSMANN | UL | UT139 series, UT133A/B | 1pc |
| UT-F03 | Φ6.35×31.8 0.5A/1000V | HOLLY | TUV | UT71 series, UT81B, UT81C, UT505B | 1pc |
| UT-F04 | Φ6×32 0.2A/600V | HOLLY | TUV | UT139A, UT105 | 1pc |
| UT-F05 | Φ6.35×31.8 600mA/600V | HOLLY | TUV | UT139C, UT139E, UT139S | 1pc |
| UT-F06 | Φ6.35×31.8 10A/600V | HOLLY | TUV | UT105, UT81B, UT81C | 1pc |
| UT-F07 | Φ10.3×38 10A/1000V | HOLLY | CCC, UR/CUR, VDE | UT61 series (2010 CE), UT71(CE), UT171A/B/C, UT181A | 1pc |
| UT-F08 | Φ6.35×31.8 600mA/1000V | HOLLY | TUV | UT61 series, UT61 series-US | 1pc |
| UT-F10 | Φ6.35×31.8 800mA/1000V | HOLLY | UL | UT171 series, UT181A | 1pc |
Application
Current measurement
Temperature measurement
