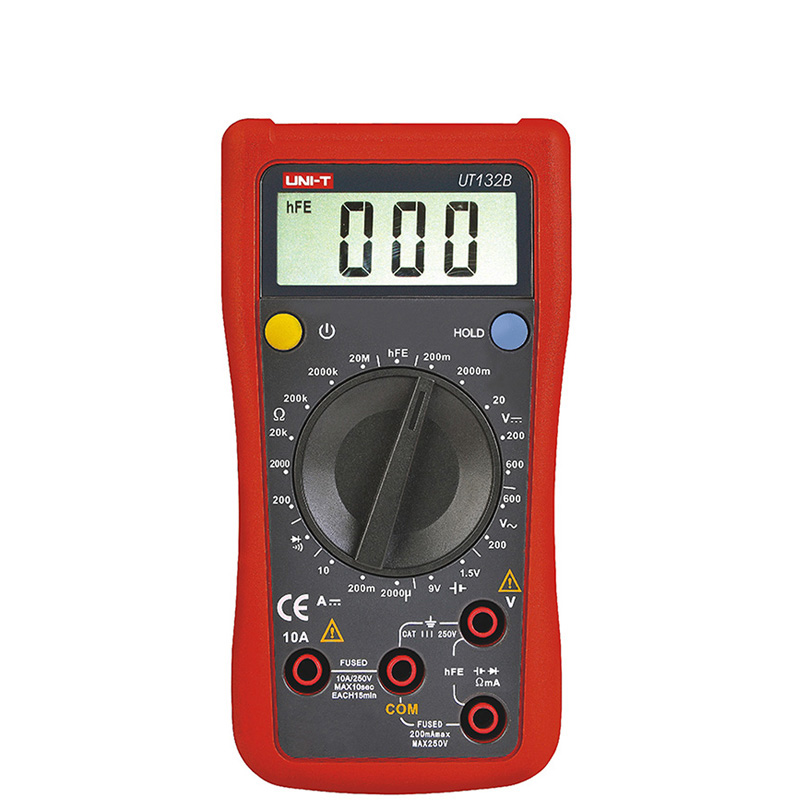

UT132 Series Palm Size Digital Multimeters

UNI-T’s UT132B is a palm size digital multimeter. It features over 10MΩ input impedance for DCV and 1.5/9v battery voltage test.

UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.

Models: UT132B, UT132C

Download Resources

Key Features

Features

● Display counts: 2000

● AC/DC voltage

● DC current

● Resistance

● Temperature

● CAT III 600V

Technical Specification

Features
Specifications	Range	UT132B	UT132C
DC Voltage (V)	EU: 200mV/ 2000mV/ 20V/ 200V/ 600V	±(0.5%+2)	±(0.5%+2)
DC Voltage (V)	ROW: 200mV/ 2000mV/ 20V/ 200V/ 250V	±(0.5%+2)	±(0.5%+2)
AC Voltage (V)	EU: 200V/600V	±(1.2%+3)	±(1.2%+3)
AC Voltage (V)	ROW: 200V/250V	±(1.2%+3)	±(1.2%+3)
DC Current (A)	2000μA/ 20mA/ 200mA/10A		±(1%+2)
DC Current (A)	2000μA/ 200mA/10A	±(1%+2)
Resistance (Ω)	200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 2000kΩ/ 20MΩ	±(0.8%+5)	±(1.2%+3)
Temperature (°C)	-40 °C ～ 1000°C		±(1.0%+3)
Display Count		2000	2000
Manual Range		√	√
Battery Test	1.5V/ 9V	±(1%+2)
Diode		√	√
Transistor		√	√
Continuity Buzzer		√	√
Low Battery Indication		√	√
Data Hold		√	√
Input Impedance for DCV	Around 10MΩ	√	√
General Characteristics
Power	9V Battery (6F22)
LCD Size	49mm x 18mm
Product Color	Red and grey
Product Net Weight	200g
Product Size	72mm × 137mm × 35mm
Standard Accessories	UT132B-Battery, test lead, multi-purpose socket
Standard Accessories	UT132C-Battery, test lead, multi-purpose socket, point contact temperature probe
Standard Individual Packing	Gift box, English manual
Standard Quantity Per Carton	40pcs (UT132B), 66pcs (UT132C)
Standard Carton Measurement	595mm × 360mm × 420mm (0.09CBM per standard carton)
Standard Carton Gross Weight	25.7kg
