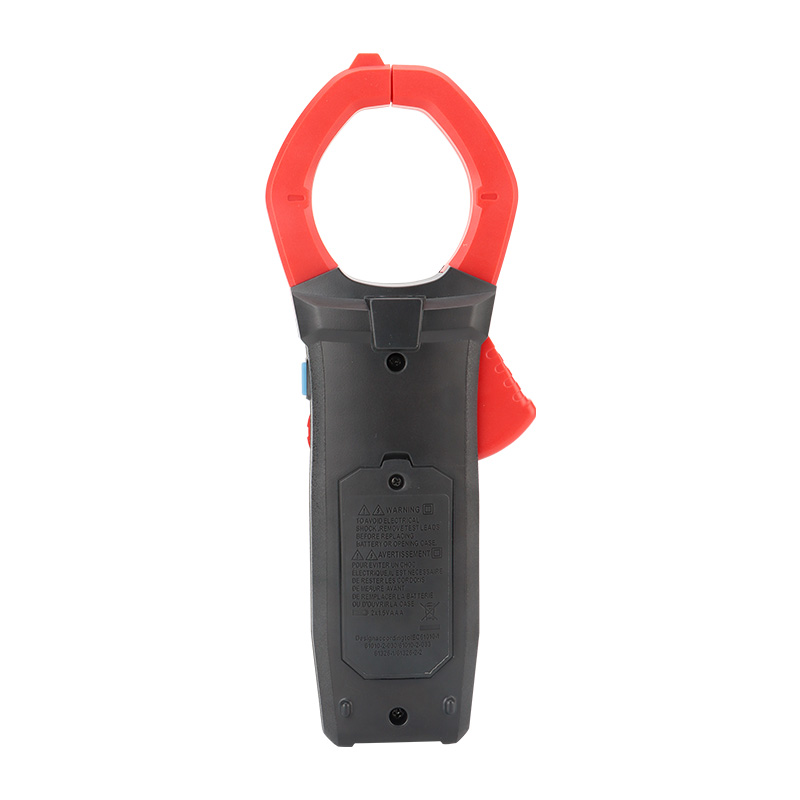

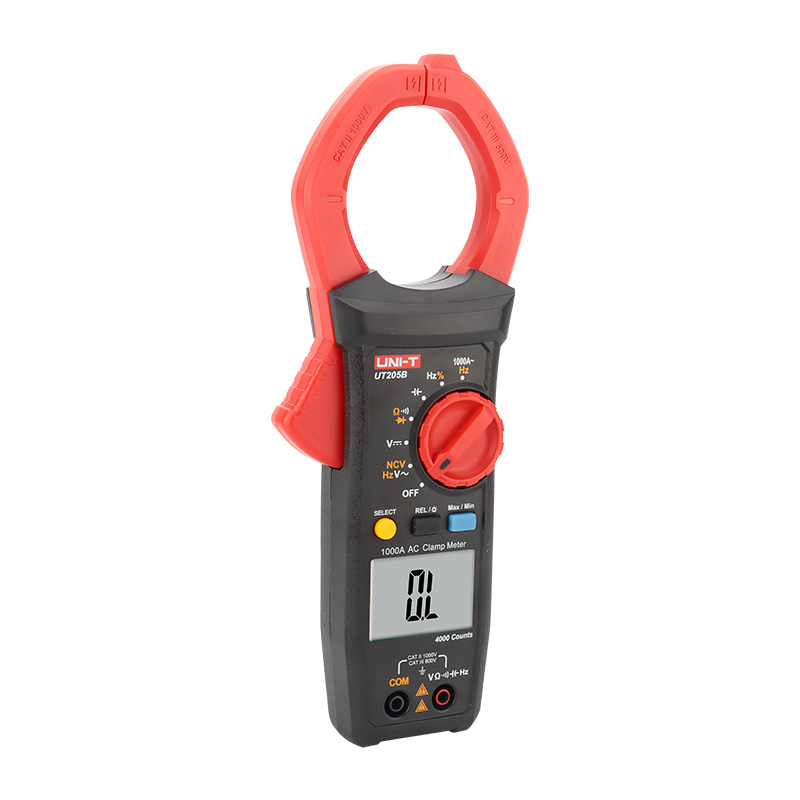

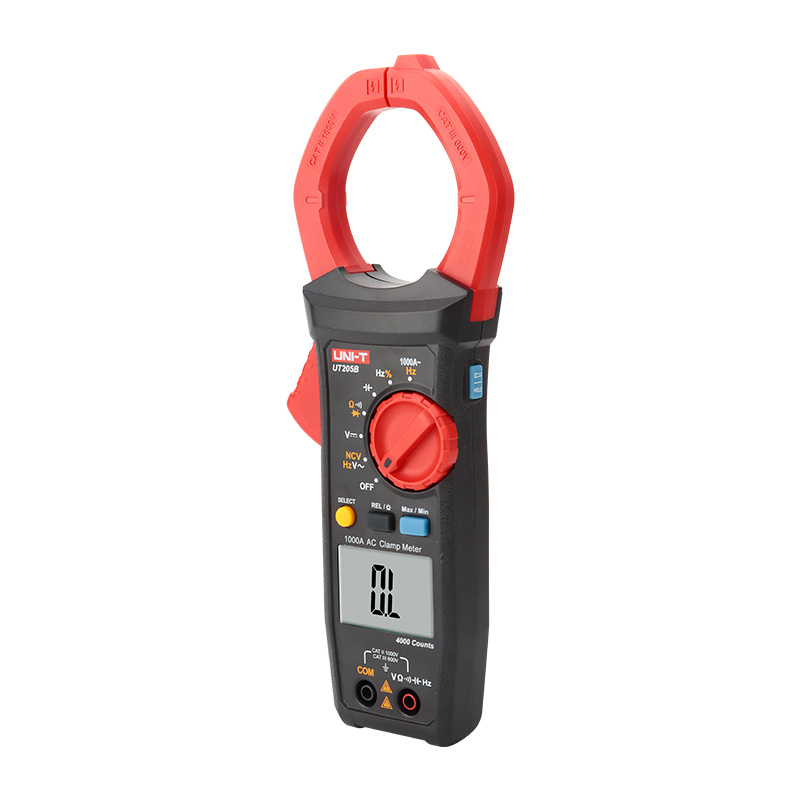

UT205B 1000A AC Clamp Meter
UT205B 1000A AC clamp meter has a large size of Jaw (up to 60mm) and can suit more application scenarios. The lightweight and slim design, and the backlight/flashlight functions are good for dark environment operation; The meter also supports duty cycle, NCV, MAX/MIN, etc. functions, it is a reliable and portable electronic tool.
1000A
AC Current (A)
1kHz
AC Current Frequency (Hz)
1000V
AC Voltage (V)
10kHz
AC Voltage Frequency (Hz)
1000V
DC Voltage (V)
40MΩ
Resistance (Ω)
Key Features
Features
Certificates: ROW
● 1000A AC current measurement
● 1000V AC/DC voltage measurement
● 40MΩ resistance measurement
● 40mF capacitance measurement
● 10MHz frequency measurement
● Duty cycle/NCV test/flashlight
● Diode/Continuity Test
● Relative value/Max & Min value
● 55mm Clamp jaw size, opening 60mm
● Pliers head uses an air core coil, which is light-weight and easy to carry
Model
UT205B
Technical Specification
| Specifications | Range | Accuracy |
| AC (A) | 1000A | ±（1.5%+5) |
| ACA frequency (Hz) | 40Hz～1kHz | ±（1.0%＋5） |
| AC voltage (V) | 1000V | ±（1.0%＋2） |
| ACV frequency (Hz) | 10Hz～10kHz | ±（1.0%＋5） |
| DC voltage (V) | 1000V | ±（0.8%＋2） |
| Resistance (Ω) | 40.00MΩ | ±(2.5%+5) |
| Capacitance (F) | 40mF | ±(10%) |
| Frequency (Hz) | 10Hz ～ 10MHz | ±（0.1%+4) |
| Duty cycle | 0.1%～99.9% | ±（3.0%+5) |
| Features | ||
|---|---|---|
| Jaw opening | 60mm | |
| Jaw size | 55mm | |
| NCV | ✔ | |
| Continuity | ✔ | |
| Diode test | ✔ | |
| LCD screen | 42*30mm | |
| Display count | 4099 | |
| Low battery indication | ✔ | |
| Data hold | ✔ | |
| Auto power off | Around 15 minutes | |
| Max/Min | ✔ | |
| Flashlight | ✔ | |
| Backlight | ✔ | |
| Relative mode | ✔ | |
| Overvoltage category | CAT II 1000V/CAT III 600V | |
Application

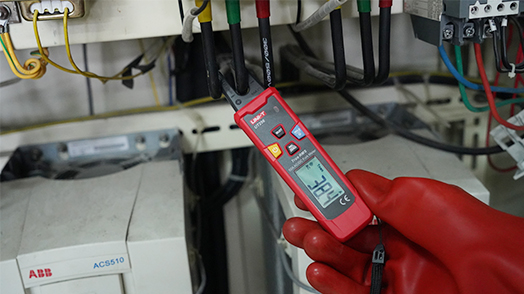

NCV measurement

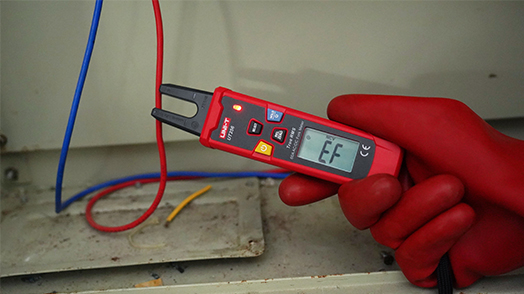

Capacitance measurement
