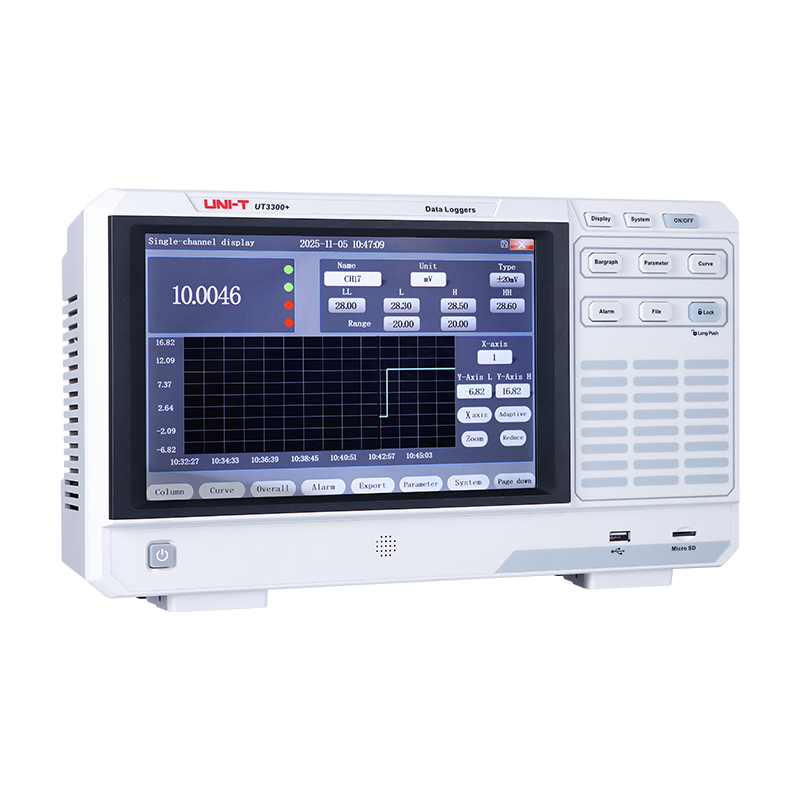

UT3300+
NewThe UT3300+ Series is a high-precision data logging platform integrating multi-channel acquisition, real-time display, long-term recording, flexible expansion, and remote communication, helping users manage data efficiently in R&D validation, production monitoring, and industrial automation.
64
Channels
7
Module Types
-200-2500°C
Temp. Range
0-120V (opt.)
DCV Range
0-10A (opt.)
DCI Range
64 CH/s
Scanning Speed
RS232, RS485, LAN, USB
Connectivity
10.1'' touch TFT LCD
Display
KEY FEATURES
FEATURES
Up to 64-Channel Data Acquisition
Supports up to 64 channels in a single unit, ideal for centralized acquisition and monitoring of multi-point temperature, voltage, current, and industrial process signals.

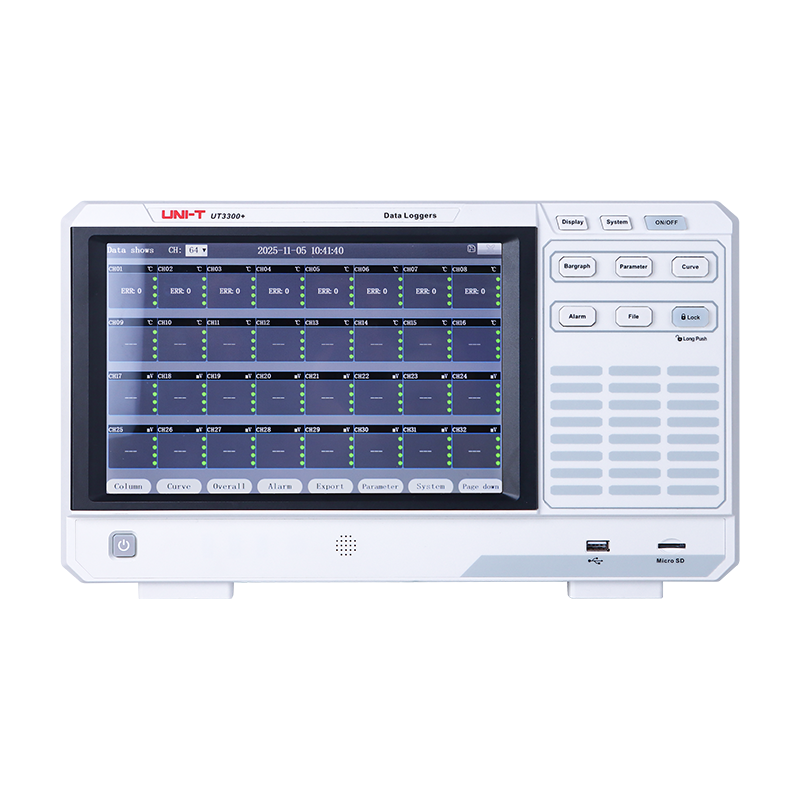

10.1-inch Touchscreen Display
Equipped with a 10.1-inch TFT full-touch color display, providing intuitive operation for on-site viewing, configuration, and data management.

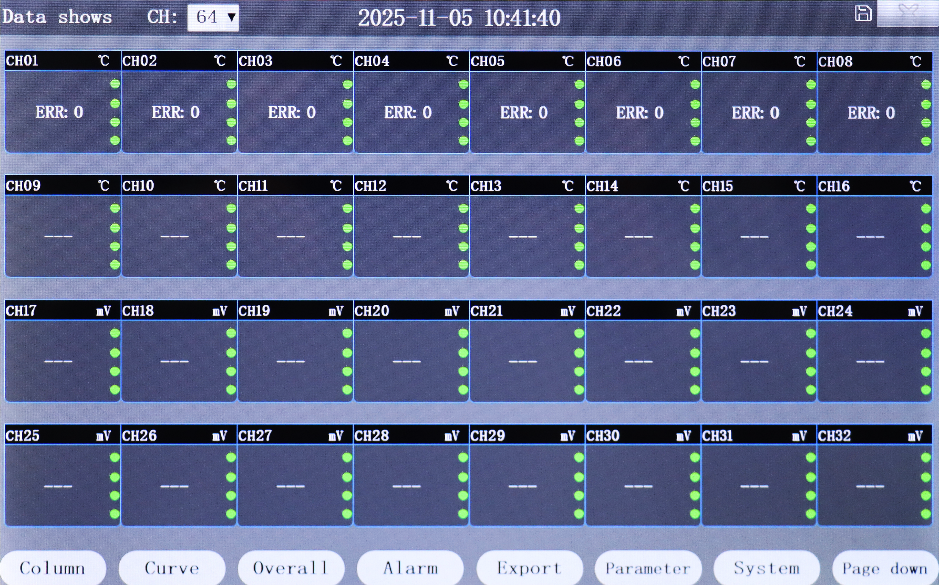

Multiple Display Modes
Supports data view, bar graph, real-time curve, historical curve, and integrated display modes, helping users quickly evaluate data status and trends from different perspectives.
Multiple Measurement Modes
Supports multiple input signal types simultaneously, including thermocouples, RTD, DC voltage, and DC current.
Multi-Level Alarm and Relay Output
Each channel supports four alarm thresholds: high-high, high, low, and low-low. Alarm conditions can be linked to relay outputs for on-site abnormal-condition monitoring and automation control.
8 GB Internal Memory for Long-Term Recording
Built-in 8 GB memory enables approximately 360 days of recording under 64-channel, 1-second interval conditions, making it suitable for long-term stability tests and process traceability.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT3300+ |
/ | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | / |
 UT3300-08+ |
8 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 8 CH/s |
 UT3300-16+ |
16 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 16 CH/s |
 UT3300-24+ |
24 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 24 CH/s |
 UT3300-32+ |
32 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 32 CH/s |
 UT3300-40+ |
40 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 40 CH/s |
 UT3300-48+ |
48 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 48 CH/s |
 UT3300-56+ |
56 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 56 CH/s |
 UT3300-64+ |
64 | 7 | -200-2500°C | 0-120V (opt.) | 0-10A (opt.) | 64 CH/s |
