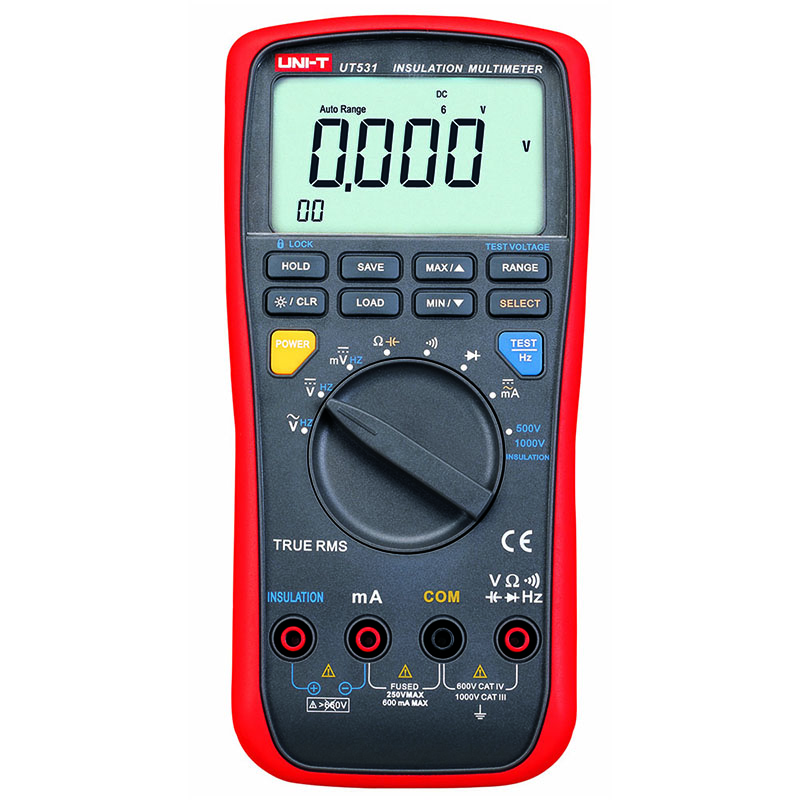

UT531 Insulation Resistance Multimeter
UT531 insulation multimeter is true RMS multimeter, integrating full functional digital multimeter and digital insulation tester. The batteries supply power. The RMS and stored data are up to 99 groups with accuracy 0.09% and the max display 6000. They are applicable to testing all kinds of accurate tools (cable, motor, and transformer).
Key Features
Features
● Display Count: 6000
● CAT III 1000V / CAT IV 600V
Technical Specification
| Specifications | Range | UT531 | |
| Insulation Resistance(Ω) | Test Voltage | 500V/1000V | 0%～10% |
| 500V | 0.5MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~500MΩ | ±(3%+5) | ||
| 1000V | 4.0MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~600MΩ | ±(3%+5) | ||
| Short-Circuit Current | <2mA | √ | |
| Multimeter Specifications | |||
|---|---|---|---|
| DC Voltage (V) | 60mV/600mV/6V/60V/600V/1000V | ±(0.09%+6) | |
| AC Voltage（50Hz~1KHz） | 6V/60V/600V/1000V | ±(1%+3) | |
| DC Current (A) | 60mA/600mA | ±(1.0%+2) | |
| AC Current（50Hz~1KHz） | 60mA/600mA | ±(1.5%+2) | |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ | ±(0.9%+2) | |
| Capacitance (F) | 10nF/100nF/1μF/10μF/100μF | ±(3%+5) | |
| Frequency (Hz) | 60Hz/600Hz/6kHz/60kHz/600kHz/1MHz | ±(0.1%+3) | |
| Features | |||
| Display Count | 6000 | ||
| Auto Range | √ | ||
| True RMS | √ | ||
| Diode | √ | ||
| Auto Power Off | √ | ||
| Continuity Buzzer | √ | ||
| Low Battery Indication | √ | ||
| Data Hold | √ | ||
| MAX/MIN | √ | ||
| Data Logging | 99 | ||
| LCD Backlight | √ | ||
| Full Icon Display | √ | ||
| General Characteristic | |||
| Power | 1.5V Alkaline Batteries (LR6)×6 | ||
| LCD Size | 81mm X 46mm | ||
| Product Color | Red and Grey | ||
| Product Net Weight | 505g | ||
| Product Size | 96.7mm X 202.8mm X46 mm | ||
| Standard Accessories | Batterise, Test Lead, Alligator Clip, Carrying Bag | ||
| Standard Individual Packing | Gift Box，English Manual | ||
| Standard Quantity Per Carton | 20 pcs | ||
| Standard Carton Measurement | 460mm X 310mm X 368mm (0.053 CBM Per Standard Carton) | ||
| Standard Carton Gross Weight | 12Kg | ||
