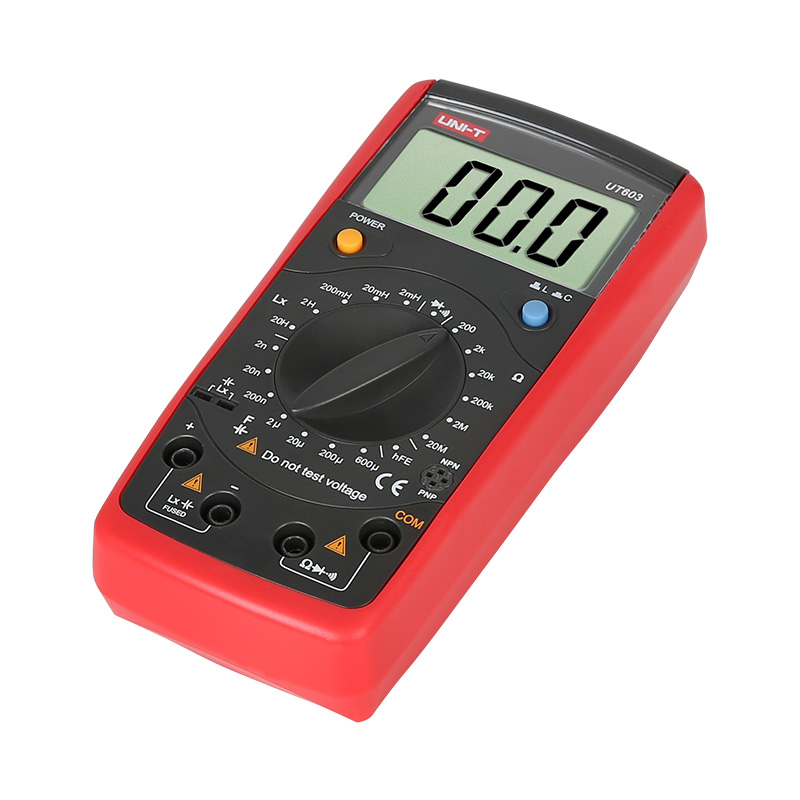

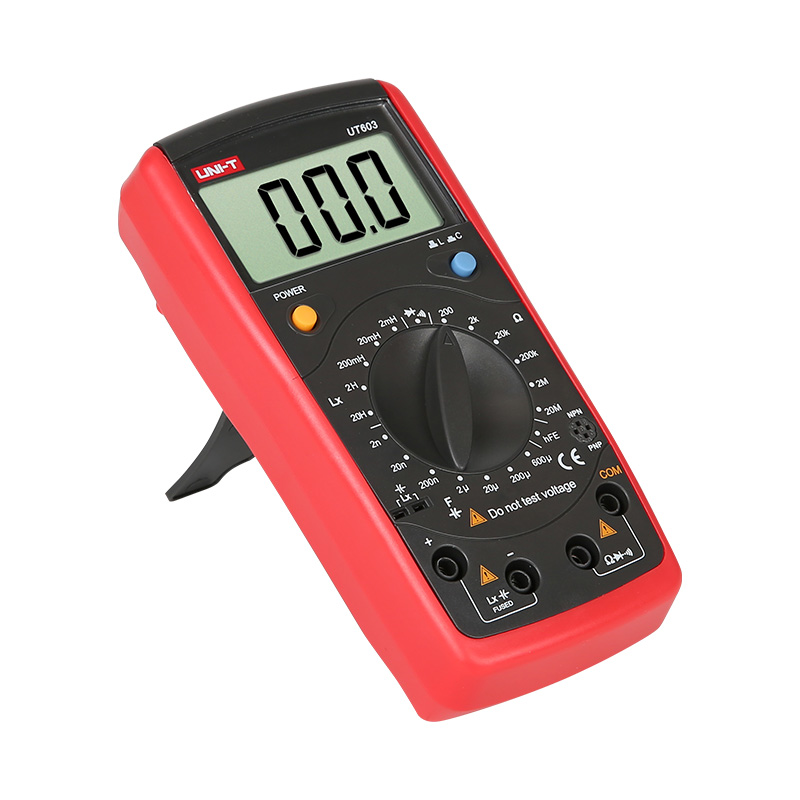

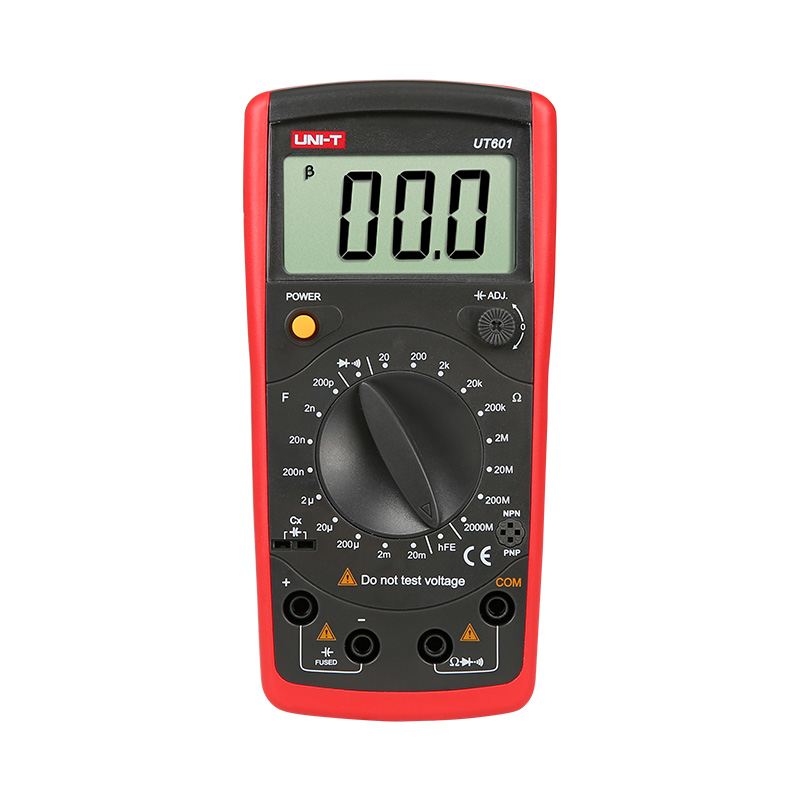

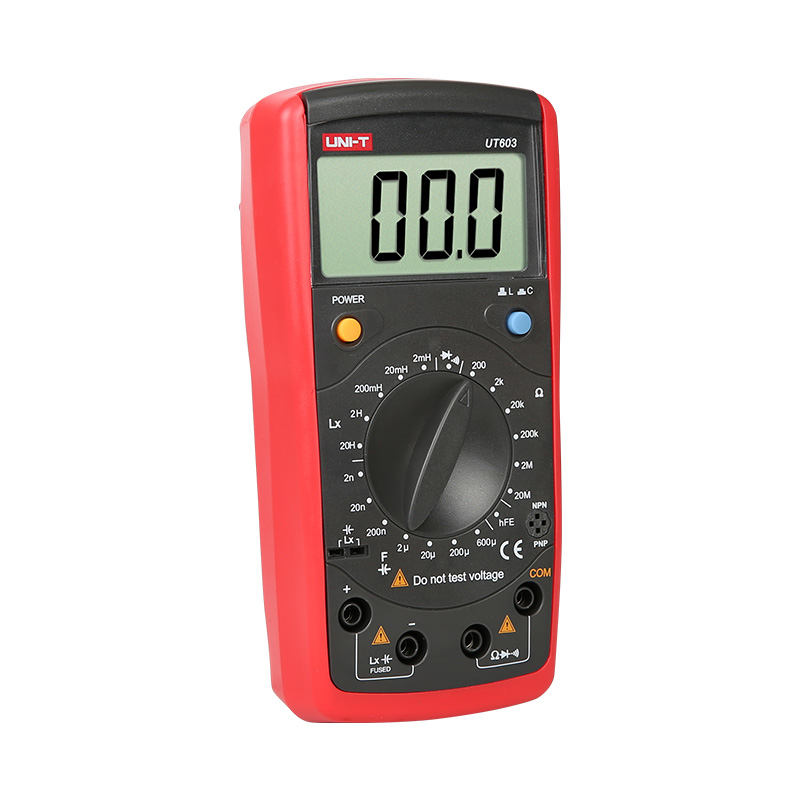

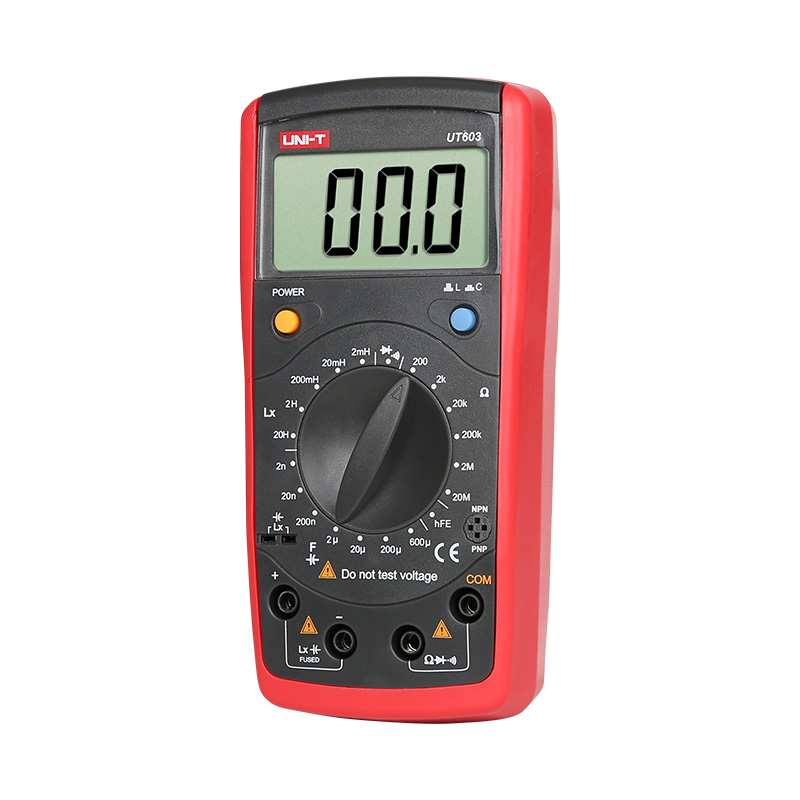

UT600 Series Digital Inductance Capacitance Meters
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
Models in UT600 series: UT601, UT603
Key Features
Features
● Manual range
● Continuity buzzer
● Diode/transistor
● Low battery indication
Technical Specification
| Specifications | Range | UT601 | UT603 |
| Resistance (Ω) | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ | ±(0.8%+1) | |
| 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ | |||
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) | ||
| Capacitance (F) | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF | ±(0.5%+10) | |
| 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) | ||
| Inductance (H) | 2mH/20mH/200mH/2H/20H/200H | ||
| 2mH/20mH/200mH/2H/20H | ±(2%+8) | ||
| Features | |||
|---|---|---|---|
| Display count | 2000 | 2000 | |
| Manual range | √ | √ | |
| Diode | √ | √ | |
| Transistor | √ | √ | |
| Continuity buzzer | √ | √ | |
| Low battery indication | √ | √ | |
| Data hold | |||
| General Characteristics | |||
| Power | 9V battery (6F22) | ||
| Display | 61mm x 32 mm | ||
| Product color | Red and grey | ||
| Product net weight | UT601/UT602: 310g, UT603: 312g | ||
| Product size | 172mm x 83mm x 38mm | ||
| Standard accessories | Battery, test leads with alligator clips, holster | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) | ||
| Standard carton gross weight | 9.6kg | ||
