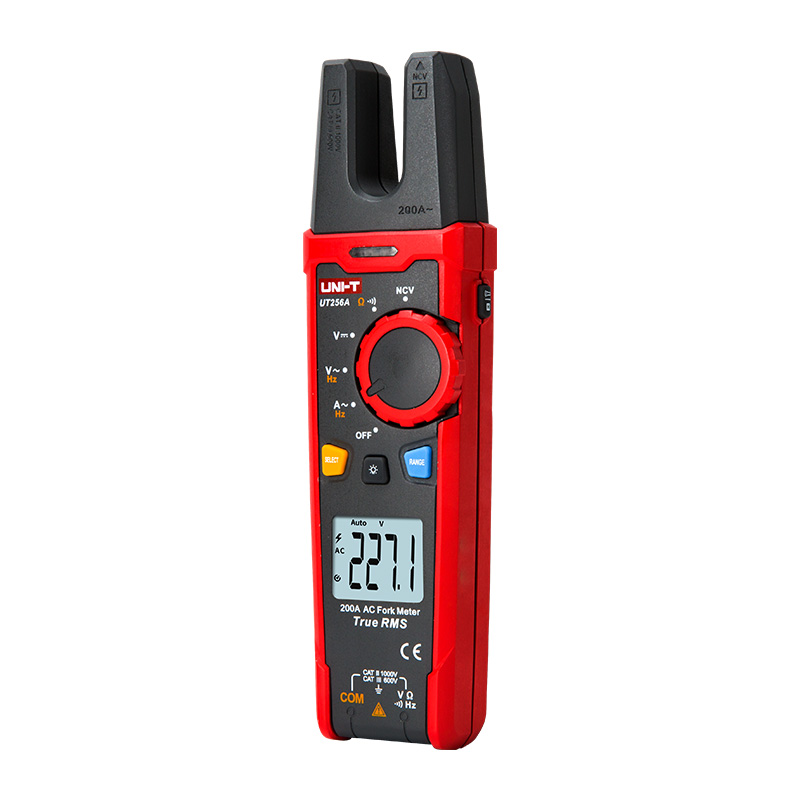

UT256 Series 200A True RMS Fork Meters (Copy)

UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ to the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.

Models in UT256 series: UT256A, UT256B

Ac Current (A)

200A

Dc Current (A)

200A

Ac Voltage (V)

750V

Dc Voltage (V)

1000V

Resistance (Ω)

60MΩ

Capacitance (F)

60mF

Get a quote

Data Sheet

Download Resources

Key Features

Features

● Auto range

● True RMS

● Data hold

● Auto power off

● Continuity buzzer

● Low battery indication: ≤2.4V

● Input protection

● LCD backlight

Model

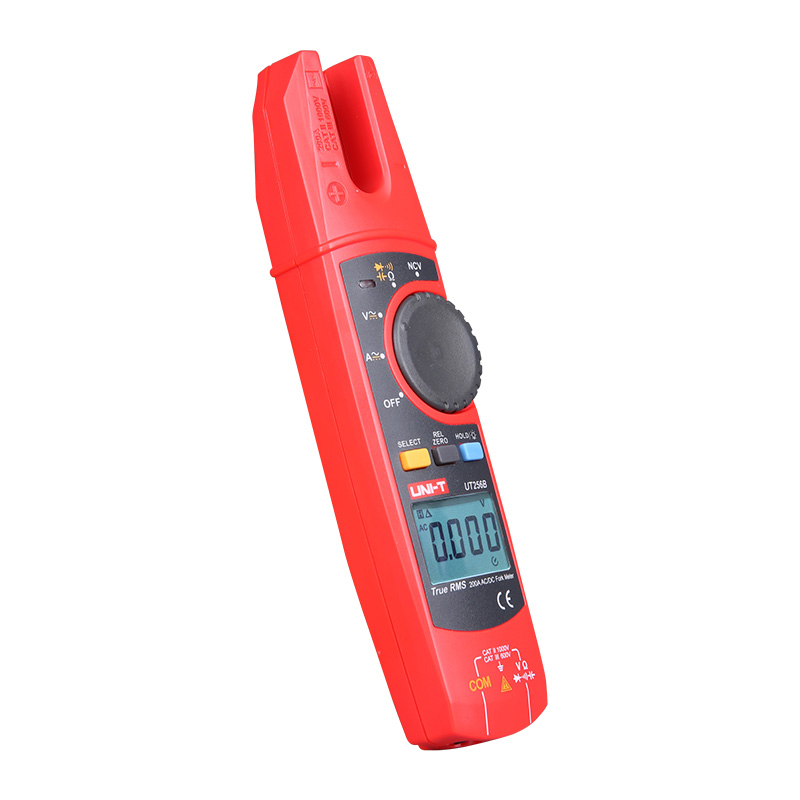

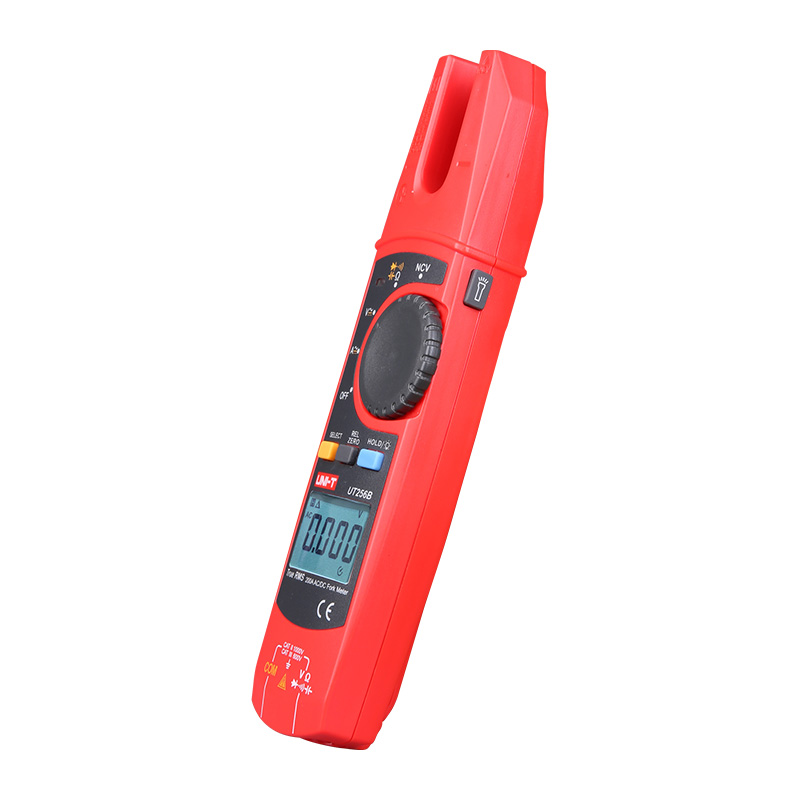

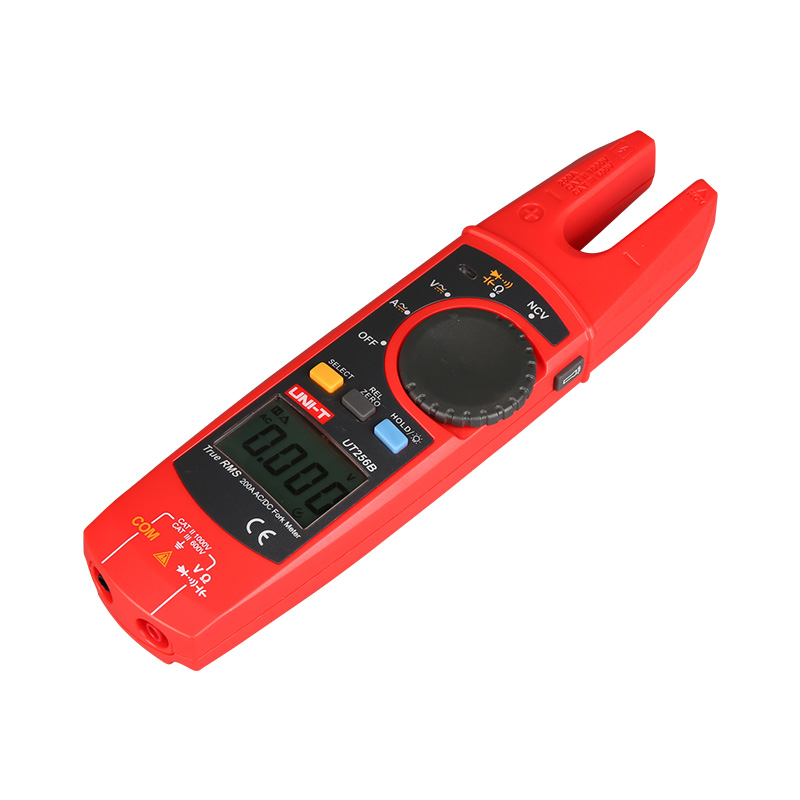

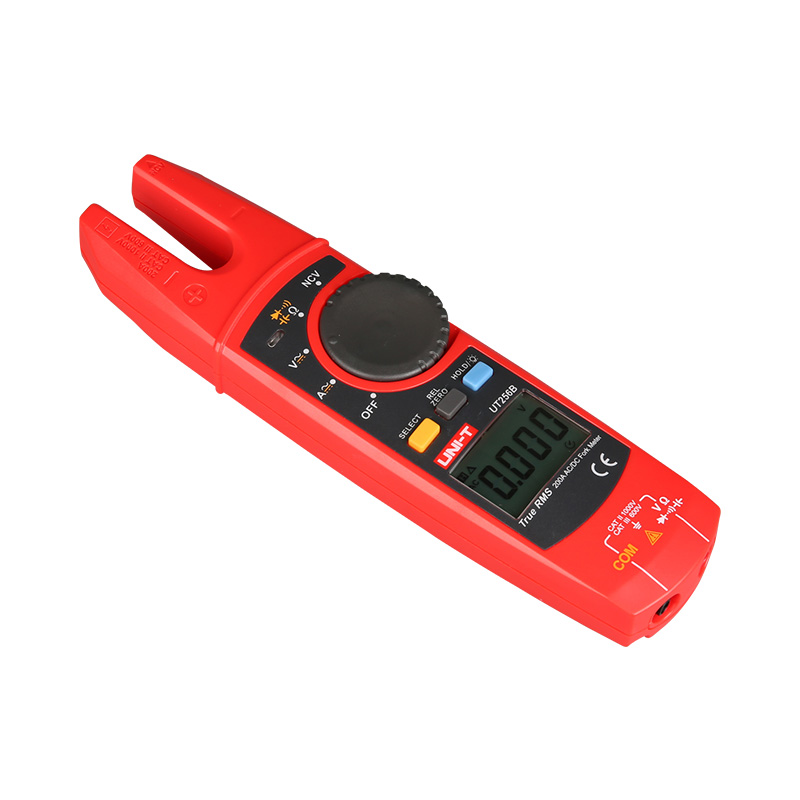

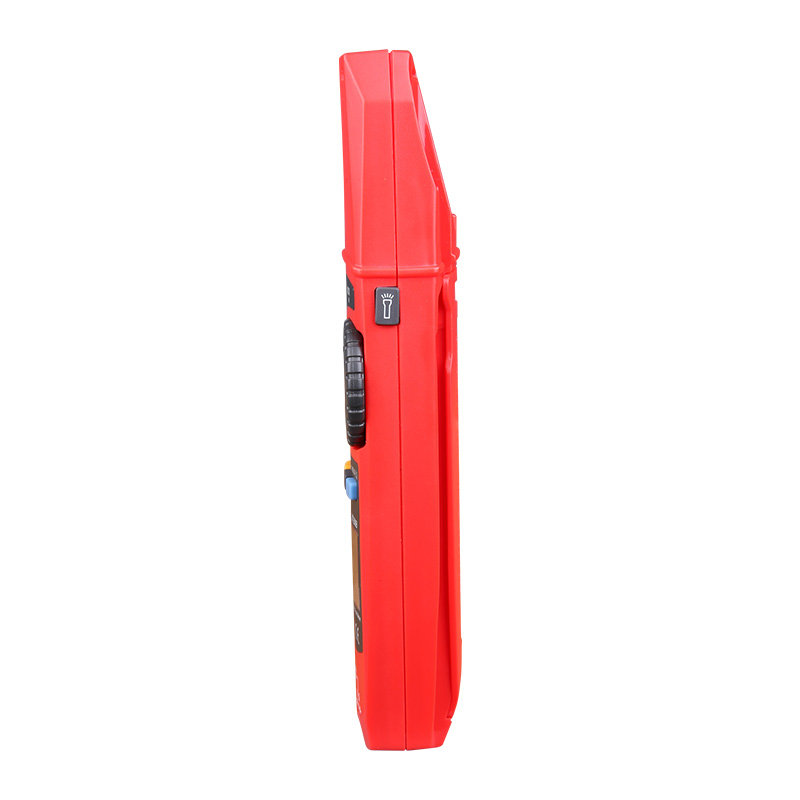

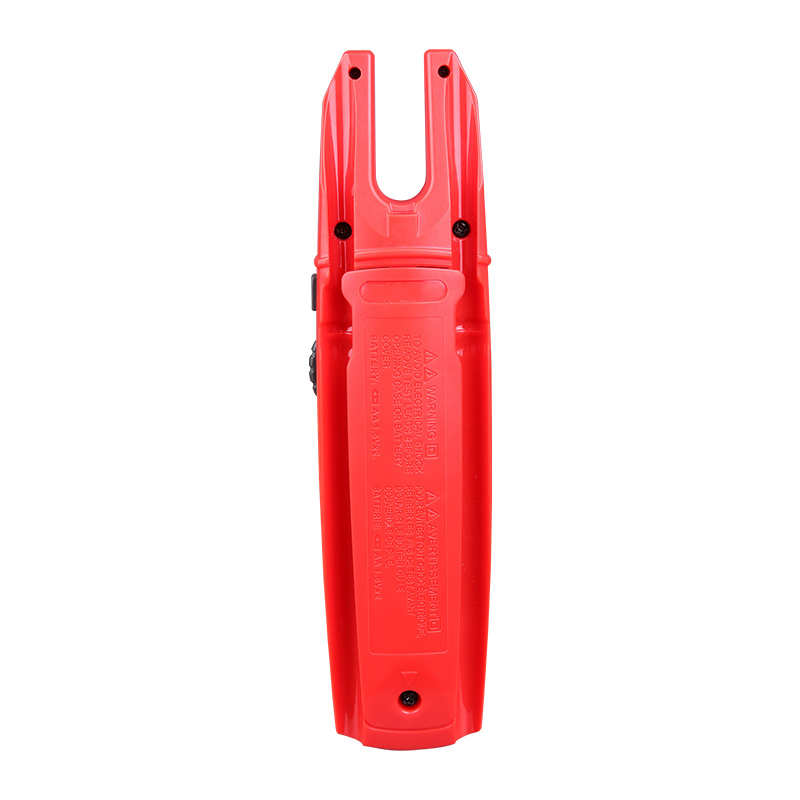

UT256B

Technical Specification

General Characteristics
Specifications	Range	UT256A	UT256B
Certifications	CE/RoHS/cETLus
Safety ratings	CAT II 1000V, CAT III 600V
AC current (A)	200A	±(1.8%+5)	±(2.5%+5)
DC current (A)	200A		±(2.5%+5)
AC voltage (V)	750V		±(1.2%+3)
AC voltage (V)	1000V	±(1.2%+3)
DC voltage (V)	1000V	±(0.8%+3)	±(0.8%+3)
Resistance (Ω)	60MΩ	±(1%+2)	±(1%+2)
Capacitance (F)	60mF		±(4%+20)
Frequency (Hz)	10~10kHz	±(0.1%+5)
Display count		6000	6000
Diode test	About 3V		√
NCV		√	√
Zero mode			√
Relative mode			√
Power	1.5V battery (LR6) x 2
Display	UT256A: 35mm x 26mm; UT256B: 36.5mm x 24mm
Product net weight	248g
Product size	UT256A: 217mm x 58.8mm x 38.5mm; UT256B: 210mm x 53mm x 35mm
Standard accessories	Batteries, test leads, English manual
Standard individual packing	Gift box, carrying bag
Standard quantity per carton	20pcs
Standard carton measurement	485mm x 310mm x 205mm
Standard carton gross weight	9.5kg

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔
