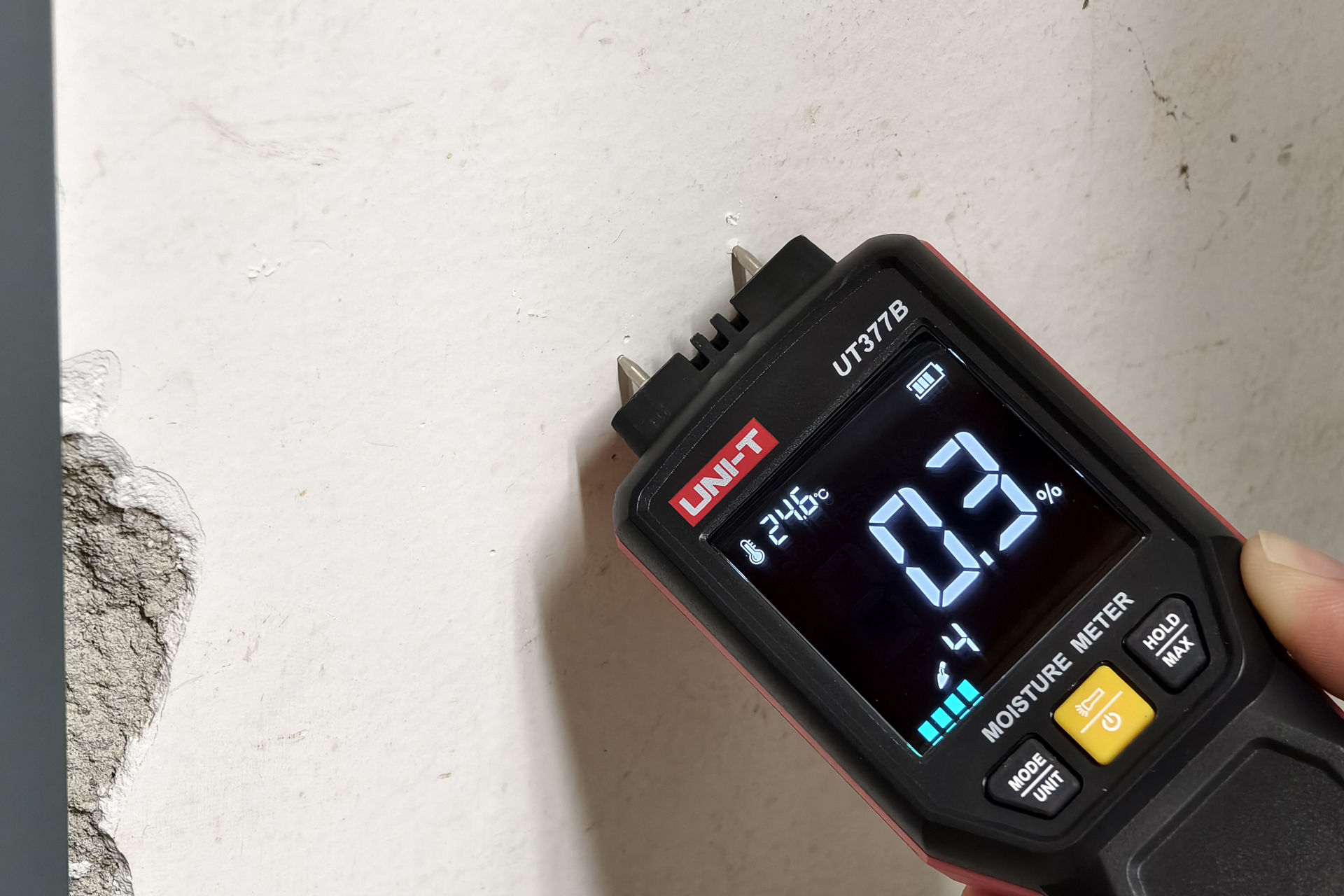

UT377B Pin Moisture Meter

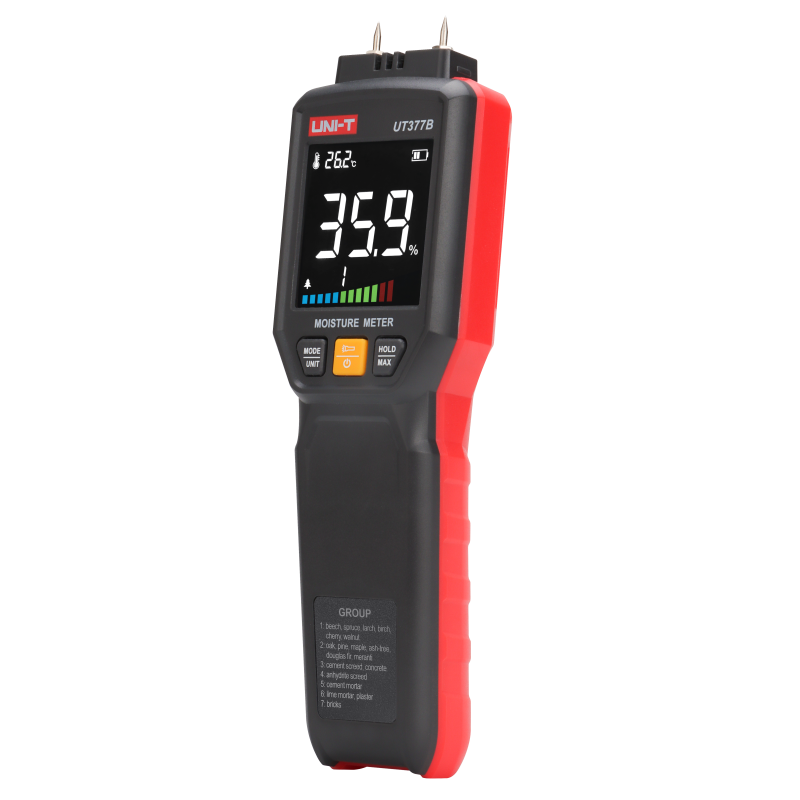

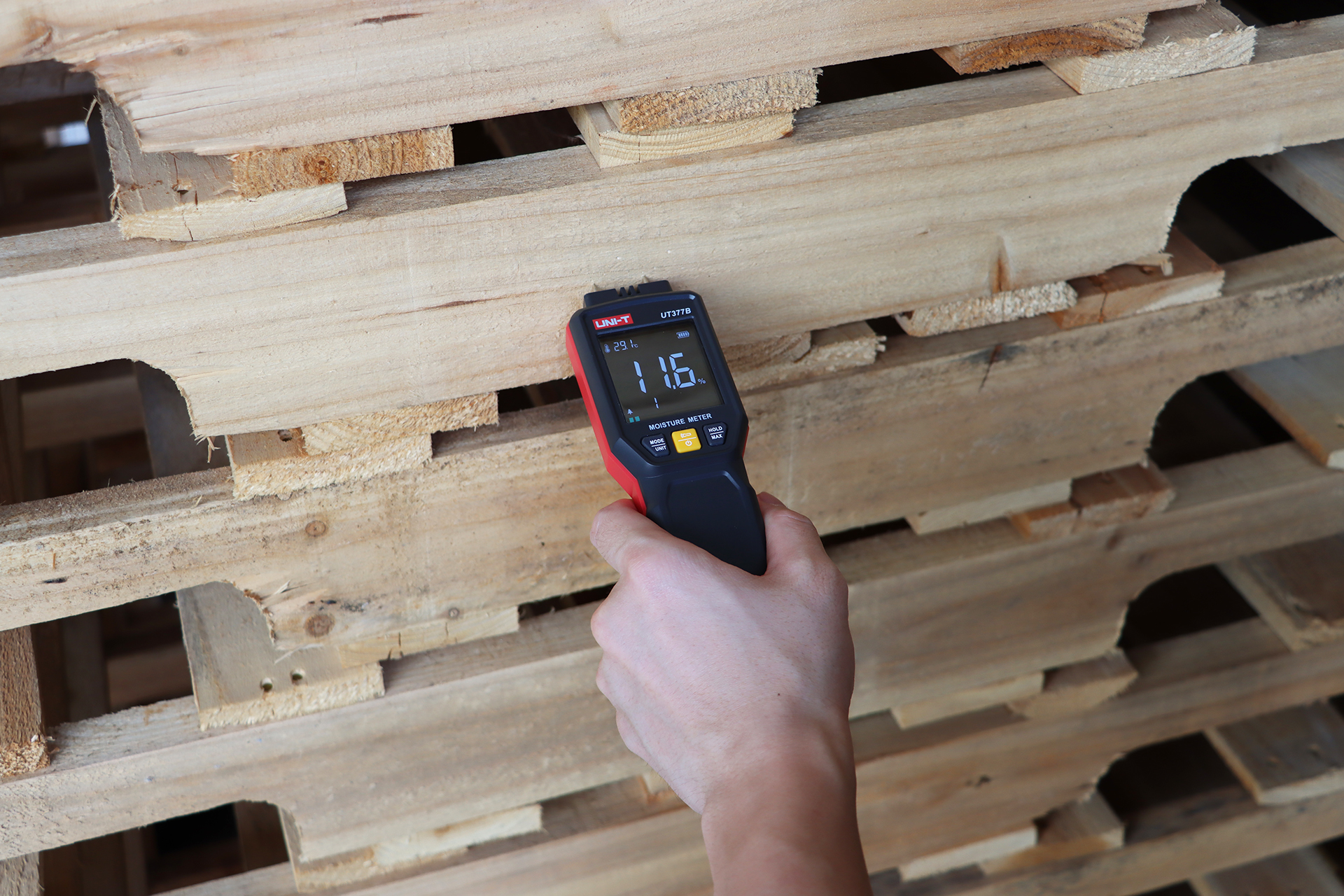

UT377B is a stable, safe, and reliable pin moisture meter featuring an LCD screen for clear and intuitive moisture content readings. It offers multiple wood species selections and building material options. Equipped with environmental temperature compensation, it minimizes measurement errors significantly. With rapid detection capability, low power consumption, and high precision, this instrument is widely used for fast moisture measurement in wood materials, papermaking, plywood, wood drying, furniture decoration, and building materials.

Get a quote

Data Sheet

Download Resources

Key Features

Features

Language: EN, FR, DE, IT, ES, SV, PL, CZ

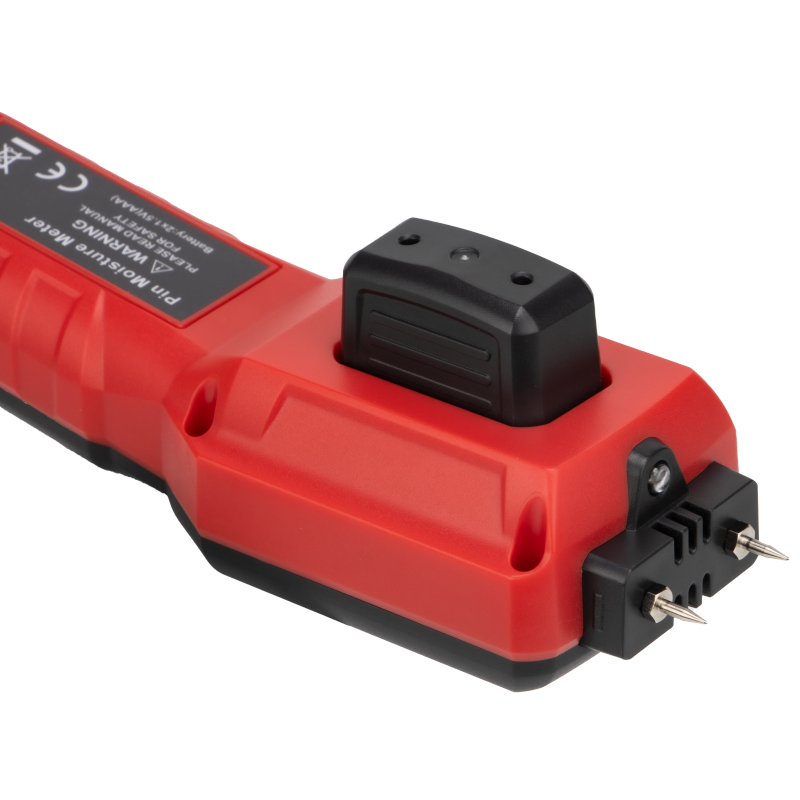

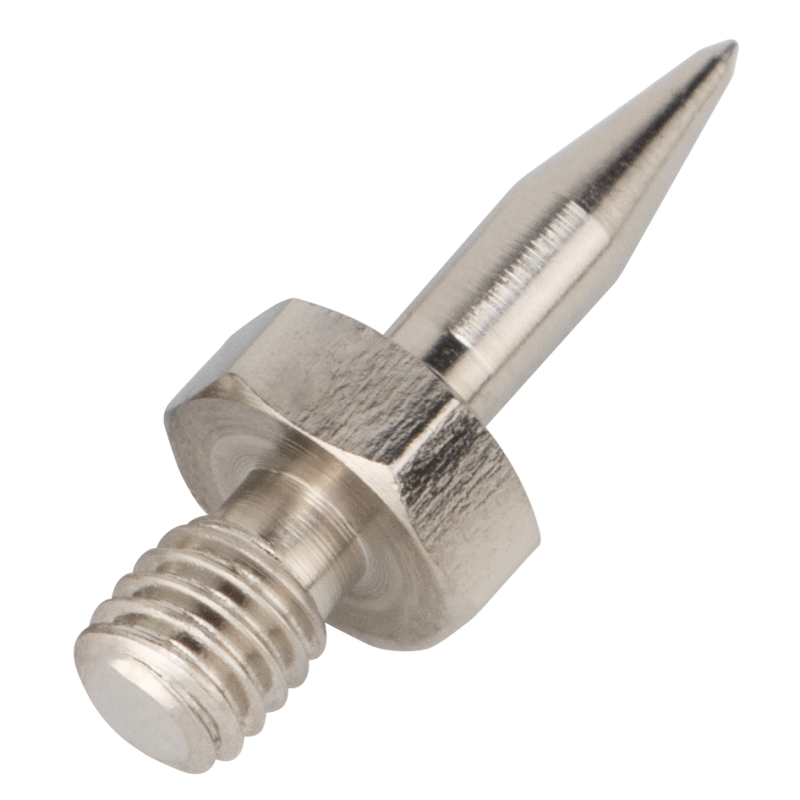

1. Pin-type measurement

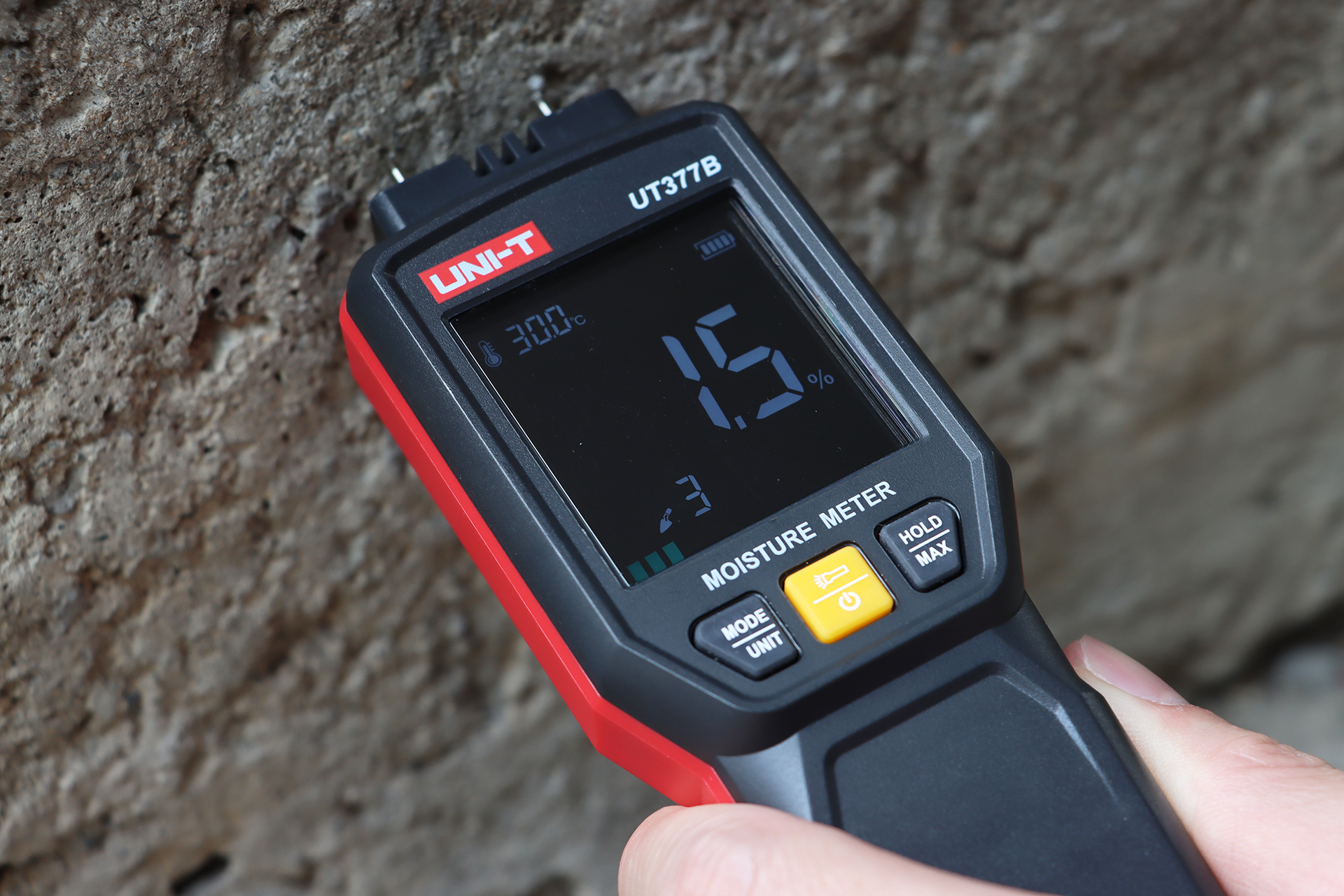

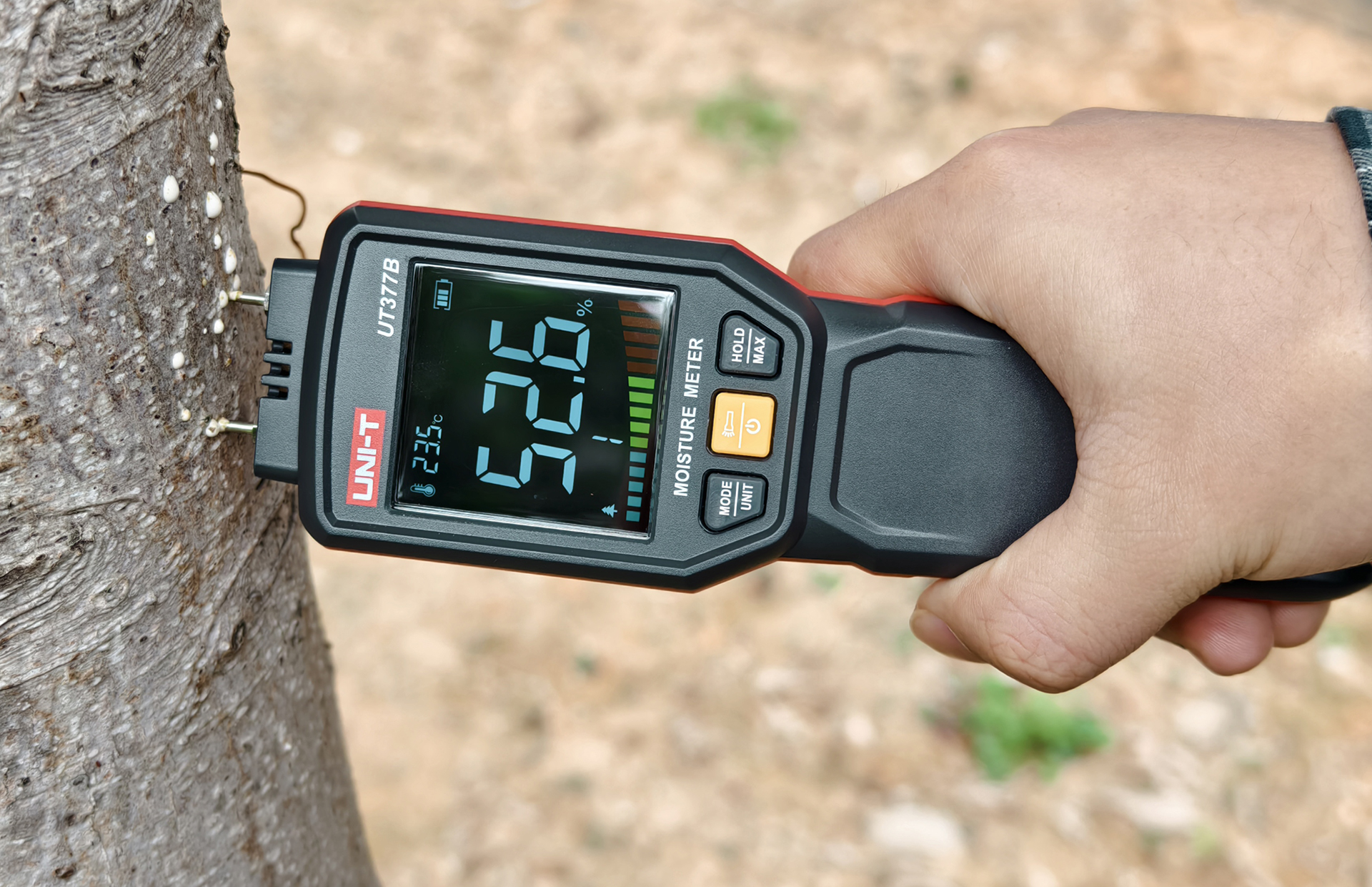

2. Wood and building materials measurement

3. Audible buzzer and analog bar alarm

4. 7 modes selectable

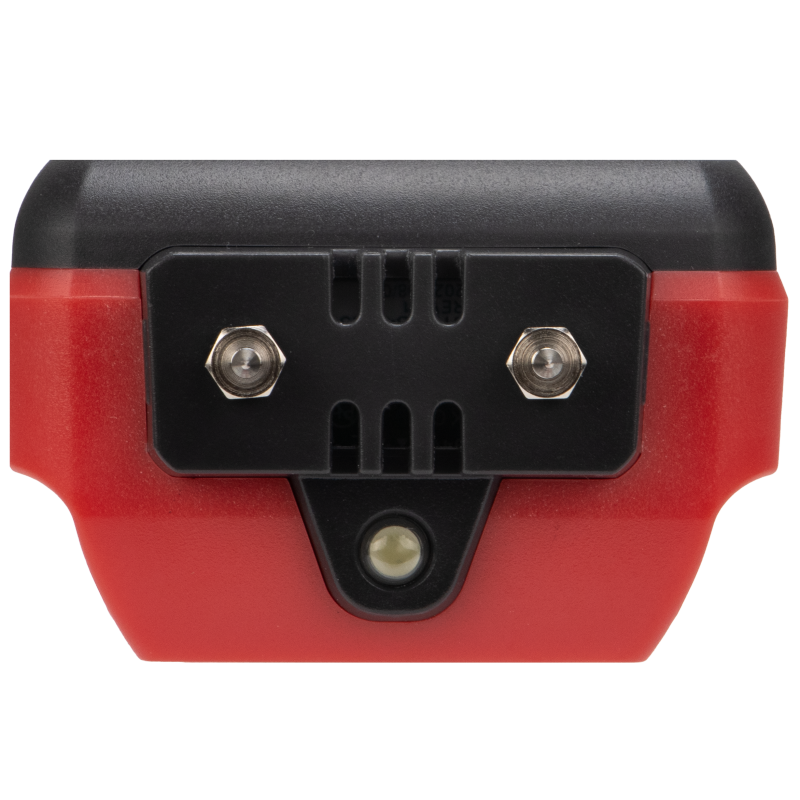

5. LED flashlight

6. Ambient temperature measurement

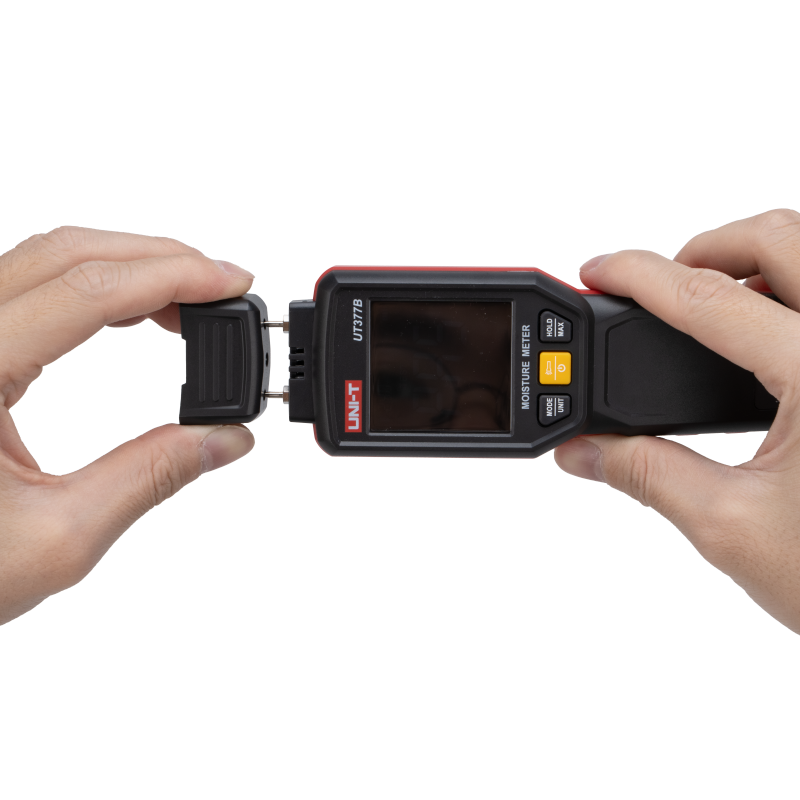

7. Self-test function

8. 2-meter drop protection

Model

UT377B

Technical Specification

Characteristics
Specifications
	Range	Accuracy
Moisture Content Measurement of Wood	7.0～54.8%	±1%
Moisture Content Measurement of Building Materials	0.0～22.1%	±0.5%
Ambient Temperature Correction Range	-5～+50℃	/
Refresh Rate	0.5s
MAX/MIN	✔
Data Hold	✔
High Moisture Alarm	✔
Auto Power Off	5 min
Self-Test Mode	✔
Low Battery Indication	✔
LED light	✔
Working Environment	-5～50℃，≤80%RH
Storage Environment	-40～70℃, ≤70%RH
Drop-Proof	2m
Power Supply	2×AAA battery
Product Size	195mm×55mm×35mm
Product Net Weight	About 140g
Standard Accessories	Pin Moisture Meter, Quick Start Guide, AAA Alkaline Battery*2, Safety Guide
Standard Quantity Per Carton	10pcs
