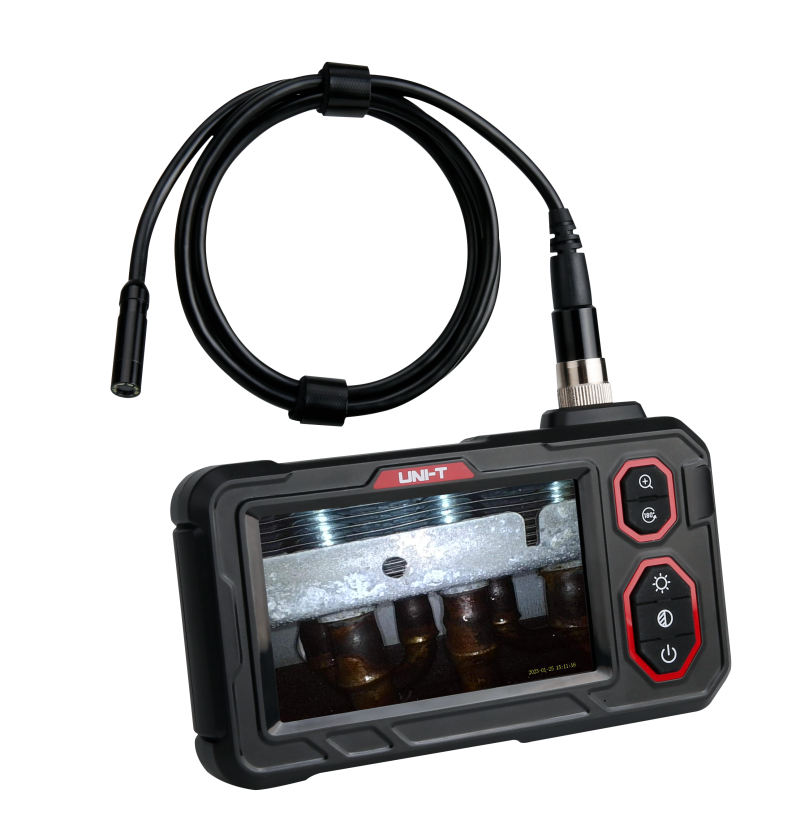

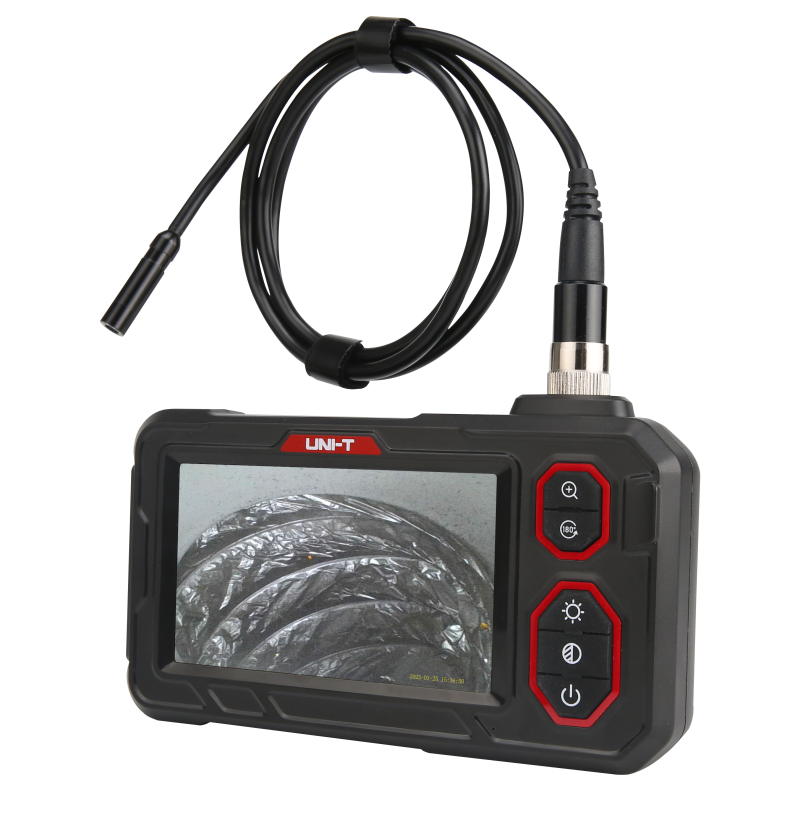

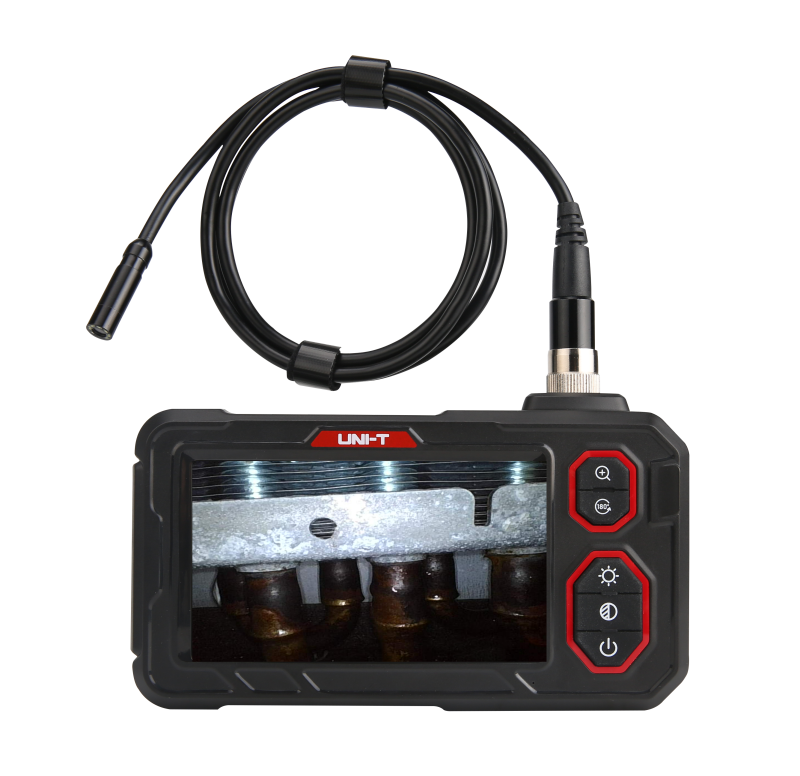

UT667 Industrial Borescope

The UT667 series large-screen industrial endoscope is specifically designed to meet the non-destructive testing needs of modern core industries. It allows for efficient and precise inspections deep inside equipment without the need to disassemble or interrupt operations. The endoscope is widely used in various sectors of modern core industries, including petrochemical, aerospace, automotive, shipbuilding, electrical, chemical, power, gas, nuclear energy, civil engineering, and more.

Get a quote

Data Sheet

Download Resources

Key Features

Features

● 4.3″ Display Screen

● 8 Adjustable Brightness LEDs

● Large Storage of Li-ion Battery

● IP67-Rated Camera

● Image Rotation

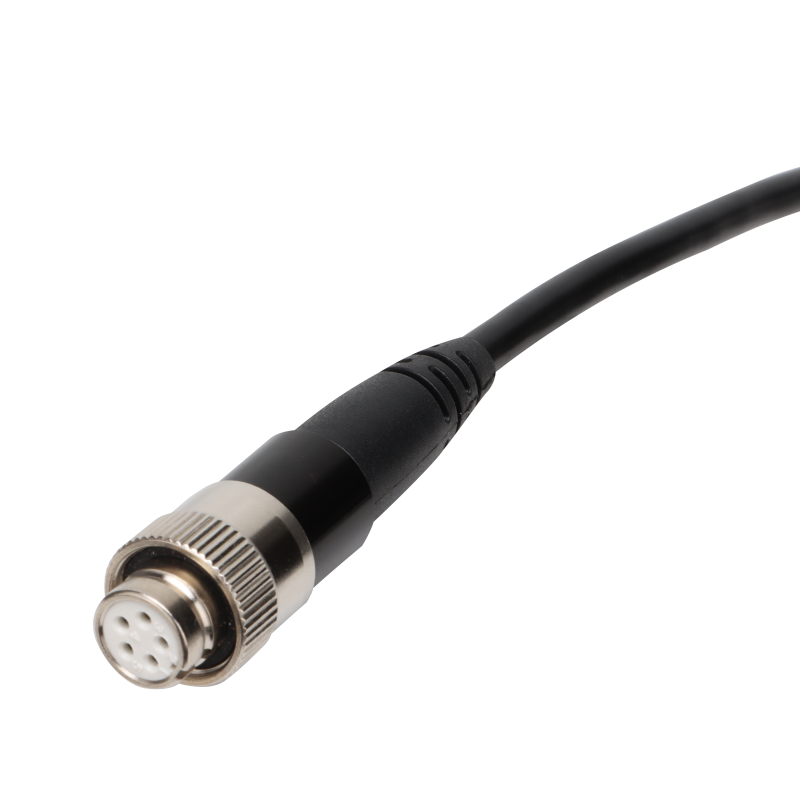

● Aviation-Plug Hose

● Optional Hose Length: 1m, 5m, 10m

Model

UT667

Technical Specification

Characteristics
Specifications
Models		UT667	UT667-5m	UT667-10m
System	Screen Size	4.3″IPS LCD
	System Languages	English
	Screen Pixels	1280*720
	Basic Functions	Screen rotation, Black-white images, Color conversion, Image zoom-in and zoom-out
Hose	Hose Material	Replaceable hardwire with aviation plug
Hose	Hose Length	1m	5m	10m

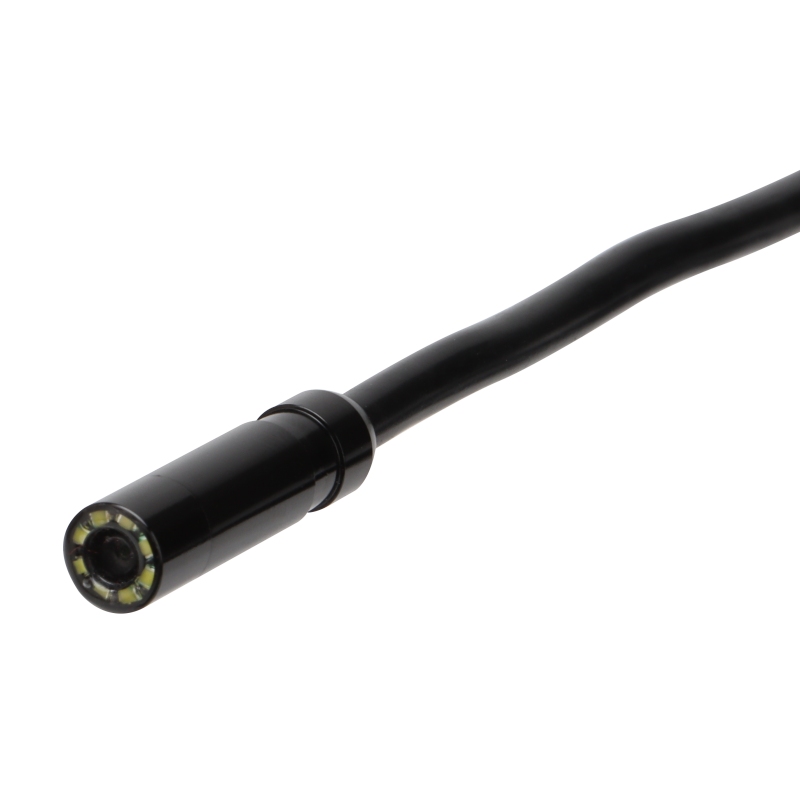

Lens	Lens Diameter	8mm
	Light Sensor Chip	CMOS
	Field of View (FOV)	70°
	Depth of Field (DOF)	20~100mm
	Adjustable LED Lights	4-Setting, 8 LEDs
	Pixels	300K
	IP Rating	IP67
Battery	Battery	3.7V/2000mAh
Battery	Battery Life	5h
Working Conditions	Lens Temperature	0°C~80°C
	Working Temperature	0°C~45°C
	Humidity	<90%RH, No condensation

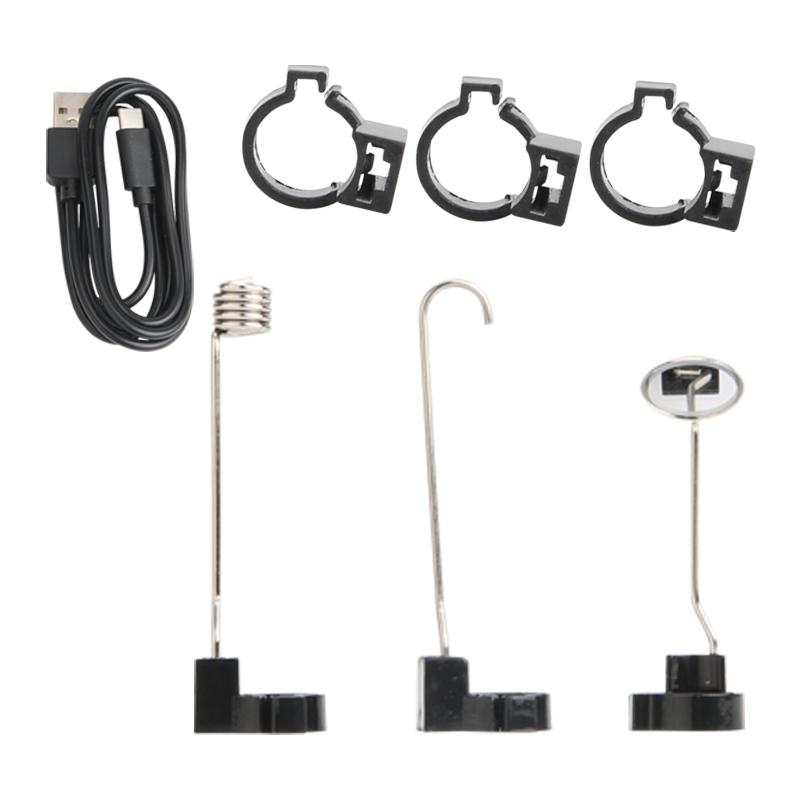

Standrad Accessories		Handheld Single Lens Industrial Borescope1, Type-C Cable1, Gift Box1, User Manual1, Blister Tray1, Hook1, Side Mirror1, Magnet1, Fixed Buckle*3.
Standard Quantity Per Carton		20pcs

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔
