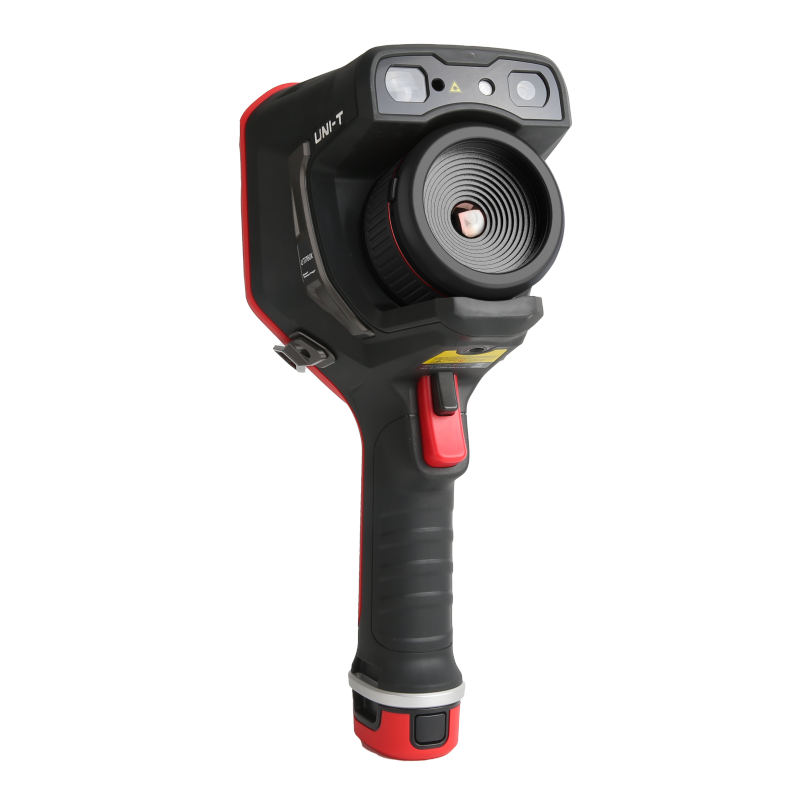

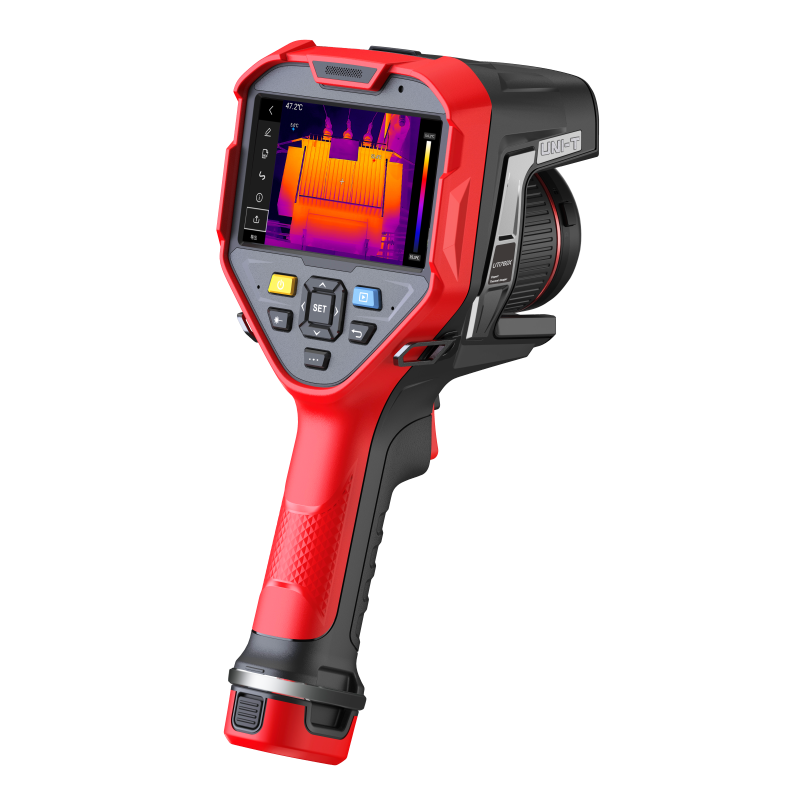

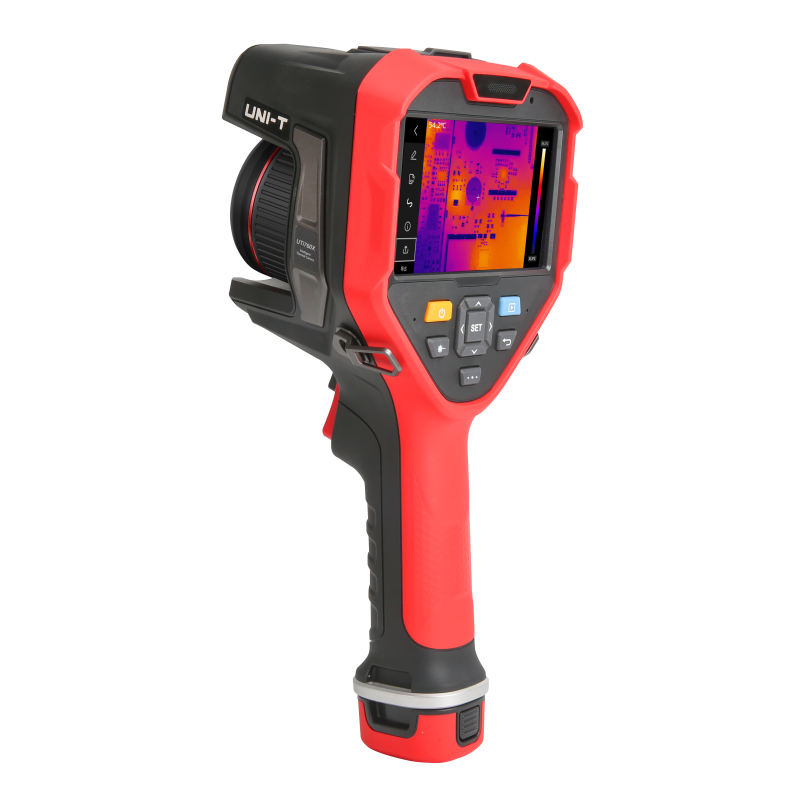

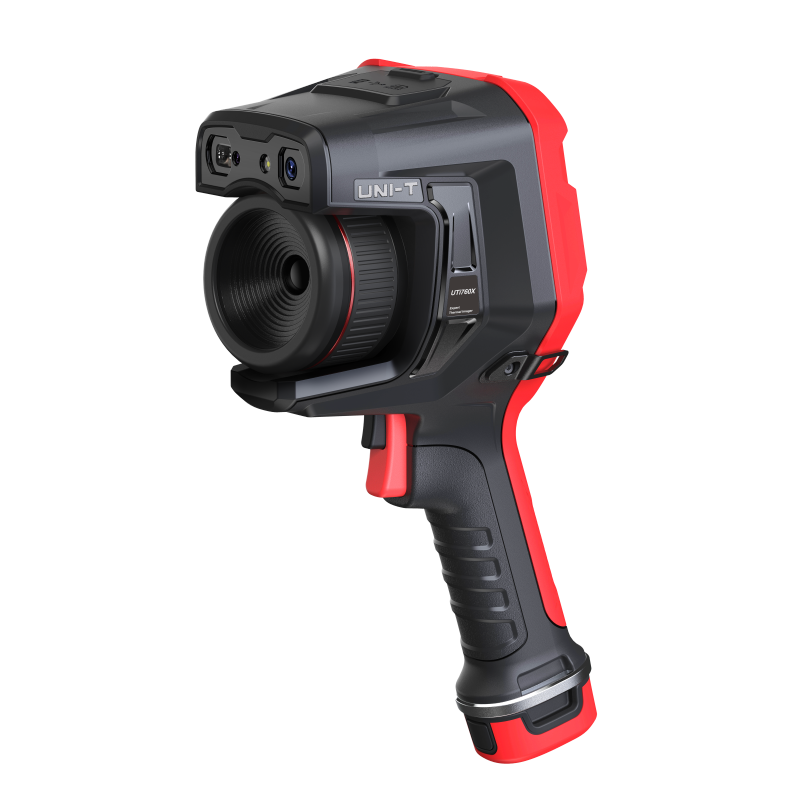

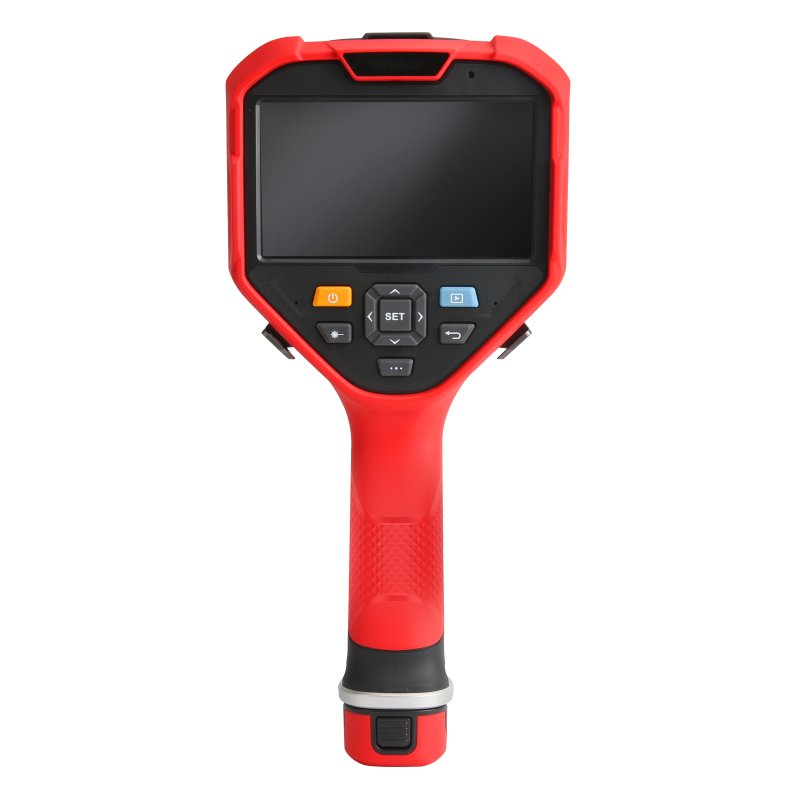

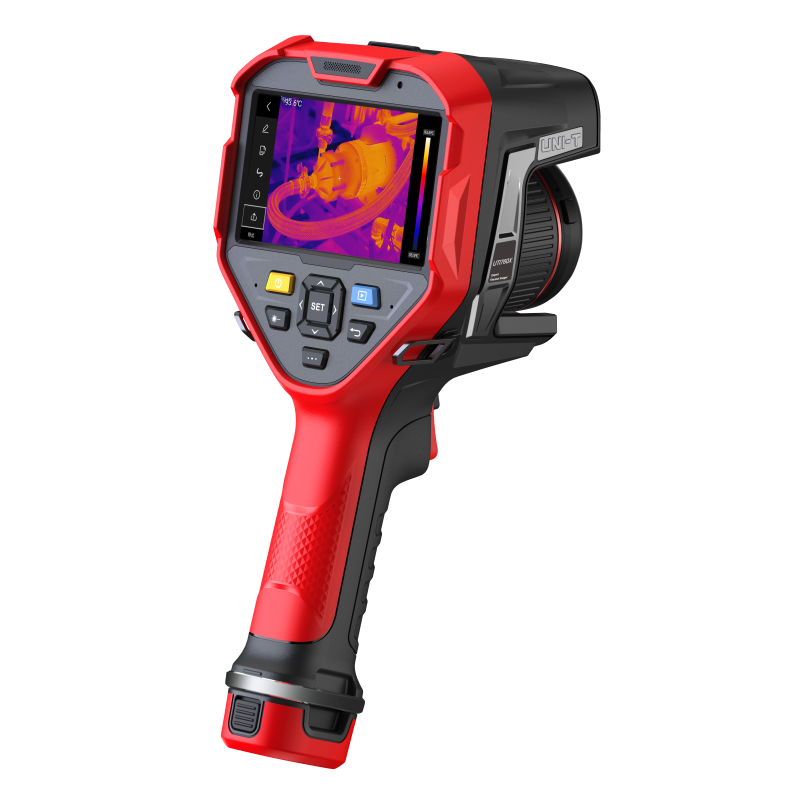

UTi740X
Expert Thermal Imager
UTi740X features a high-resolution infrared detector of 400×300 pixels and a 13MP digital camera. The high-precision thermal camera is designed specifically for the industrial field, with a 30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range, combined with the optional camera lens, meets the requirements of numerous severe measurement scenarios.
IR Resolution
400×300
Temperature Range
-20℃~550℃
Thermal Sensitivity
35mK
Field of View (FOV)
27.7°×20.6°
Frame Rate
30Hz
Display
5′ IPS Touch (1280×720)
FEATURES
400×300 pixels (upgrade to 800×600 when Super Resolution is on)
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Temp. Measurement range from -20℃ to 1200℃
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Interchangeable camera lens (support lens autocal)
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Multiple focus modes (Continuous AF/Contrast AF/Laser AF/Touch AF/Manual Focus/Automatic)
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
With the T-Mix image fusion algorithm technology
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
High-precision measurement (accuracy is up to ±1.0℃ or ±1.0%)
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Model No. | UTi740X | ||||
| Technical Data | |||||
| Display | 5′ IPS Touch (1280×720) | ||||
| IR resolution(Pixels) | 400×300 | ||||
| Super resolution(Pixels) | 800×600 | ||||
| Spectral range | 7.5～14μm | ||||
| Pixel size | 12μm | ||||
| Frame rate | 30Hz | ||||
| Thermal sensitivity(NETD) | 35mK | ||||
| Focus mode | Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus | ||||
| Focusing time | <2s | ||||
| Lens recognition | ✔ | ||||
| Lens calibration | Automatic | ||||
| Lens model | UT-Z048 | UT-Z049 | UT-Z050 | UT-Z051 | UT-Z053 |
| Lens | Standard | Wide-Angle | Telephoto | Ultra Telephoto | Macro |
| Lens focal length | 9.6mm | 6mm | 18mm | 36mm | 18mm |
| Aperture | F1.0 | F1.0 | F1.0 | F1.0 | F1.1 |
| Field of view(FOV) | 27.7°(H)×20.6°(V) | 46°(H)×34°(V) | 14.6°(H)×10.9°(V) | 7.2°(H)×5.5°(V) | — |
| Spatial resolution(IFOV) | 1.28mrad | 2.1mrad | 0.66mrad | 0.33mrad | — |
| Imaging distance | 0.1m (Min) | 0.1m (Min) | 0.15m (Min) | 1m (Min) | 24~42mm |
| Temperature measurement & Accuracy | Scope of application | Type of lens | Temperature range | Measurement range | Accuracy |
| Lens calibrated with the device before delivery | Standard Wide-angle Telephoto Ultra telephoto |
-20℃~1200℃ | -20℃~120℃ | ±1.0℃/±1.0% (0℃~120℃) ±2.0℃ (-10℃~0℃) |
|
| 0℃~600℃ | ±1.5℃/±1.5% (20℃~600℃) | ||||
| 500℃~1200℃ | ±1.5% | ||||
| Macro | -20℃~100℃ | -20℃~100℃ | ±2.0℃ (-10℃~100℃) | ||
| Lens delivered separately | Standard Wide-angle Telephoto Ultra telephoto |
-20℃~1200℃ | -20℃~120℃ | ±1.5℃/±1.5% (0℃~120℃) ±2.0℃ (-10℃~0℃) |
|
| 0℃~600℃ | ±1.5℃/±1.5% (20℃~600℃) | ||||
| 500℃~1200℃ | ±1.5% | ||||
| Macro | -20℃~100℃ | -20℃~100℃ | ±2.0℃ (-10℃~100℃) | ||
| Functions | |||||
|---|---|---|---|---|---|
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported | ||||
| Image modes | Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image | ||||
| On-screen analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported | ||||
| Level & span | Auto/Manual/Touch | ||||
| HI/LO temperature alarm | LCD animation, LED flashlight, Buzzer | ||||
| HI/LO temperature tracking | ✔ | ||||
| ROI correction | Supports regional emissivity correction | ||||
| Digital camera resolution | 13MP | ||||
| Digital zoom | ✔ | ||||
| Photo capturing / Video recording | ✔ | ||||
| Full-screen thermal radiometric video stream | ✔ | ||||
| T-Contrast | ✔ | ||||
| T-Sharp | ✔ | ||||
| Smart meter | ✔ | ||||
| AI voice | ✔ | ||||
| OTA upgrade | ✔ | ||||
| QR code scanning | ✔ | ||||
| Text/Voice annotation | ✔ | ||||
| HDMI display extension | ✔ | ||||
| WiFi / Wi-Fi live streaming | ✔ | ||||
| Bluetooth | ✔ | ||||
| Laser pointer | ✔ | ||||
| LRF | 0.1～50m (Class 2, red) | ||||
| LED lighting | ✔ | ||||
| Analysis software | PC+APP | ||||
| General Characteristics | |||||
| Battery | 7.2V/5000mAh rechargeable & detachable Li-ion battery pack | ||||
| Operating time | ≥5 hours | ||||
| Charging system | Type-C direct charging / Independent charging of the battery pack | ||||
| Charging time | Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack) | ||||
| USB | Type-C USB, Micro HDMI | ||||
| Storage | Built-in 128G, supports SD expansion | ||||
| Image storage format | JPG | ||||
| Video storage format | MP4/UIR | ||||
| Working temperature | -20℃～55℃ | ||||
| Storage temperature | -40℃～60℃ | ||||
| Working humidity | 10%～95%RH，noncondensing | ||||
| Protection | IP54 & 2m drop-proof | ||||
| Certificates | CE, FCC, RoHS | ||||
| Languages | EN, FR, DE, IT, ES, SV, PL, CS | ||||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

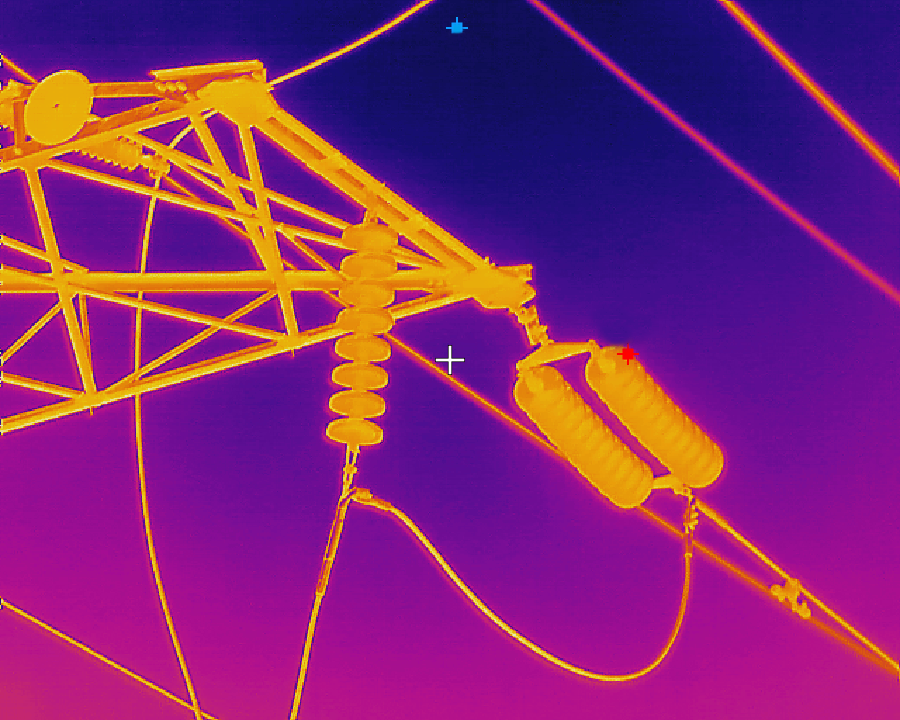

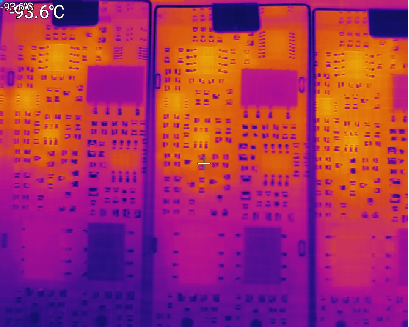

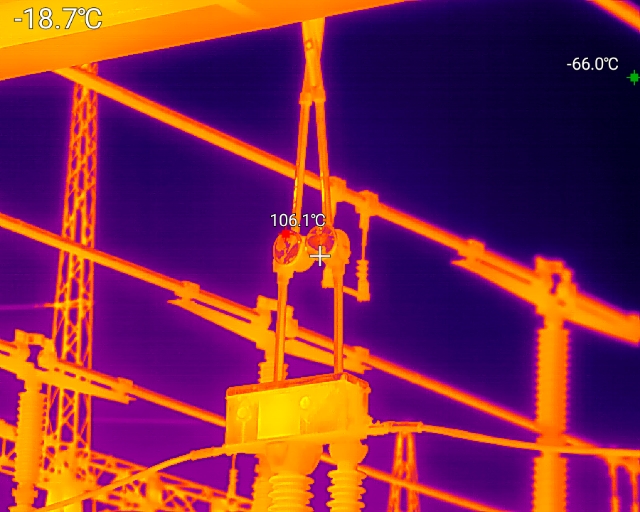

THERMAL GALLERY
