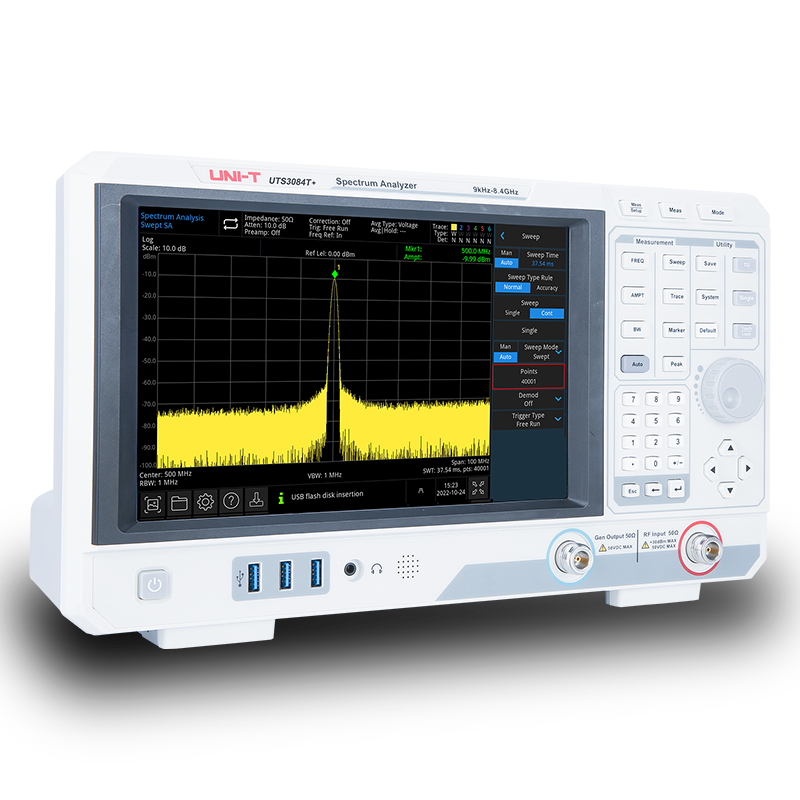

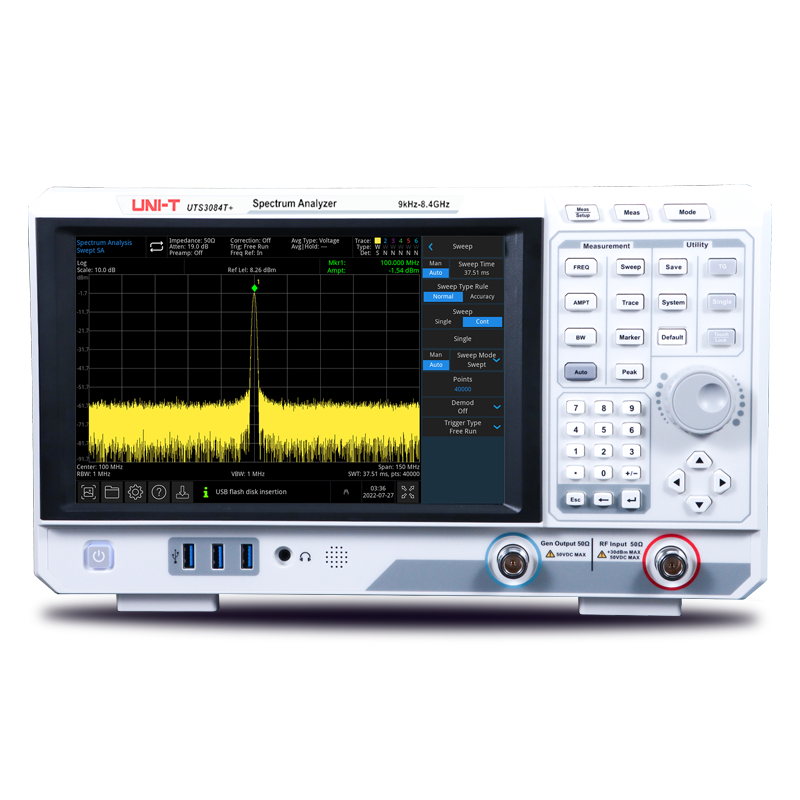

UTS3000T+
The UTS3000T+ series spectrum analyzer can measure frequencies up to 8.4GHz. It is a spectrum analyzer with wide frequency band coverage and superior performance. The series adopts mature all digital IF technology. It provides a variety of analysis functions, and up to 40,001 scanning points , providing better help for your frequency domain analysis. This series of spectrum adopts a 10.1 inch large touch screen, which will bring you a better use experience. The UTS3000T+ series can be applied to functional/terminal/quality inspection tests in the electronics manufacturing industry, as well as wireless communication measurement, RF microwave courses, electromagnetic compatibility pre-scan, semiconductor measurement and many other application scenarios.
9kHz~8.4GHz
FREQUENCY RANGE
1Hz~3MHz
RBW
-98dBc/Hz @10kHz
PHASE NOISE
-161dBm
DANL
YES
TRACE GENERATOR
10.1 inch TFT LCD(touch screen)
DISPLAY
/
ANALYSIS BANDWIDTH
KEY FEATURES
FEATURES
Excellent sensitivity
The weak signal test is easily affected by the noise floor of the spectrum analyzer itself. UTS3000T+ series DANL as low as -161dBm, excellent sensitivity can effectively test weak signals.
40,001 sweep points
The UTS3000T+ series provides up to 40,001 sweep points, providing higher frequency resolution, making it easier to capture signals that are difficult to detect.
Excellent selectivity
It has stronger signal resolution capability of adjacent unequal amplitudes.

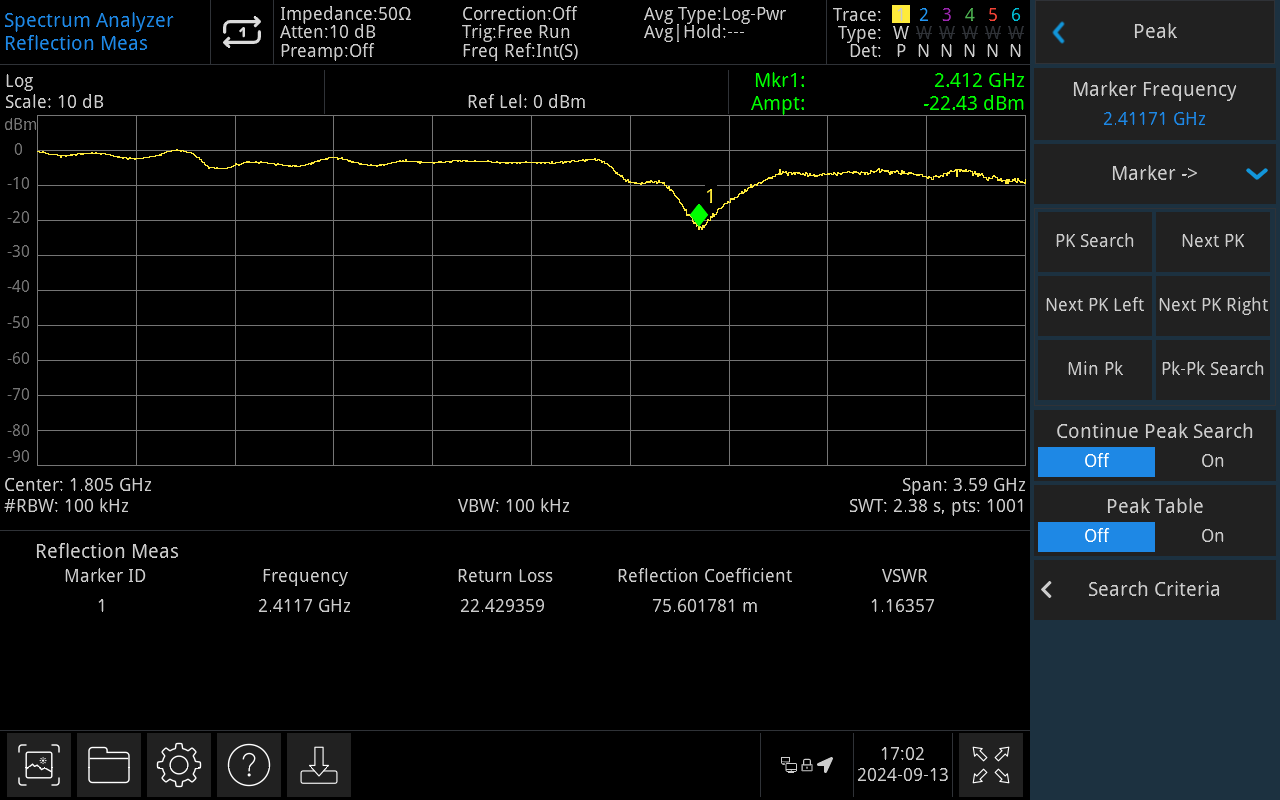

Reflection Measurement
With the accessory UT-RB60, the VSWR and Return Loss of the DUT can be measured.
EMI pre-compliance
UTS3000T+ series Optional components, together with near-field probes, help you find and improve EMI defects in advance. Thereby shortening the development cycle

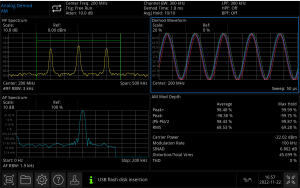

Analog Demodulation Analysis
Provides demodulation analysis of AM, FM, PM analog signals
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTS3084T+ |
9kHz~8.4GHz | 1Hz~3MHz | -98dBc/Hz @10kHz | -161dBm | Yes | 10.1 inch TFT LCD(touch screen) |
 UTS3036T+ |
9kHz~3.6GHz | 1Hz~3MHz | -98dBc/Hz @10kHz | -161dBm | Yes | 10.1 inch TFT LCD(touch screen) |
 UTS3032T+ |
9kHz~3.2GHz | 1Hz~1MHz | -98dBc/Hz @10kHz | -161dBm | Yes | 10.1 inch TFT LCD(touch screen) |
 UTS3015T+ |
9kHz~1.5GHz | 1Hz~1MHz | -98dBc/Hz @10kHz | -161dBm | Yes | 10.1 inch TFT LCD(touch screen) |
Technical Specification
| Model | UTS3084T+ | UTS3036T+ | UTS3032T+ | UTS3015T+ |
| Key Specifications | ||||
| Frequency Range | 9 kHz to 8.4 GHz | 9 kHz to 3.6 GHz | 9 kHz to 3.2 GHz | 9 kHz to 1.5 GHz |
| DANL | Up to -161 dBm (Typ.) | |||
| Phase Noise | < -98 dBc/Hz @ 1 GHz, 10 kHz offset (Typ.) | |||
| RBW | 1 Hz to 3 MHz | 1 Hz to 3 MHz | 1 Hz to 1 MHz | 1 Hz to 1 MHz |
| Sweep Points | 40,001 | 40,001 | 10,001 | 10,001 |
| Technical Details | ||||
|---|---|---|---|---|
| Frequency Resolution | 1 Hz | |||
| Span Range | 0 Hz; 100 Hz to 8.4 GHz | 0 Hz; 100 Hz to 3.6 GHz | 0 Hz; 100 Hz to 3.2 GHz | 0 Hz; 100 Hz to 1.5 GHz |
| Span Accuracy | Sweep: ±[0.25% × span + span/(points-1)]; FFT: ±[0.10% × span + span/(points-1)] | |||
| Sweep Time | Zero span: 1 μs to 4000 s; non-zero span: 1 ms to 4000 s | |||
| Video Bandwidth (VBW) | 1 Hz to 3 MHz | 1 Hz to 3 MHz | 1 Hz to 1 MHz | 1 Hz to 1 MHz |
| Selectivity (-60 dB/-3 dB) | <4.8:1 (Nom.) | |||
| Reference Level | -100 dBm to +30 dBm, 1 dB steps | |||
| Preamplifier | Standard, 20 dB (Nom.) | |||
| Total Absolute Amplitude Accuracy | <0.7 dB | |||
| Trace Detectors | Sample, Peak, Negative, Normal, Average | |||
| Trace Types | Clear/Write, Average, Max Hold, Min Hold | |||
| Scale Units | dBm, dBmV, dBμV, V, W | |||
| Marker Modes | Normal, Delta, Fixed | |||
| Marker Functions | Marker Noise, Band Power, Band Density, N dB, Counter | |||
| Features | ||||
| Advanced Measurement | Optional | |||
| Analog Modulation Analysis | Optional | |||
| EMI Analysis | Optional | |||
| General Information | ||||
| Display | 10.1-inch TFT touchscreen, 1280×800 | |||
| Interface | RF input, tracking generator output where fitted, 10 MHz Ref In/Out, Ext Trigger, HDMI, USB Host/Device, LAN, headphone | |||
| Power | 100–240 VAC, 50/60 Hz; 100–120 VAC (±10%), 400 Hz | |||
| Product Net Weight | 4.55 kg | |||
| Product Dimensions (W×H×D) | 378 × 218 × 120 mm | |||
| Standard Quantity Per Carton | 1 pc | |||
| Certification | CE, cETLus | |||
| Warranty | 3 Years | |||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
