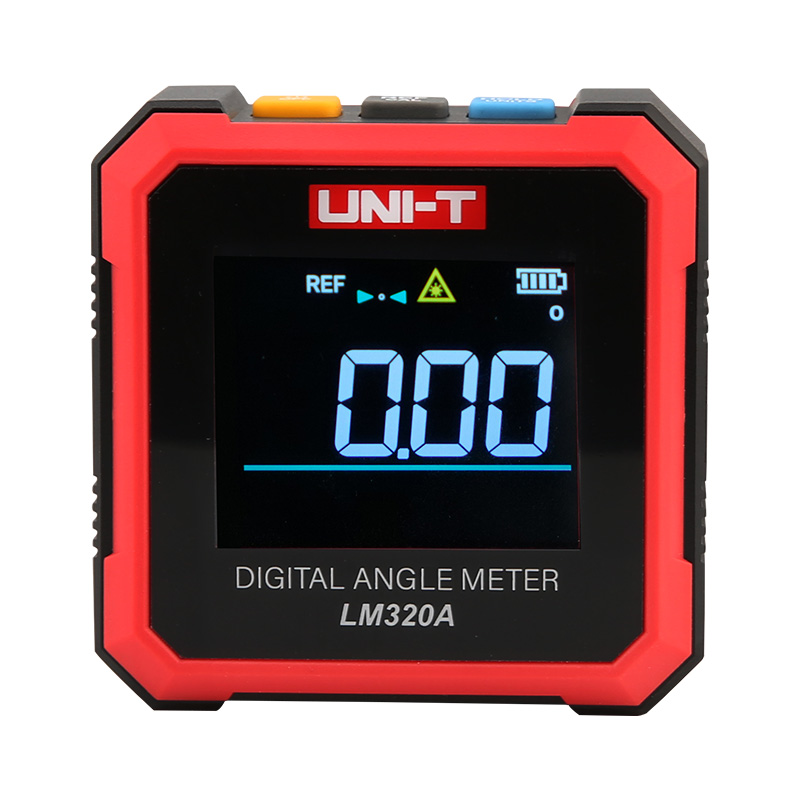

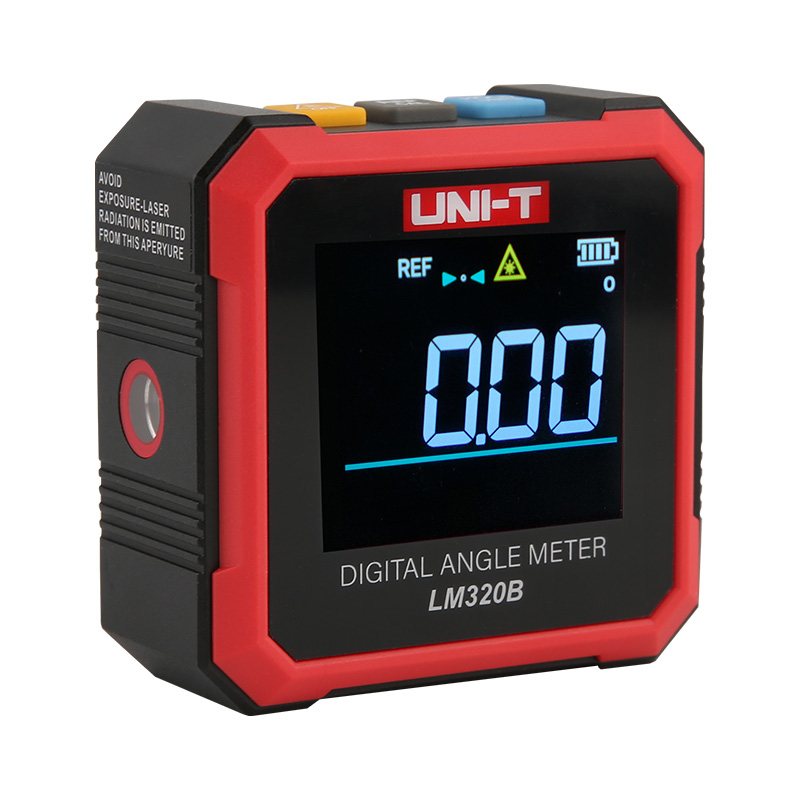

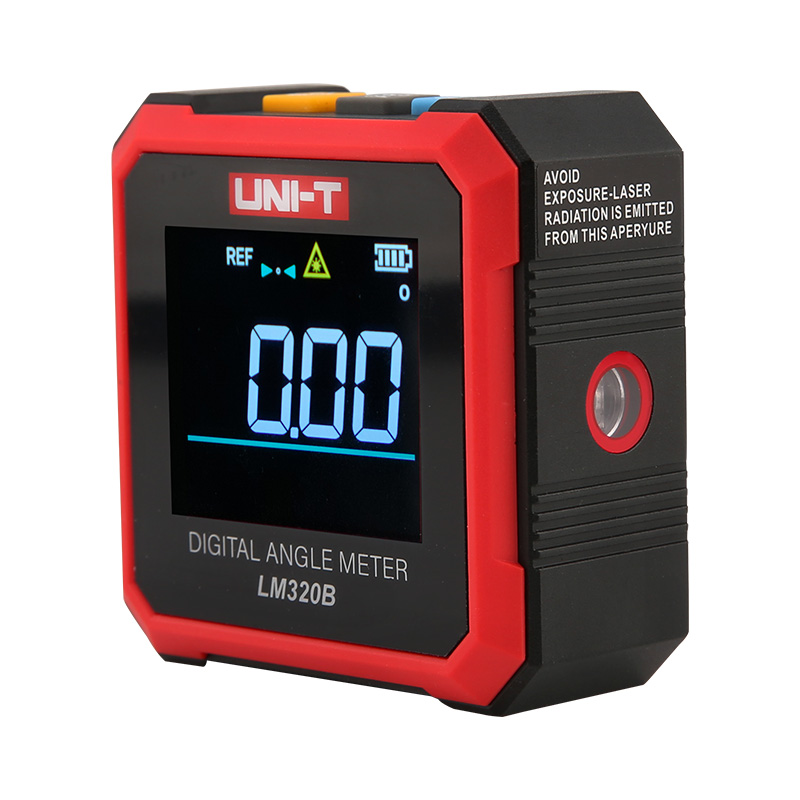

LM320A/LM320B Angle Meters
LM320 series digital angle meters are used to measure the precise angle in a variety of applications, designed with 2/4 sided magnetic bottom, and two-side laser design (LM320B) makes the measurement more accurate and convenient! This series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements.
Models in LM320 Series: LM320A, LM320B
Key Features
Features
● Relative / absolute measurement
● 360°comprehensive measurement
● Data hold
● Portable and lightweight
● Unique laser design
Model
LM320A
Technical Specification
| Specifications | LM320A | LM320B |
| Certificate | RoHS | |
| Measurement range | 4×90° | |
| Accuracy | ± 0.2° | |
| Resolution | 0.01° | |
| Display | EBTN | |
| Laser indication | Two-side lasers | |
| Battery Capacity | 3.7V lithium battery（300mah) | |
| Charging | Type C Charging Interface | |
| Working Time | 2h | |

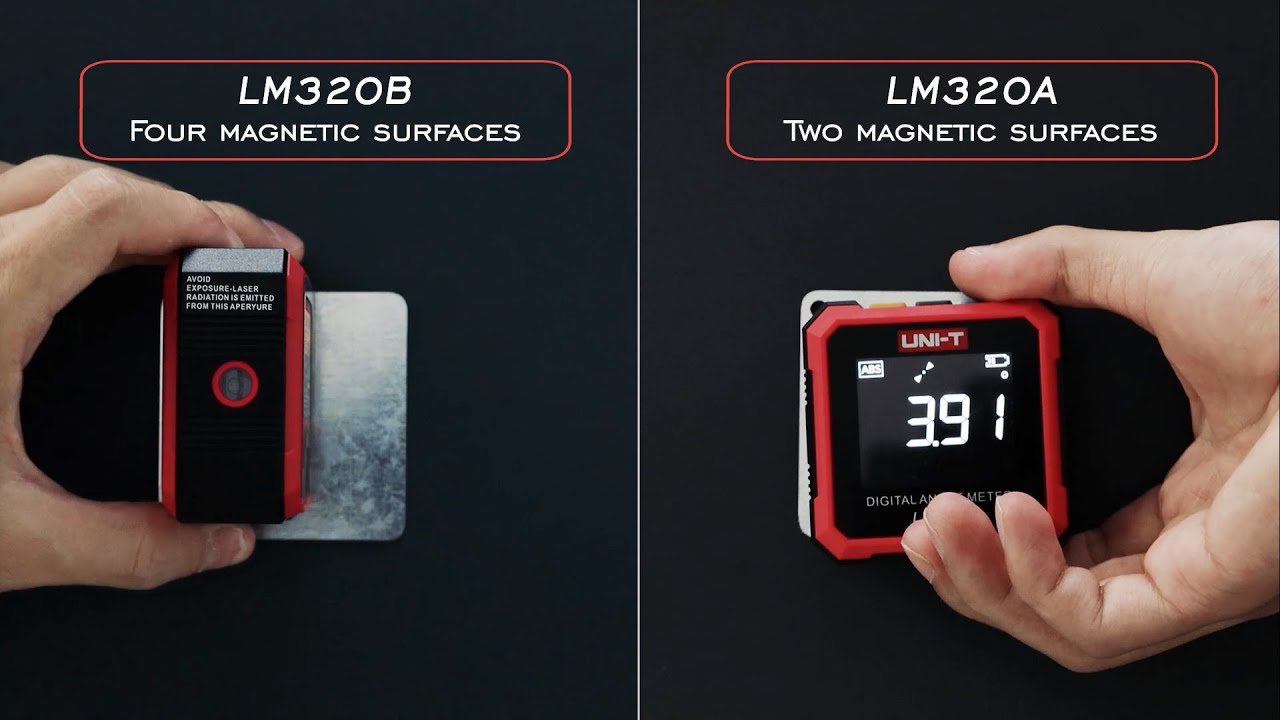

| Magnet base | Two-side magnets | Four-side magnets |
| Auto power off | Yes | |
| Relative/Absolute Measurement | Yes | |
| Low battery indication | Yes | |
| General Characteristics | ||
|---|---|---|
| Power | 3.7V lithium battery（300mah) | |
| Product color | Black and red | |
| Product net weight | 106g | |
| Product size | 60×60×30mm | |
| Standard accessories | Type-C male to female extension cable, USB adapter | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 6 | |
| Standard carton measurement | 165×150×130mm | |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

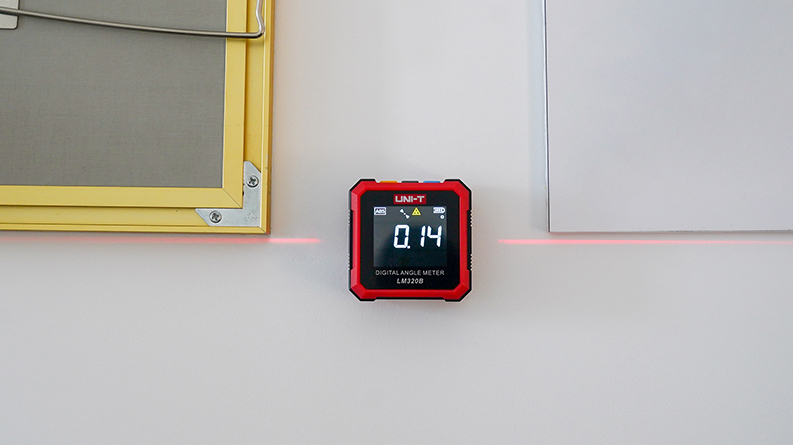

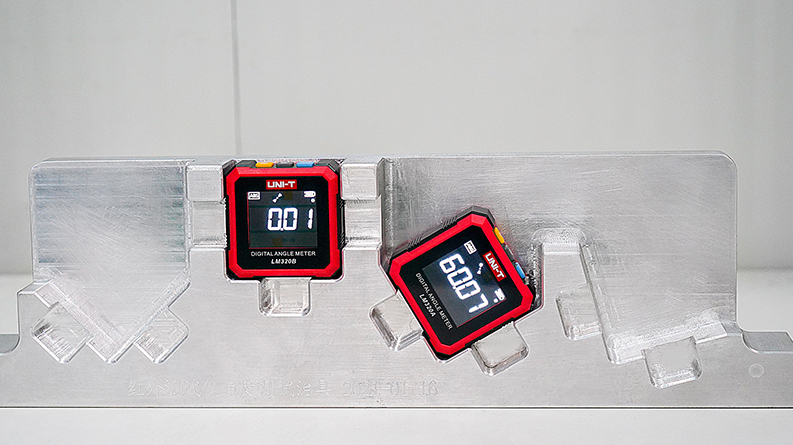

Application
