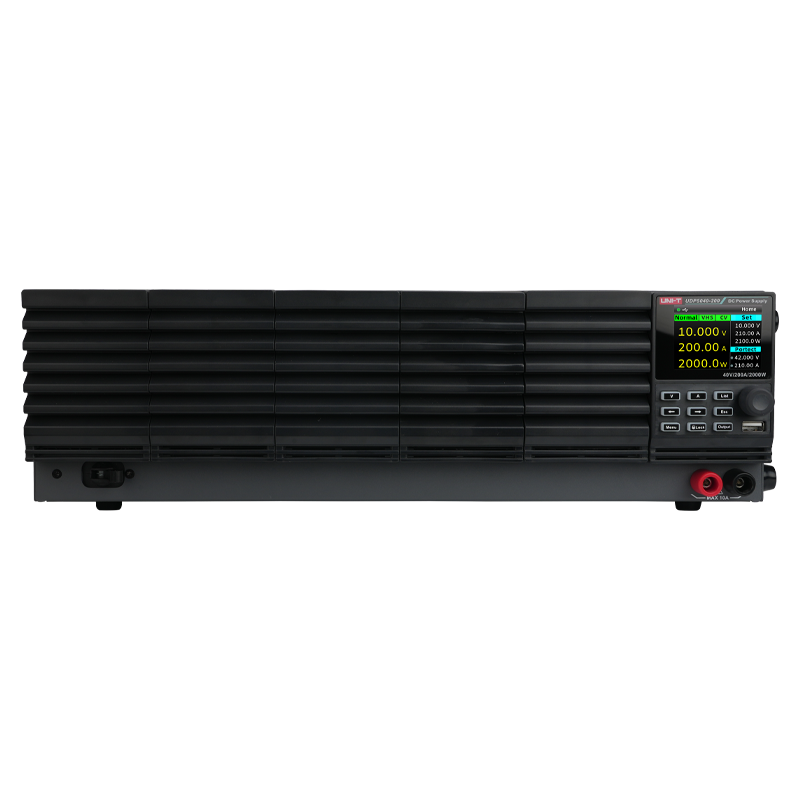

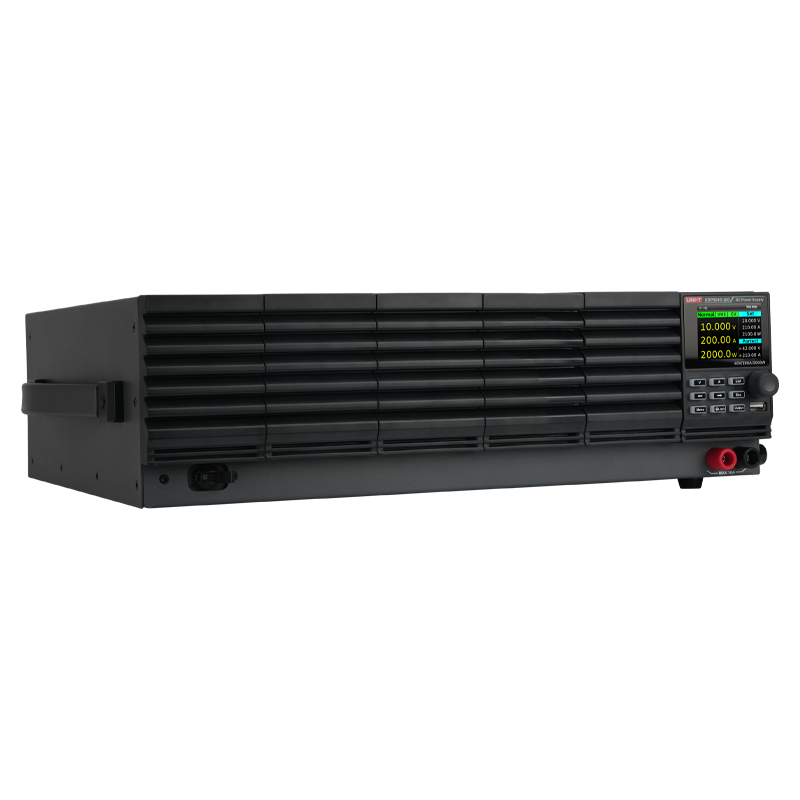

UDP5000

New

UDP5000 series power supplies feature a compact design, high performance, versatile functionality, a wide output range, user-friendly operation, and flexible usage. The series includes four rated output voltages (40 V, 80 V, 160 V, 250 V, 800 V) and four rated output power levels (400 W, 800 W, 1200 W, 2000 W), forming a total of 20 models

Switching

TYPE

1

CHANNELS

2000W

TOTAL POWER

0 - 800 V

OUTPUT VOLTAGE

0 - 200 A

OUTPUT CURRENT

1 mV,1 mA

RESOLUTION

V:0.05%+0.05%FS I:0.5%+0.1%FS

SETTING ACCURACY

USB Host, USB Device, LAN

CONNECTIVITY

Get a quote Download Resources

KEY FEATURES

Model
UDP5800-10

FEATURES

Series/Parallel Operation

Supports 2 units in series and 4 units in parallel
Rapidly expandable power supply output range
Max.: 1600V, 480A, 4800W

Wide Range Output

Power ratio up to 4.0
Wider voltage and current range for the same power

Adjustable Internal Resistance

Simulate the internal resistance of various batteries, real test application scenarios
Adjustable range: 0 to 300 Ω

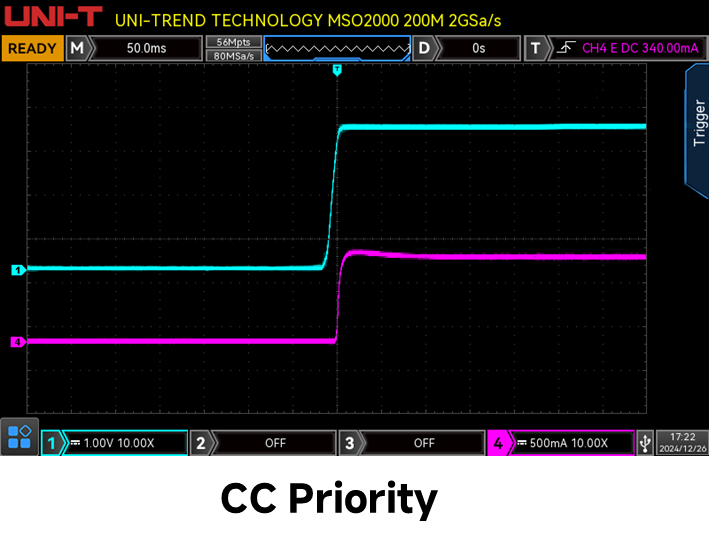

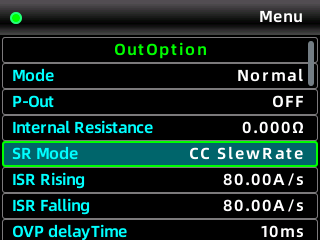

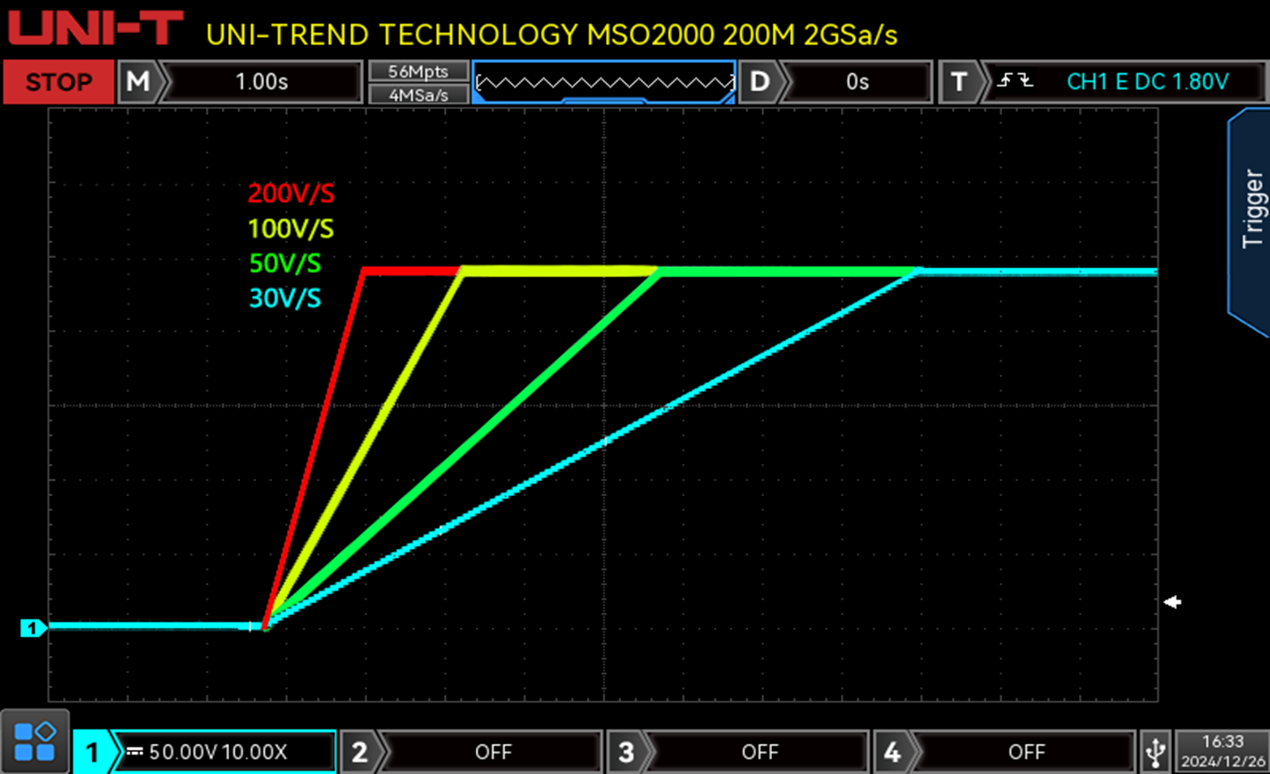

Adjustable Slew Rate

Supports adjustable slew rate of output voltage and current

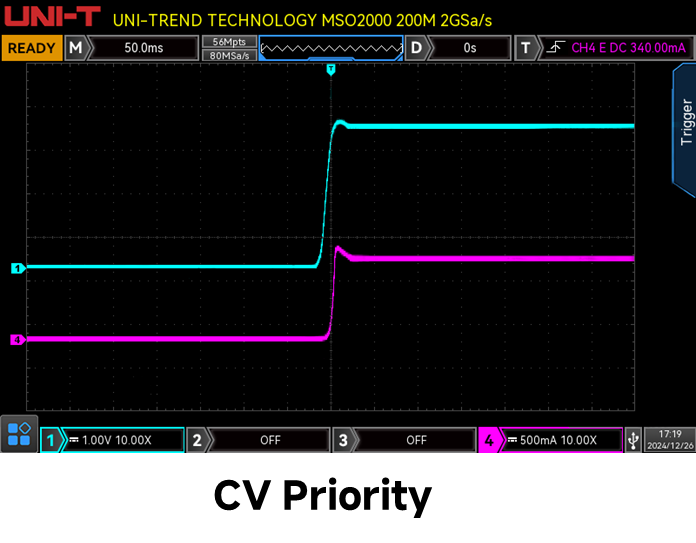

CC/CV Priority Mode

CV priority mode for fast voltage rise
CC priority mode for improved current overshoot

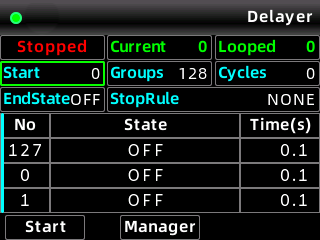

List And Delayer

Can measure external voltage, flexible application

Remote Control

Remote control of the power supply from upper computer or the Web

MODEL

Model Bandwidth Analog Channels Real-time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels

UDP5800-10

 Switching 1 2000W 0 - 800 V 0 - 10 A 1 mV,1 mA

UDP5250-30

 Switching 1 2000W 0 - 250 V 0 - 30 A 1 mV,1 mA

UDP5160-40

 Switching 1 2000W 0 -160 V 0 - 40 A 1 mV,1 mA

UDP5080-100

 Switching 1 2000W 0 -80 V 0 - 100 A 1 mV,1 mA

UDP5040-200

 Switching 1 2000W 0 -40 V 0 - 200 A 1 mV,1 mA

UDP5800-6

 Switching 1 1200W 0 - 800 V 0 - 6 A 1 mV,1 mA

UDP5250-18

 Switching 1 1200W 0 -250 V 0 - 18 A 1 mV,1 mA

UDP5160-24

 Switching 1 1200W 0 -160 V 0 - 24 A 1 mV,1 mA

UDP5080-60

 Switching 1 1200W 0 -80 V 0 - 60 A 1 mV,1 mA

UDP5040-120

 Switching 1 1200W 0 -40 V 0 - 120 A 1 mV,1 mA

UDP5800-4

 Switching 1 800W 0 - 800 V 0 - 4 A 1 mV,1 mA

UDP5250-12

 Switching 1 800W 0 -250 V 0 - 12 A 1 mV,1 mA

UDP5160-16

 Switching 1 800W 0 -160 V 0 - 16 A 1 mV,1 mA

UDP5080-40

 Switching 1 800W 0 -80 V 0 - 40 A 1 mV,1 mA

UDP5040-80

 Switching 1 800W 0 -40 V 0 - 80 A 1 mV,1 mA

UDP5800-2

 Switching 1 400W 0 - 800 V 0 - 2 A 1 mV,1 mA

UDP5250-6

 Switching 1 400W 0 -250 V 0 - 6 A 1 mV,1 mA

UDP5160-8

 Switching 1 400W 0 -160 V 0 - 8 A 1 mV,1 mA

UDP5080-20

 Switching 1 400W 0 -80 V 0 - 20 A 1 mV,1 mA

UDP5040-40

 Switching 1 400W 0 -40 V 0 - 40 A 1 mV,1 mA

Technical Specification

Model UDP5800-10 UDP5250-30 UDP5160-40 UDP5080-100 UDP5040-200 UDP5800-6 UDP5250-18 UDP5160-24 UDP5080-60 UDP5040-120 UDP5800-4 UDP5250-12 UDP5160-16 UDP5080-40 UDP5040-80 UDP5800-2 UDP5250-6 UDP5160-8 UDP5080-20 UDP5040-40
Key Specifications
Type Switching
Channels 1
Output Voltage 0–800 V 0–250 V 0–160 V 0–80 V 0–40 V 0–800 V 0–250 V 0–160 V 0–80 V 0–40 V 0–800 V 0–250 V 0–160 V 0–80 V 0–40 V 0–800 V 0–250 V 0–160 V 0–80 V 0–40 V
Output Current 0–10 A 0–30 A 0–40 A 0–100 A 0–200 A 0–6 A 0–18 A 0–24 A 0–60 A 0–120 A 0–4 A 0–12 A 0–16 A 0–40 A 0–80 A 0–2 A 0–6 A 0–8 A 0–20 A 0–40 A
Output Power 2000 W 2000 W 2000 W 2000 W 2000 W 1200 W 1200 W 1200 W 1200 W 1200 W 800 W 800 W 800 W 800 W 800 W 400 W 400 W 400 W 400 W 400 W
Voltage Resolution 10 mV 10 mV 10 mV 1 mV 1 mV 10 mV 10 mV 10 mV 1 mV 1 mV 10 mV 10 mV 10 mV 1 mV 1 mV 10 mV 10 mV 10 mV 1 mV 1 mV
Current Resolution 1 mA 1 mA 1 mA 10 mA 10 mA 1 mA 1 mA 1 mA 1 mA 10 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA
Technical Details
Ripple And Noise Voltage ≤200 mVpp ≤100 mVpp ≤100 mVpp ≤50 mVpp ≤50 mVpp ≤200 mVpp ≤100 mVpp ≤100 mVpp ≤50 mVpp ≤50 mVpp ≤200 mVpp ≤100 mVpp ≤100 mVpp ≤50 mVpp ≤50 mVpp ≤200 mVpp ≤100 mVpp ≤100 mVpp ≤50 mVpp ≤50 mVpp
Ripple And Noise Current ≤30 mArms ≤60 mArms ≤100 mArms ≤200 mArms ≤400 mArms ≤18 mArms ≤36 mArms ≤60 mArms ≤120 mArms ≤240 mArms ≤6 mArms ≤24 mArms ≤40 mArms ≤80 mArms ≤160 mArms ≤6 mArms ≤12 mArms ≤30 mArms ≤40 mArms ≤80 mArms
Readback Accuracy Voltage ±(0.05% of reading + 0.05% rated)
Readback Accuracy Current ±(0.5% of reading + 0.1% rated)
Load Regulation CV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV
Load Regulation CC ±6.44 mA ±6 mA ±7 mA ±9 mA ±13 mA ±6.44 mA ±6 mA ±7 mA ±9 mA ±13 mA ±6.44 mA ±6 mA ±7 mA ±9 mA ±13 mA ±6.44 mA ±6 mA ±7 mA ±9 mA ±13 mA
Line Regulation CV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV ±403 mV ±26 mV ±20 mV ±10 mV ±6 mV
Line Regulation CC ±6.44 mA ±2.5 mA ±3 mA ±4 mA ±6 mA ±6.44 mA ±2.5 mA ±3 mA ±4 mA ±6 mA ±6.44 mA ±2.5 mA ±3 mA ±4 mA ±6 mA ±6.44 mA ±2.5 mA ±3 mA ±4 mA ±6 mA
Programming Accuracy Voltage ±(0.05% of setting + 0.05% rated)
Programming Accuracy Current ±(0.5% of setting + 0.1% rated)
Features
Remote Sense Yes
Series Parallel Operation Same-model series/parallel
Protection OVP/OCP/OTP/OPP
Multi-Unit Expansion Yes
CC/CV Priority Mode CC/CV priority
Adjustable Slew Rate Yes
List Function Yes
Trigger Function Yes
Web Control Yes
General Information
Display 2.4-inch TFT LCD
Interface USB Device, LAN, external analog
Power AC 85–265 V, 47–63 Hz
Product Net Weight 13 kg 13 kg 13 kg 13 kg 13 kg 7.5 kg 7.5 kg 7.5 kg 7.5 kg 7.5 kg 5.5 kg 5.5 kg 5.5 kg 5.5 kg 5.5 kg 3.0 kg 3.0 kg 3.0 kg 3.0 kg 3.0 kg
Product Dimensions (W×H×D) 427 × 124 × 350 mm 427 × 124 × 350 mm 427 × 124 × 350 mm 427 × 124 × 350 mm 427 × 124 × 350 mm 213 × 124 × 350 mm 213 × 124 × 350 mm 213 × 124 × 350 mm 213 × 124 × 350 mm 213 × 124 × 350 mm 142 × 124 × 350 mm 142 × 124 × 350 mm 142 × 124 × 350 mm 142 × 124 × 350 mm 142 × 124 × 350 mm 71 × 124 × 350 mm 71 × 124 × 350 mm 71 × 124 × 350 mm 71 × 124 × 350 mm 71 × 124 × 350 mm
Standard Quantity Per Carton 1 pc
Certification CE
Warranty 3 Years

DATA SHEET

QUICKSTART GUIDE

MANUAL

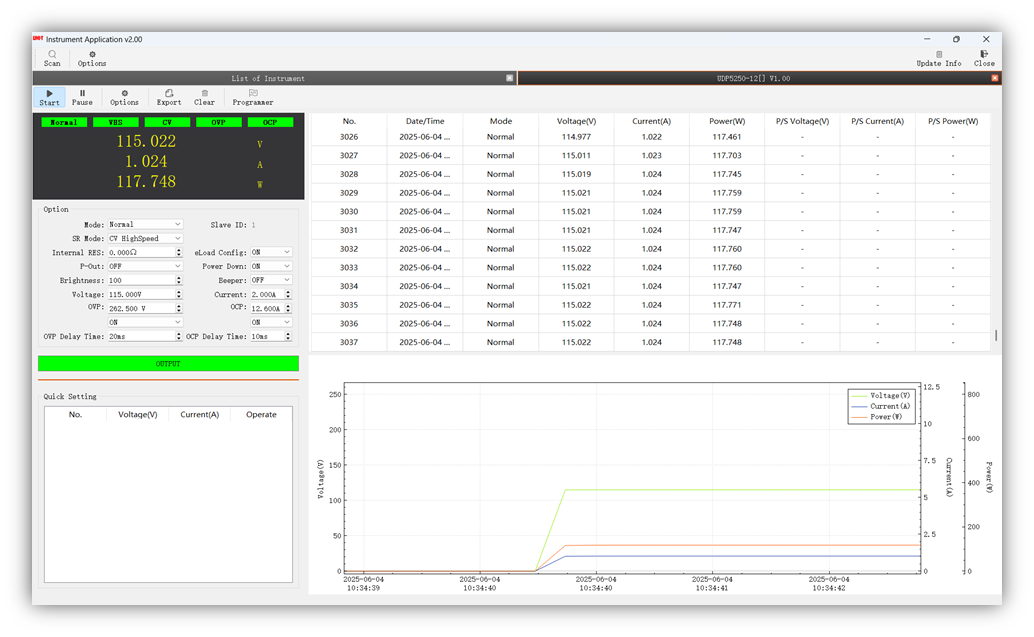

SOFTWARE

Software package

Instrument Application

Current Version: V2.00_1031 | 2025/11/12

Release Notes
