UPO6000HD

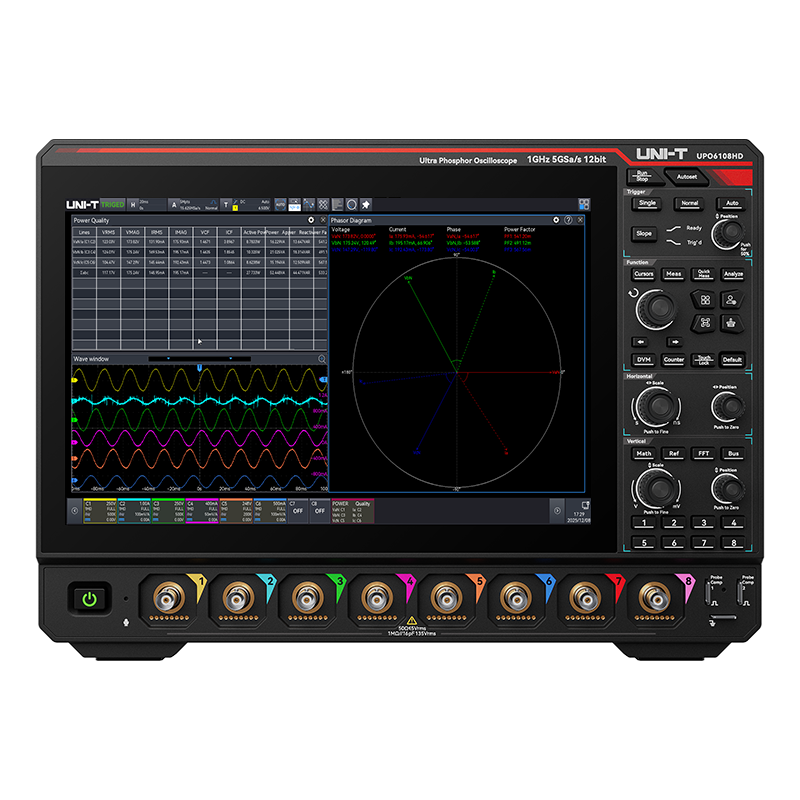

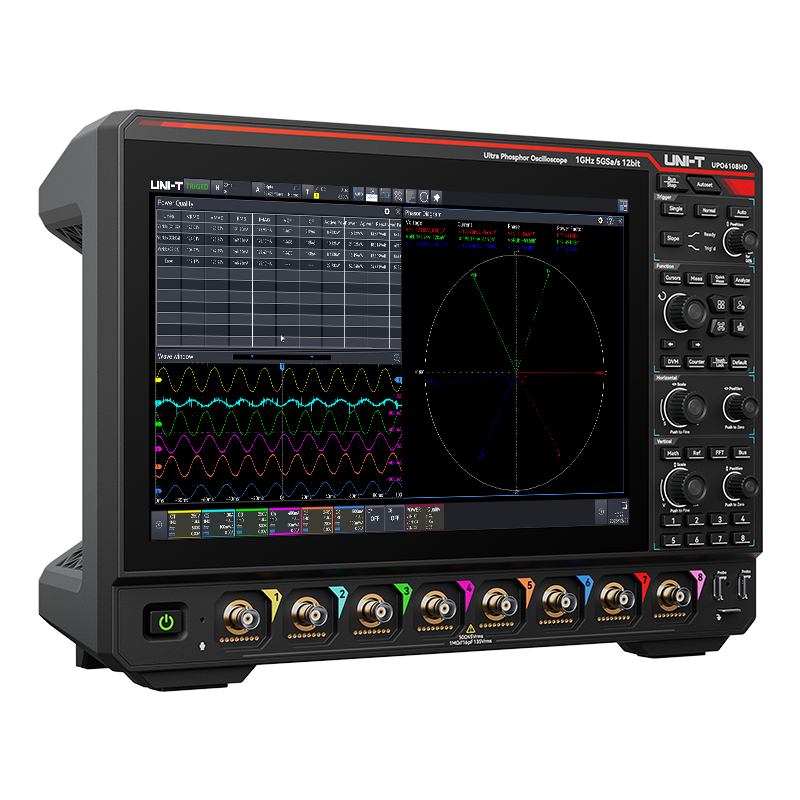

NewThe UPO6000HD series of high-resolution oscilloscopes offers a flexible choice of 8- or 6-channel configurations, featuring 1 GHz bandwidth and a high-precision 12-bit ADC with a sampling rate of up to 5 GSa/s, providing low noise and solid vertical measurement accuracy. The instrument integrates multiple functions, including spectrum analyzer, digital voltmeter, protocol analyzer, and power/three-phase analysis into a single unit, while supporting multi-channel synchronized real-time observation for precise debugging and in-depth analysis of complex systems.
350 MHz~1 GHz
BANDWIDTH
6/8
ANALOG CHANNELS
5GSa/s
REAL-TIME SAMPLE RATE
500Mpts
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES
All-in-One Measurement Platform
Integrating Oscilloscope, Spectrum Analyzer, Protocol Analysis, Timing Analysis, Power Analysis, DVM and Counter into one powerful debugging platform.

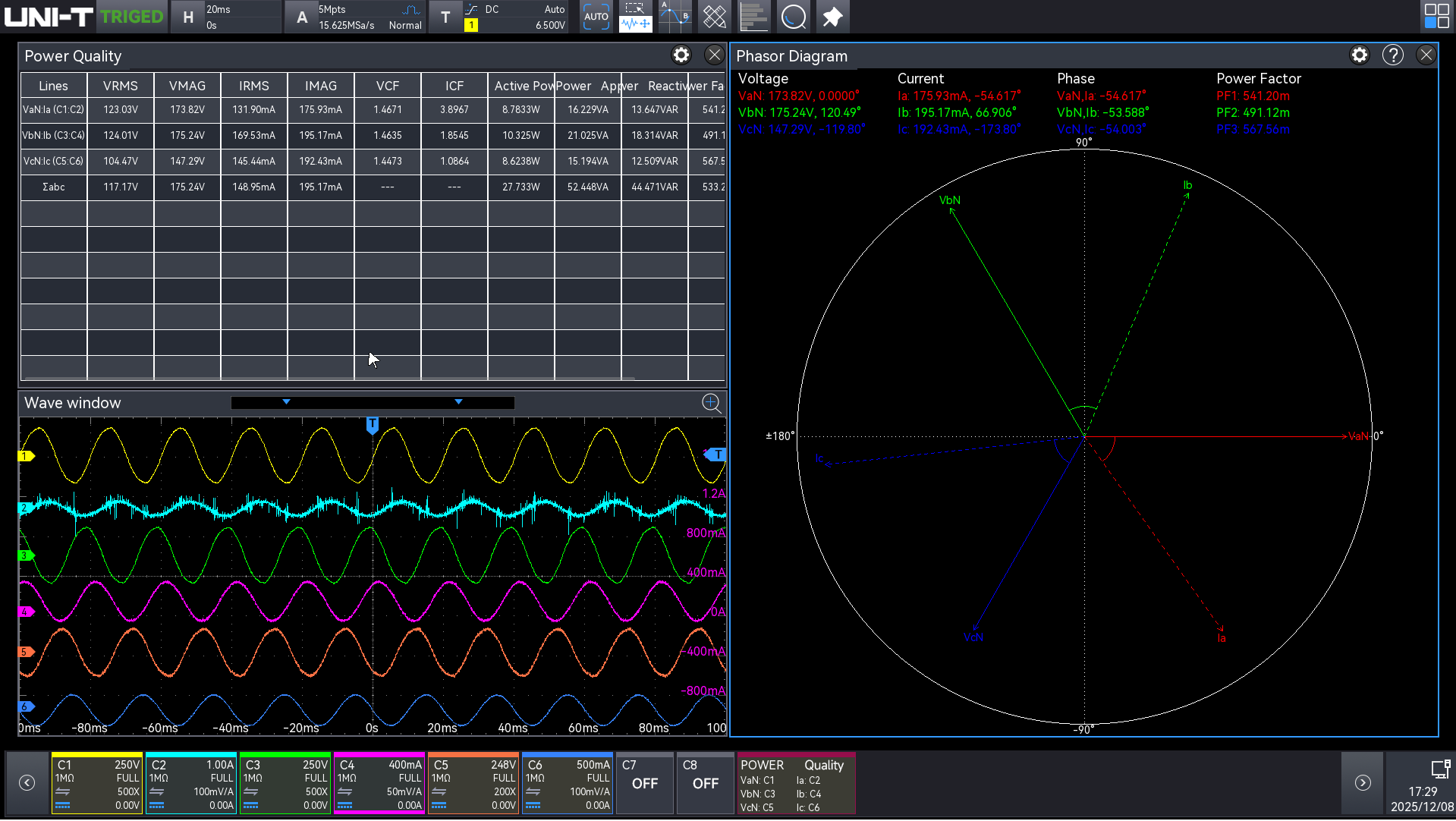

Three‑Phase Power Analysis Solution
-High Precision Synchronous Measurement
Accurate three phase voltage and current acquisition for reliable analysis.
-One Click Key Parameter Analysis
Fast evaluation of power quality, harmonics, efficiency, and DQ0 performance.
-Real Time Vector Visualization
Space vector display accelerates motor drive debugging and optimization.
-Built for Modern Power Applications
Ideal for EV drives, industrial motors, and renewable energy inverters.

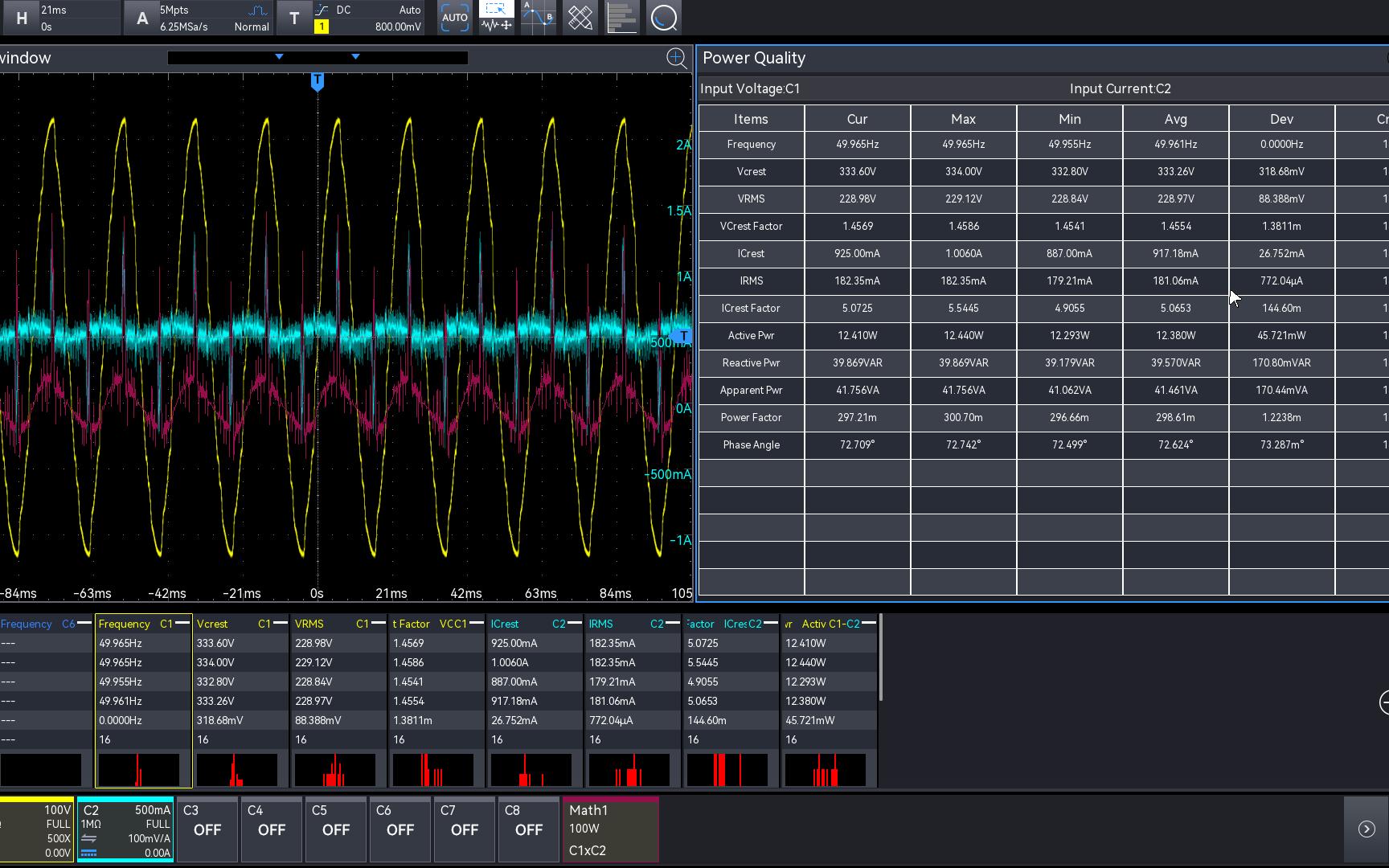

Advanced Power Analysis
Input • Switching • Output
• Power Quality
• Harmonics
• Inrush Current
• Switching Loss
• SOA
• Slew Rate
• RDS(ON)
• Modulation
• Ripple
• Efficiency
• Transient Response
• Turn On/Off Time

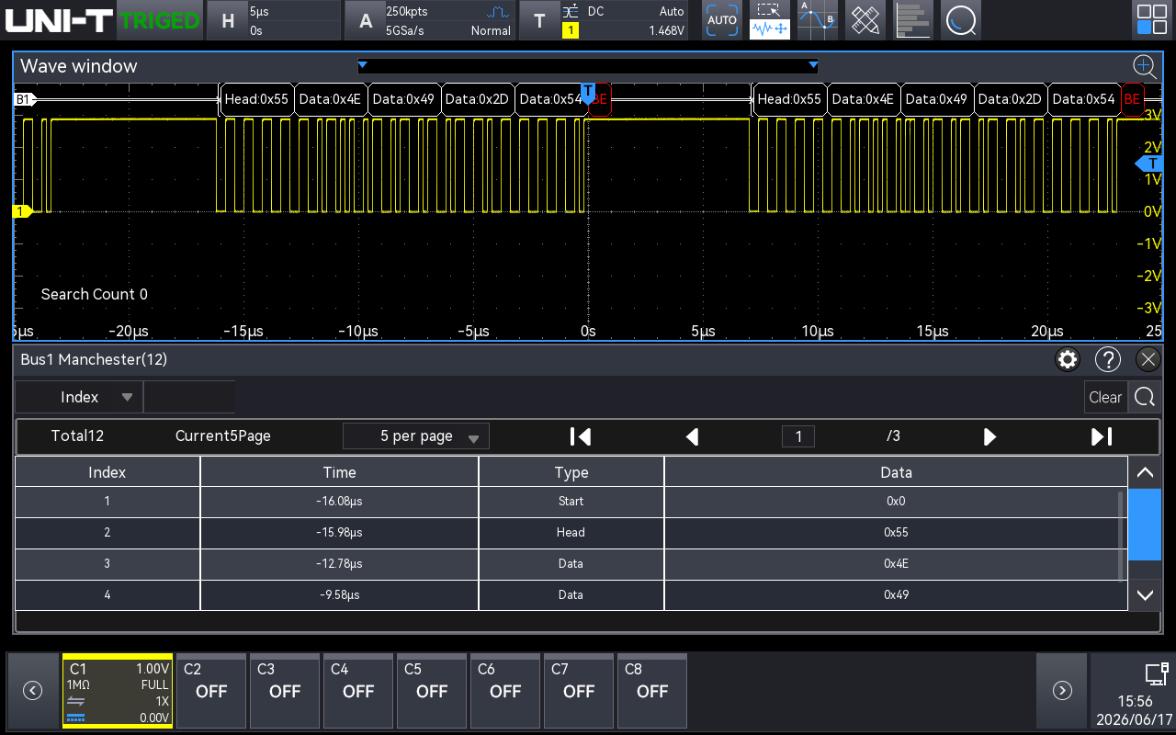

Serial Protocol Analysis
Support triggering, decoding and analysis for 12 serial protocols, helping engineers accelerate development of embedded, automotive and industrial systems.
Dedicated Timing Analysis
Analyze timing relationships, setup and hold margins, bus timing behavior and signal synchronization to quickly identify design bottlenecks.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO6108HD |
1 GHz | 8 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6106HD |
1 GHz | 6 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6058HD |
500 MHz | 8 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6056HD |
500 MHz | 6 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6038HD |
350 MHz | 8 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
 UPO6036HD |
350 MHz | 6 | 5GSa/s | 500Mpts | 1.000,000wfms/s | / |
Technical Specification
| Model | UPO6108HD | UPO6106HD | UPO6058HD | UPO6056HD | UPO6038HD | UPO6036HD |
| Key Specifications | ||||||
| Bandwidth | 1 GHz | 1 GHz | 500 MHz | 500 MHz | 350 MHz | 350 MHz |
| Channels | 8 analog + EXT | 6 analog + EXT | 8 analog + EXT | 6 analog + EXT | 8 analog + EXT | 6 analog + EXT |
| Sample Rate | 5 GSa/s (half-channel); 2.5 GSa/s (all channels) | |||||
| Vertical Resolution | 12-bit; ERes up to 16-bit | |||||
| Max. Memory Depth | 500 Mpts/CH | |||||
| Max. Waveform Capture Rate | 500,000 wfms/s; 1,000,000 wfms/s sequence mode | |||||
| Technical Details | ||||||
|---|---|---|---|---|---|---|
| Rise Time | ≤0.35 ns (typ.) | ≤0.35 ns (typ.) | ≤0.70 ns (typ.) | ≤0.70 ns (typ.) | ≤1.00 ns (typ.) | ≤1.00 ns (typ.) |
| Time Base Scale | 500 ps/div to 1 ks/div | |||||
| Vertical Scale | 500 μV/div to 10 V/div (1 MΩ); 500 μV/div to 1 V/div (50 Ω) | |||||
| Input Impedance | (1 MΩ ±1%) || 16 pF; 50 Ω ±1% | |||||
| Features | ||||||
| Auto Measurements | 56 parameters | |||||
| Protocol Analysis Count | 12 | |||||
| Included Bus Protocols | RS-232/422/485/UART, I²C, SPI | |||||
| Optional Bus Protocols | CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester | |||||
| DVM | 4-digit | |||||
| Frequency Counter | 7-digit | |||||
| Spectrum Analysis | Enhanced FFT, up to 5 Mpts | |||||
| Power Analysis | 12 types (optional); Three-phase power analysis: 5 types (optional) | |||||
| General Information | ||||||
| Display | 12.1-inch HD capacitive touchscreen, 1280×800 | |||||
| Interface | USB Host/Device, Gigabit LAN, HDMI, AUX | |||||
| Power | 100–240 VAC, 50/60 Hz; max 200 W | |||||
| Product Net Weight | 6.55 kg | |||||
| Product Dimensions (W×H×D) | 365 × 264 × 115 mm | |||||
| Standard Quantity Per Carton | 1 pc | |||||
| Certification | CE, cETLus | |||||
| Warranty | 3 years | |||||
